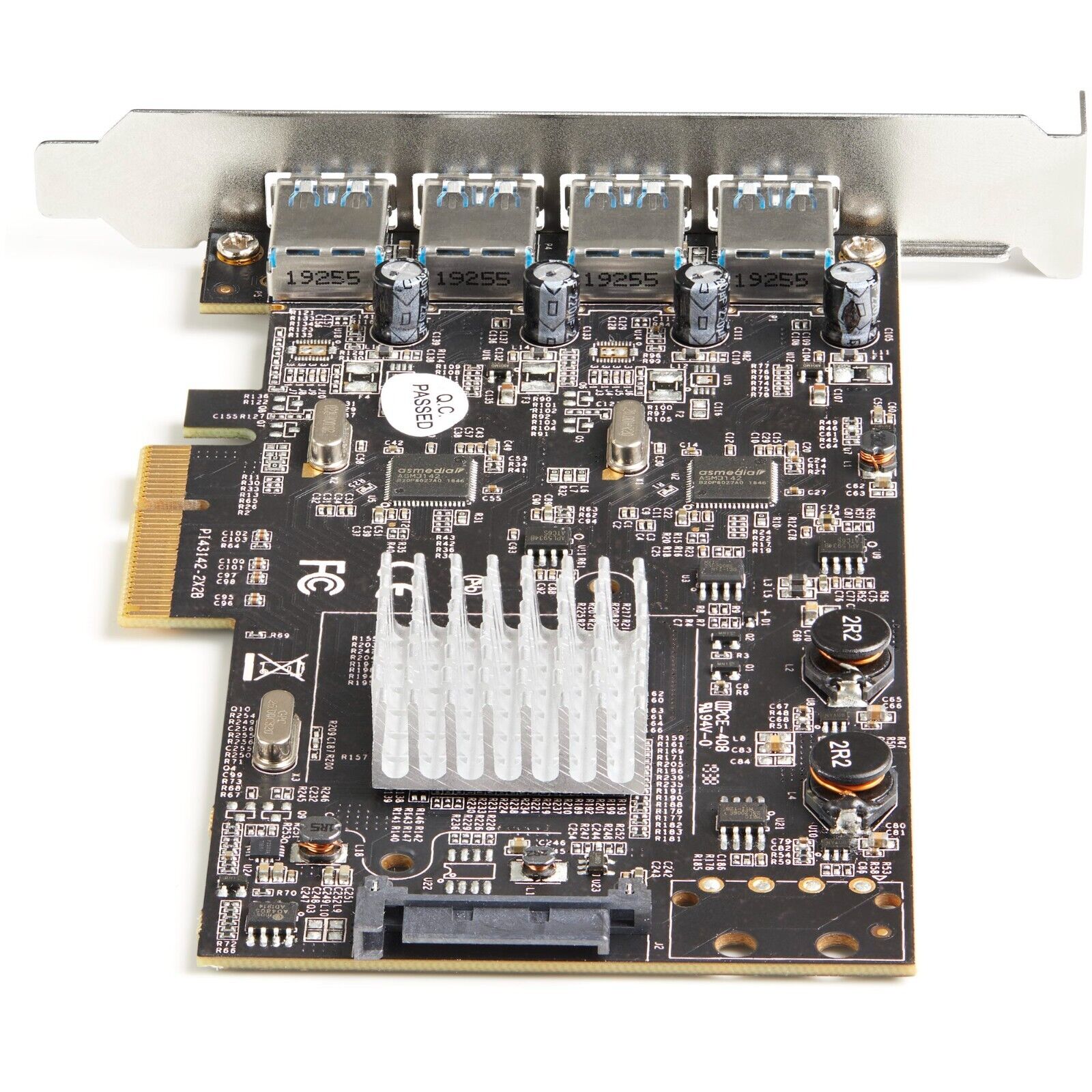

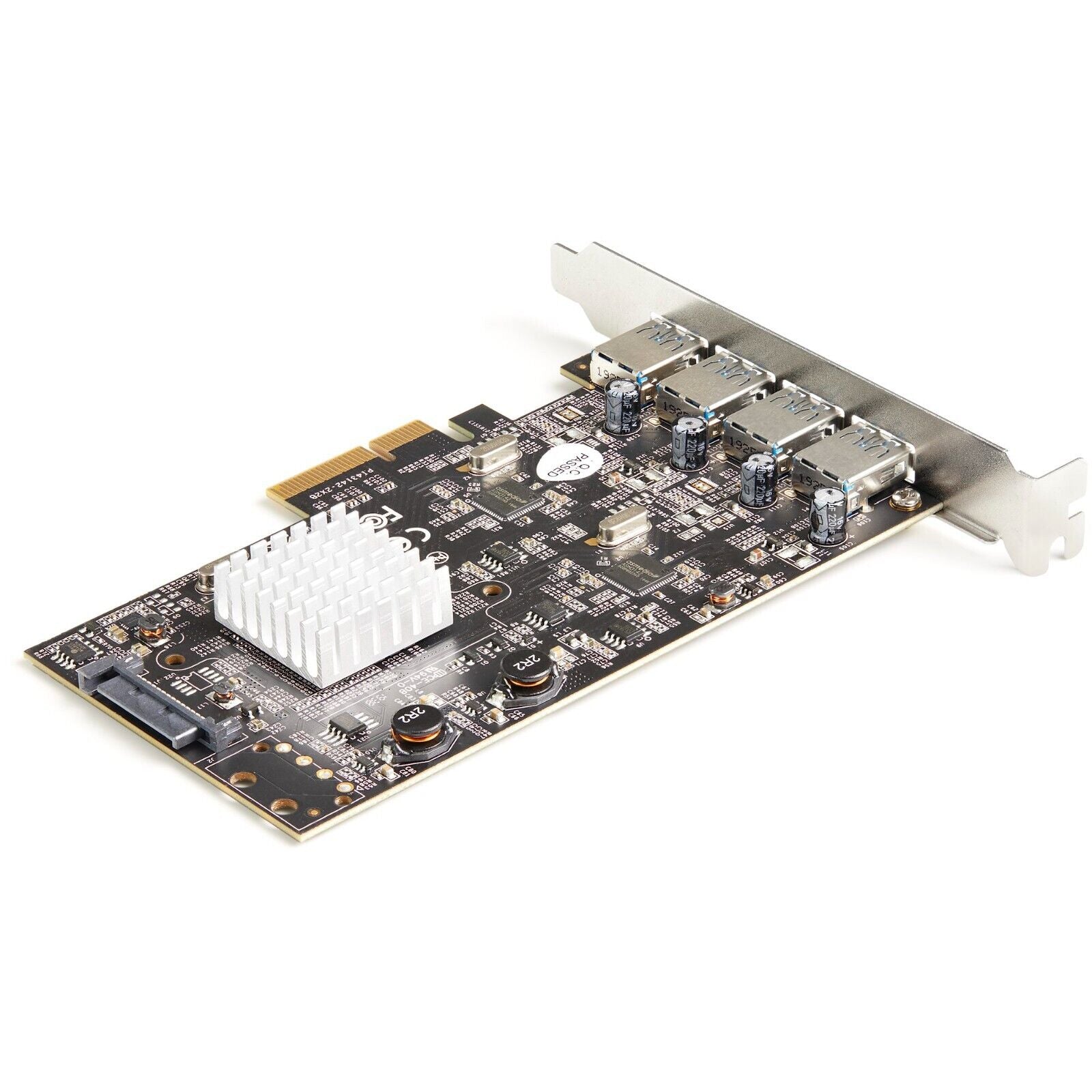

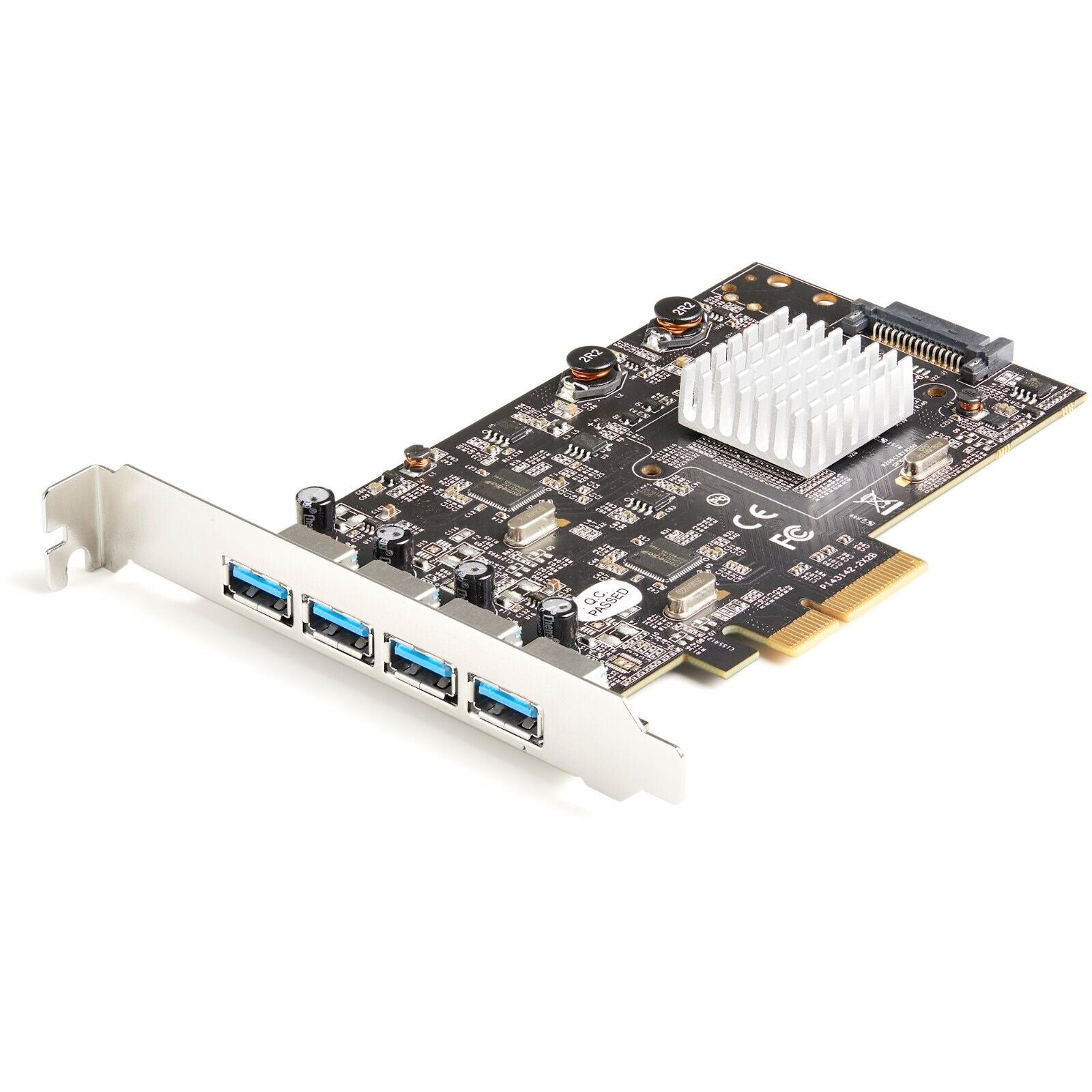

StarTech PEXUSB314A2V2 4 Port USB 3.2 Gen 2 10G PCIe Controller Exp Card Low Pro
Regular price
$139.09 USD
Sale price
$139.09 USD
Regular price
$132.99 USD
Description
Couldn't load pickup availability
StarTech PEXUSB314A2V2 4 Port USB 3.2 Gen 2 10G PCIe Controller Exp Card Low Pro
Current product
Current
Vendor:
Startech
StarTech PEXUSB314A2V2 4 Port USB 3.2 Gen 2 10G PCIe Controller Exp Card Low Pro
Regular price
$139.09 USD
Sale price
$139.09 USD
Regular price
$132.99 USD
Options
Descriptions
4-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2 Type-A PCI Express Expansion Card with 2 Controllers - 4x USB-A - USB PCIe Add-On Adapter Card - Windows/Mac/Linux
USB 3.2 Gen 2 (10 Gbps) | PCI-Express 3.0 | PCIe x4 Slot | USB Type-A
Product ID: PEXUSB314A2V2
..
Warranty Information
Warranty
Lifetime
Connector(s)
Connector Type(s)
1 - PCI Express x4
Internal Ports
1 - SATA Power (15 pin)
External Ports

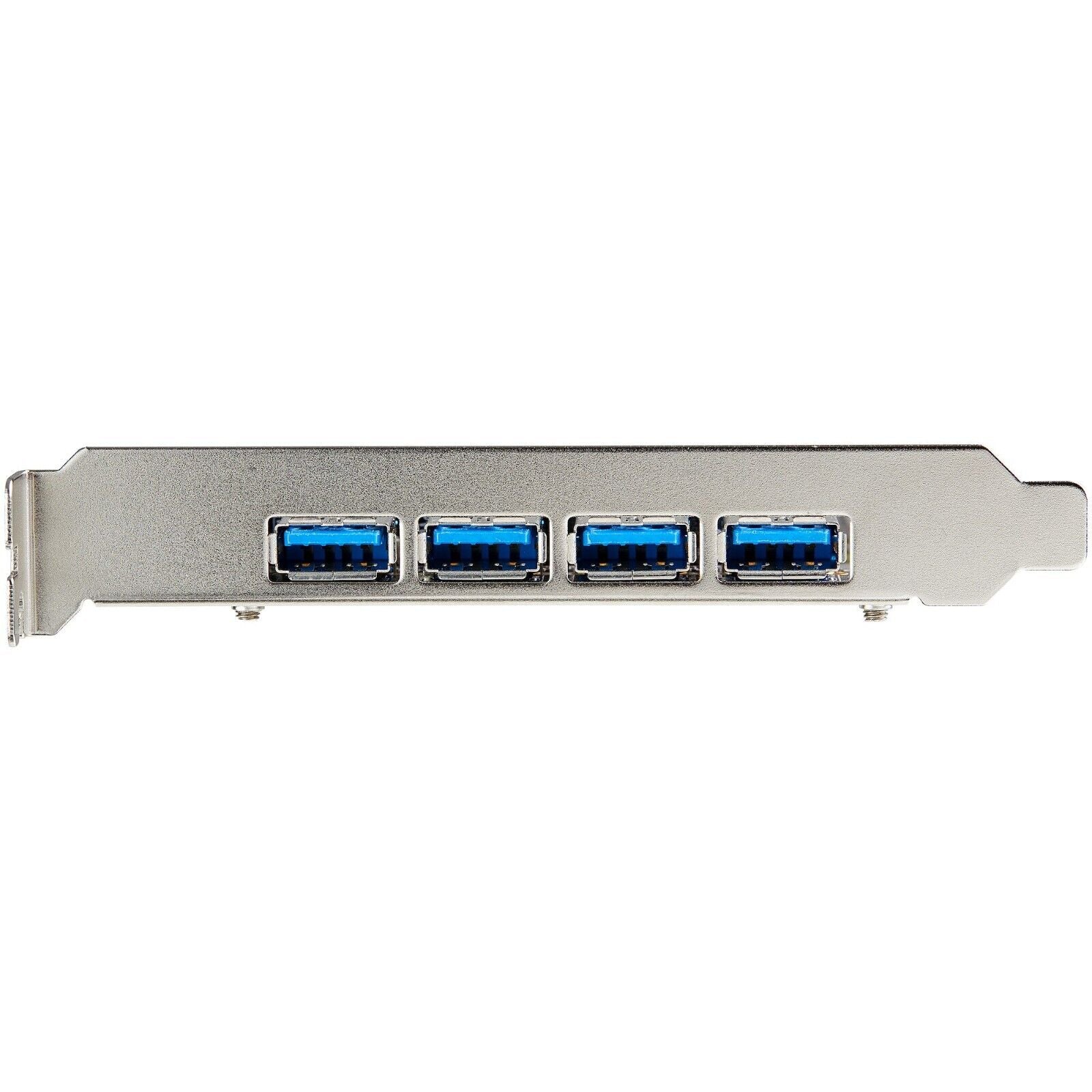

4 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
Environmental
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
20% ~ 80% RH
Hardware
Ports
4
Interface
PCI Express
Bus Type
USB 3.2 Gen 2 10Gbps
Card Type
Standard Profile
Port Style
Integrated on Card
Industry Standards
USB 3.1 Specification Rev. 1.0 USB Specification Rev. 2.0 PCI Express Base Specification Rev. 2.0 Intel xHCI Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0
Chipset ID
ASMedia - ASM3142
ASMedia - ASM1812
Packaging Information
Package Height
1,4 in [3,5 cm]
Package Length
8,3 in [21,0 cm]
Shipping (Package) Weight
5,4 oz [154,0 g]
Package Width
5,7 in [14,5 cm]
Package Quantity
1
Performance
Total USB Power Output
4.5W (5V @ 0.9A) nominal, per port - Ports trip before 2.1A (10.5W) for Over-Current Protection
Maximum Data Transfer Rate
10Gbps per port
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
UASP Support
Yes
MTBF
40,000 Hours
Physical Characteristics
Color
Black
Product Height
0,7 in [1,9 cm]
Product Length
4,7 in [12,0 cm]
Weight of Product
3,0 oz [84,0 g]
Product Width
5,9 in [15,0 cm]
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2012 R2, 2016, 2019, 2022
macOS 10.13 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux® 3.5 and up - LTS Versions only
Windows Server® 2012 R2, 2016, 2019, 2022
macOS 10.13 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux® 3.5 and up - LTS Versions only
Special Notes / Requirements
System and Cable Requirements
PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
Optional SATA power connector
Note
This card can share up to 20Gbps of bandwidth (up to 10Gbps, per port). However, the maximum throughput of the card is limited by the maximum throughput of the PCI-Express interface it's connected through
The available bandwidth (10Gbps) is shared equally between the two ports.
What's in the Box
Included in Package
1 - USB 3.1 Card
1 - Quick-Start Guide
1 - Full Profile Bracket (Installed)
