StarTech PEXUSB3S2EI 4 Port USB 3.0 PCIe Adapter Controller Card Low Profile TAA
Regular price
$47.80 USD
Sale price
$47.80 USD
Regular price
$45.99 USD
Description
StarTech PEXUSB3S2EI 4 Port USB 3.0 PCIe Adapter Controller Card Low Profile TAA
Current product
Current
Vendor:
Startech
StarTech PEXUSB3S2EI 4 Port USB 3.0 PCIe Adapter Controller Card Low Profile TAA
Regular price
$47.80 USD
Sale price
$47.80 USD
Regular price
$45.99 USD
Options
Descriptions
4 Port PCI Express USB 3.0 Card - 5Gbps - 2 External & 2 Internal - SATA Power - UASP Support - 2x Internal (IDC) Motherboard-Style Headers - TAA
Add front or rear panel USB 3.0 (USB 3.2 Gen 1) ports to your computer case using USB 3.0 (USB 3.2 Gen 1) motherboard-style headers
Product ID: PEXUSB3S2EI
..
Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x1
Internal Ports
1 - SATA Power (15 pin)
1 - IDC (20 pin, USB 3.0, Motherboard Header)
External Ports

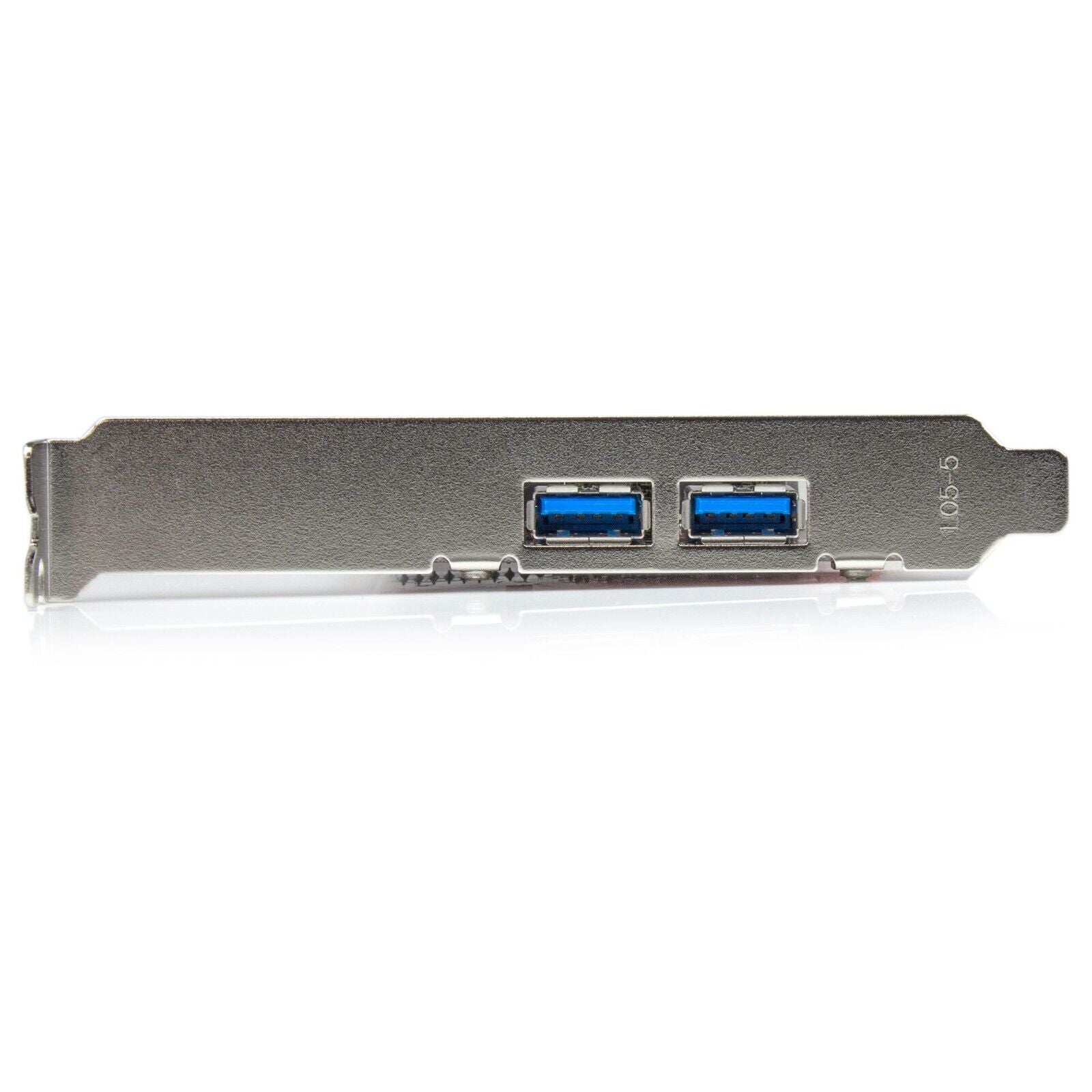

2 - USB Type-A (9 pin, 5 Gbps)
Environmental
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-25°C to 70°C (-13°F to 158°F)
Humidity
20~80% RH
Hardware
Ports
4
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Industry Standards
USB 3.0 Specification Rev. 1.0
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Chipset ID
Renesas/NEC - µPD720201
Packaging Information
Package Height
1.3 in [3.2 cm]
Package Length
6.7 in [17.0 cm]
Shipping (Package) Weight
5.2 oz [146.0 g]
Package Width
5.7 in [14.4 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
5 Gbps
Maximum Cable Length
9.8 ft [3 m]
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
MTBF
1,920,042 Hours
Physical Characteristics
Weight of Product
1.9 oz [53 g]
Color
Red
Material
Steel
Product Length
3.6 in [92 mm]
Product Width
0.7 in [1.8 cm]
Product Height
4.7 in [12 cm]
Software
OS Compatibility
Windows® XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Special Notes / Requirements
System and Cable Requirements
PCI Express enabled computer with an available PCI Express x1 slot or higher (x4, x8, x16)
SATA power connector (recommended, but optional)
Note
The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.

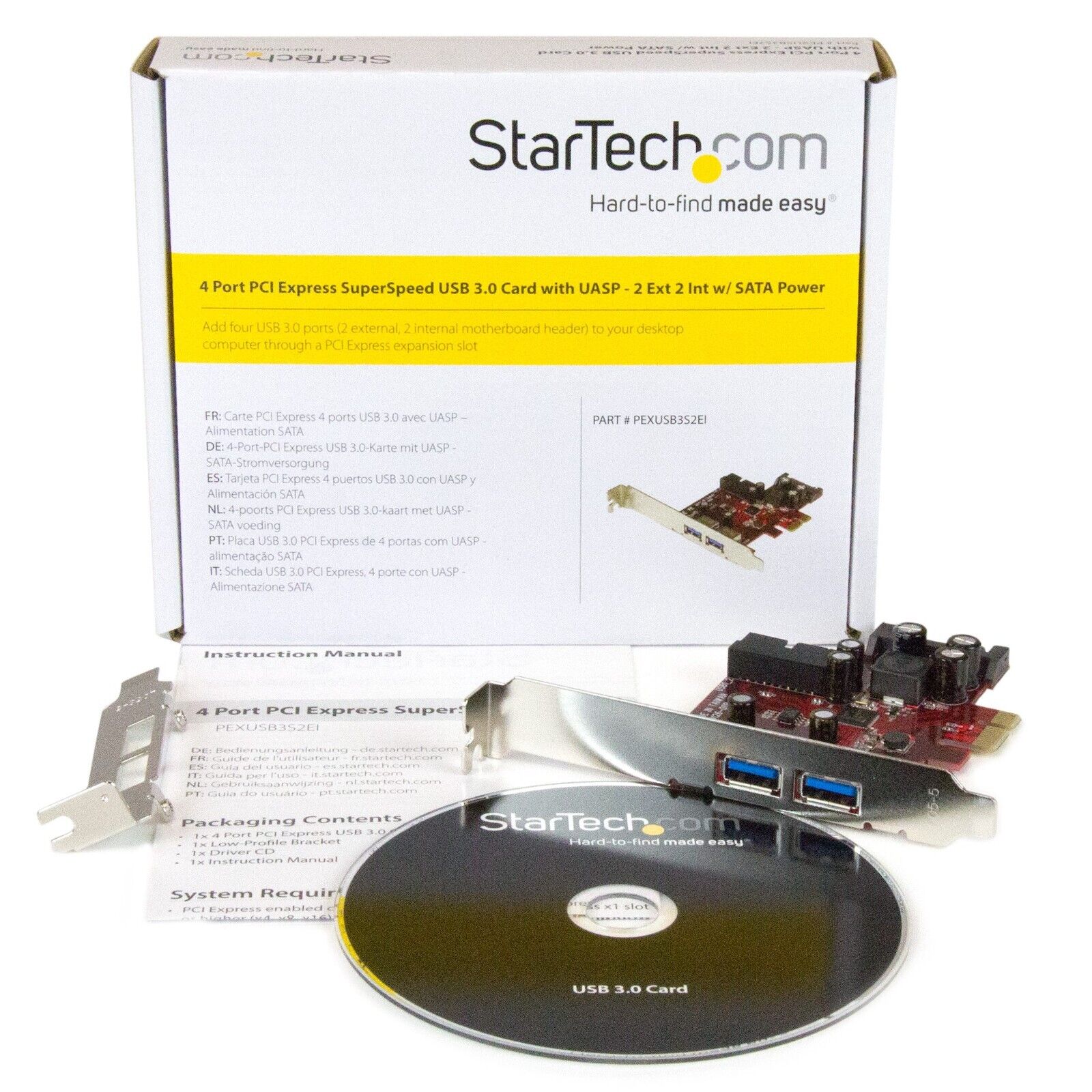

What's in the Box
Included in Package
1 - 4 Port PCI Express USB 3.0 Card - 2 Ext 2 Int
1 - Low-Profile Bracket
1 - Driver CD
1 - Instruction Manual
