Warranty

2 Years

Auto-Negotiation

Yes

Connector Type(s)

1 - PCI Express x1

Internal Ports

1 - SATA Power (15 pin)

External Ports

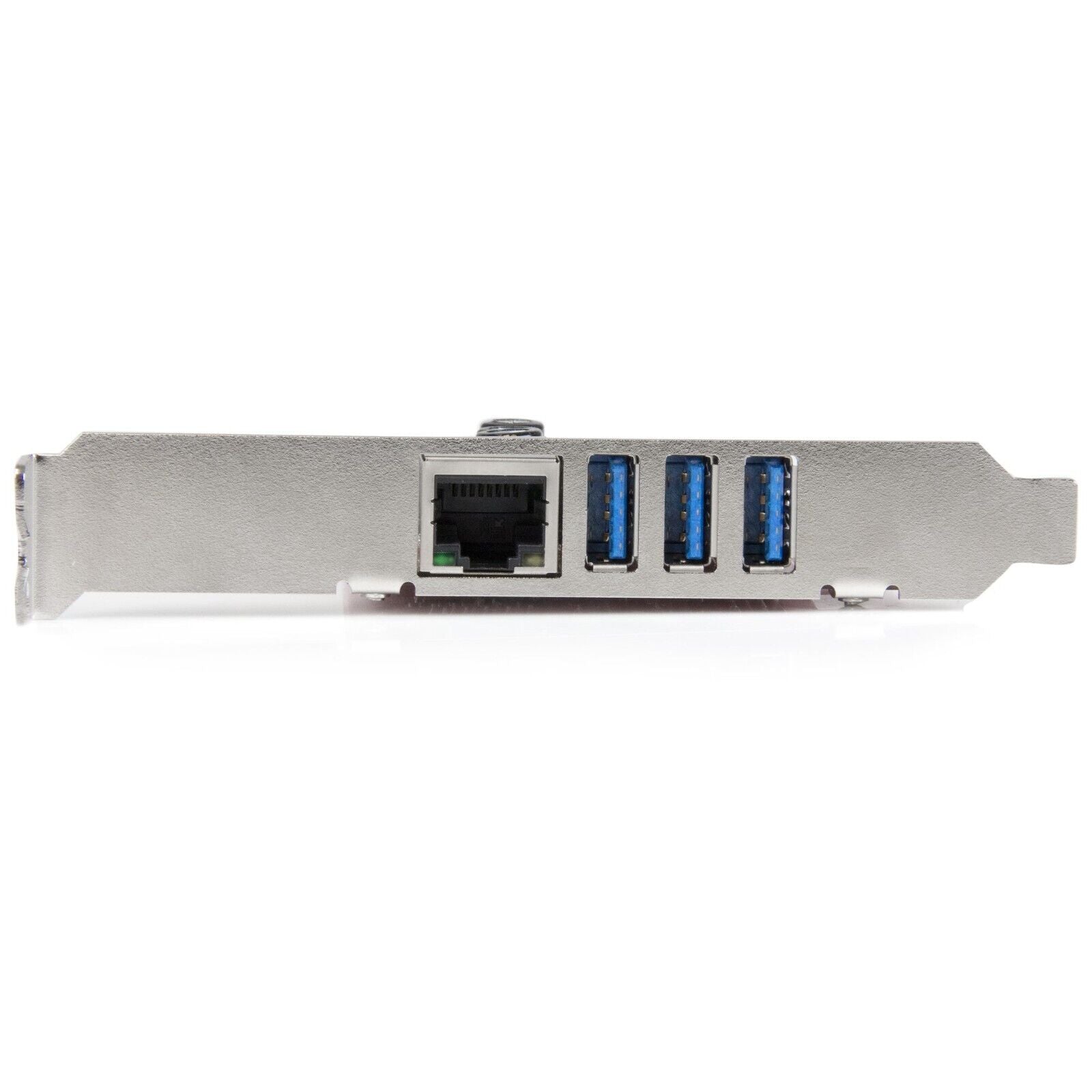

3 - USB Type-A (9 pin, 5 Gbps)

1 - RJ-45

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

Humidity

20~80% RH

Ports

3

Interface

USB 3.2 Gen 1 (5Gbps)

RJ45 (Gigabit Ethernet)

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Port Style

Integrated on Card

Industry Standards

USB 3.0 Specification Rev. 1.0
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T

IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding

Chipset ID

Renesas/NEC - µPD720201
Realtek - RTL8153

LED Indicators

1 - Link (Green)

1 - Activity (Amber)

Package Height

1.4 in [3.6 cm]

Package Length

6.8 in [17.2 cm]

Shipping (Package) Weight

5.4 oz [152.0 g]

Package Width

5.7 in [14.4 cm]

Package Quantity

1

Maximum Data Transfer Rate

5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)

Type and Rate

USB 3.0 - 5 Gbit/s

UASP Support

Yes

Flow Control

Full duplex flow control

Compatible Networks

10/100/1000 Mbps

Auto MDIX

Yes

Full Duplex Support

Yes

Jumbo Frame Support

9K max.

MTBF

1,920,042 Hours

Color

Red

Material

Steel

Product Length

3.0 in [77 mm]

Product Width

0.7 in [1.8 cm]

Product Height

4.7 in [12 cm]

Weight of Product

2.1 oz [60 g]

OS Compatibility

Windows® XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2016, 2019, 2022
Linux 2.6.31 tand up - LTS Versions only

System and Cable Requirements

PCI Express enabled computer with an available PCI Express x1 slot or higher (x4, x8, x16)

SATA power connector (recommended, but optional)

Note

The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.

UASP (USB Attached SCSI Protocol), is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid-state drive.

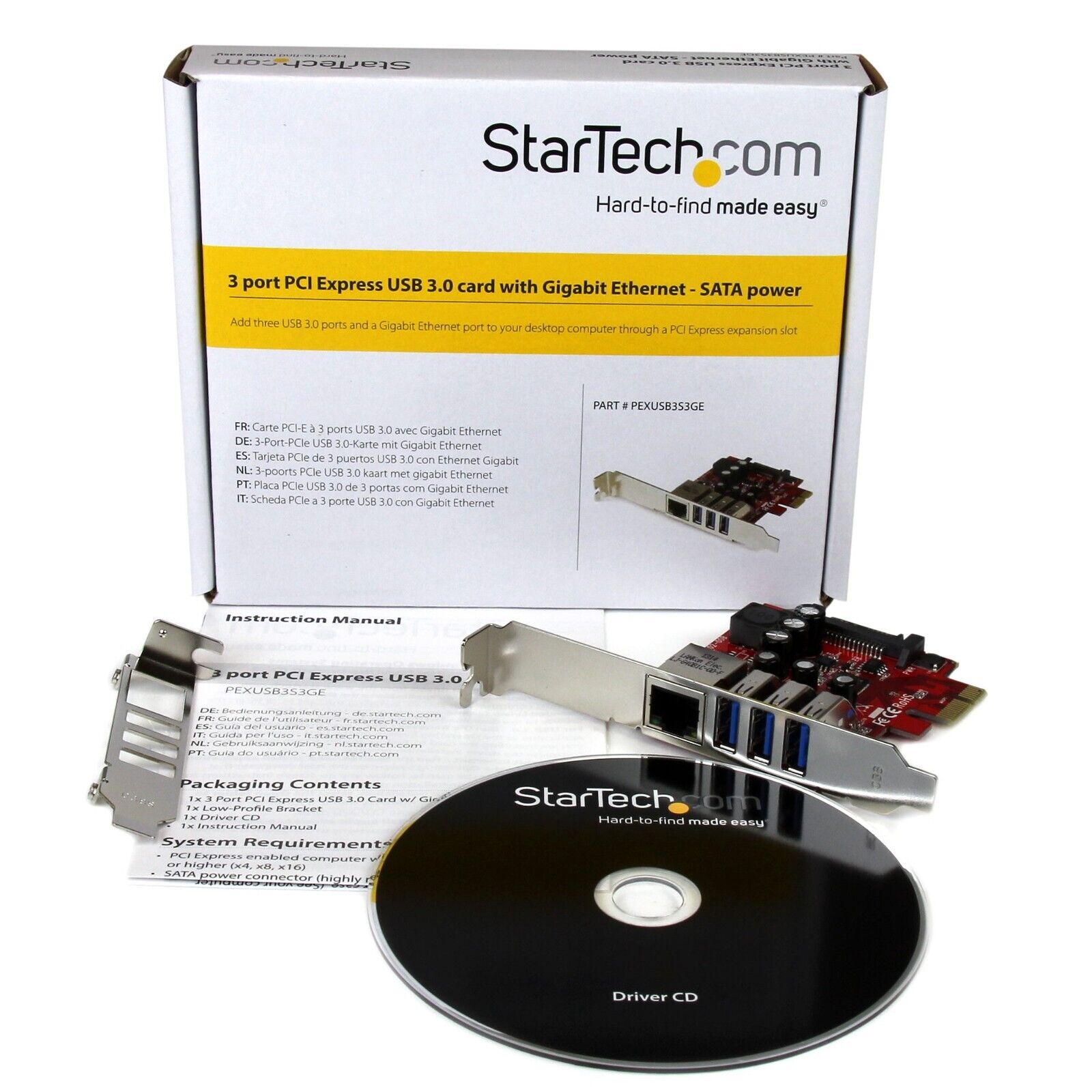

Included in Package

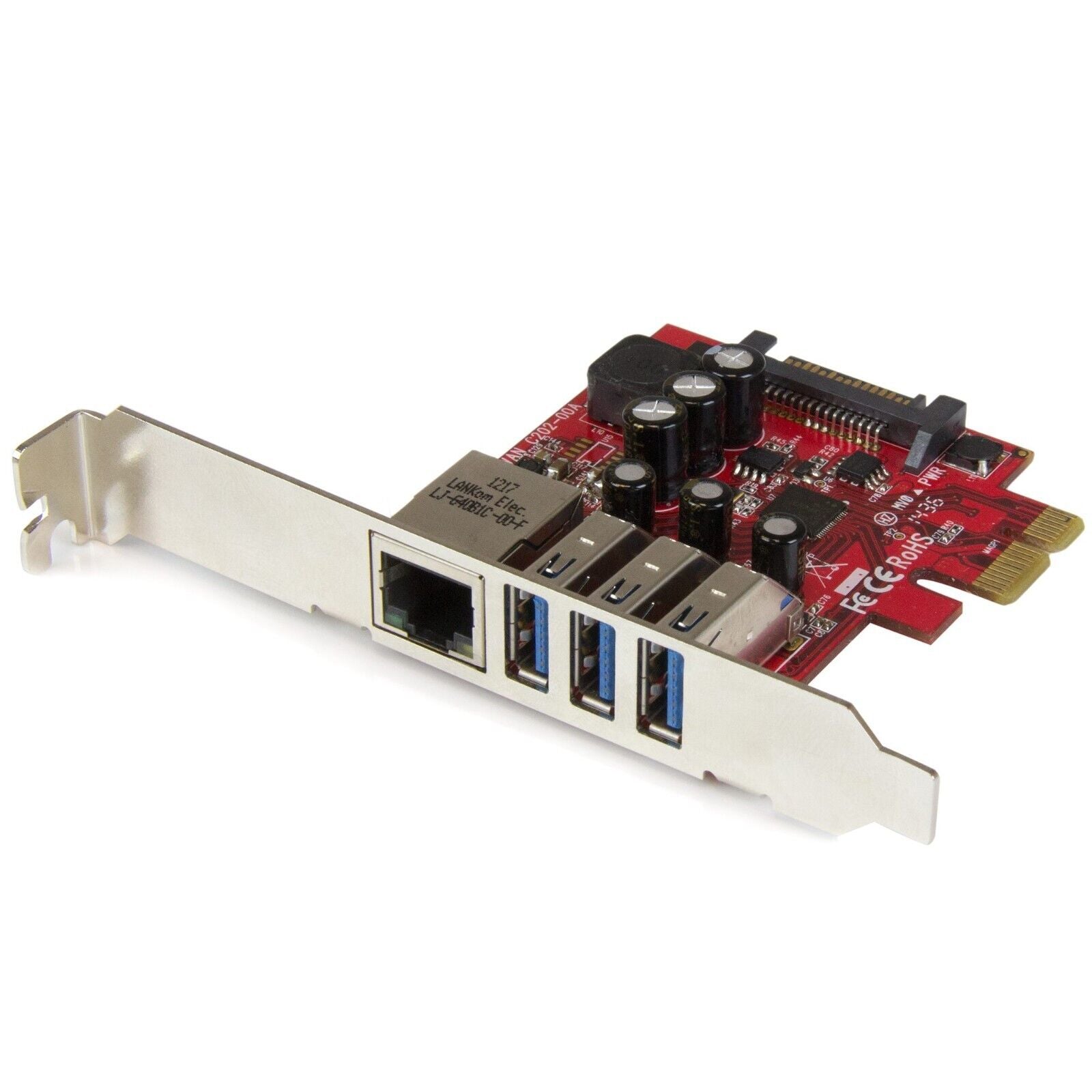

1 - 3 Port PCI Express USB 3.0 Card w/ Gigabit Ethernet

1 - Low-Profile Bracket

1 - Driver CD

1 - Instruction Manual
