StarTech PEXUSB3S42V 4 Port USB 3.0 PCIe Card 2 Channels w/ LP4 SATA Power
Current product
Current
Vendor:
Startech
StarTech PEXUSB3S42V 4 Port USB 3.0 PCIe Card 2 Channels w/ LP4 SATA Power
Regular price
$100.76 USD
Sale price
$100.76 USD
Regular price
$92.99 USD
Options
Descriptions

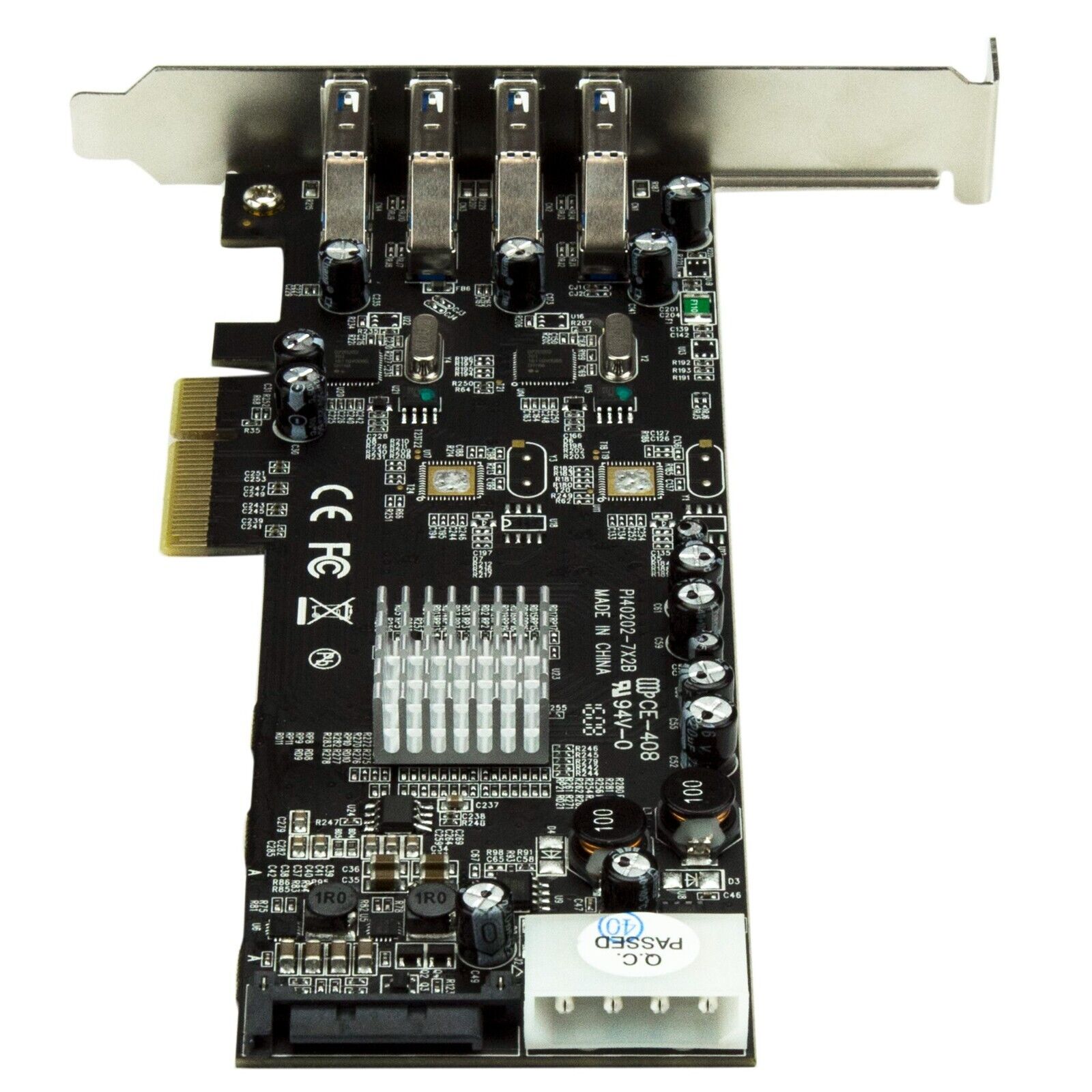

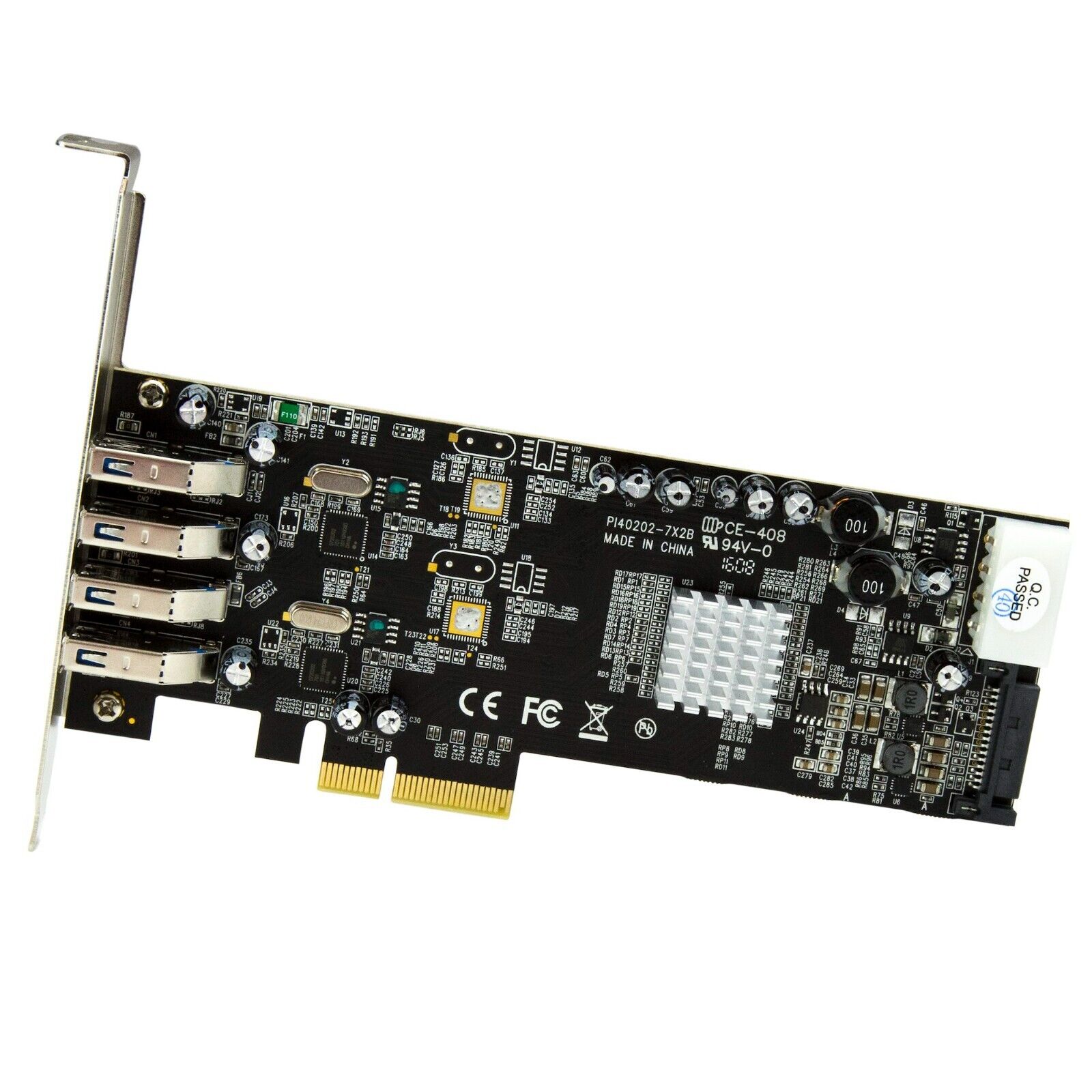

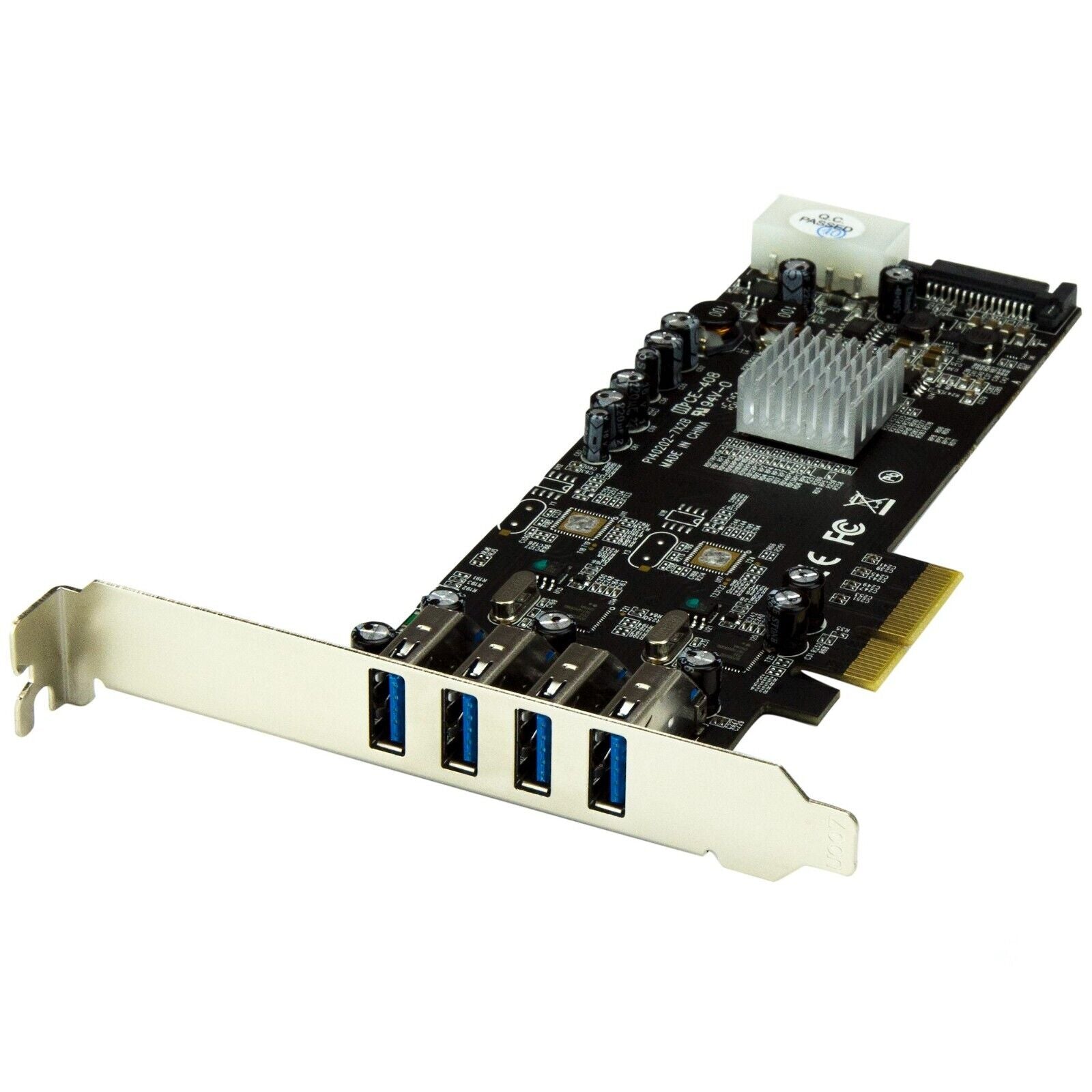

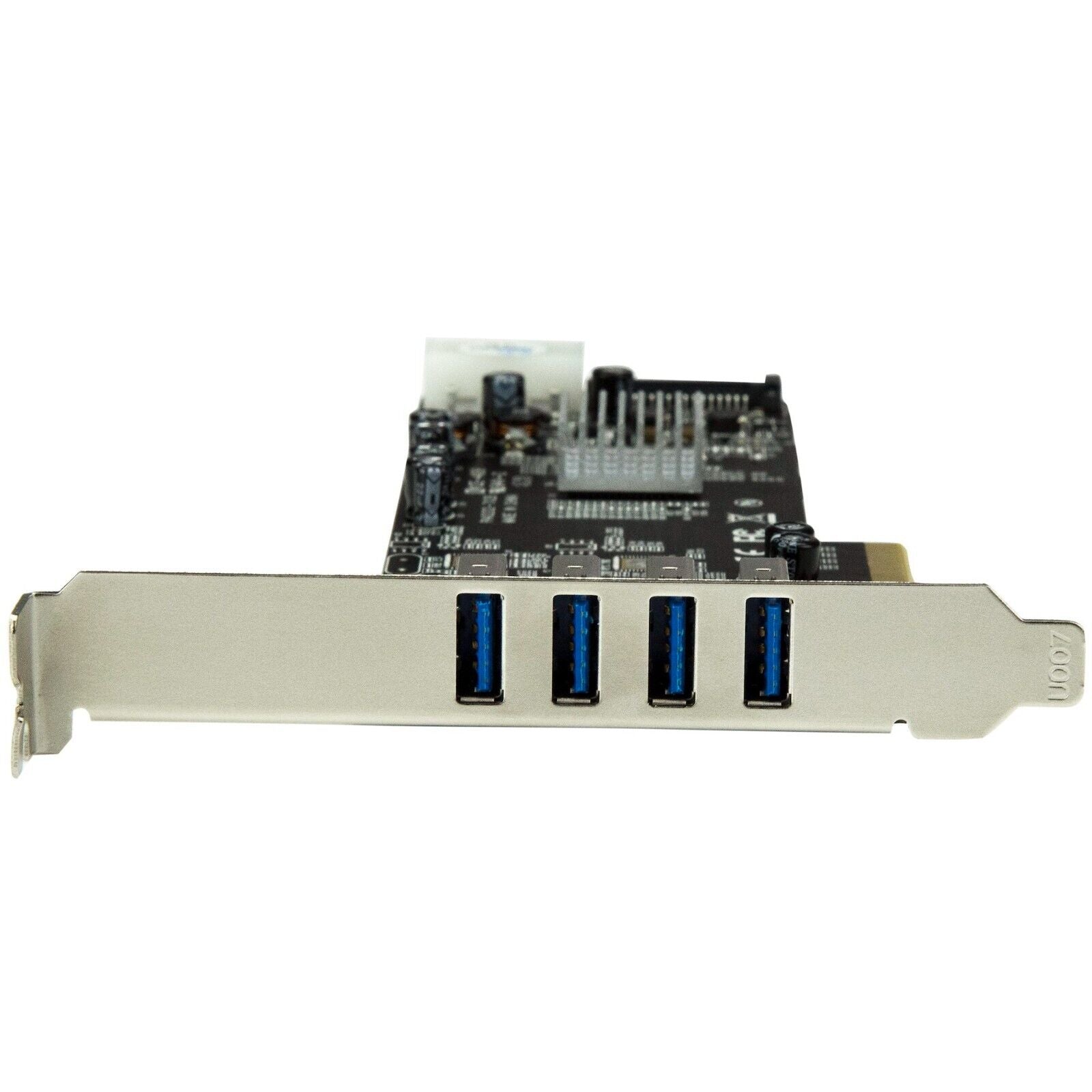

4 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Card Adapter w/ 2 Dedicated 5Gbps Channels - UASP - SATA / LP4 Power
Add four USB 3.0 (USB 3.2 Gen 1) ports with two independent channels, LP/SATA power, and charging support to your PC through a PCI Express slot
Product ID: PEXUSB3S42V
..
Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x4
Internal Ports
1 - SATA Power (15 pin)
1 - LP4 (4 pin; Large Drive Power)
External Ports
4 - USB Type-A (9 pin, 5 Gbps)
Environmental
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
5~85% RH
Hardware
Ports
4
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Industry Standards
USB 3.0 Specification Rev. 1.0
USB Battery Charging Specification Rev. 1.2 (Apple Mode only)
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
USB Battery Charging Specification Rev. 1.2 (Apple Mode only)
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Chipset ID
Renesas/NEC - µPD720202
Packaging Information
Package Height
1.6 in [4.0 cm]
Package Length
8.2 in [20.8 cm]
Package Width
5.8 in [14.8 cm]
Shipping (Package) Weight
6.9 oz [196.0 g]
Performance
Maximum Data Transfer Rate
5Gbps per 2 ports - 10Gbps Total
Maximum Cable Length
9.8 ft [3 m]
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Physical Characteristics
Color
Black
Material
Steel
Product Length
6.6 in [16.7 cm]
Product Width
0.6 in [1.5 cm]
Product Height
4.7 in [12 cm]
Weight of Product
3.2 oz [90 g]
Power
Input Voltage
12V DC
Output Voltage
12V DC
Software
OS Compatibility
Windows® Vista, 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux 2.6.31 tand up - LTS Versions only
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux 2.6.31 tand up - LTS Versions only
Special Notes / Requirements
System and Cable Requirements
Available PCI Express x4 or greater slot

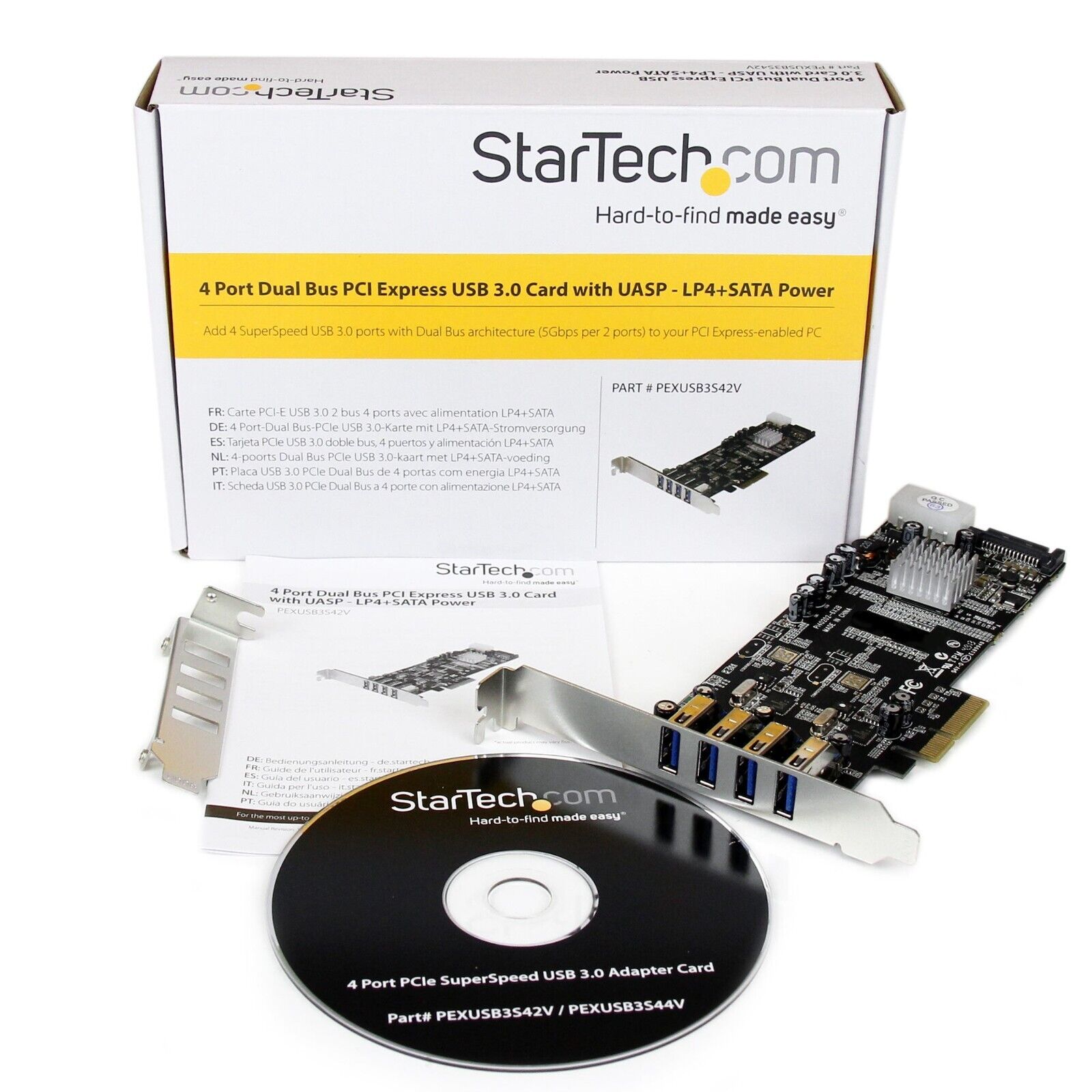

What's in the Box
Included in Package
1 - 4 Port PCIe USB Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
