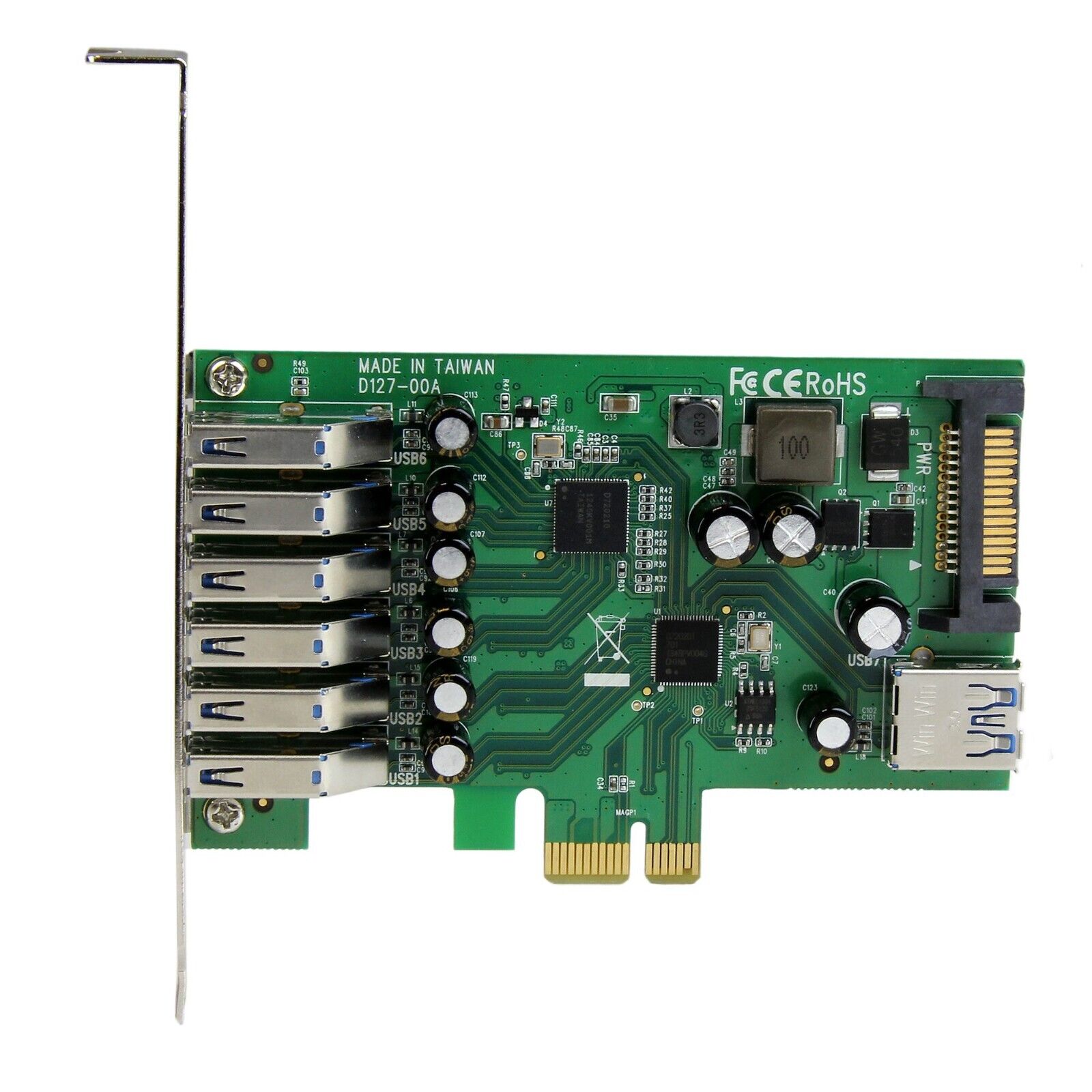

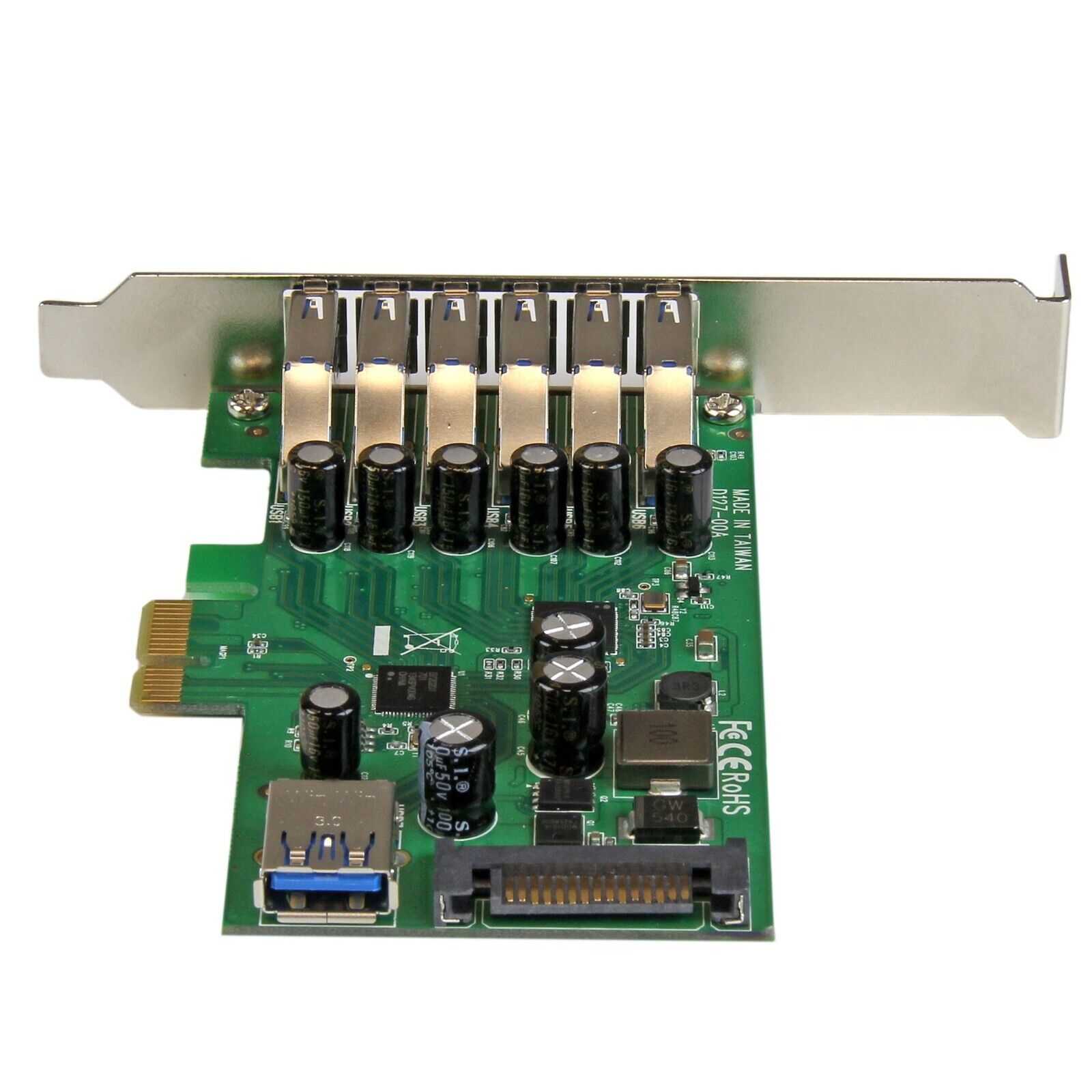

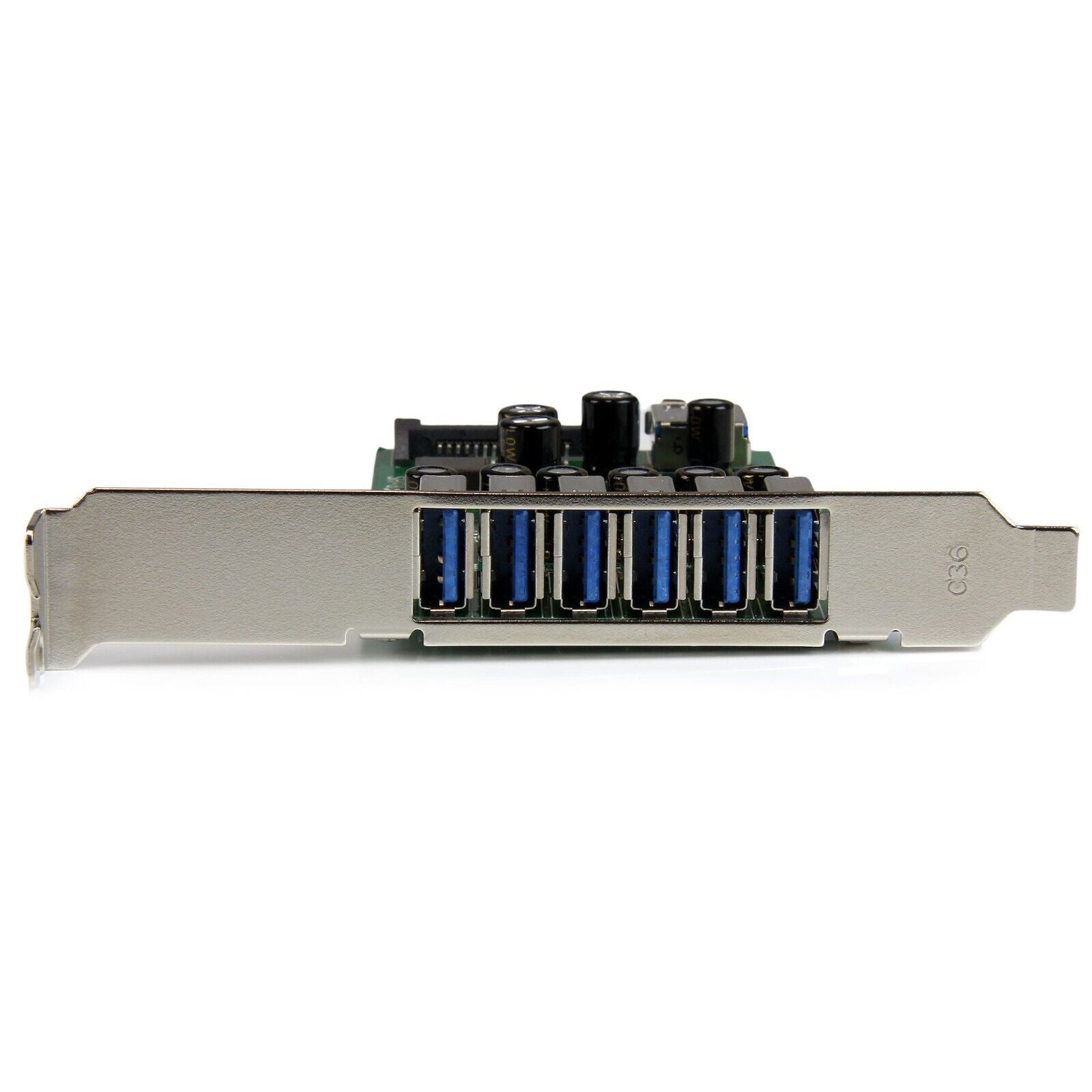

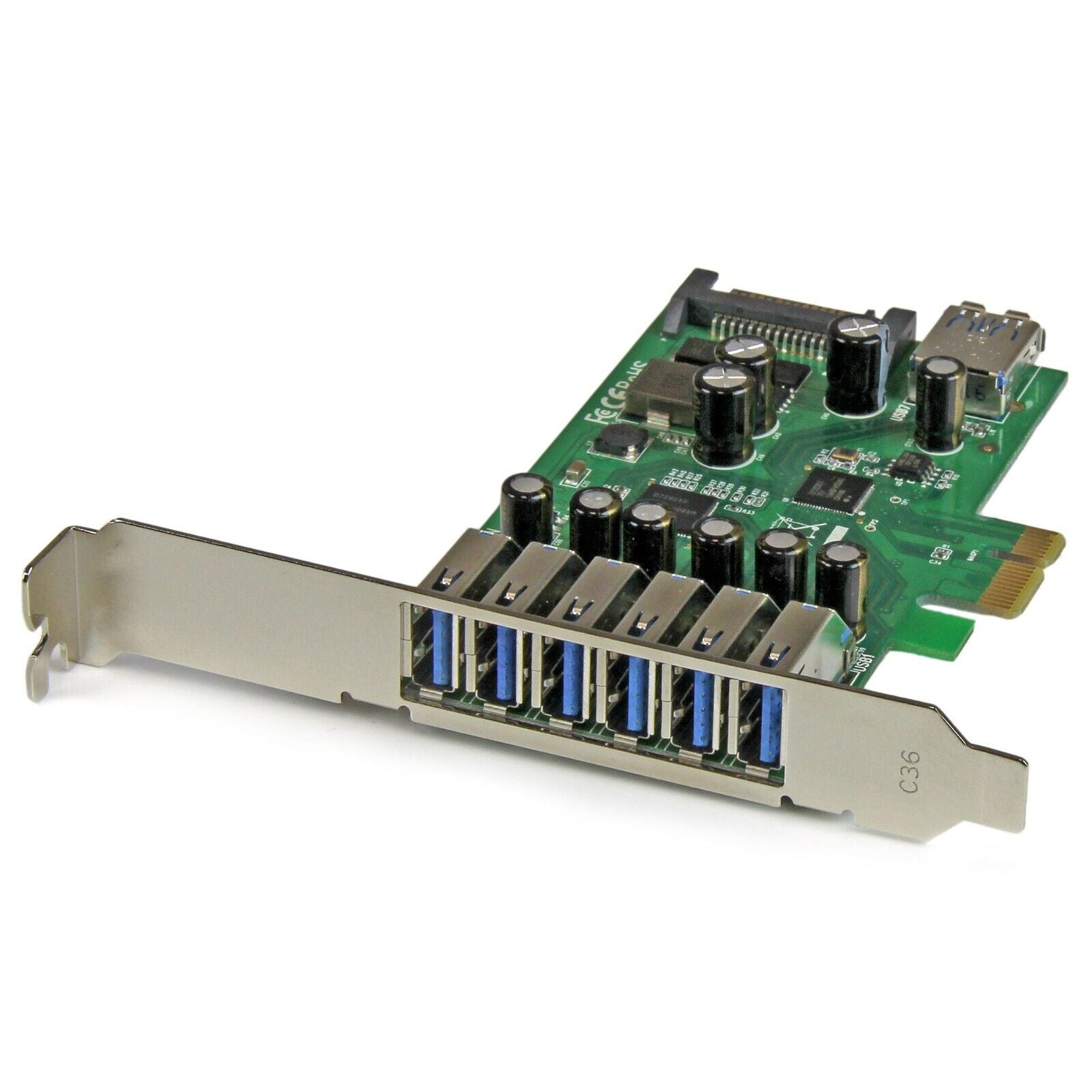

StarTech PEXUSB3S7 7 Port USB 3.0 PCIe Adapter Controller Card Low Profile TAA

$86.49 USD

Shipping calculated at checkout.

In stock: 1

Description

7-Port PCI Express USB 3.0 Card - 5Gbps - Standard and Low-Profile Design - TAA

Get the scalability you need by adding 7 USB 3.0 (USB 3.2 Gen 1) ports with SATA power to your computer

Product ID: PEXUSB3S7

Warranty Information

Warranty

2 Years

Connector(s)

Connector Type(s)

1 - PCI Express x1

Internal Ports

1 - SATA Power (15 pin)

1 - USB Type-A (9 pin, 5 Gbps)

External Ports

6 - USB Type-A (9 pin, 5 Gbps)

Environmental

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

Humidity

20~80% RH

Hardware

Ports

Interface

USB 3.2 Gen 1 (5Gbps)

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Port Style

Integrated on Card

Industry Standards

USB 3.0 Specification Rev. 1.0
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0

Chipset ID

Renesas/NEC - µPD720201
µPD720210

Packaging Information

Package Height

1.3 in [32 mm]

Package Length

6.9 in [17.4 cm]

Shipping (Package) Weight

5.7 oz [162.0 g]

Package Width

5.7 in [14.4 cm]

Performance

Maximum Data Transfer Rate

5 Gbps

Maximum Cable Length

9.8 ft [3 m]

Type and Rate

USB 3.0 - 5 Gbit/s

UASP Support

Yes

MTBF

1,920,042 Hours

Physical Characteristics

Color

Green

Material

Steel

Product Length

4.1 in [10.5 cm]

Product Width

0.6 in [1.5 cm]

Product Height

4.7 in [12 cm]

Weight of Product

2.5 oz [72 g]

Power

Input Voltage

12V DC

Output Voltage

12V DC

Software

OS Compatibility

Windows® XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux 2.6.31 and up - LTS Versions only

Special Notes / Requirements

System and Cable Requirements

PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x4, x8, x16)

SATA power connector (recommended, but optional)

Note

The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.

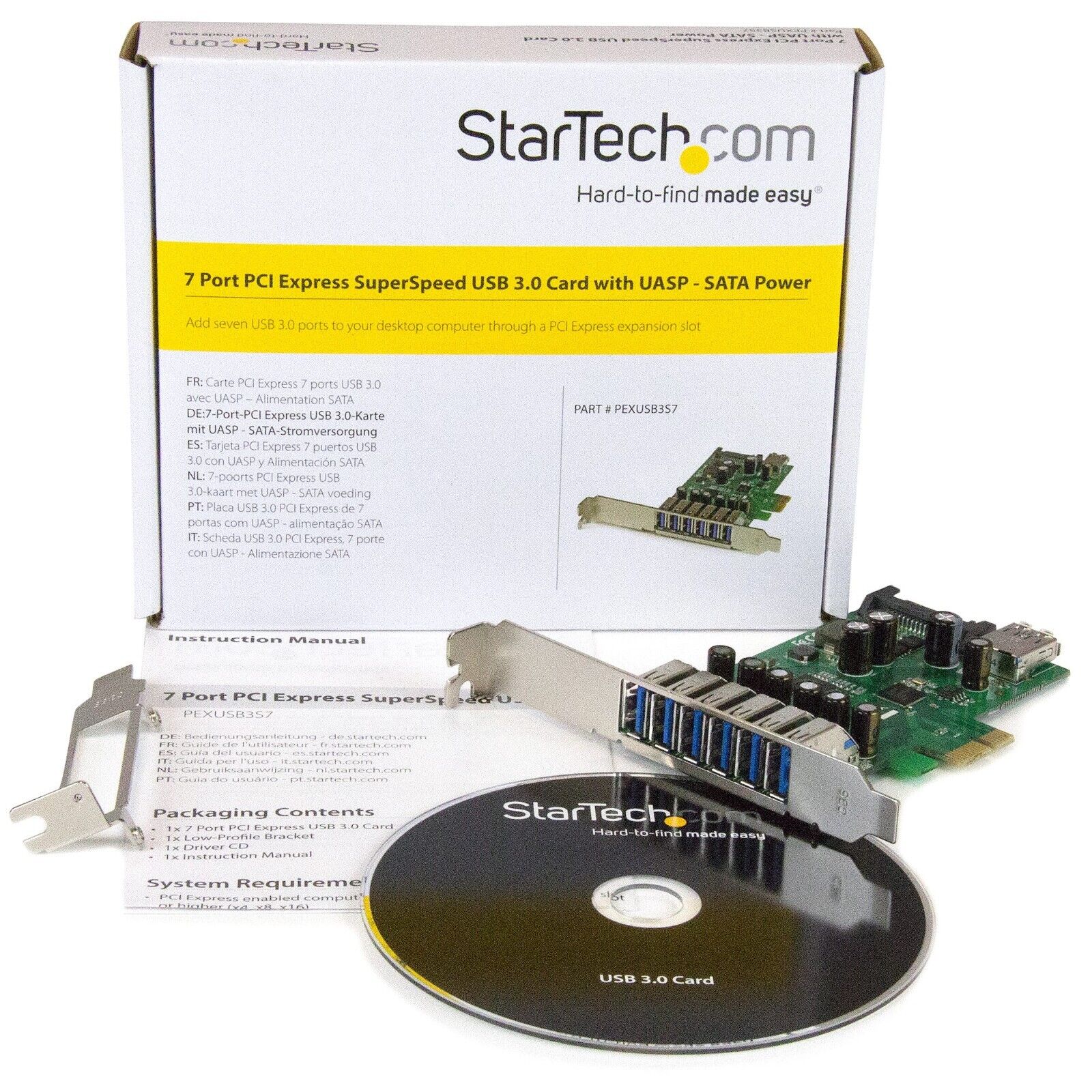

What's in the Box

Included in Package

1 - 7 Port PCI Express USB 3.0 Card

1 - Low-Profile Bracket

1 - Driver CD

1 - Instruction Manual
