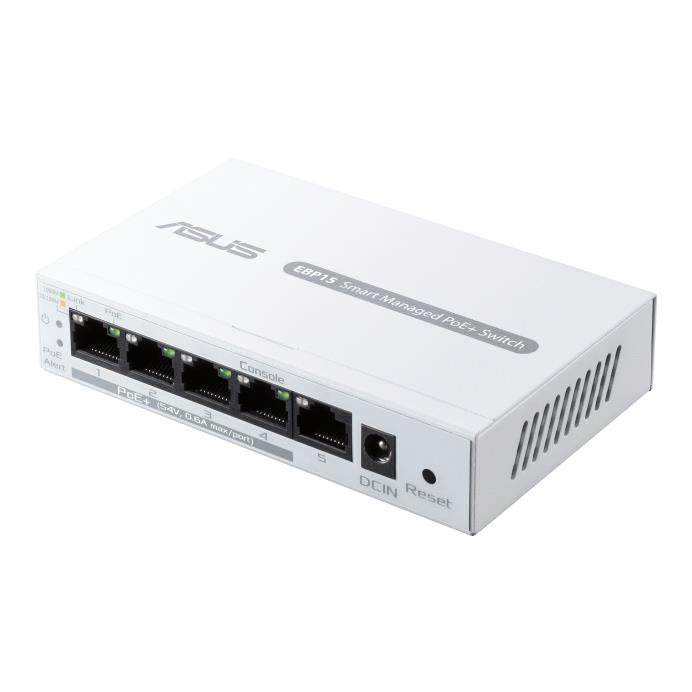

Asus EBP15 5 Port Gbe Smart Network Switch 4x PoE+ 60W 802.3af/at QoS White

ASUS ExpertWiFi EBP15

Port Attributes

• Five 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX

Standard

• IEEE 802.1p
• IEEE 802.1q
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3x
• IPv4

Color: White

PoE Budget: 60 watts

Performance

• MAC Address : Up to 8 K
• Buffer Memory : 4 Mbits
• Switching Capacity : 10Gbps
• Packet Forwarding Rate : 7.44Mpps
• Jumbo Frame : 15KB

LED Indicator

• System power ON/OFF
• PoE Alert
• Link, Speed, activity, and PoE indicators per port built into each RJ-45 port

Power Supply

• AC input: 100V~240V (50~60 Hz)
• DC output: 54V with 1.25A

PoE Ports

• Standard: 802.3 af/at compliant
• PoE Ports: Port 1 - Port 4
• Per Port Max: 30W

Management

• Quality of Service
• IGMP Snooping
• Port Mirroring
• Loop Detection/Prevention
• Web-based GUI
• ExpertWiFi APP (with ExpertWiFi products only)

Environmental

• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -20℃~70℃ (-4℉~158℉)
• Operating Humidity: 10%~95%RH non-condensing
• Storage Humidity: 5%~95%RH non-condensing

Product Category: PoE+ Switch

Software Features

• ExpertWiFi AiMesh Mode (with ExpertWiFi router only): centrally control the connected devices via ASUSWRT/ExpertWiFi app
• Standalone Mode: IGMP Snooping, VLAN, Loop Detection/Prevention, Port Mirroring, Port-based QoS, 802.1p CoS, Firmware Update, PoE priority setting, PoE status
• Security
• SSL/TLS

Package Content

• ExpertWiFi EBP15
• RJ45 Ethernet Cable
• Power Adapter
• Quick Start Guide
• Warranty Card

Product Weight (g): 248g

Product Dimensions: 121 x 75 x 26mm
