CyberPower CP1500PFCRM1U PFC Sinewave UPS Systems - 1500VA/900W, 120 VAC

General Information

• Manufacturer: CyberPower Systems, Inc
• Brand Name: CyberPower
• Manufacturer Part Number: CP1500PFCRM1U
• Product Line: PFC Sinewave
• Product Model: CP1500PFCRM1U
• Product Name: CP1500PFCRM1U PFC Sinewave UPS Systems
• Product Type: Line-interactive UPS

Marketing Information:

• The CP1500PFCRM1U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.
• The CP1500PFCRM1U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card.

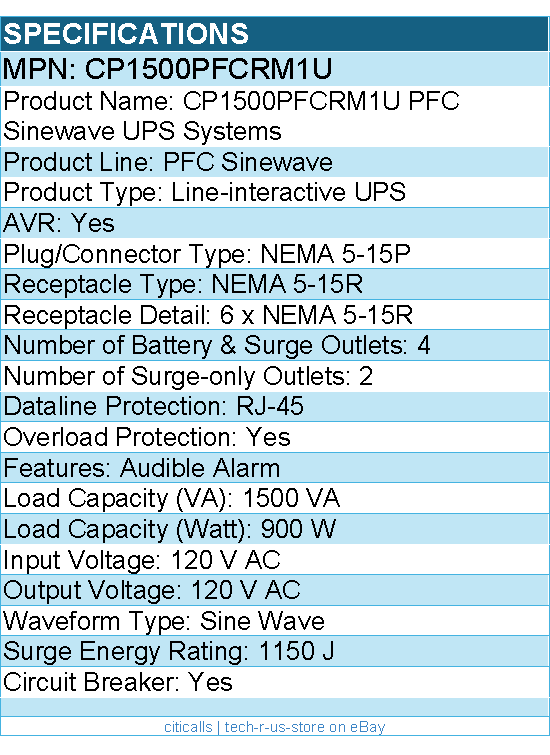

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 6 x NEMA 5-15R
• Number of Battery & Surge Outlets: 4
• Number of Surge-only Outlets: 2
• Dataline Protection: RJ-45
• Overload Protection: Yes
• Cord Length: 10 ft
• Transfer Time: 8 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS Bypass Technology
• Application/Usage:
  • Security System
  • Audio/Video Equipment
  • Workstation
  • Corporate
  • Server
  • Network Device
  • Telecommunication
• Surge Suppression: Yes
• Features: Audible Alarm

Power Description

• Load Capacity (VA): 1500 VA
• Load Capacity (Watt): 900 W
• Input Voltage: 120 V AC
• Input Voltage Range:
• 88 V AC - 144 V AC
• 97 V AC - 144 V AC
• Output Voltage: 120 V AC
• Input Frequency:
• 57 Hz
• 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 1150 J
• Circuit Breaker: Yes
• Output Power Factor: 0.6
• Display & Graphics
• Display: LCD

Management

• Network Management:
  • Dry Contact
  • SNMP/HTTP Remote Monitoring
• Alarm:
  • Battery Mode
  • Low Battery
  • Overload
  • Fault

Controls/Indicators

• Status Indicators:
• LED Indicators:
  • Power On
  • Wiring Fault

Interfaces/Ports

• Serial Port: Yes
• Network (RJ-45): Yes
• USB: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 4
• Battery Characteristics: Sealed
• Battery Chemistry: Lead Acid
• Battery Size: 6V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 1.60 Minute
• Backup/Run Time (Half Load): 10 Minute
• Typical Battery Recharge Time: 8 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Rack Height: 1U
• Form Factor: Rack-mountable

Warranty

• Limited Warranty: 3 Year from CyberPower
