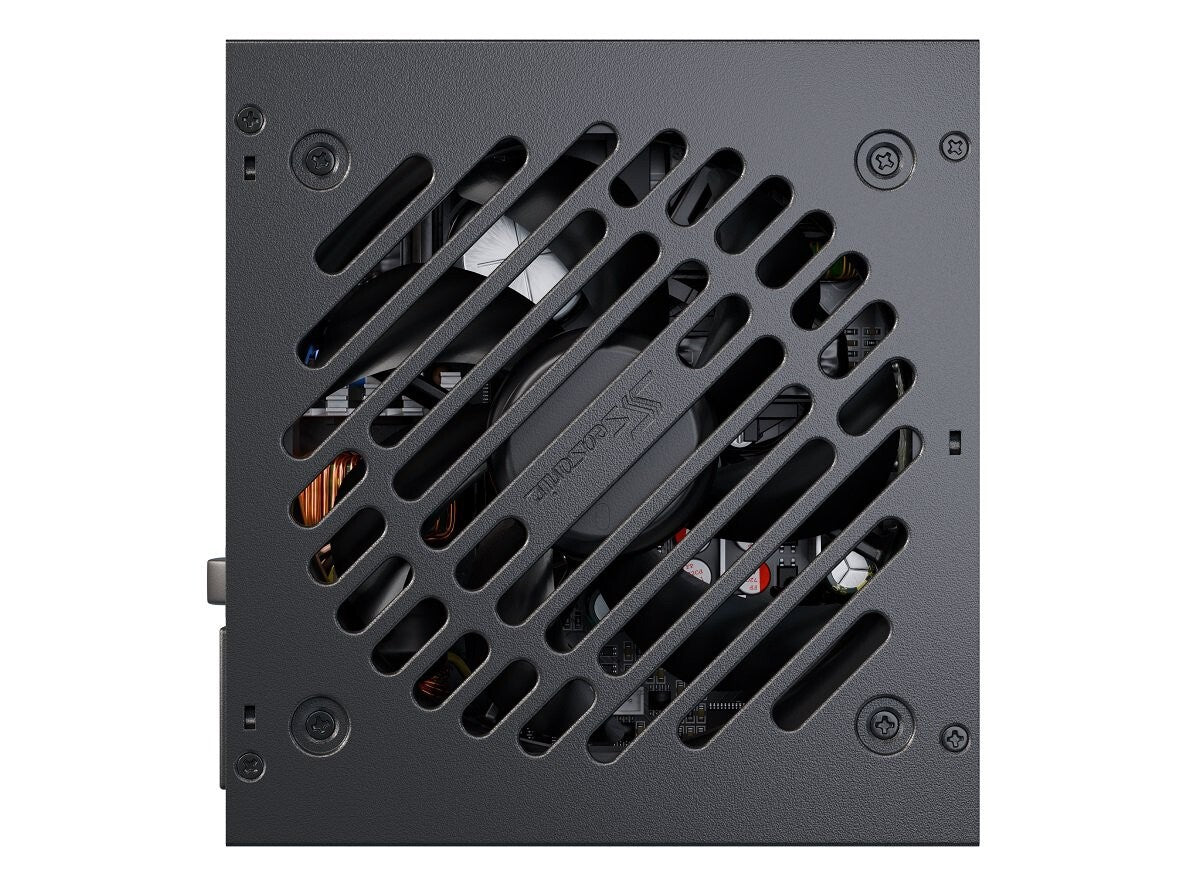

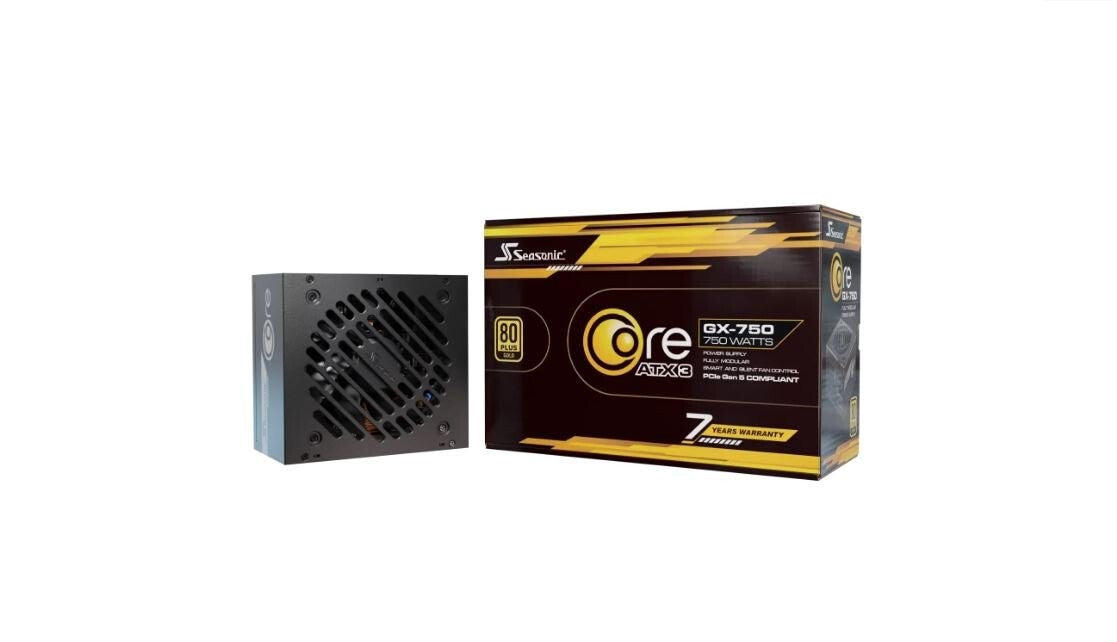

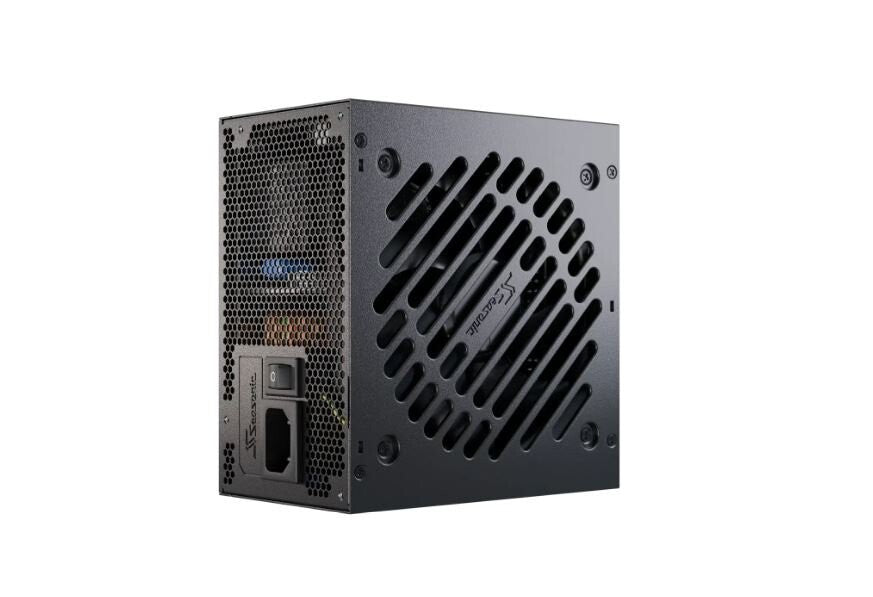

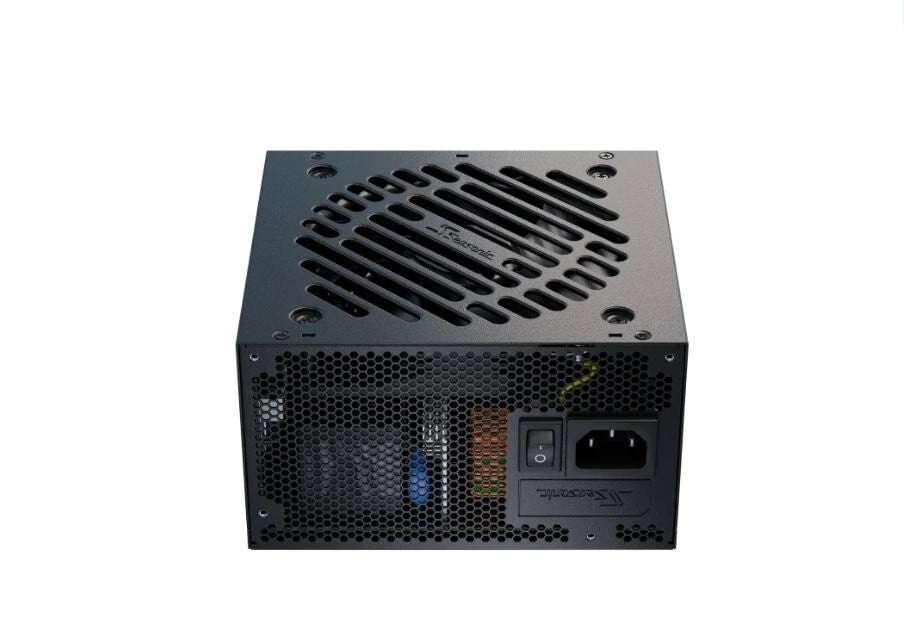

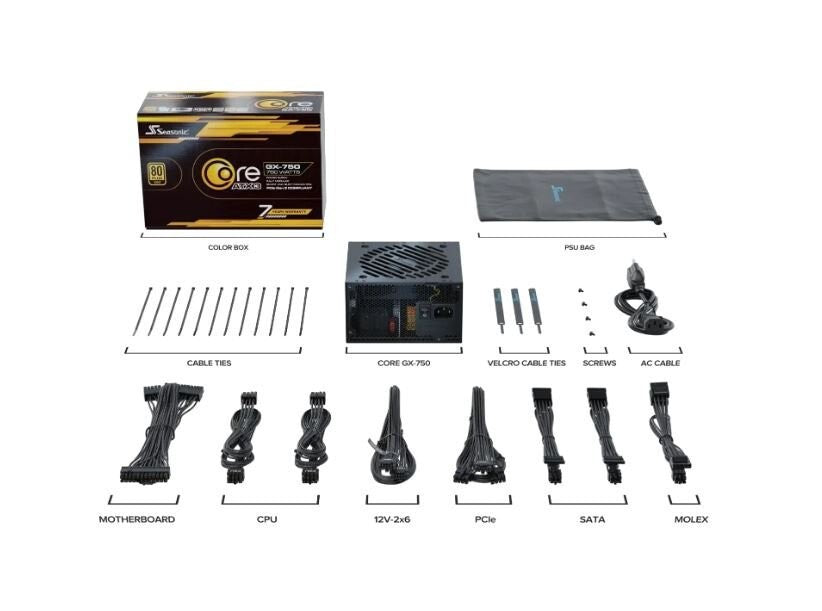

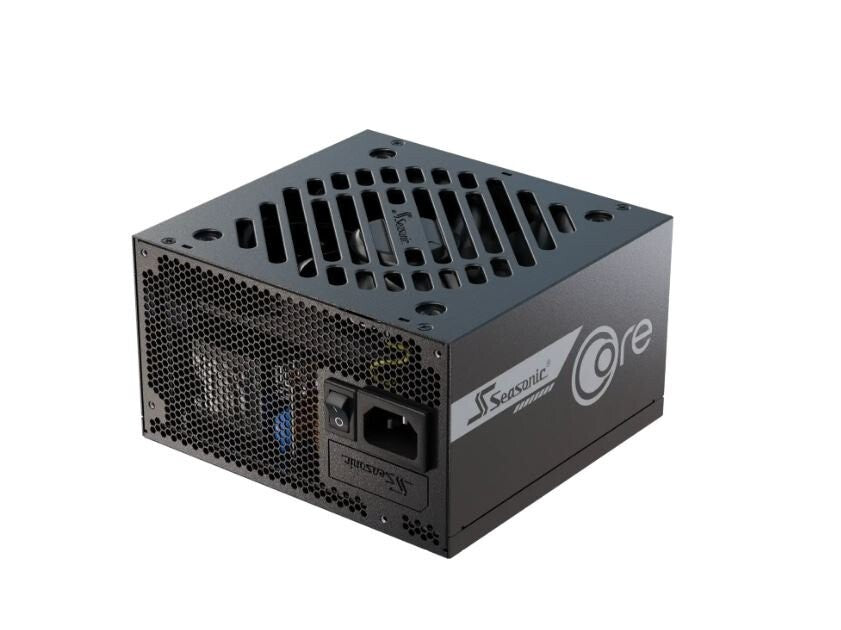

Seasonic CORE V2 GX-750 (ATX3) 750W - 80+ Gold - Full-Modular - ATX Form Factor

MPN: CORE V2 GX-750 (ATX3)

Main Features

• 80PLUS: Gold
• Form Factor: ATX/EPS
• Dimensions: 140 x 150 x 86 mm
• Fan Information
• -Fan Size: 120 mm
• -Fan Control: Smart and Silent Fan Control
• -Fan Bearing: Hydro Dynamic Bearing
• -Life Expectancy: 25,000 hours at 40 °C, 15 % - 65 % RH
• Cable Information
• -Modularity: Fully Modular
• -Cable type: Individual Black Cables with Braided Pattern
• Electrical Features
• -Operating Temperature: 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
• -MTBF @ 25 °C, excl. fan: 100,000 hours
• -AC Input: Full Range
• -Protection: OCP, OPP, OTP, SCP, OVP, UVP
• Safety and Environmental
• -Safety and EMC: BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA
• -Environmental Compliance: ErP Lot 6, Energy Star, REACH, RoHS, WEEE
• AC Input
• -100 V - 240 V
• -10 - 5 A
• -50 Hz - 60 Hz
• DC Output
• -Rail: +3.3 V;+5 V;+12 V;-12 V;+5 VSB
• -Maximum Power: 20 A;20 A: ;62 A;0.3 A;3 A
• -100 W;744 W;3.6 W;15 W
• Total continuous power: 750 W
