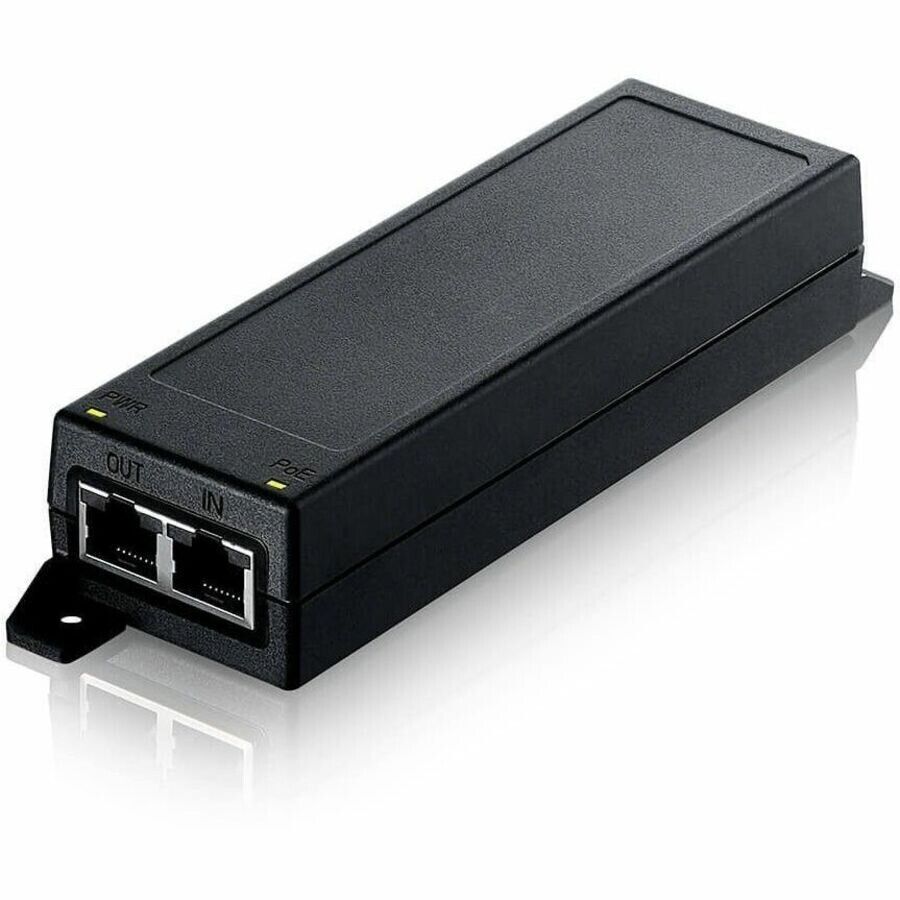

Zyxel POE12-30W 2.5G PoE+ Injector 30W 120V 230V Overload Short Protection

General Information

• Manufacturer: ZYXEL Communications Corp.
• Manufacturer Part Number: POE1230W
• Brand Name: ZYXEL
• Product Series: PoE12
• Product Model: PoE12-30W
• Product Name: 2.5G PoE+ Injector
• Product Type: PoE+ Injector

Technical Information

• Protection Type:
  • Overload Protection
  • Short Circuit

Power Description

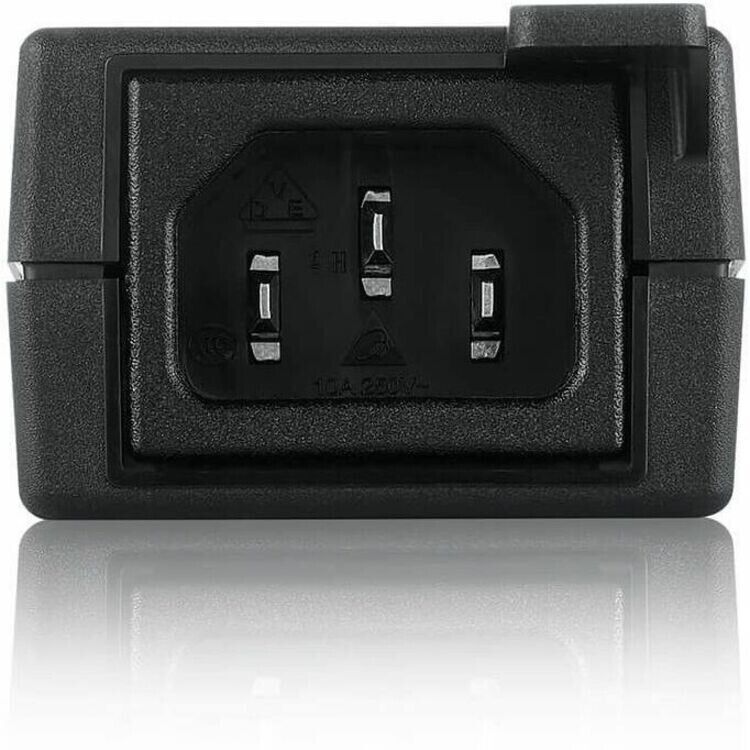

• Input Voltage:
  • 230 V AC
  • 120 V AC
• Maximum Input Current: 1 A
• Maximum Frequency: 60 Hz
• Maximum Output Power: 30 W

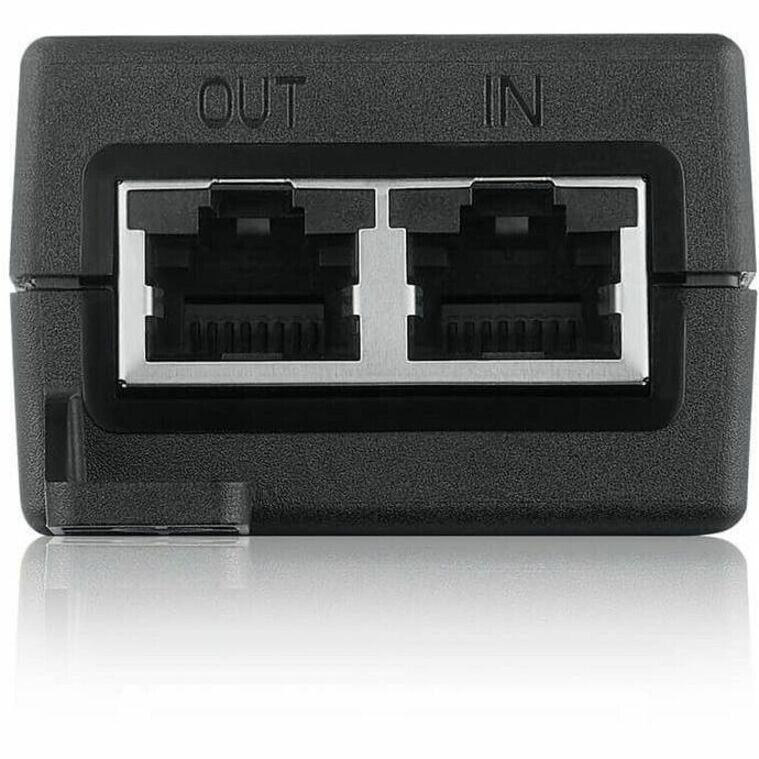

Interfaces/Ports

• Input Ports: 1 x 2.5 Gigabit Ethernet
• Output Ports: 1 x 2.5 Gigabit PoE+

Physical Characteristics

• Form Factor: Desktop/Wall Mountable
• Height: 1.2"
• Width: 5.5"
• Depth: 1.8"
• Weight (Approximate): 5.08 oz

Package Contents:

• 2.5G PoE+ Injector
• Power Cord

Compatibility:

• Wireless Access Points
• IP Phones
• IP Cameras

Certifications & Standards:

• EN 55032:2015/A11:2020
• EN 61000-3-2:2014
• EN 61000-3-3:2013+A1:2019
• EN 55035:2017
• EN 55024:2010+A1:2015
• EN 62368-1:2014+A11:2017
• EN IEC 63000:2018
• IEEE 802.3at
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3bz
• Environmentally Friendly: Yes
