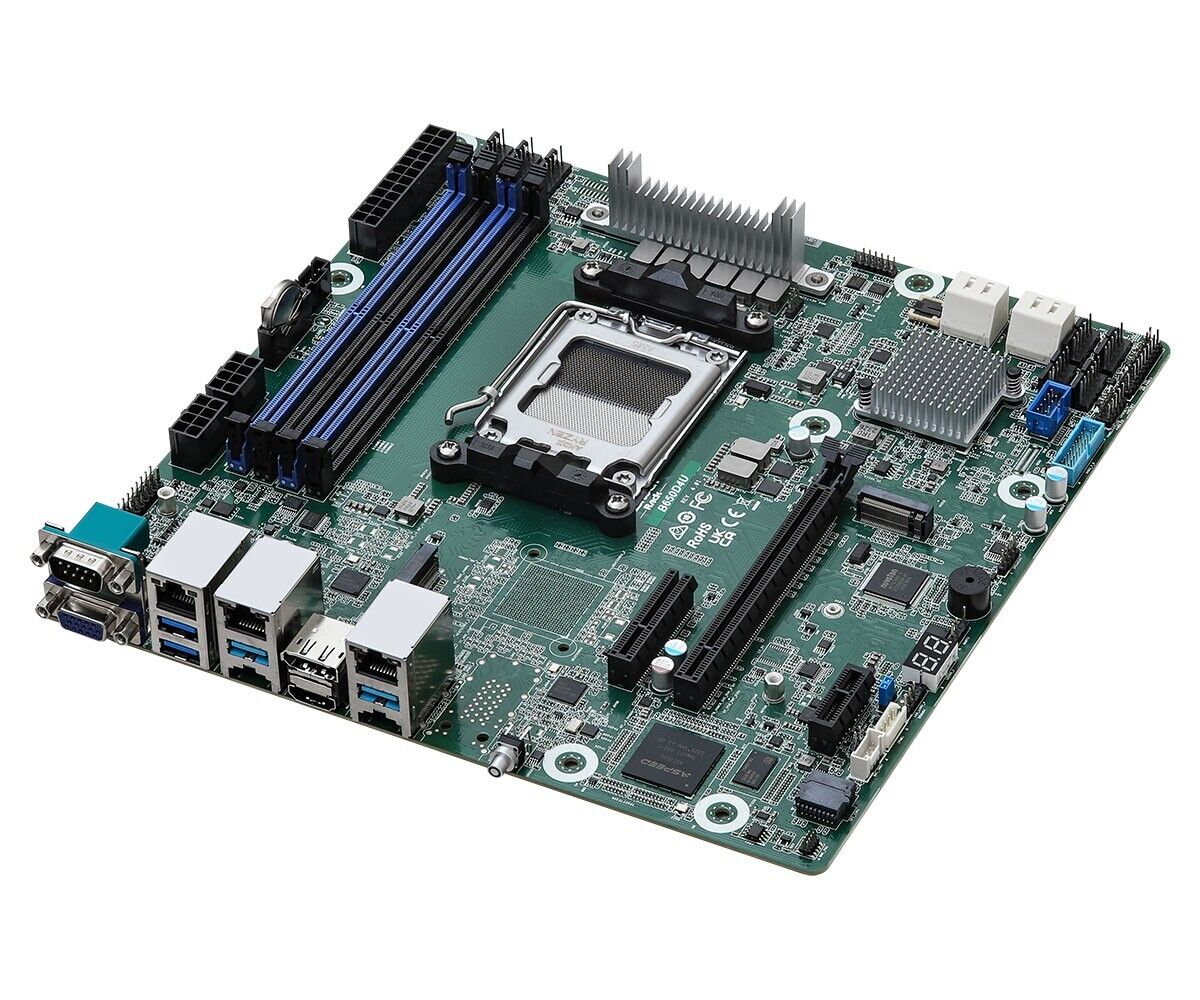

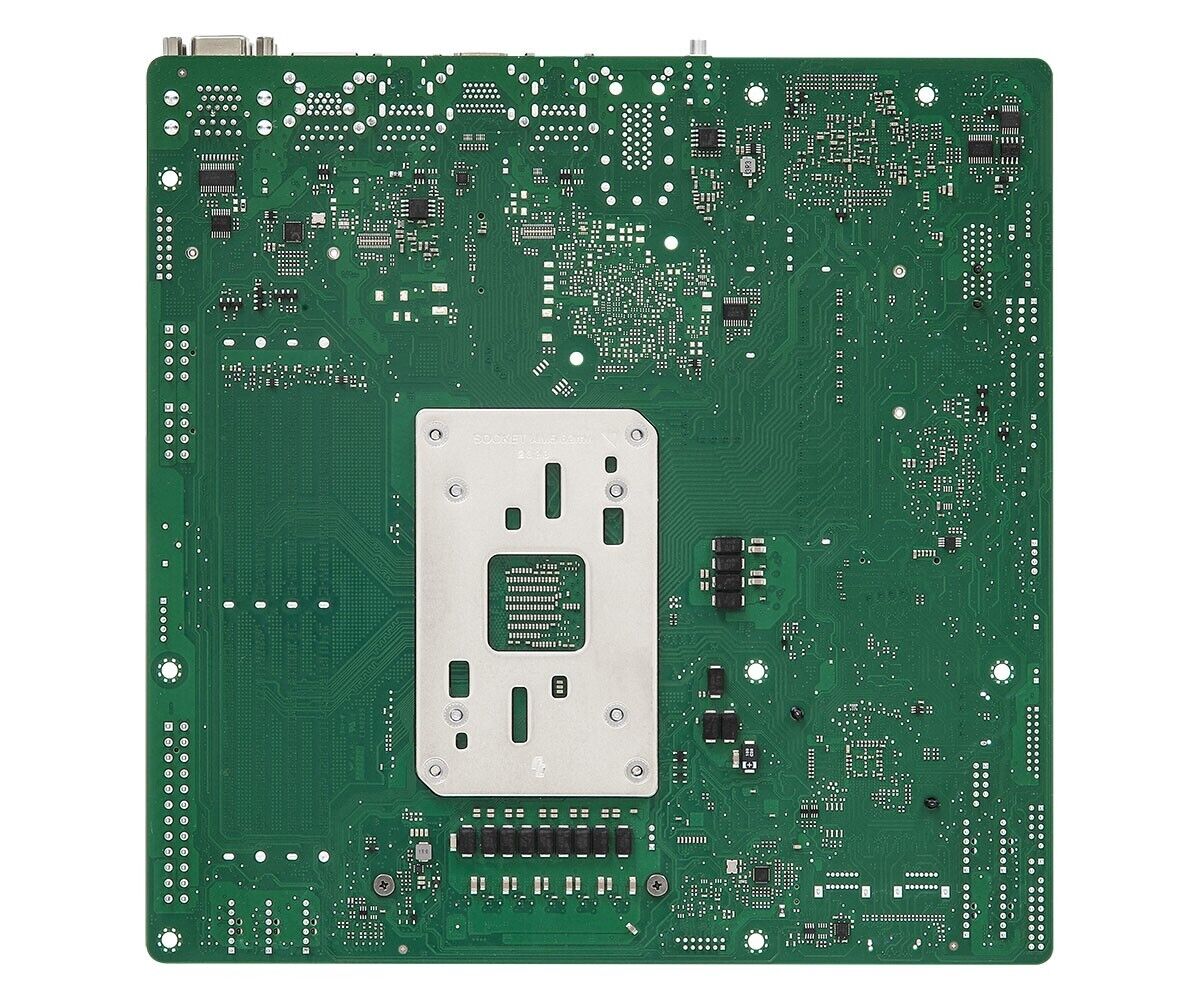

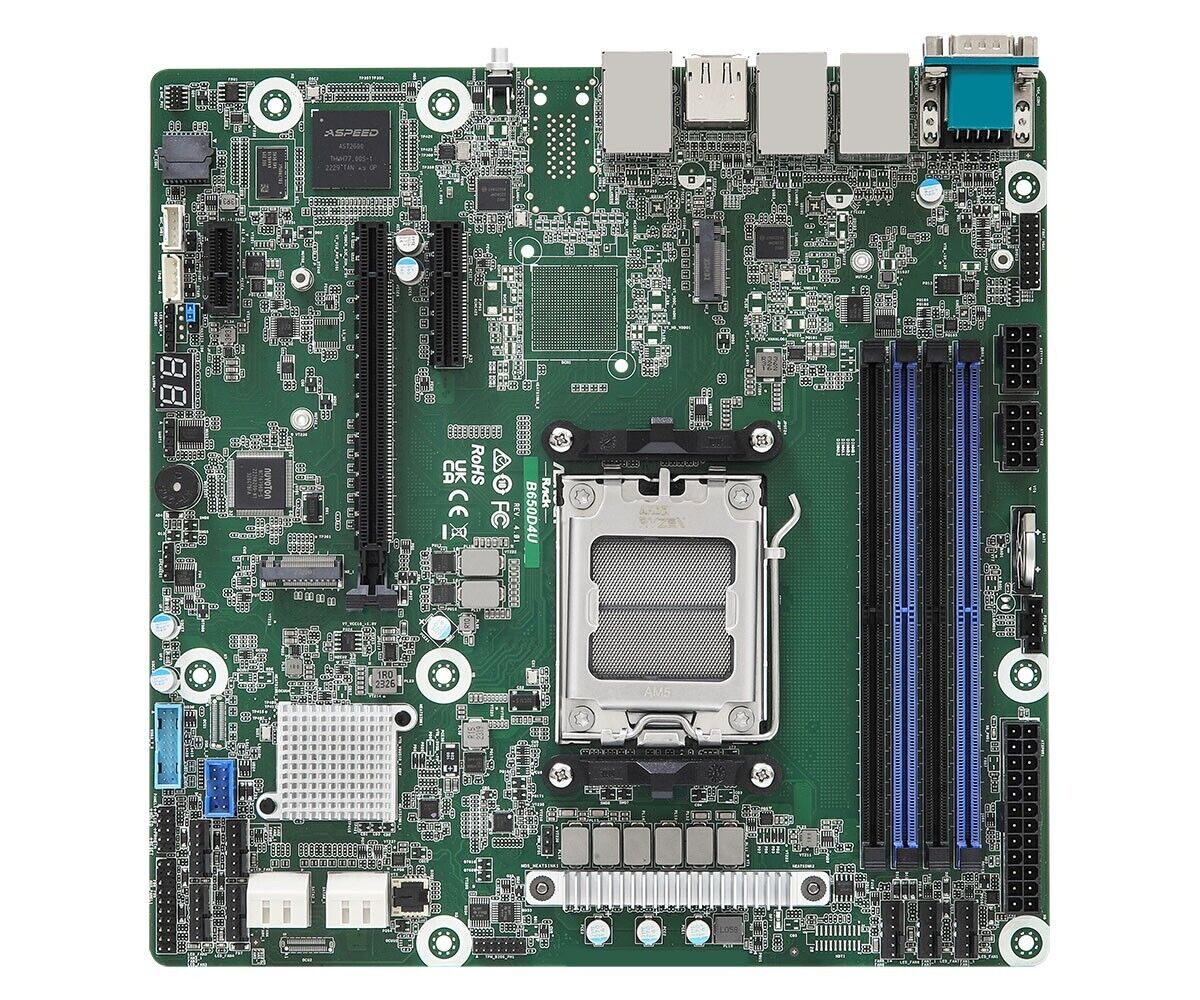

ASRock B650D4U MB B650E AMD EPYC 4004 Ryzen 9/8/7000 AM5 DDR5 Micro-ATX M.2

SPECIFICATIONS

Physical Status

• Form Factor: Micro-ATX
• Dimensions: 9.6" x 9.6"

Processor System

• CPU: Supports AMD EPYC™ 4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
• Socket: Single Socket AM5 (LGA 1718)
• Thermal Design Power: Up to 170W by proper cooling solution
• Chipset: AMD B650E

System Memory

• Supported DIMM Quantity: 4 DIMM slots (2DPC)
• Supported Type: DDR5 288-pin ECC/non-ECC UDIMM
• Max. Capacity per DIMM: 48GB
• Max. DIMM Frequency: 5200 MHz (1DPC); 3600 MHz (2DPC)
• Voltage: 1.1V

PCIe Expansion Slots (SLOT7 close to CPU)

• PCIe x 16: SLOT6: PCIe5.0 x16 [CPU]
• PCIe x 4: SLOT7: PCIe5.0 x4 [CPU]
• PCIe x 1: SLOT4: PCIe4.0 x1 [FCH]

Other PCIe Expansion Connectors: M.2 slot:

• 1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
• 1 M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH]

SATA/SAS Storage

• PCH Built-in Storage:
  • AMD B650E (4 SATA 6Gb/s):
  • 4 SATA 7-pin

Ethernet

• Additional GbE Controller: Intel® i210: 2 RJ45 (1GbE)

Server Management

• BMC Controller: ASPEED AST2600
• IPMI Dedicated GLAN: 1 Realtek RTL8211F for dedicated management GLAN

Graphics Controller:

• ASPEED AST2600:
• 1 DB15 (VGA), 1 (15-pin) header
• AMD Processors with Graphics:
• 1 HDMI, 1 DisplayPort

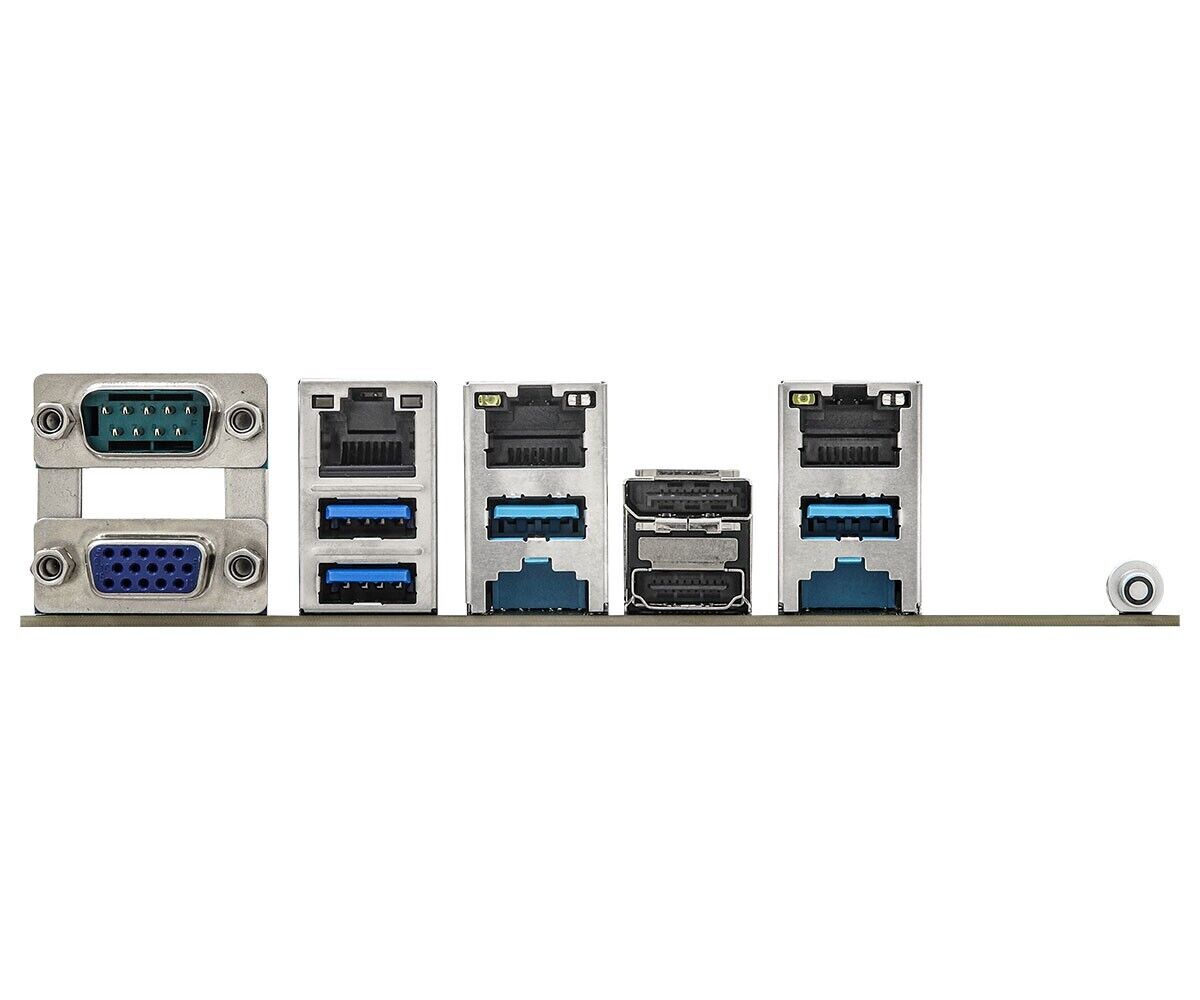

Rear I/O

• UID Button/LED: 1 UID button w/ LED
• VGA Port: 1 DB15 (VGA), 1 DisplayPort, 1 HDMI
• Serial Port: 1 DB9 (COM)
• USB 3.2 Gen1 Port: 4 Type-A (USB3.2 Gen1)
• RJ45:
  • 2 RJ45 (1GbE)
  • 1 dedicated IPMI

Internal Connector/Headers

• Power Connector: 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
• Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN activity LED
• System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
• VGA header: 1
• Speaker Header: 1
• Buzzer: 1
• Fan Header: 7 (6-pin)
• TPM Header: 1 (13-pin, SPI)
• SMBus header: 1
• PMBus header: 1
• IPMB Header: 1
• Clear CMOS: 1
• Others: 1 (3-pin, 80 debug port header)
• USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
• USB 2.0 Header: 1 (9-pin, 2 USB2.0)

LED Indicators

• Standby PWR LED: 1 (5VSB)
• 80 Debug Port LED: 1
• Fan Fail LED: 7
• BMC heartbeat LED: 1

System BIOS

• BIOS Type: AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
• BIOS Features: Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5

Hardware Monitor

• Temperature: CPU, DDR, MB, Card Side, Chipset, M.2 slot
• Fan: Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
• Voltage: VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V

Supported OS

• AMD Ryzen CPU:
• Microsoft® Windows:
  • Windows® 10 (64 bit)
  • Windows® 11 (64 bit)
• Linux:
  • RedHat Enterprise Linux Server 8.7 (64bit)
  • CentOs 8.5 ( 64 bit)
  • SUSE SLES 15.4(64 bit) / 15.2(64 bit)
  • UBuntu 22.04.1 (64 bit) / 21.10 (64 bit) / 21.04 (64 bit)
• Hypervisor:
  • VMWare® ESXi 8.0 / 7.0 U3g
• AMD EPYC 4004 CPU:
  • Microsoft® Windows:
  • Windows® Server2022 (64 bit) Bios setting: Advanced > Chipset Configuration > Server WHQL Support setting Enable
• Linux:
  • RedHat Enterprise Linux Server 8.9 ( 64 bit) / 9.3 (64bit) / 9.4 (64bit)
  • SUSE SLES 15.5(64 bit)
  • UBuntu 20.04.6 (64 bit) / 22.04.4 (64 bit) * The Linux system doesn't support Raid Mode.

Environment

• Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
• Humidity: Non operation humidity: 20% ~ 90% ( Non condensing)
