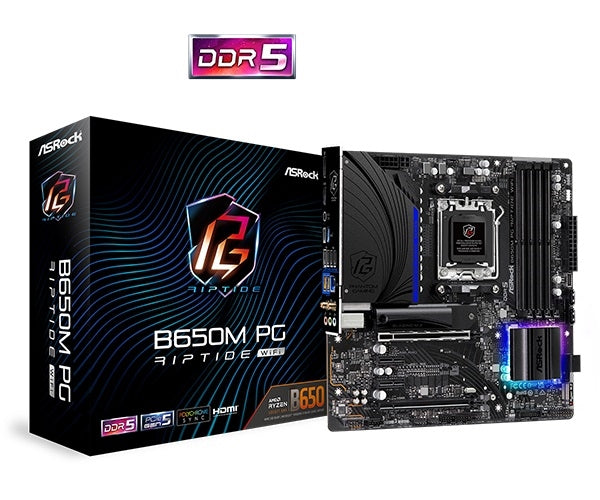

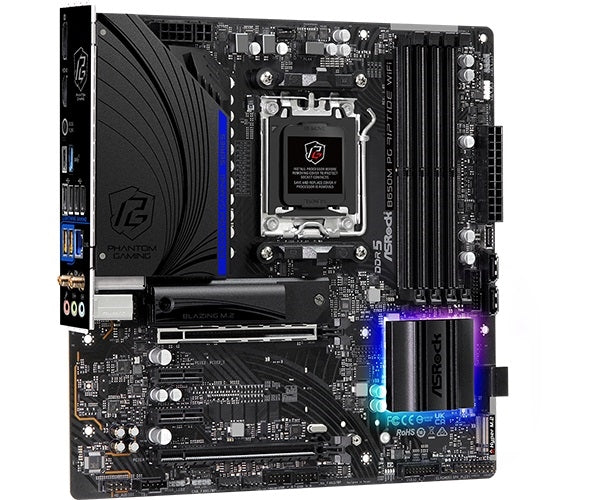

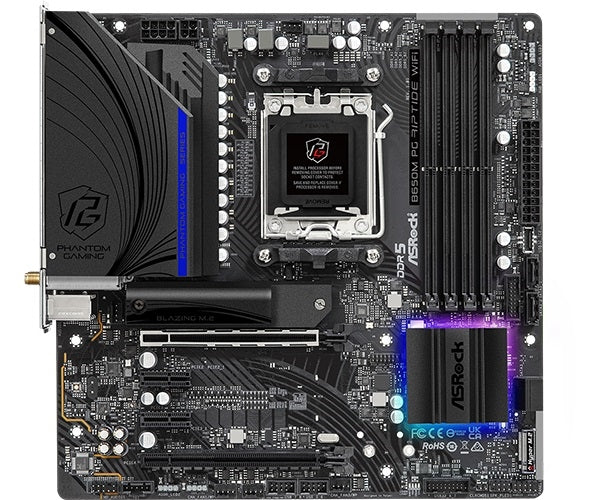

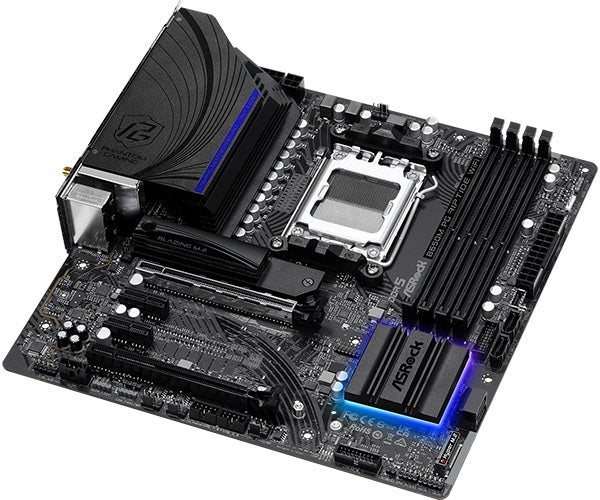

ASRock B650M PG Riptide WIFI Motherboard - AMD B650 AM5 Max128GB DDR5 Micro ATX

Marketing Information

RODUCT BRIEF:

• Supports AMD Ryzen™ 7000 Series Processors
• 12+2+1 Power Phase, Dr.MOS
• Supports DDR5 6200MHz (OC)
• 2 PCIe 4.0 x16, 2 PCIe 3.0 x1
• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4)
  • 1 Hyper M.2 (PCIe Gen4x4)
• 2 Rear USB 3.2 Gen2 (Type A + Type-C)
  • 1 USB 3.2 Front Gen1 Type-C
  • 6 USB 3.2 Gen1 (2 Rear, 4 Front)
  • 8 USB 2.0 (4 Rear, 4 Front)
• Dragon 2.5G LAN
  • 802.11ax (WiFi 6E) + Bluetooth 5.2
• Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.
• Dr. MOS
• Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
• 12+2+1 Power Phase Design
• Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Detail Specifications

• Unique Feature
• Superb Productivity
• - PCIe Gen5 (M.2)
• - Dual Channel DDR5
• Rock-Solid Durability
• - 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor
• - Flexible Integrated I/O Shield
• Ultrafast Gaming
• - 2.5G LAN, 802.11ax Wi-Fi 6E Module
• - ASRock Lightning Gaming Ports
• EZ Update
• - BIOS Flashback Button
• - ASRock Auto Driver Installer
• EZ Troubleshooter
• - ASRock Post Status Checker
• CPU
• - Supports AMD Socket AM5 RyzenTM 7000 Series Processors
• Chipset
• - AMD B650
• Memory
• - Dual Channel DDR5 Memory Technology
• - 4 x DDR5 DIMM Slots
• - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC) Note
• - Max. capacity of system memory: 128GBNote
• - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• Note: Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
• - 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
• Integrated AMD RDNATM 2 graphics (Actual support may vary by CPU)
• - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
• Audio
• - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• - Nahimic Audio
• LAN
• - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• - Dragon RTL8125BG
• - Supports Phantom Gaming LAN Software
• - Smart Auto Adjust Bandwidth Control
• - Visual User Friendly UI
• - Visual Network Usage Statistics
• - Optimized Default Setting for Game, Browser, and Streaming Modes
• - User Customized Priority Control
• Wireless LAN
• - 802.11ax Wi-Fi 6E Module
• - Supports IEEE 802.11a/b/g/n/ac/ax
• - Supports Dual-Band 2x2 with extended 6GHz bandNote support
• - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• - Supports Bluetooth + High speed class II
• - Supports MU-MIMO
• Note: Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
• A 6GHz compatible router is required for 6E functionality.
• Slots
• CPU:
• - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 modeNote
• - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 modeNote
• Chipset:
• - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) Note
• - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• Note: Supports NVMe SSD as boot disks
• Supports AMD CrossFireTM
• 15Mu Gold Contact in VGA PCIe Slot (PCIE1)
• Storage
• CPU:
• - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) modeNote
• Chipset:
• - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) modeNote
• - 4 x SATA3 6.0 Gb/s Connectors
• Note: Supports NVMe SSD as boot disks
• RAID
• - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Note
• Note: Requires additional M.2 NVMe expansion cards to support RAID 10
• USB
• - 1 x USB 3.2 Gen2 Type-C (Rear)
• - 1 x USB 3.2 Gen2 Type-A (Rear)
• - 1 x USB 3.2 Gen1 Type-C (Front)
• - 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
• - 8 x USB 2.0 (4 Rear, 4 Front)
• Note: All USB ports support ESD Protection
• Connector
• - 1 x SPI TPM Header
• - 1 x Power LED and Speaker Header
• - 1 x RGB LED HeaderNote1
• - 3 x Addressable LED HeadersNote2
• - 1 x CPU Fan Connector (4-pin) Note3
• - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) Note4
• - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) Note5
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector
• - 1 x 4 pin 12V Power Connector
• - 1 x Front Panel Audio Connector
• - 1 x ThunderboltTM AIC Connector (5-pin) (Supports ASRock ThunderboltTM 4 AIC Card)
• - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• - 1 x Front Panel Type C USB 3.2 Gen1 Header
• Note1: Supports in total up to 12V/3A, 36W LED Strip
• Note2: Support in total up to 5V/3A, 15W LED Strip
• Note3: CPU_FAN1 supports the fan power up to 1A (12W).
• Note4: CPU_FAN2/WP supports the fan power up to 2A (24W).
• Note5: CHA_FAN1 to 3/WP support the fan power up to 2A (24W).
• CPU_FAN2/WP and CHA_FAN1 to 3/WP can auto detect if 3-pin or 4-pin fan is in use.

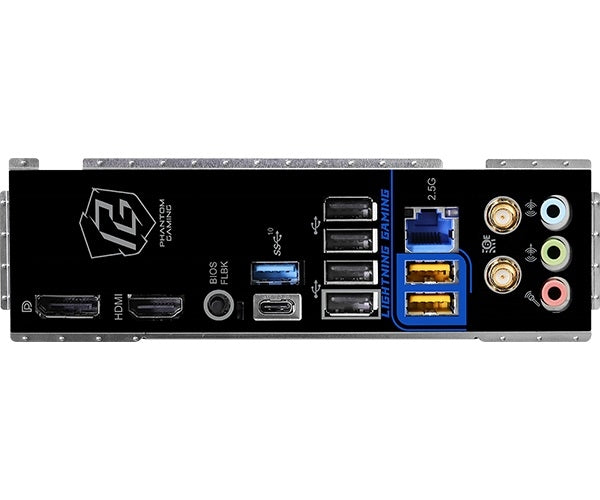

• Rear Panel I/O
• - 2 x Antenna Ports
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
• - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
• - 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.)
• Software and UEFI
• Software
• - ASRock Motherboard Utility (Phantom Gaming Tuning)
• - ASRock Phantom Gaming LAN Software
• - ASRock Polychrome SYNCNote
• UEFI
• - ASRock Full HD UEFI
• - ASRock Auto Driver Installer
• - ASRock Instant Flash
• Note: These utilities can be downloaded from ASRock Live Update and APP Shop.
• Accessories
• - 1 x User Manual
• - 2 x SATA Data Cables
• - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• - 2 x Screws for M.2 Sockets
• - 1 x Standoff for M.2 Socket
• Form Factor
• - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• - 2oz Copper PCB
• OS
• - Microsoft Windows 10 64-bit / 11 64-bit
• Certifications
• - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)

Warranty Information

• 3 Years from ASRock
