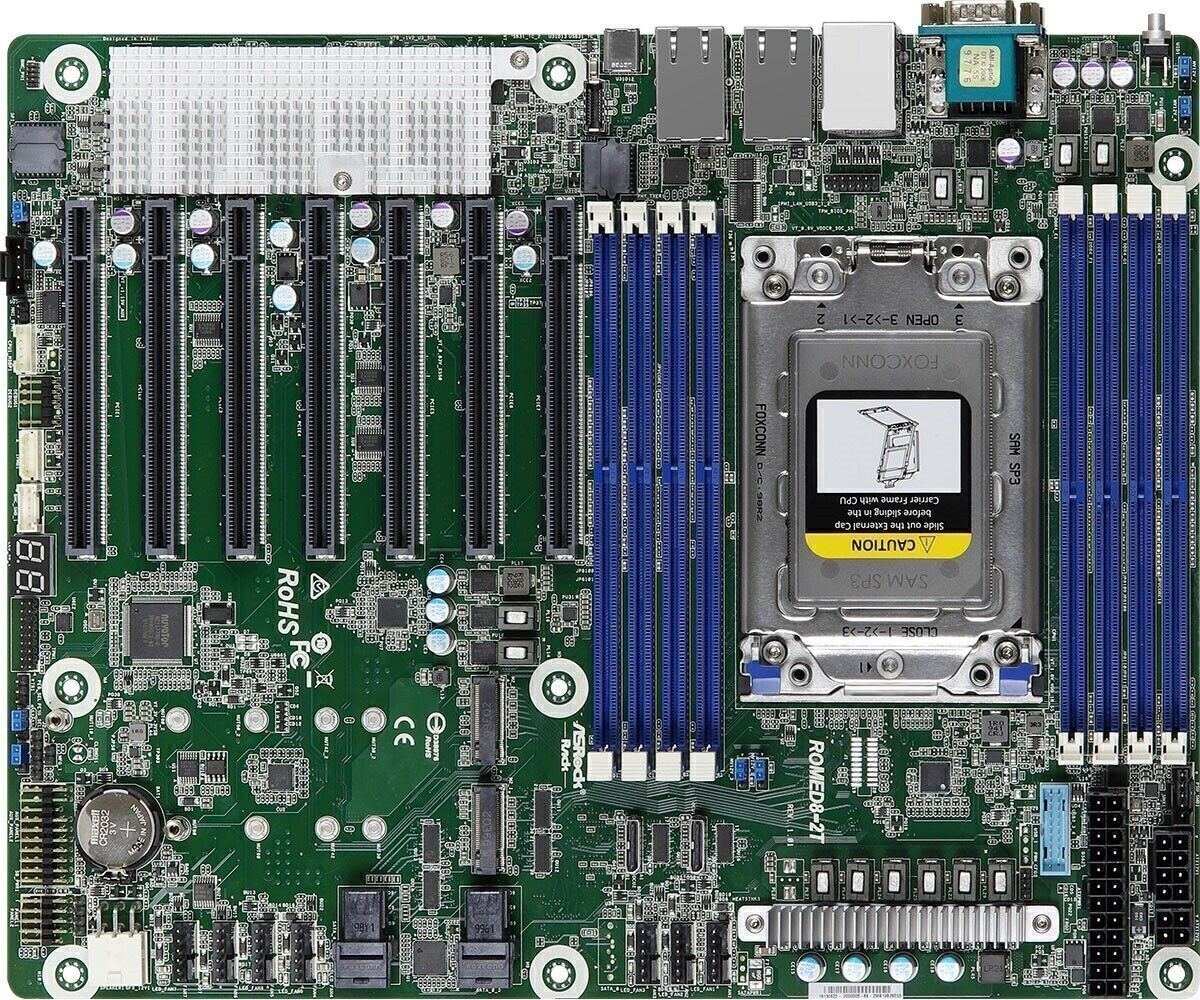

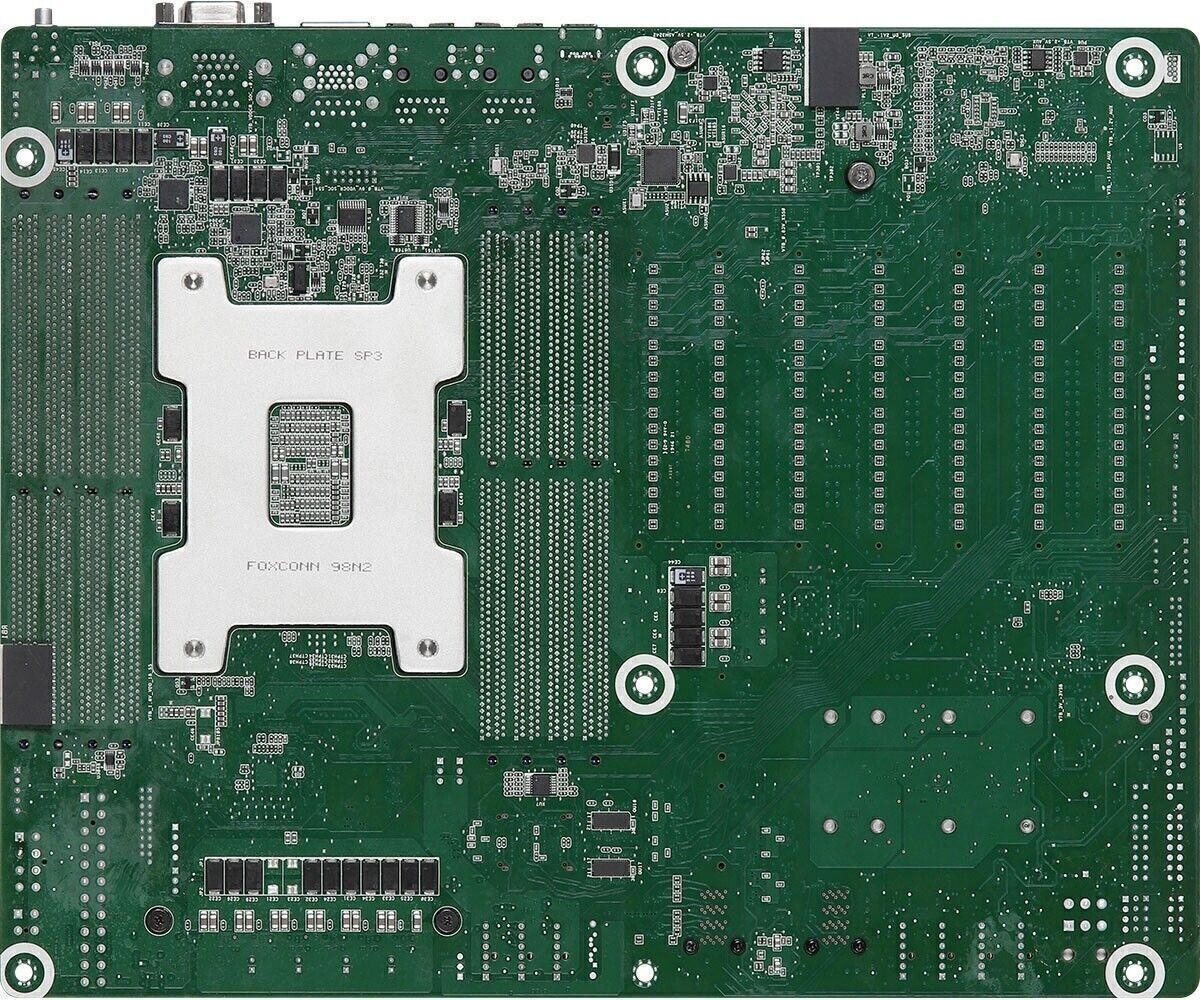

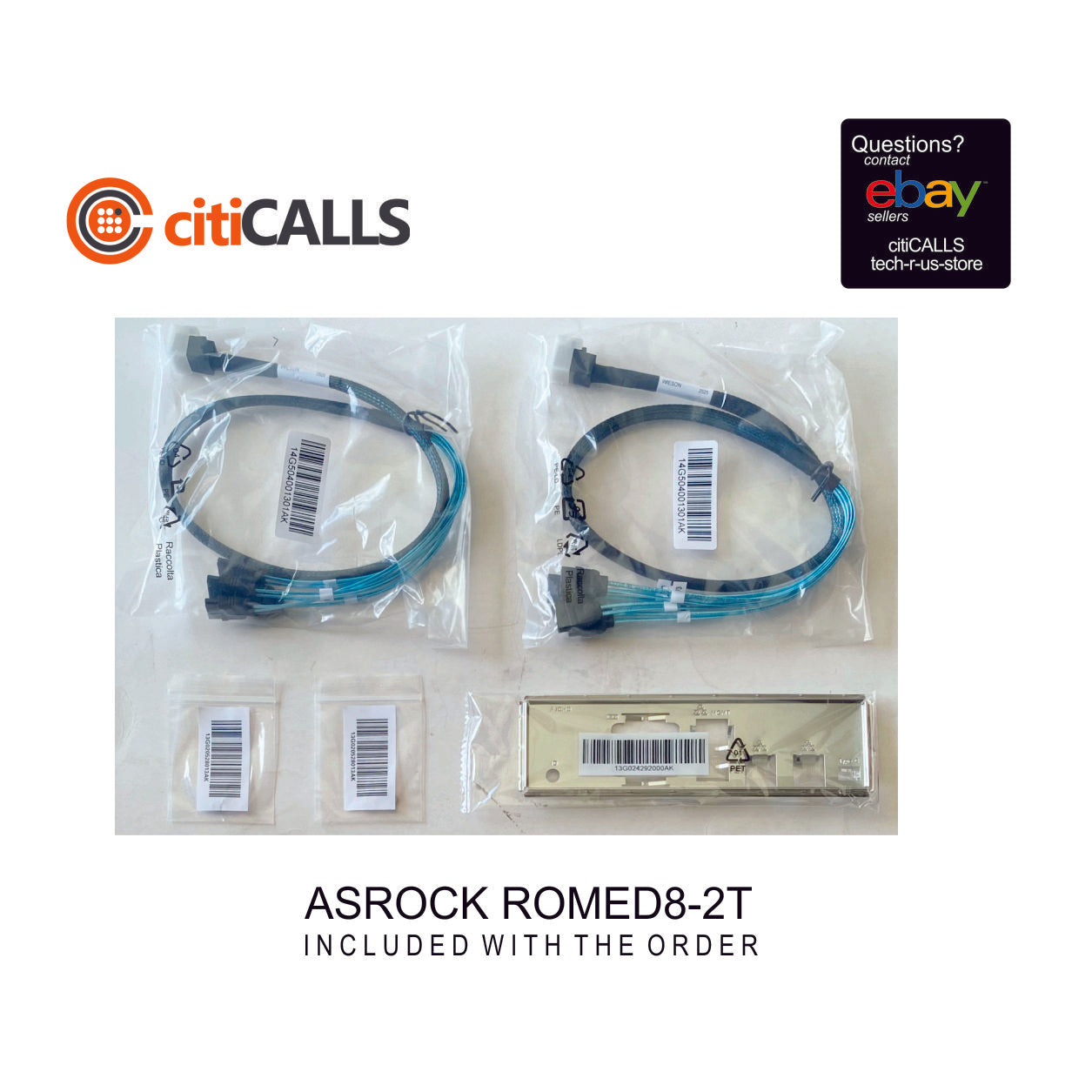

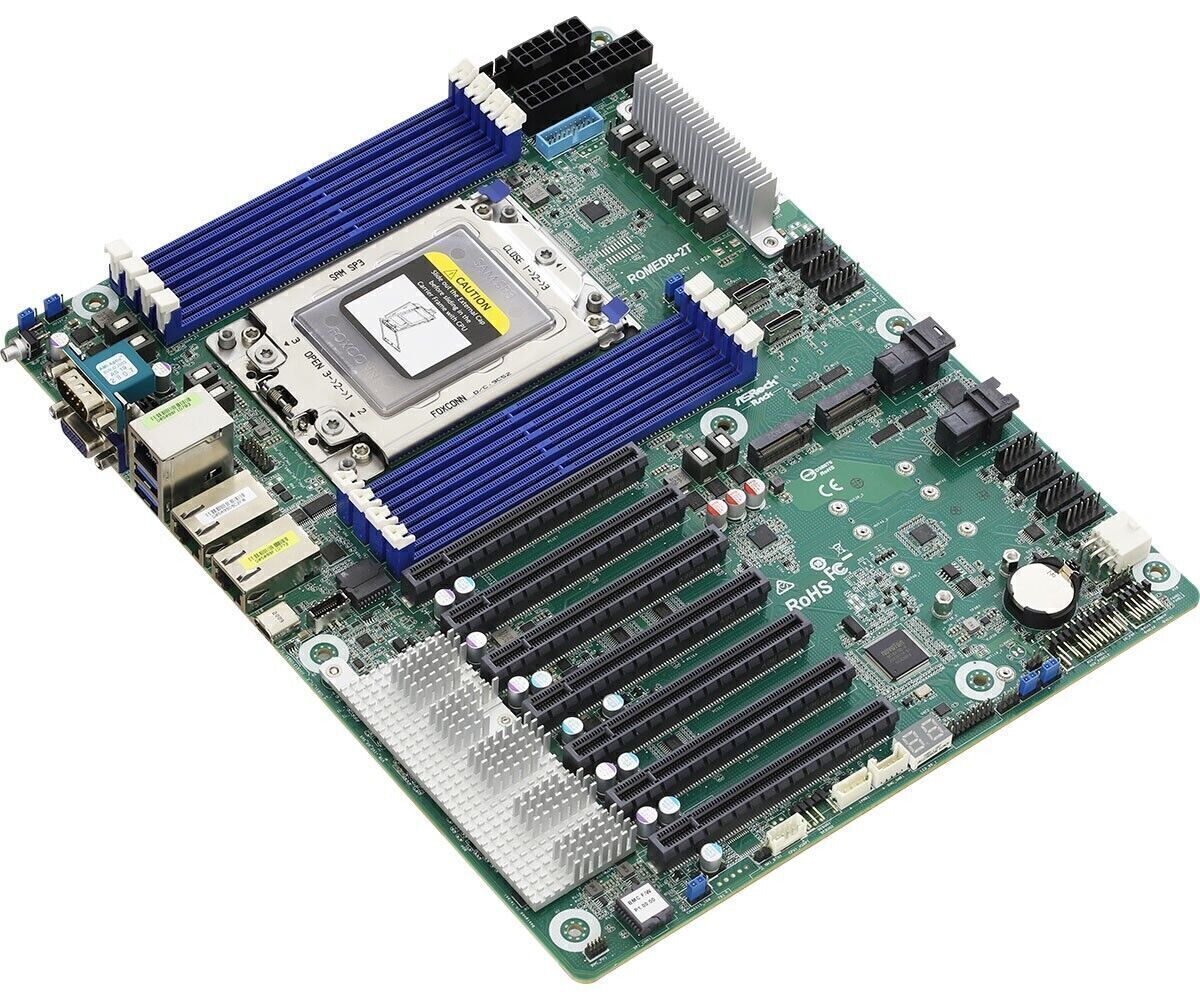

ASROCK Rack, ROMED8-2T

• ATX (12" x 9.6")
• Single Socket SP3 (LGA 4094), supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 series processors
• 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N
• 7 PCIe4.0 x16
• 2 OCuLink (PCIe4.0 x4)
• Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
• 10 SATA 6Gb/s
• 2 RJ45 (10GbE) by Intel® X550-AT2
• Remote Management (IPMI)

Physical Status

• Form Factor: ATX
• Dimensions: 12'' x 9.6'' (305 mm x 244 mm)

Processor System

• CPU: Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors (A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology)
• Socket: Single Socket SP3 (LGA4094)
• Chipset: System on Chip

System Memory

• Supported DIMM Quantity: 8 DIMM slots (1DPC)
• Supported Type: Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N
• Max. Capacity per DIMM
  • RDIMM: up to 64GB
  • LRDIMM: up to 128GB
  • RDIMM/LRDIMM-3DS: up to 256GB
  • NVDIMM-N: up to 32GB
  • Max. DIMM Frequency: RDIMM/ LRDIMM/NVDIMM-N: max. 3200MHz
• Voltage: 1.2V

PCIe Expansion Slots (SLOT7 close to CPU)

• PCIe x 16
  • SLOT7: PCIe4.0 x16
  • SLOT6: PCIe4.0 x16
  • SLOT5: PCIe4.0 x16
  • SLOT4: PCIe4.0 x16
  • SLOT3: PCIe4.0 x16
  • SLOT2: PCIe4.0 x16 or PCIe4.0 x8 + 1 M.2+1 miniSASHD or no PCIe SLOT +2 OCuLink+1 M.2+1 miniSAS HD (by jumper)
  • SLOT1: PCIe4.0 x16

Other PCIe Expansion Connectors

• M.2 slot
  • 1 M-key* (PCIe4.0 x4 or SATA 6Gb/s), supports 2280/2260/2242/2230 form factor
  • 1 M-key* (PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2260/2242/2230 form factor
    (Share with SLOT2 by jumper)
• OCuLink
  • 2 OCuLink* (PCIe4.0 x4) (Shared with SLOT2 by jumper)

SATA/SAS Storage

• PCH Built-in Storage
  • AMD EPYC 7003/7002 (10 SATA 6Gb/s):
  • 2 Mini-SAS HD, 2 M.2

Ethernet

• Additional GbE Controller: 1 Intel® X550-AT2: 2 RJ45 (10GbE)

Server Management

• BMC Controller: ASPEED AST2500
• IPMI Dedicated GLAN: 1 x Realtek RTL8211E for dedicated management GLAN

Graphics

• Controller: ASPEED AST2500
• VRAM: DDR4 512MB

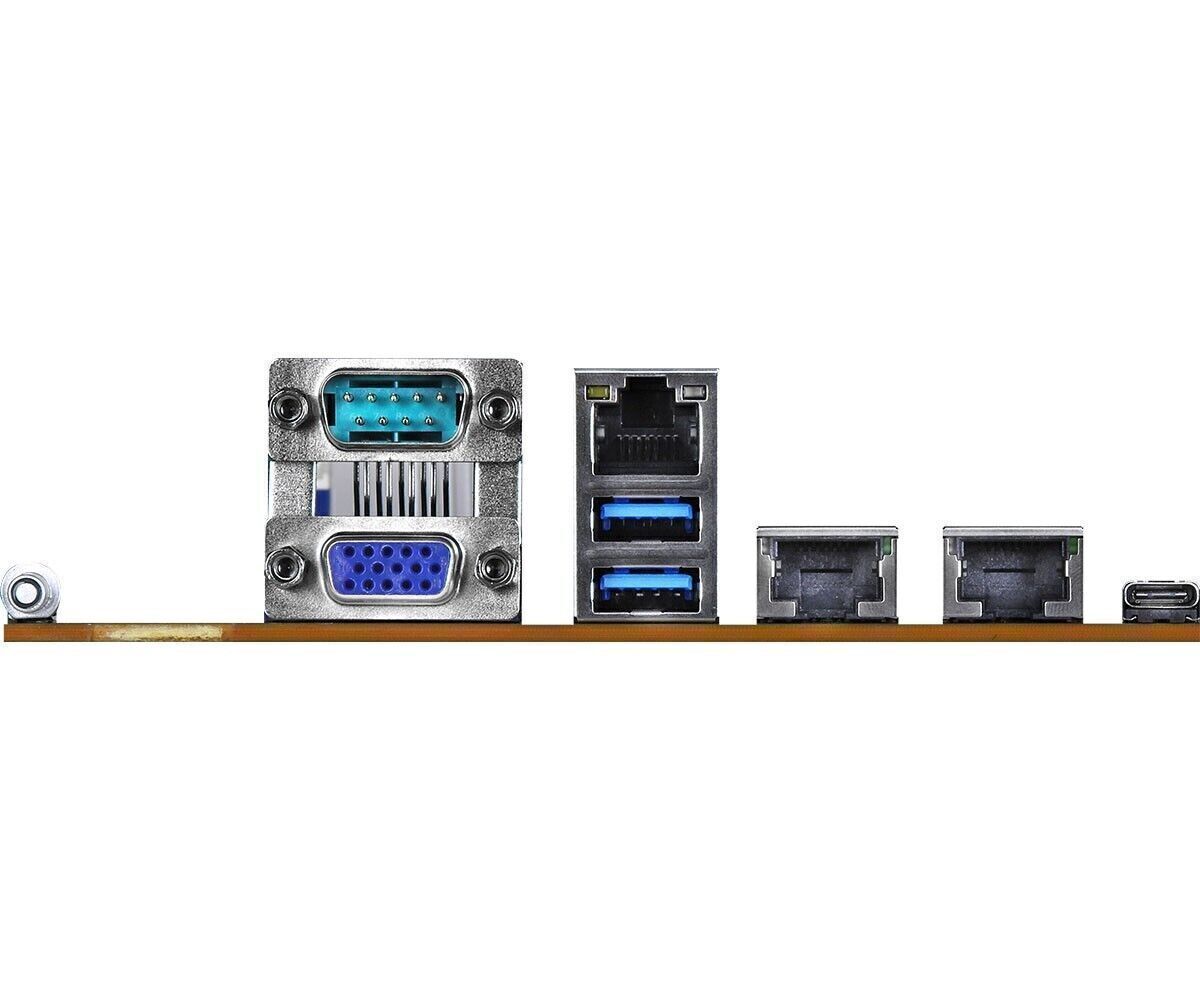

Rear I/O

• UID Button/LED: 1
• VGA Port: 1 DB15
• Serial Port: 1 DB9
• USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
• USB 3.2 Gen2 Port: 1 Type-C (USB3.2 Gen2)
• RJ45
  • 2 RJ45 (10GbE)
  • 1 dedicated IPMI

Internal Connector/Headers

• Power Connector: 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V)
• Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, and front LAN LED)
• System Panel: 1 (rst, pwrbtn, hddled, pwrled)
• Speaker Header: 1 (4-pin)
• Fan Header: 7 (6-pin) [1CPU/4Front/2Rear]
• Thermal Sensor Header: 1
• TPM Header: 1 (17-pin, LPC), 1 (13-pin, SPI)
• SMBus header: 1
• PMBus header: 1
• IPMB Header: 1
• Clear CMOS: 1 (contact pads)
• USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
• USB 3.2 (Gen2) Header: 1 (Type-C, 1 USB3.2 Gen2)
• NMI Header: 1

LED Indicators

• Standby PWR LED: 1 (5VSB)
• 80 Debug Port LED: 1
• Fan Fail LED: 7
• BMC heartbeat LED: 1

System BIOS

• BIOS Type: 32MB AMI UEFI Legal BIOS
• BIOS Features: Plug and Play (PnP), ACPI 6.3 Compliance Wake Up Events, SMBIOS 3.3.0, ASRock Rack Instant Flash

Hardware Monitor

• Temperature: CPU, MB, Card side, TR1, X550 Temperature sensing
• Fan
  • Fan Tachometer
  • CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
  • Fan Multi-Speed Control
• Voltage: Vsoc,Vcpu, VCCM, VPPM, +1.8V, +3V,+5V, +12V, BAT, +1.8VSB, +3VSB, +5VSB

Supported OS

• Microsoft® Windows:
  • Server 2016 (64 bit)
  • Server 2019 (64 bit)
• Linux:
  • RedHat Enterprise Linux Server 8.0 (64 bit) / 7.6 (64 bit)
  • CentOs 8.0 (64 bit) / 7.6 ( 64 bit)
  • SUSE SLES 15.1 (64 bit) / 12.4 (64 bit)
  • UBuntu 18.04.3 (64 bit) / 16.04.6 (64 bit)
  • CITRIX Hypervisor 8.1
• Virtual:
  • VMWare® ESXi 6.5 u3 / 6.7 u3
  • vSphere 6.5 u3/ / 6.7 u3

* The SUSE Enterprise Linux Server 15.1 (64 bit) / 12.4 (64 bit) system only supports UEFI BOOT.
* Please refer to our website for the latest OS support list.
