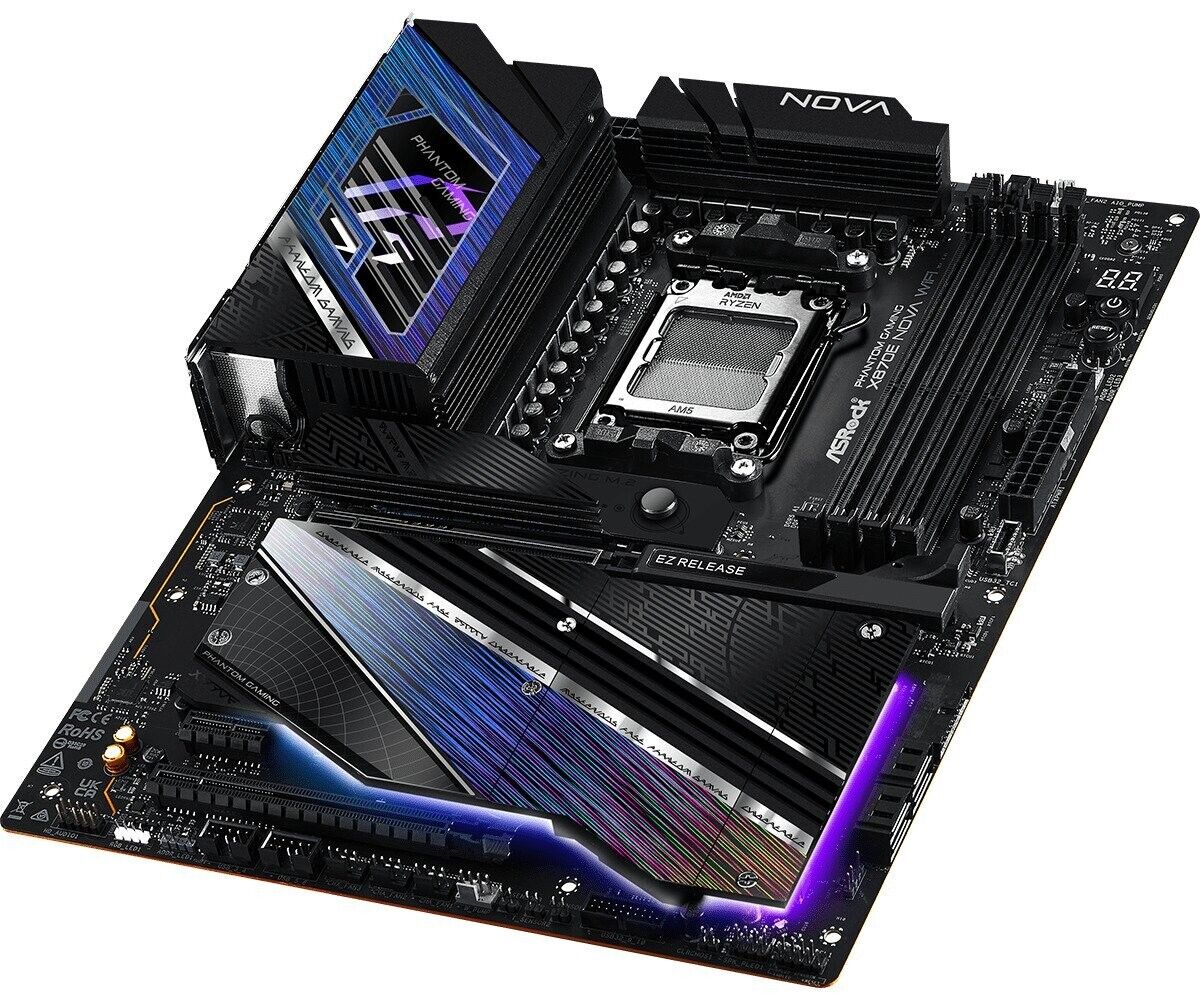

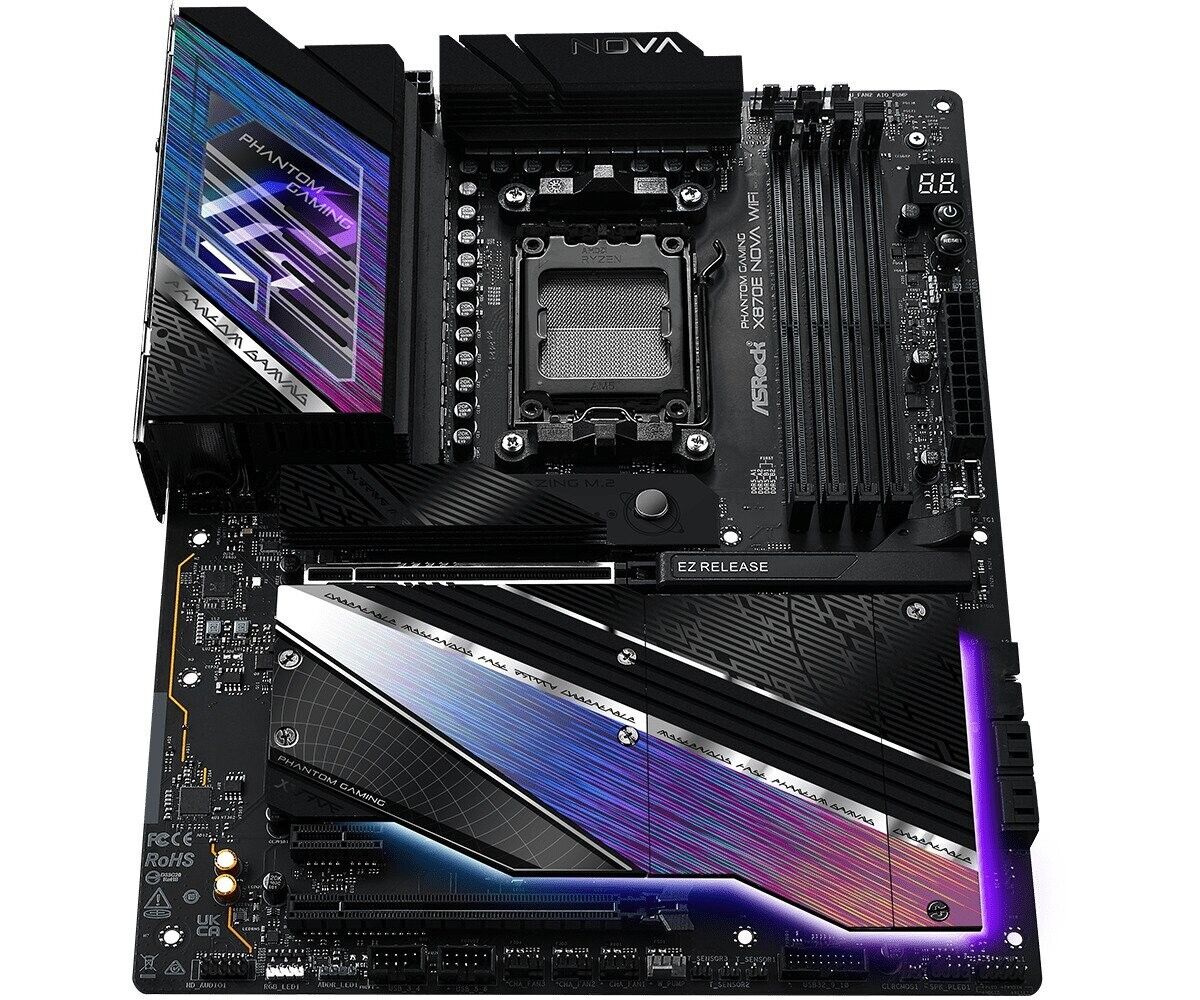

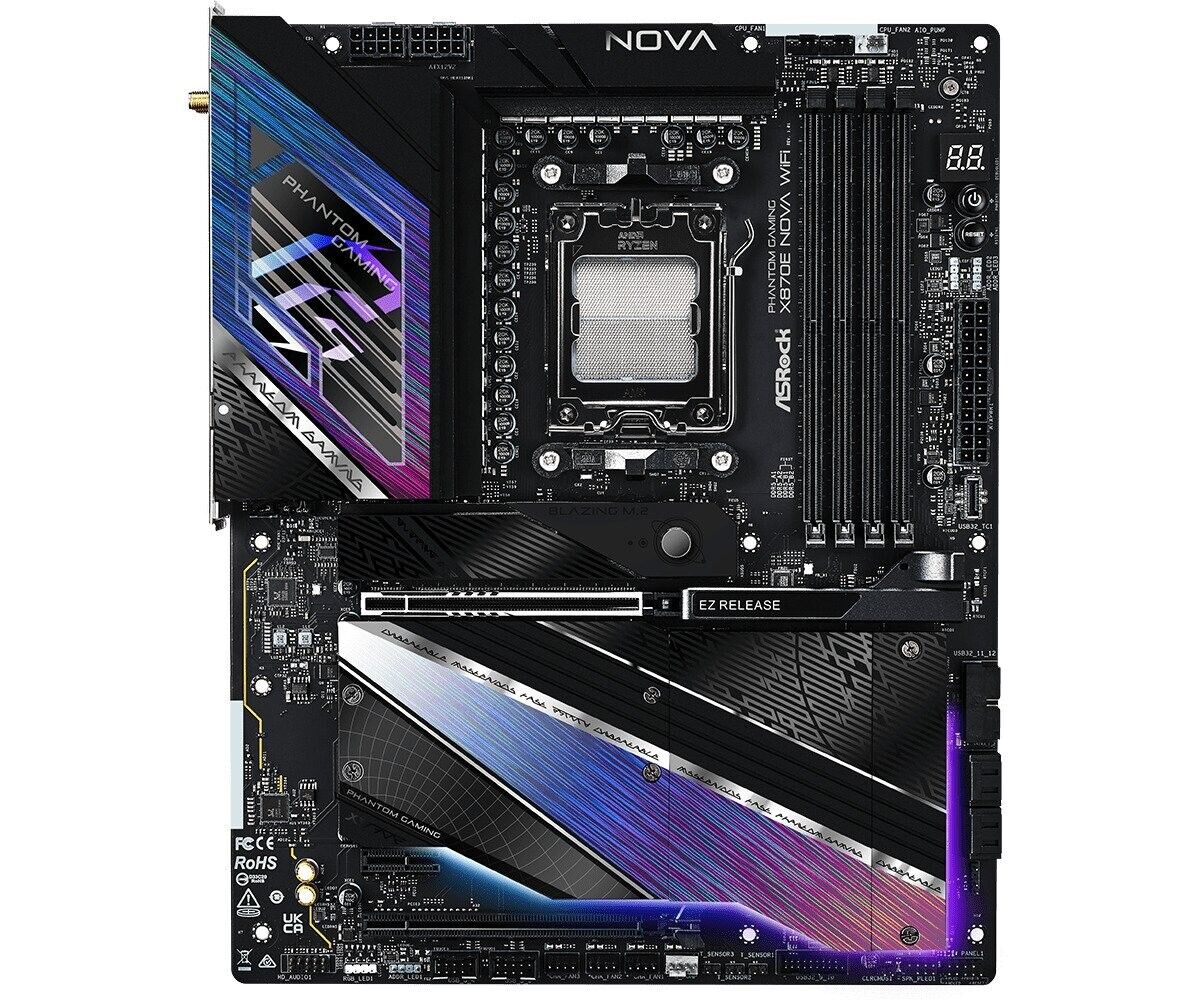

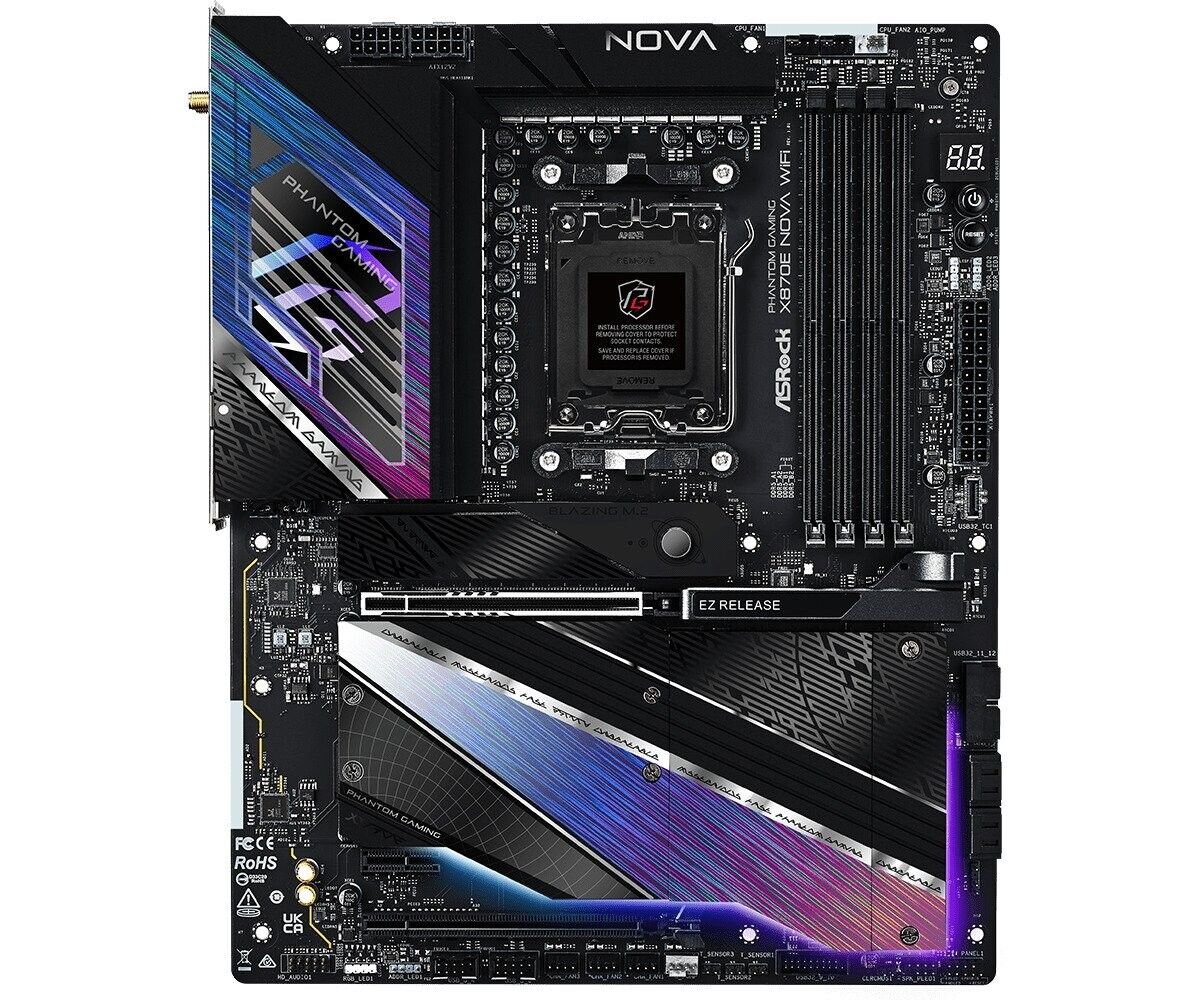

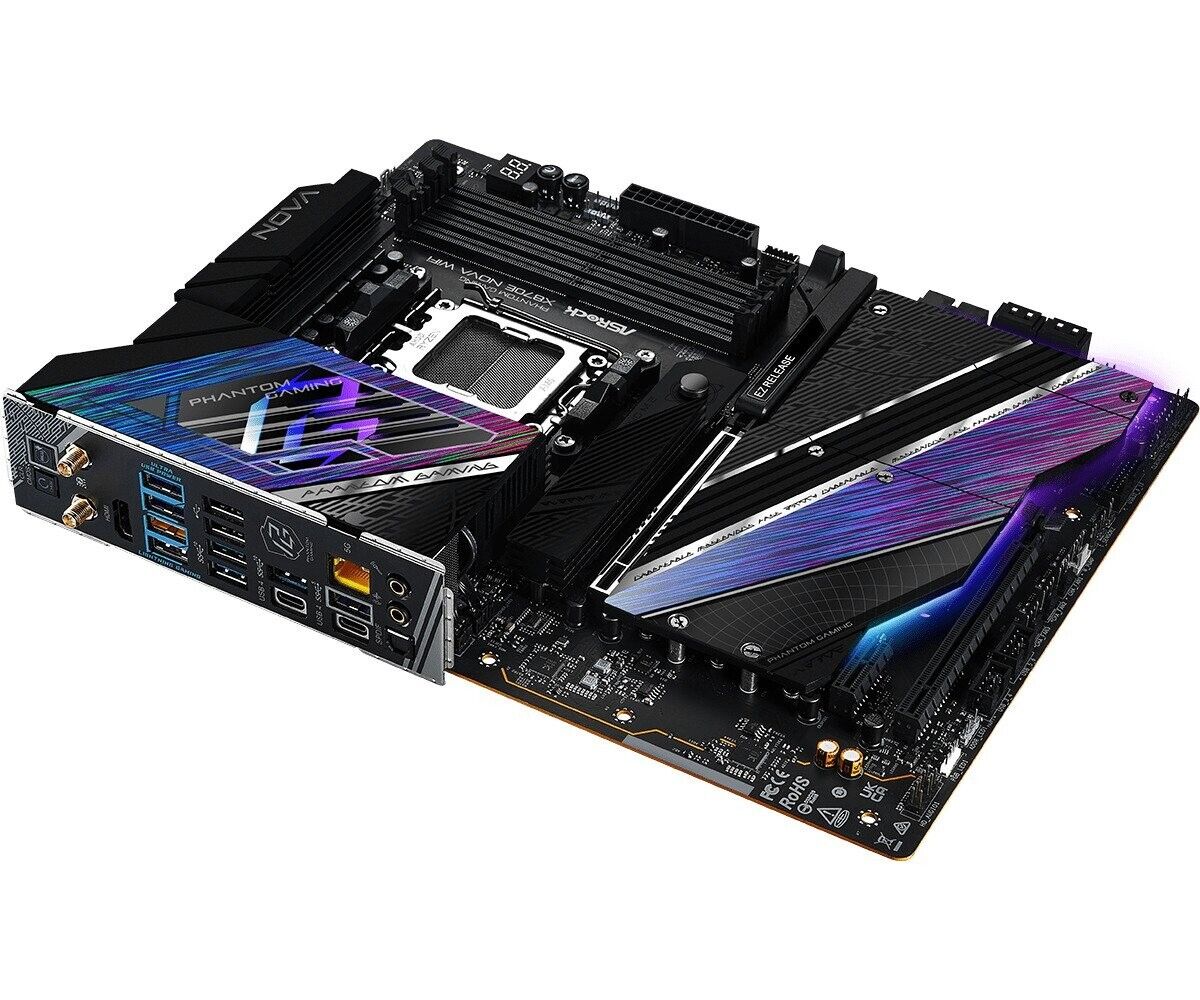

ASRock X870E NOVA WIFI Socket AM5/ AMD X870E/ DDR5/ SATA3/ USB 4/ M.2/ ATX MB

MPN: X870E NOVA WIFI

Main Features

• Unique Feature
• -Superb Productivity:
• -PCIe Gen5 (Graphics, M.2)
• -Dual Channel DDR5
• -USB4 Type-C Ports (40 Gb/s)
• -Rock-Solid Durability:
• -Server-Grade Low-Loss PCB
• -20+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor
• -Flexible Integrated I/O Shield
• -20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming
• -5G LAN, 802.11be Wi-Fi 7 Module
• -ASRock Lightning Gaming Ports
• -EZ Update:
• -BIOS Flashback Button
• -ASRock Auto Driver Installer
• CPU: Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
• Chipset: AMD X870E
• Memory
• -Dual Channel DDR5 Memory Technology
• -4 x DDR5 DIMM Slots
• -Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)
• -Max. capacity of system memory: 256GB
• -Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
• -Integrated AMD RDNA graphics (Actual support may vary by CPU)
• -1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• -2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
• Audio
• -7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
• -Individual PCB Layers for R/L Audio Channel
• -Nahimic Audio
• LAN
• -5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
• -Realtek RTL8126
• Wireless LAN
• -802.11be 2x2 Wi-Fi 7 Module
• -Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
• -Supports 2.4GHz/5GHz/6GHz frequency band
• -Supports 160MHz channel bandwidth with 6GHz frequency band
• -1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
• -Supports Bluetooth 5.4
• -Supports MU-MIMO
• Slots
• -CPU:
• -1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• -Chipset:
• -1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode
• -1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode
• -1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• Storage
• -CPU:
• -1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• -Chipset:
• -1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• -1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• -1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• -1 x M.2 Socket (M2_5, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes
• -2 x SATA3 6.0 Gb/s Connectors
• ASMedia ASM1061
• -2 x SATA3 6.0 Gb/s Connectors
• RAID
• -Supports RAID 0 and RAID 1 for SATA storage devices
• -Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
• USB
• -CPU:
• -2 x USB4 Type-C (Rear)
• -2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7))
• -Chipset:
• -1 x USB 3.2 Gen2x2 Type-C (Front)
• -3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56))
• -7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
• -6 x USB 2.0 (2 Rear, 4 Front)
• Connector
• -3 x Thermistor Cable Headers
• -1 x Power LED and Speaker Header
• -1 x RGB LED Header
• -3 x Addressable LED Headers
• -2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
• -3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• -1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• -1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• -1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• -2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• -1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• -2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• -2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• -1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• -1 x Dr. Debug with LED
• -1 x Power Button with LED
• -1 x Reset Button with LED

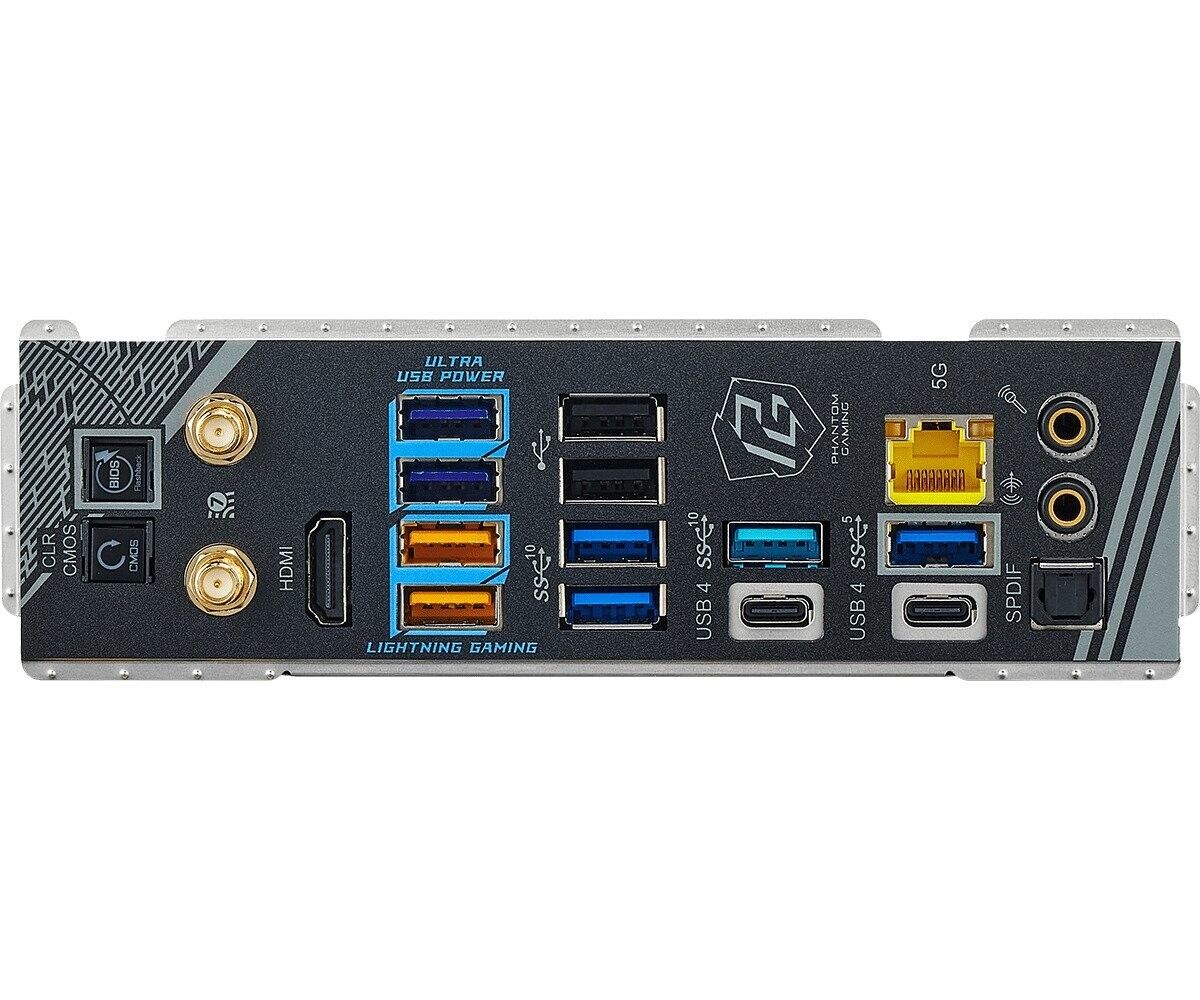

• Rear Panel I/O
• -2 x Antenna Ports
• -1 x HDMI Port
• -1 x Optical SPDIF Out Port
• -2 x USB4 Type-C Ports (40 Gb/s)
• -5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
• -3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
• -2 x USB 2.0 Ports
• -1 x RJ-45 LAN Port
• -1 x Clear CMOS Button
• -1 x BIOS Flashback Button
• -1 x Line Out Jack (Gold Audio Jack)
• -1 x Microphone Input Jack (Gold Audio Jack)
• Software and UEFI
• -Software:
• -ASRock Motherboard Utility (Phantom Gaming Tuning)
• -ASRock Phantom Gaming LAN Software
• -ASRock Polychrome SYNC
• -UEFI:
• -ASRock EZ Mode
• -ASRock Full HD UEFI
• -ASRock Auto Driver Installer
• -ASRock Instant Flash

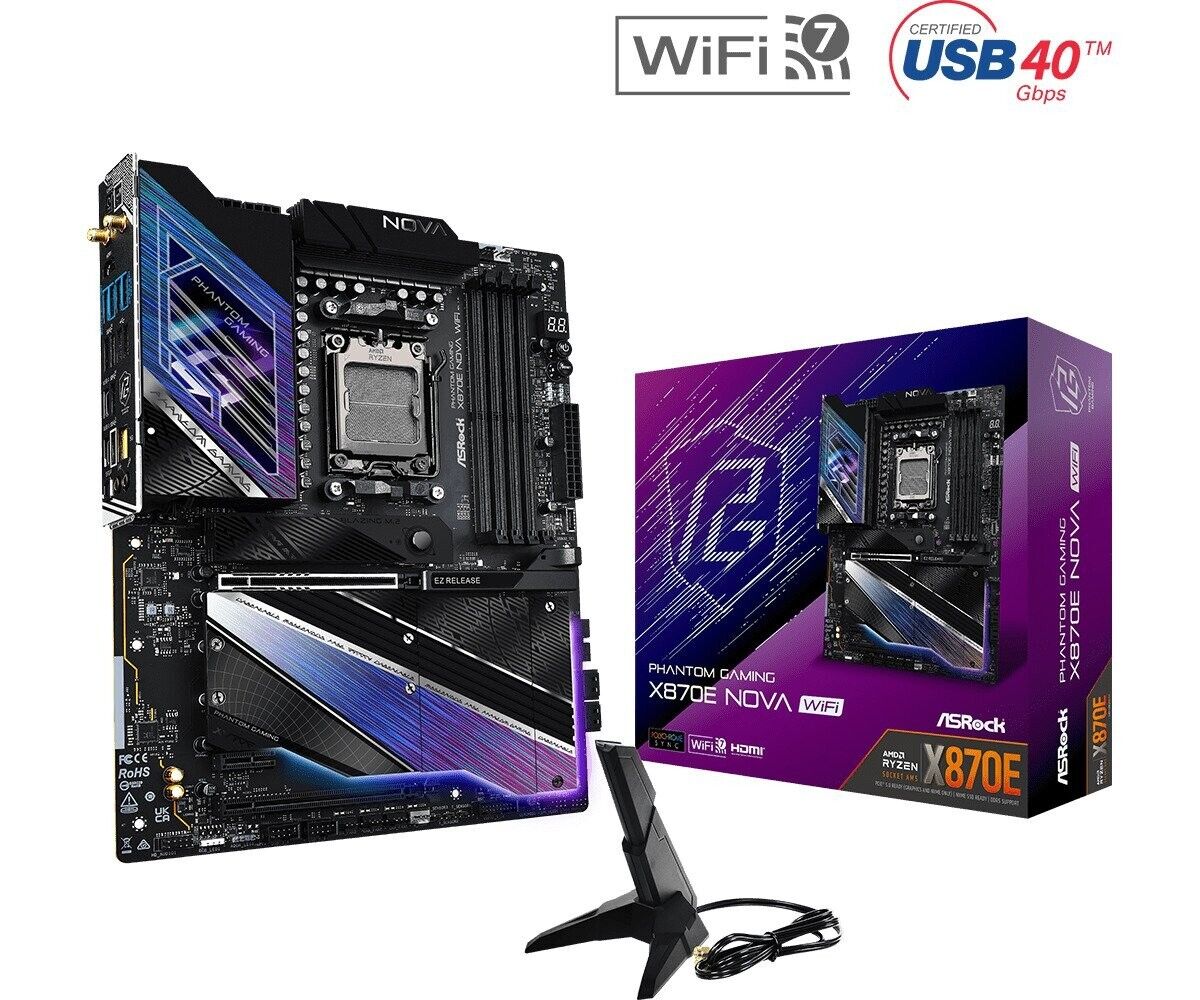

• Accessories
• -4 x SATA Data Cables
• -1 x ASRock WiFi 2.4/5/6 GHz Antenna
• -1 x ARGB Splitter Cable
• -3 x Thermistor Cables
• Form Factor
• -ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• -8 Layer PCB
• -2oz Copper PCB
• OS: Microsoft Windows 10 64-bit / 11 64-bit
• Certifications
• -FCC, CE
• -ErP/EuP ready (ErP/EuP ready power supply is required)
