Asus PRO WS WRX90E-SAGE SE AMD sTR5 8-DDR5 M.2 SAS SATA dDP VGA 10Gb-ETH EEB

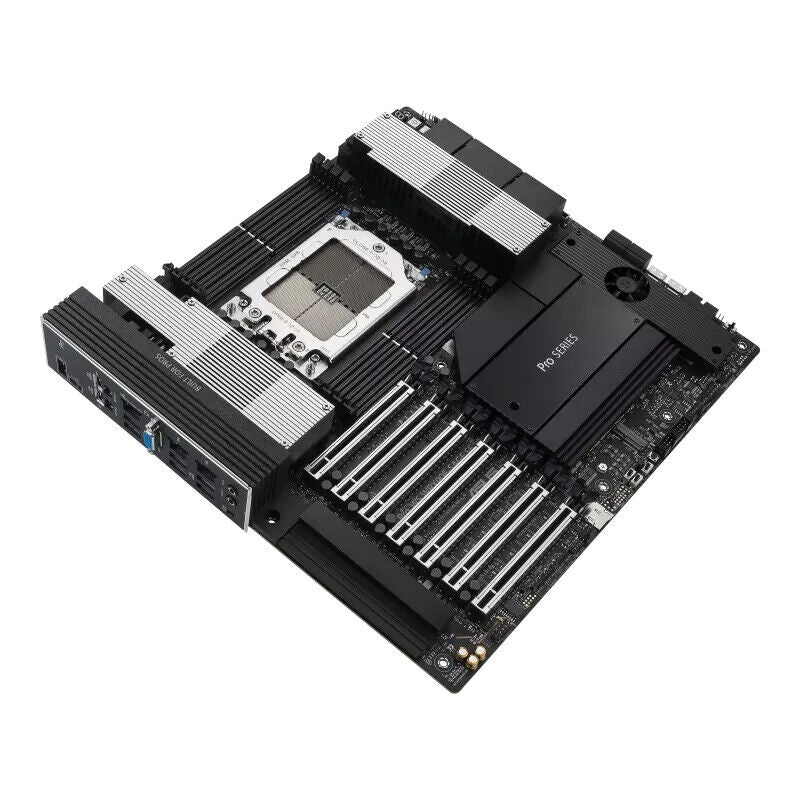

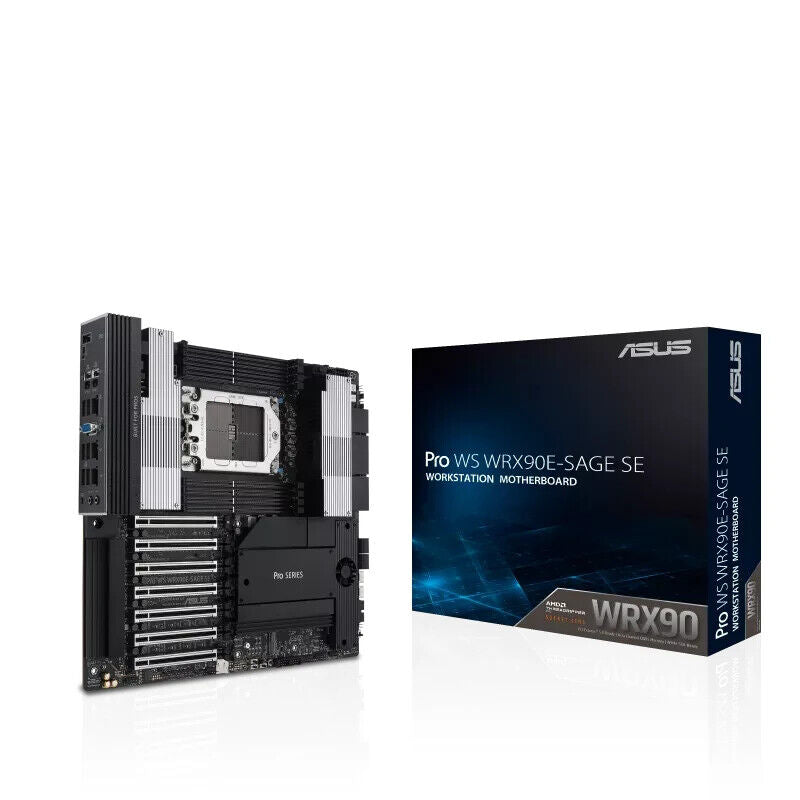

Pro WS WRX90E-SAGE SE

AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim

CPU

• AMD Socket sTR5 for Ryzen™  Threadripper™  PRO 7000 WX-Series

Chipset

• AMD WRX90 Chipset

Memory

• 8 x DIMM slots, DDR5, ECC Registered Memory*
• 8 Channel Memory Architecture

*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration

Expansion Slots

• AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
• 6 x PCIe 5.0 x16 slots
• 1 x PCIe 5.0 x16 slot (x8 mode)

*Please check the PCIe bifurcation table on the support site

Storage, Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports*

• AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• AMD WRX90 Chipset
  • 2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
  • 4 x SATA 6Gb/s ports

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.

Ethernet

• 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
• 1 x Intel® dual 10Gb Ethernet
• ASUS LANGuard

USB

• Rear USB (Total 9 ports)
  • 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
  • 6 x USB 10Gbps ports (6 x Type-A)
  • 1 x USB 2.0 ports (2 x Type-A )
• Front USB (Total 7 ports)
  • 1 x USB 20Gbpsconnector (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5G ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek ALC1220P Surround Sound High Definition Audio CODEC*
  • - Impedance sense for front and rear headphone outputs
  • - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • - Supports up to 32-Bit/192 kHz playback
• Audio Features
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • - Unique de-pop circuit

*A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.

* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

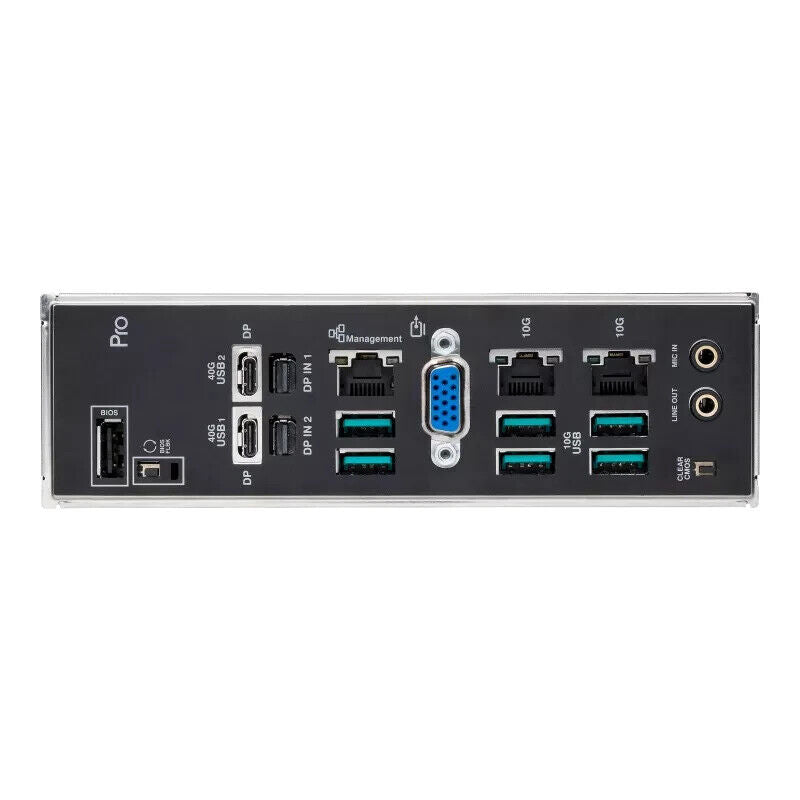

Back Panel I/O Ports

• 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
• 6 x USB 10Gbps ports (6 x Type-A)
• 1 x USB 2.0 port (2 x Type-A)
• 1 x VGA port
• 2 x mini DisplayPort IN
• 1 x Intel® dual 10Gb Ethernet ports
• 1 x Realtek 1Gb Ethernet port
• 2 x Audio jacks
• 1 x BIOS FlashBack™  button
• 1 x Clear CMOS button

Internal I/O Connectors

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x W_PUMP+ header
  • 5 x 4-pin Chassis Fan headers
  • 2 x 4-pin VRM Fan header (with VRM FAN onboard)
  • 1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
• Power related
  • 1 x 24-pin Main Power connectors
  • 2 x 8-pin +12V Power connectors
  • 2 x 8-pin PCIe to CPU power connectors
  • 2 x 8-pin PCIe Power connector
• Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • 2 x SlimSAS port
• USB
  • 1 x USB 20Gbps connector supports USB Type-C®
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
  • 1 x Chassis intrusion header
  • 1 x COM port header
  • 1 x FlexKey button
  • 1 x Front panel audio header (F_AUDIO)
  • 1 x LN2 mode jumper
  • 1 x M.2 slot (Key E)
  • 7 x ProbeIt measurement points
  • 1 x ReTry button
  • 1 x RSVD switch
  • 1 x Slow mode switch
  • 1 x Safe boot button
  • 1 x SPI TPM header (14-1 pin)
  • 1 x Start button
  • 1 x 10-1 pin system panel header
  • 1 x Thermal sensor header

Special Features

• ASUS 5X PROTECTION III
  • - DIGI+ VRM (- Digital power design with SPS)
  • - ESD Guards
  • - LANGuard
  • - Overvoltage protection
  • - SafeSlot
  • - Stainless-steel back I/O
• ASUS Q-Design
  • - M.2 Q-Latch
  • - Q-Release Slim (with PCIe SafeSlot)
  • - Q-Code
  • - Q-Connector
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
• ASUS Thermal Solution
  • - M.2 heatsink backplate and onboard thermal pads
  • - M.2 heatsink

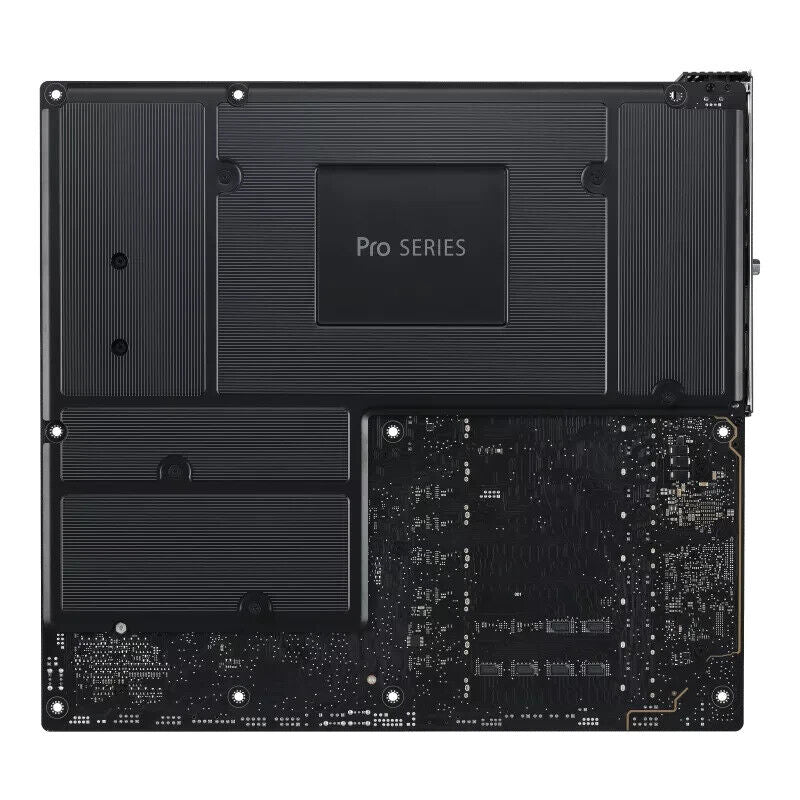

  • - Steel backplate
  • - VRM heatsink design with active fans
• ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  • - Clear CMOS button
  • - ProCool II
  • - Pre-mounted I/O shield
  • - SafeSlot
  • - SafeDIMM
• Bespoke Motherboard Design & Business Focused Features
  • - 24/7 Reliability
  • - Overcurrent Protection
• BMC Related
  • 1 x BMC switch
  • 1 x BMC LAN fixed IP switch
  • 1 x IPMI switch
  • 1 x Message LED header
  • 1 x microSD card socket
  • 2 x LAN LED headers
  • 1 x Location LED header
  • 1 x Location button header
  • 1 x PSU_SMB header
  • 1 x SMART_PSU switch
  • 1 x VGA switch
  • 1 x VGA header (Dedicated Management for AST2600)
  • 1 x VPP_I2C header

Software Features

• ASUS Exclusive Software
• Armoury Crate
  • - Fan Xpert 4
• ASUS CPU-Z
• Adobe Creative Cloud (Free Trial)
• Norton 360 for Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
  • - ASUS CrashFree BIOS 3
  • - ASUSTeK. EzFlash Utility
• ASUS EZ DIY
• FlexKey
• IT Management software supported
  • - ASUS Control Center Express(ACCE)

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS(text-based)

Manageability

• WOL by PME, PXE (UEFI mode)

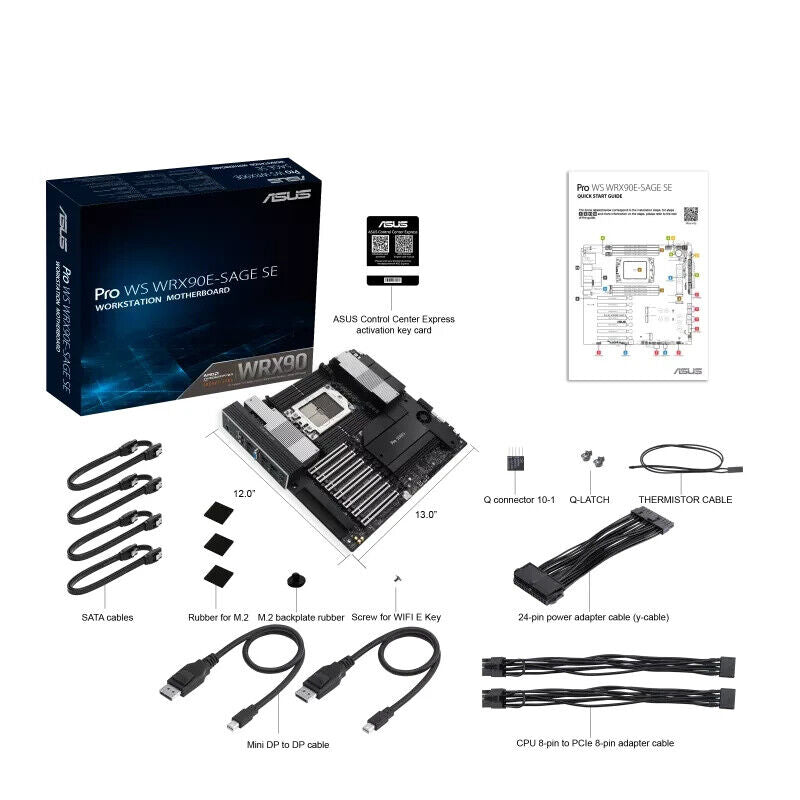

Accessories

• Cables
  • 2 x PCIe 8-pin to CPU power cables
  • 1 x 24-pin power cable (Y cable)
  • 2 x Mini DisplayPort cables
  • 4 x SATA 6Gb/s cables
  • 1 x Thermistor cable pack
• Miscellaneous
  • 1 x Q-connector
  • 1 x M.2 Q-Latch package
  • 1 x AMI license sticker
  • 4 x M.2 rubber packages
  • 1 x Screw package for M.2 Key E
• Documentation
  • 1 x ACC Express Activation Key Card
  • 1 x Quick start guide

Operating System

• Windows® 11
• Windows® 10 64-bit
• Form Factor
• EEB Form Factor
• 12 inch x 13 inch (30.5 cm x 33 cm)
