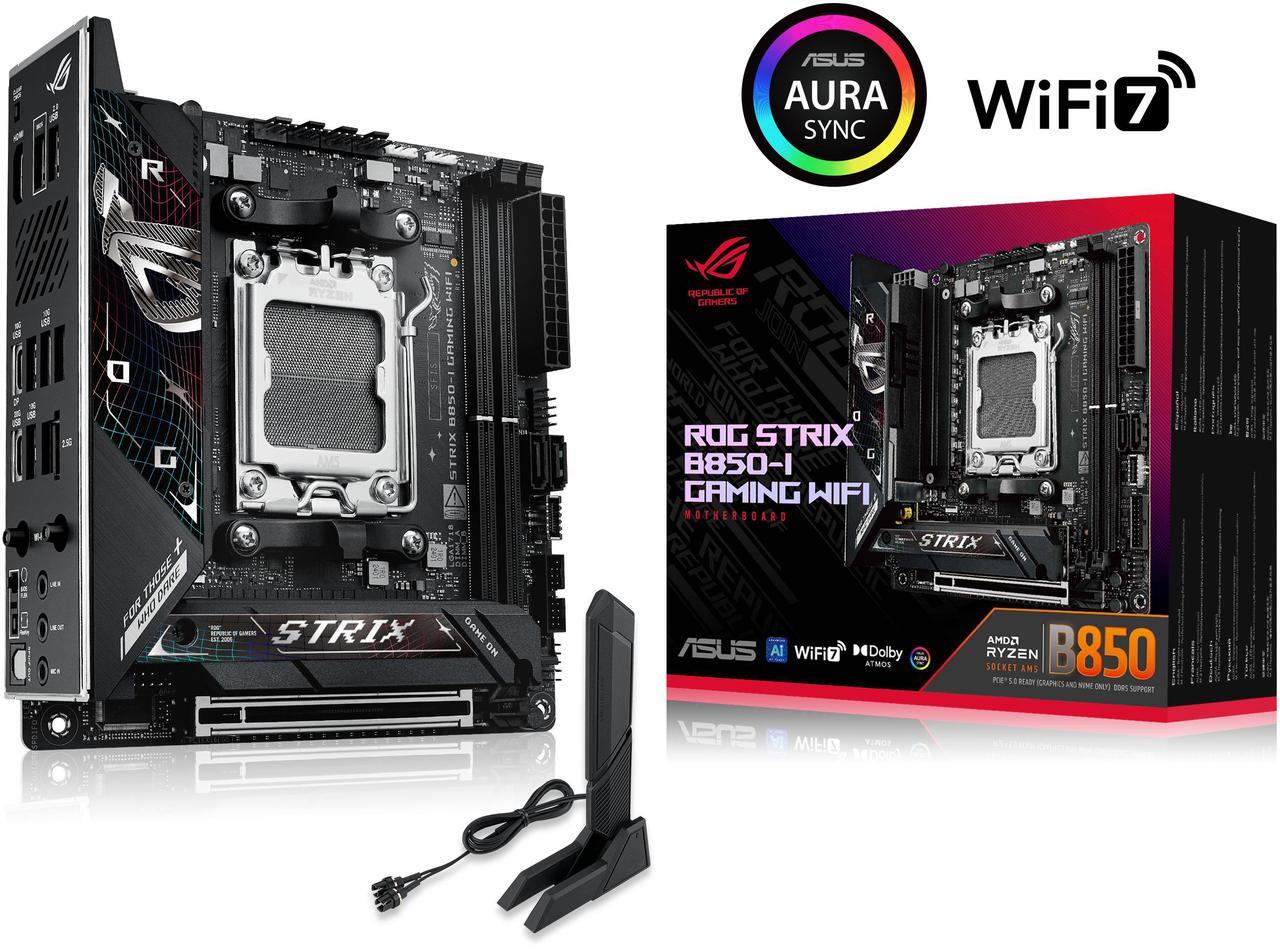

ASUS ROG STRIX B850-I GAM WIFI B850 AM5 max96GB DDR5 Mini-ITX - Motherboard

Product Information

• Brand: ASUS
• SKU: 292934
• MPN: ROG STRIX B850-I GAM WIFI
• Model: ROG STRIX B850-I GAM WIFI
• Supported: CPU
• CPU Socket Type: AM5
• CPU Type: Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
• Chipset: AMD B850
• Number of Memory Slots 2x288pin (DDR5)
• Memory Standard DDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6666 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8333 / DDR5 8400
• Maximum Memory Supported 96GB
• Channel Supported Dual Channel
• ECC Supported Yes
• Buffer Supported Un-buffered
• Memory Feature Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO)
• ASUS Enhanced Memory Profile (AEMP)
• Expansion Slots
• PCI Express 5.0 x16 AMD Ryzen 9000 & 7000 Series Desktop Processors
• 1 x PCIe 5.0 x16 slot(s)
• PCI Express 4.0 x16 AMD Ryzen 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot(s)
• Storage Devices
• Serial ATA (SATA) 2 x SATA 6Gb/s
• M.2 AMD Ryzen 9000 & 7000 Series Desktop Processors*
• M.2_1 slot (Key M), type02242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• AMD Ryzen 8000 Series Desktop Processors*
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• SATA RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
• Onboard Audio
• Audio Chipset Realtek ALC4080
• Audio Channels ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
• - Impedance sense for front and rear headphone outputs
• - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• - Supports up to 32-Bit/384 kHz playback on front panel
• Audio Features
• - SupremeFX Shielding Technology
• - Savitech SV3H712 AMP
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Unique de-pop circuit
• Onboard LAN
• Max LAN Speed 2.5Gbps
• Wireless LAN Wi-Fi 802.11 be
• Bluetooth Bluetooth 5.4
• Rear Panel Ports
• Back I/O Ports 1 x USB 20Gbps port(s)
• 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C with DP Alt mode)
• 2 x USB 2.0 port(s) (2 x Type-A)
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Intel 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button
• 1 x FlexKey button
• Internal I/O Connectors
• Onboard USB 1 x USB 10Gbps connector (support(s) USB Type-C)
• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
• 1 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
