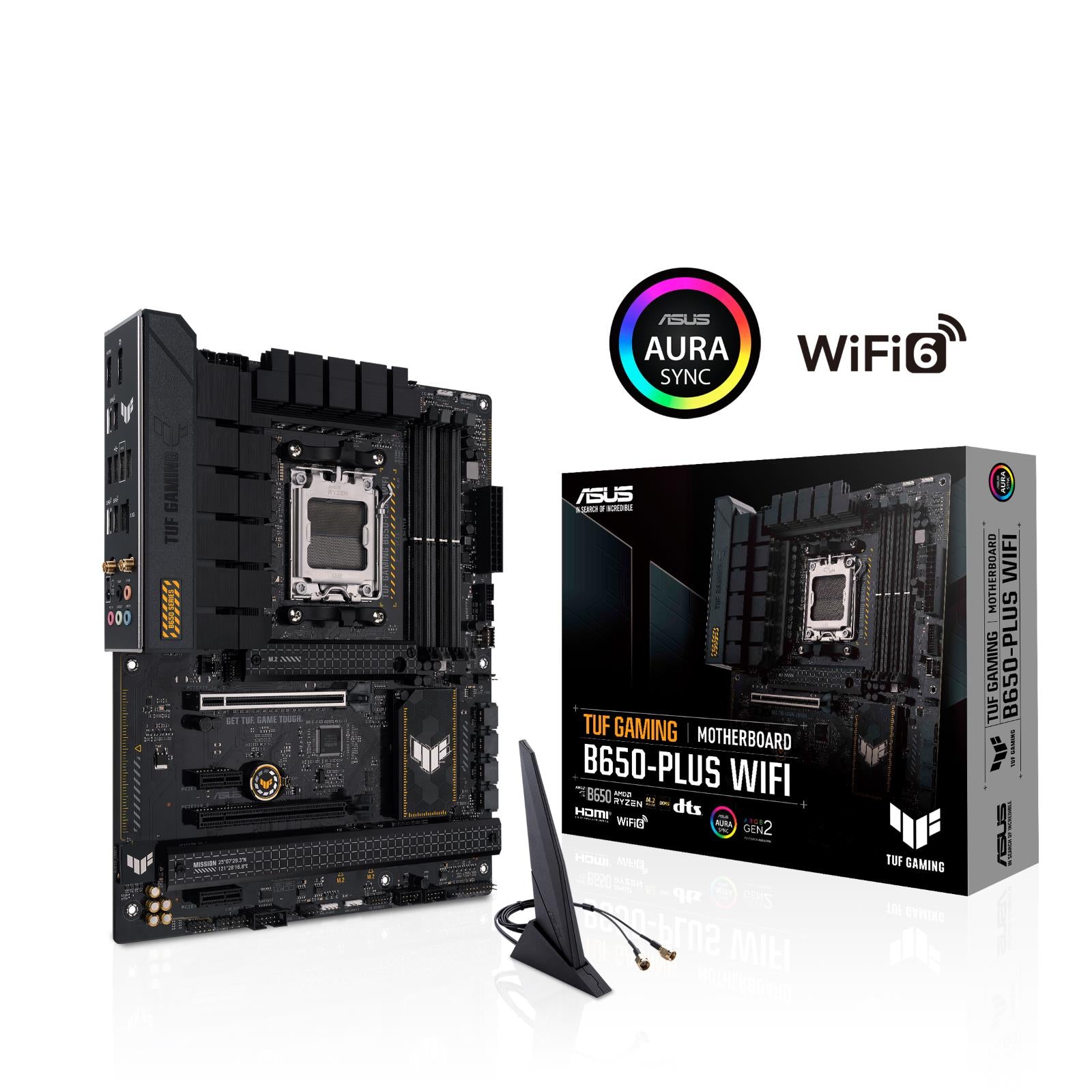

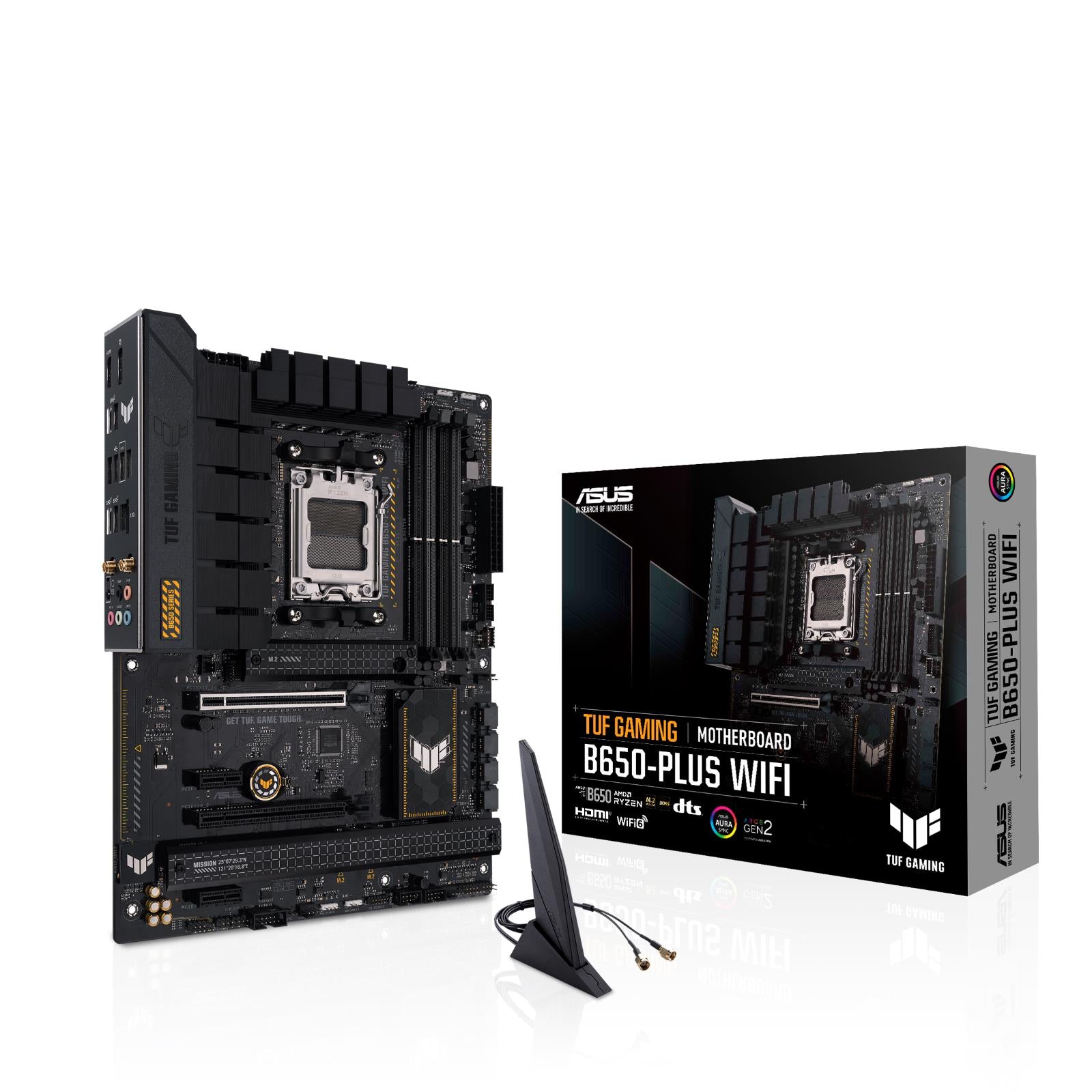

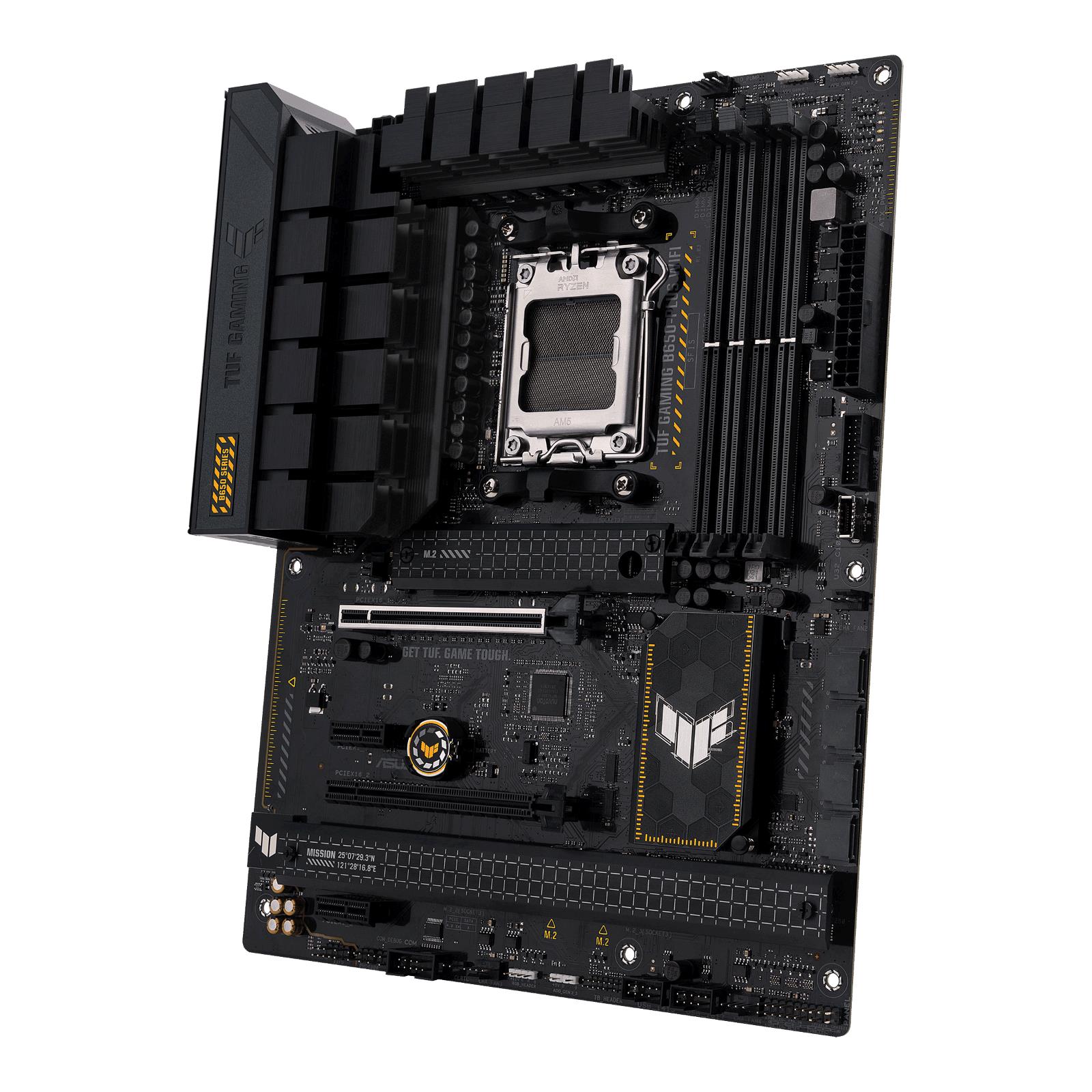

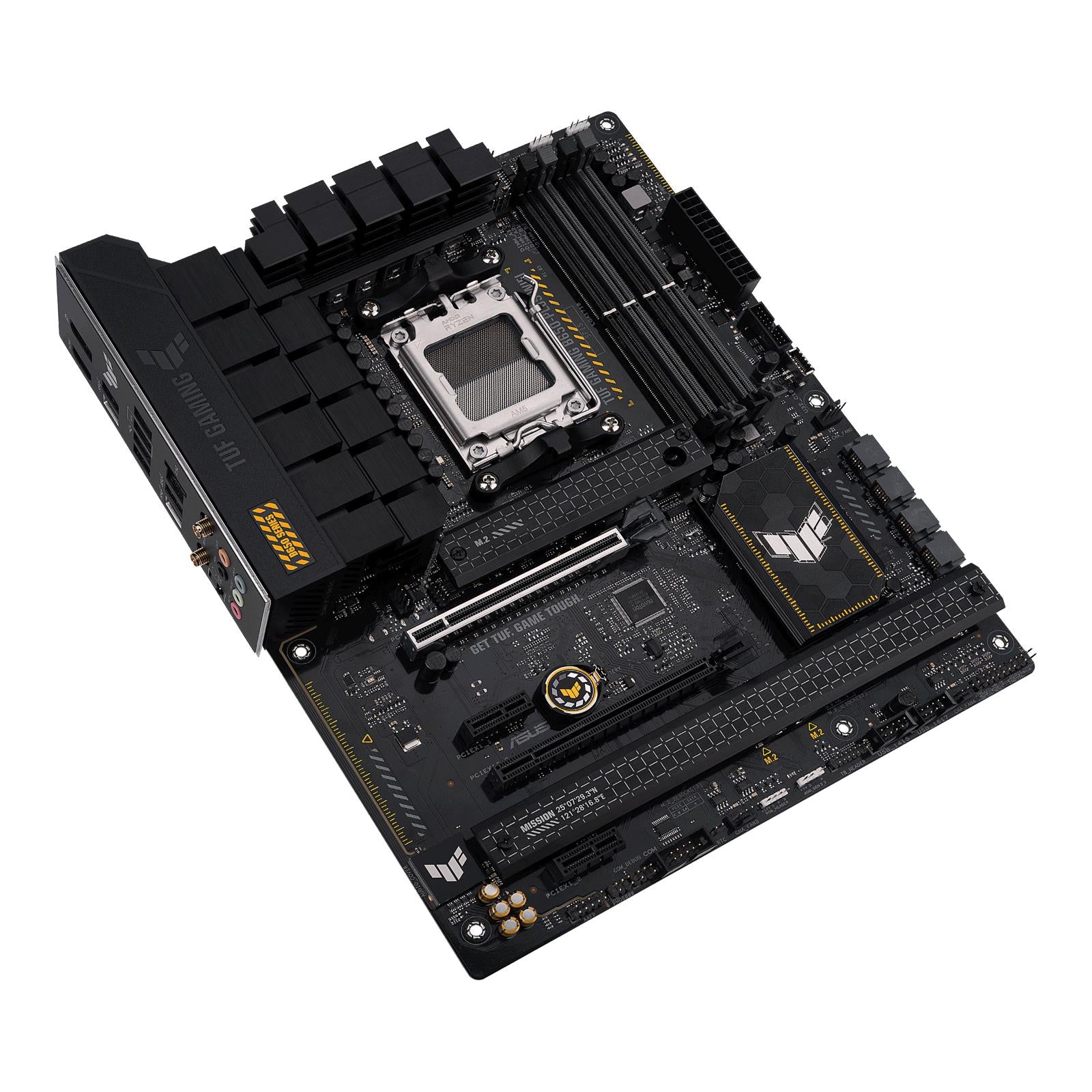

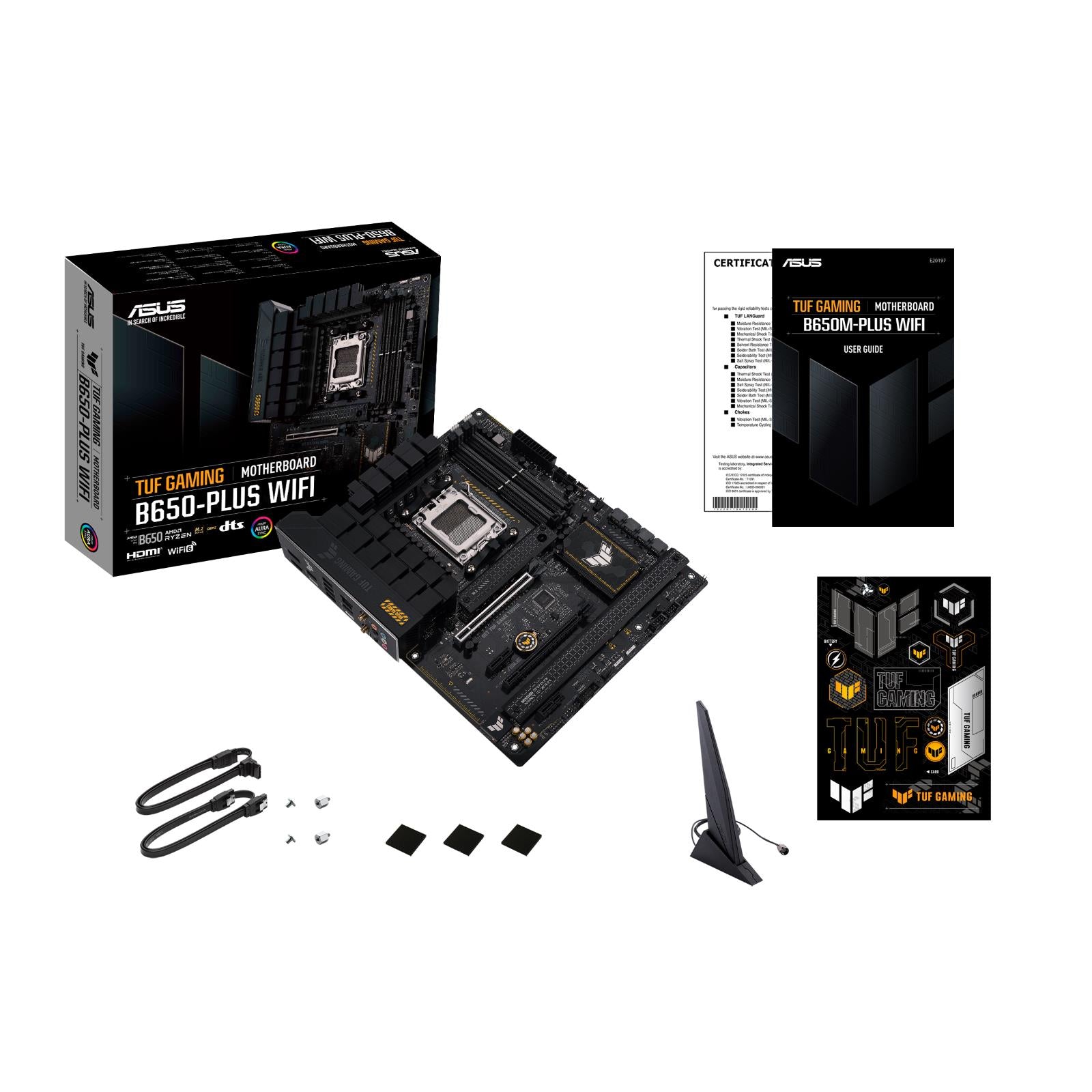

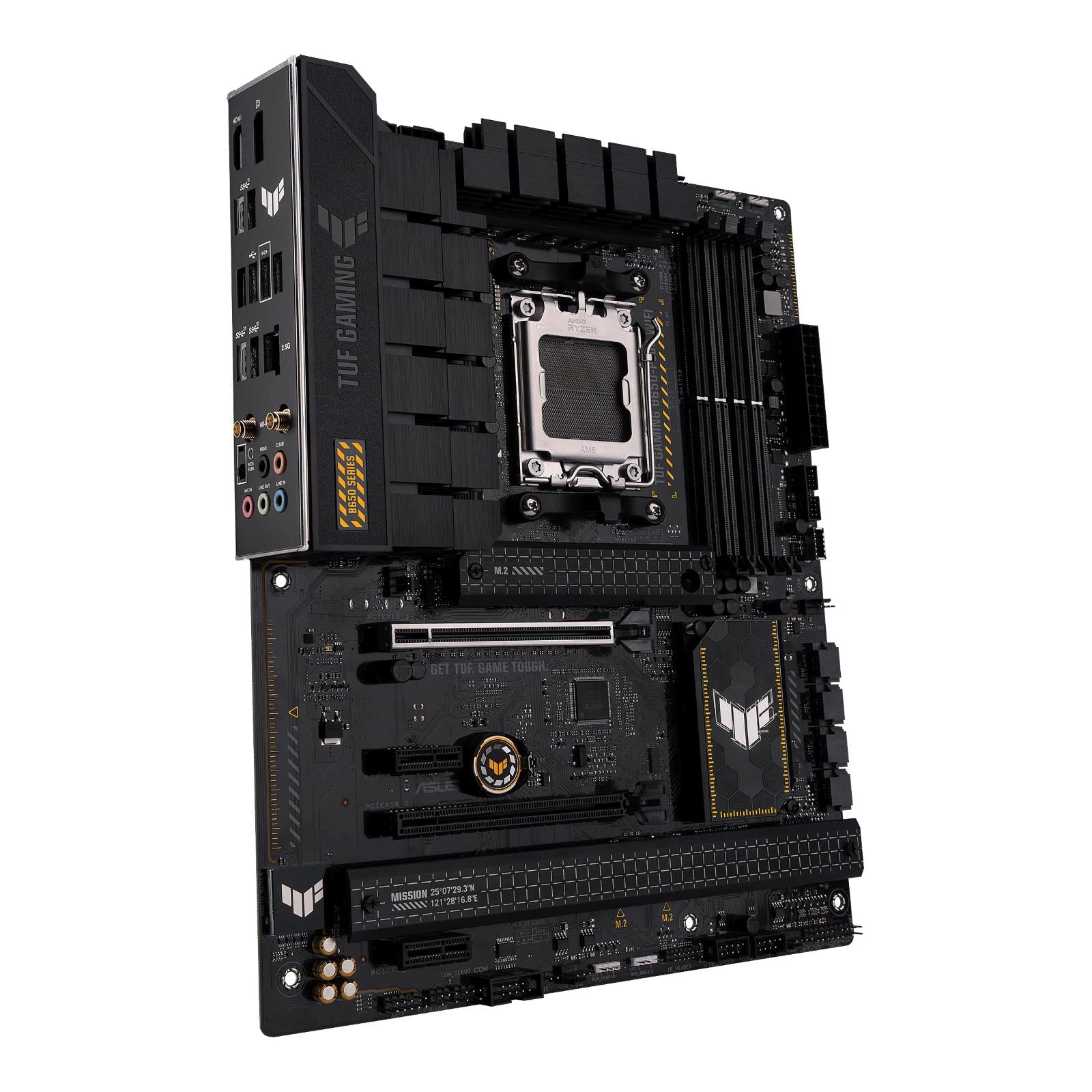

Asus TUF GAMING B650-PLUS WIFI MB AMD Ryzen AM5 DDR5 DP HDMI M.2 SATA 2.5G LAN

TUF GAMING B650-PLUS WIFI

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Memory

• 4 x DIMM, Max. 128GB, DDR5
• 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD EXTended Profiles for Overclocking (EXPO™)
• OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics

• 1 x DisplayPort*
• 1 x HDMI® port**

* Supports max. 8K@60Hz as specified in DisplayPort 1.4.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  • 1 x PCIe 4.0/3.0 x16 slot(s)
• AMD Ryzen™ 8000 Series Desktop Processors*
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD B650 Chipset
  • 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
  • 2 x PCIe 4.0/3.0 x1 slots

* Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).

** Specifications vary by CPU types.

Storage, Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
• AMD B650 Chipset
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)***
  • 4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

** Specifications vary by CPU types.

*** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2

USB

• Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
  • 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
  • 4 x USB 2.0 port(s) (4 x Type-A)
• Front USB (Total 7 ports)
  • 1 x USB 3.2Gen 1 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
• Audio Features
  • - Audio Shielding
  • - Power pre-regulator reduces power input noise to ensure consistent performance
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • - Audio cover
  • - Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

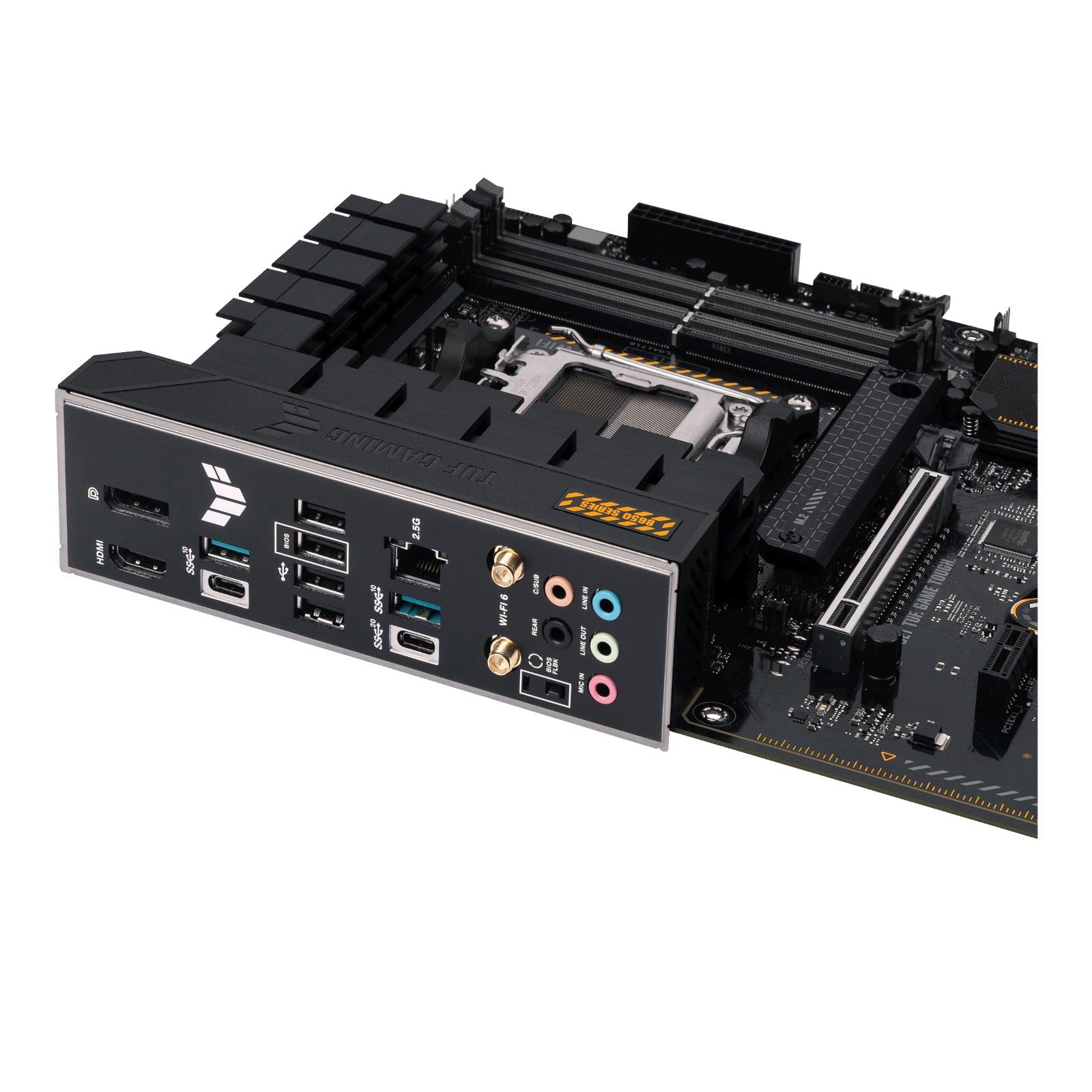

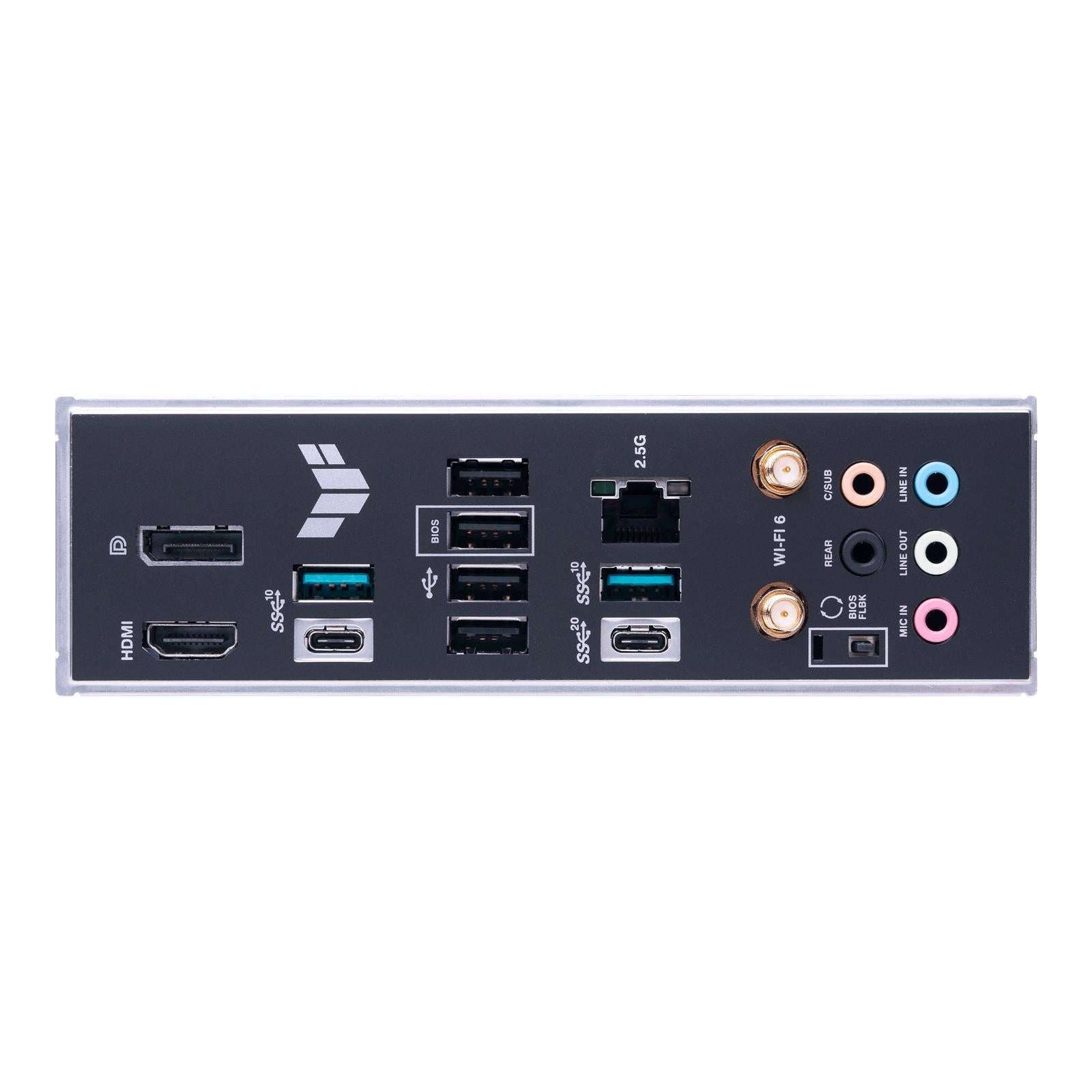

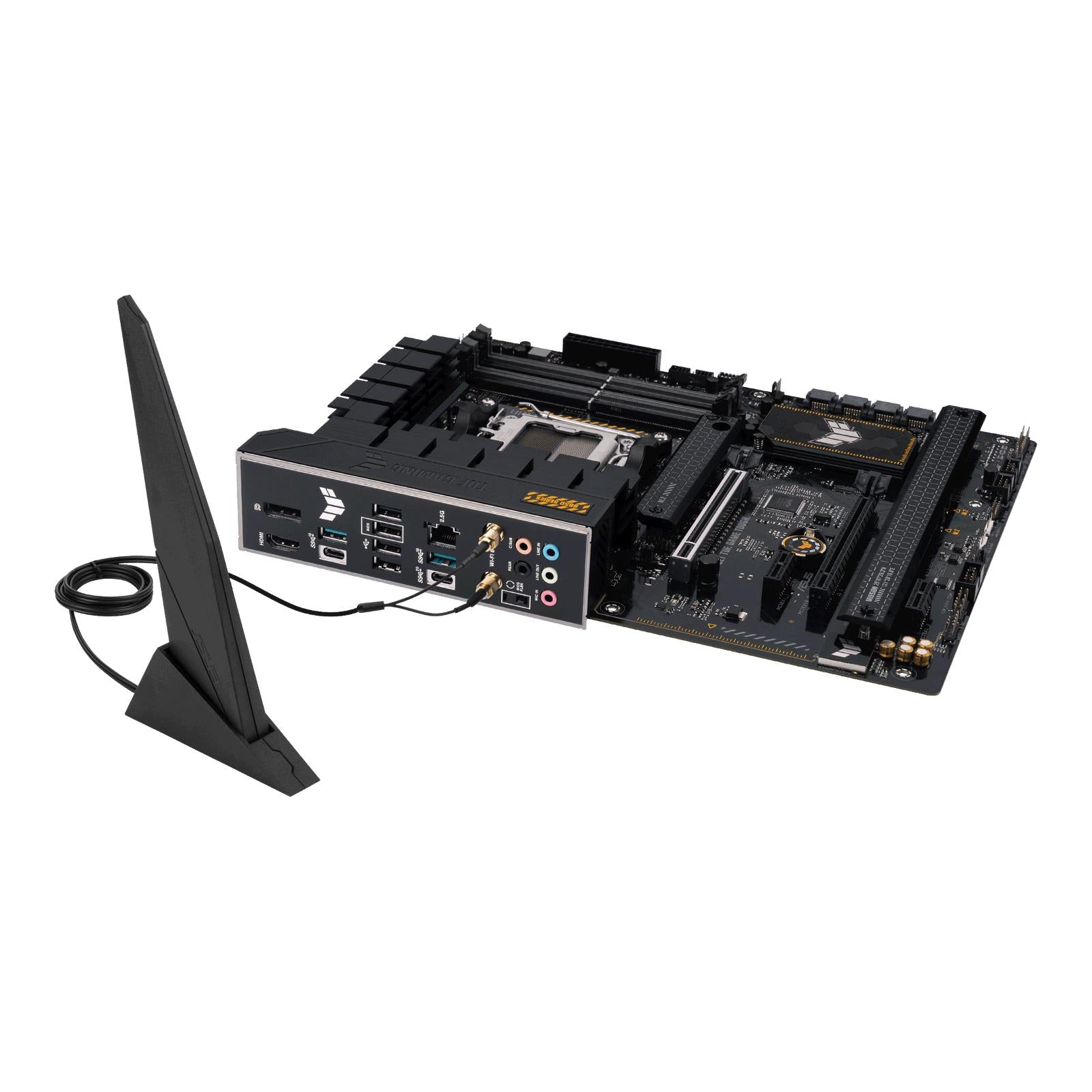

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 2.0 port(s) (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button

Internal I/O Connectors

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header(s)
  • 1 x 4-pin CPU OPT Fan header(s)
  • 1 x 4-pin AIO Pump header(s)
  • 4 x 4-pin Chassis Fan header(s)
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
• Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® )
  • 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 header(s)
  • 1 x Aura RGB header(s)
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™ (USB4®) header

Special Features

• ASUS TUF PROTECTION
  • - DIGI+ VRM (- Digital power design with DrMOS)
  • - Enhanced DRAM Overcurrent Protection
  • - ESD Guards
  • - TUF LANGuard
  • - Overvoltage Protection
  • - SafeSlot Core+
  • - Stainless-Steel Back I/O
• ASUS Q-Design
  • - M.2 Q-Latch
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
• ASUS Thermal Solution
  • - M.2 heatsink
  • - VRM heatsink design
• ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  • - ProCool
  • - Pre-mounted I/O shield
  • - SafeDIMM
• Aura Sync
  • - Aura RGB header(s)
  • - Addressable Gen 2 header(s)

Software Features, ASUS Exclusive Software

• Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • - Fan Xpert 4
  • - Power Saving
  • - Two-Way AI Noise Cancellation
• AI Suite 3
  • - TurboV EVO
  • - DIGI+ VRM
  • - PC Cleaner
• TUF GAMING CPU-Z
• DTS Audio Processing
• MyAsus
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
• ASUS EZ DIY

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Operating System

• Windows® 11
• Windows® 10 64-bit

Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
