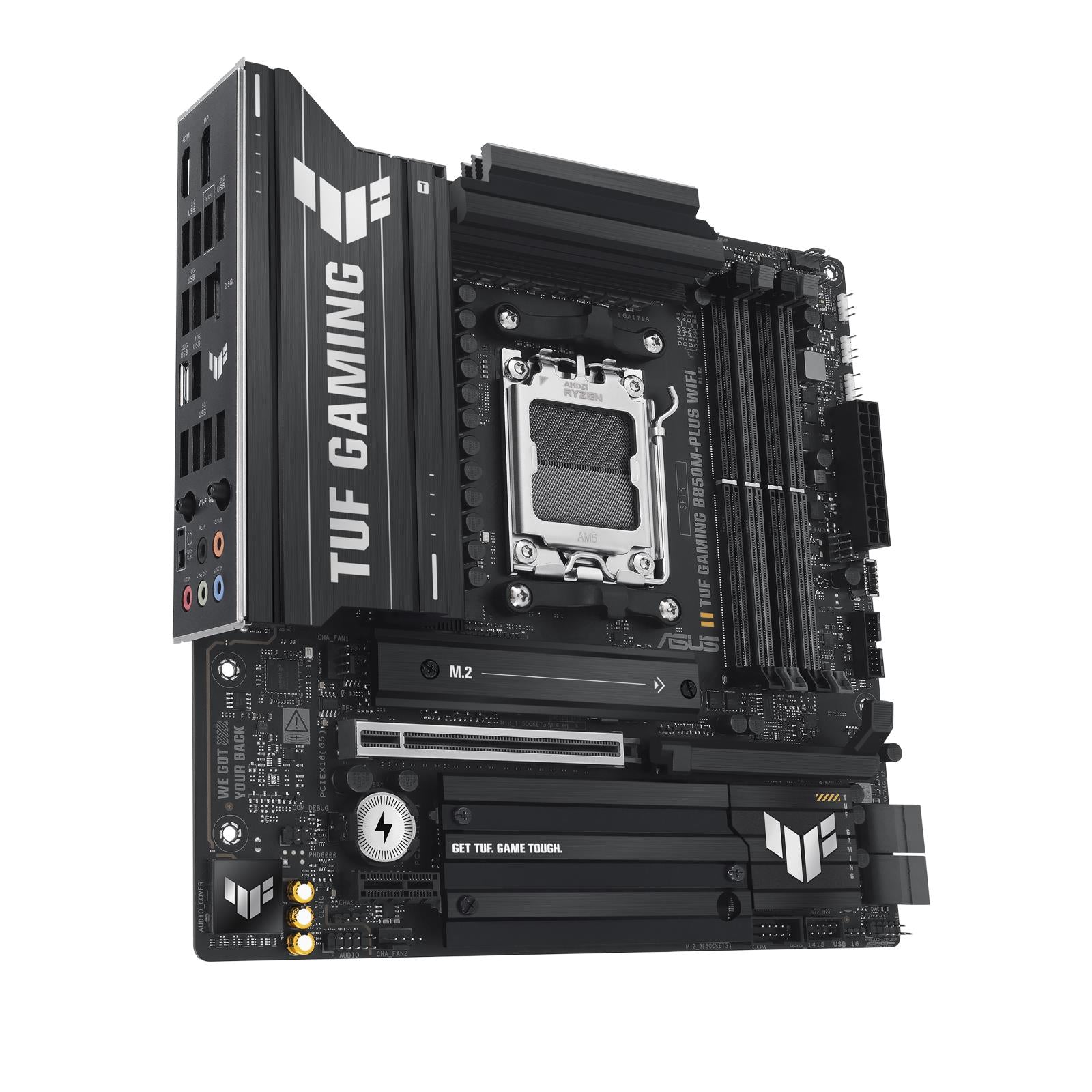

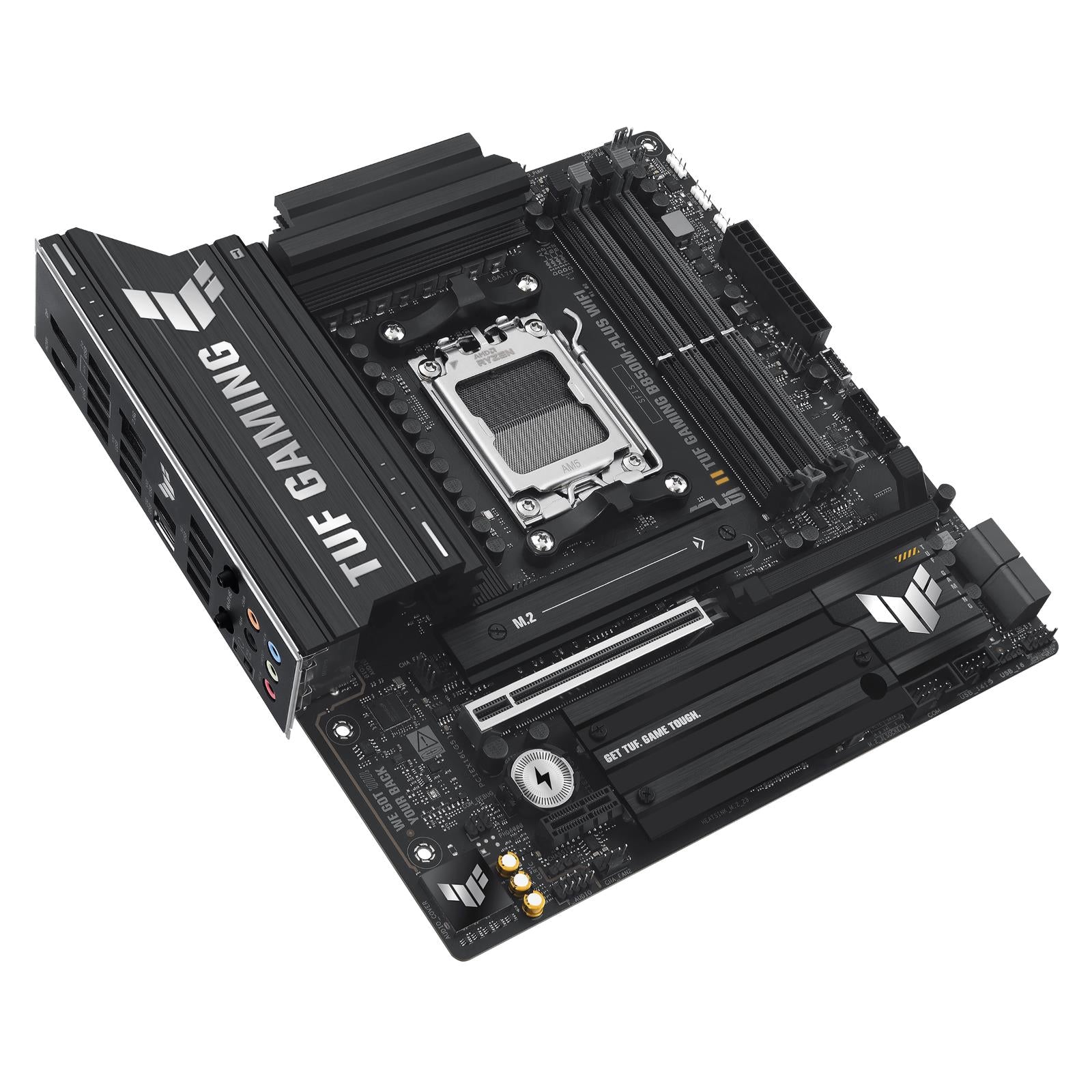

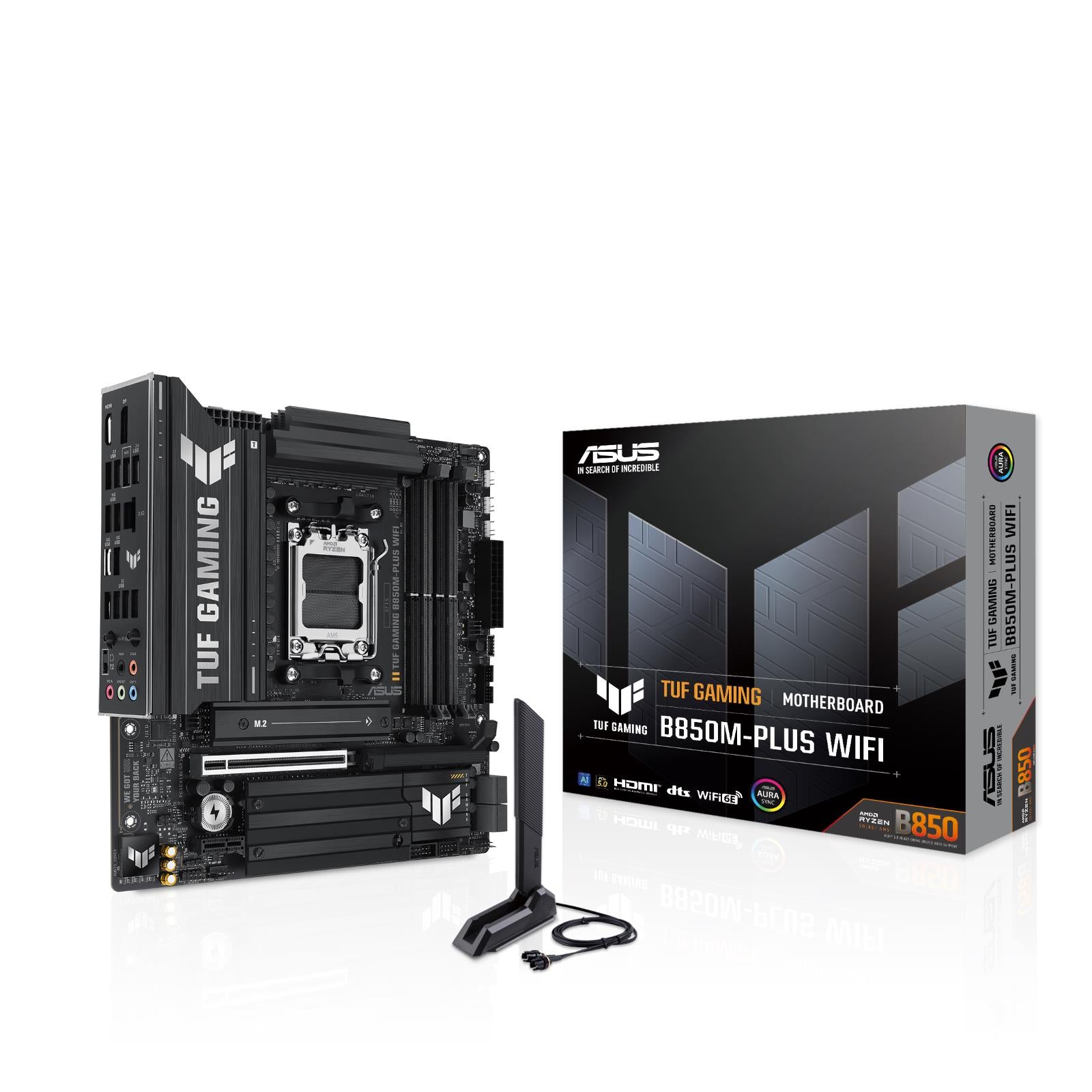

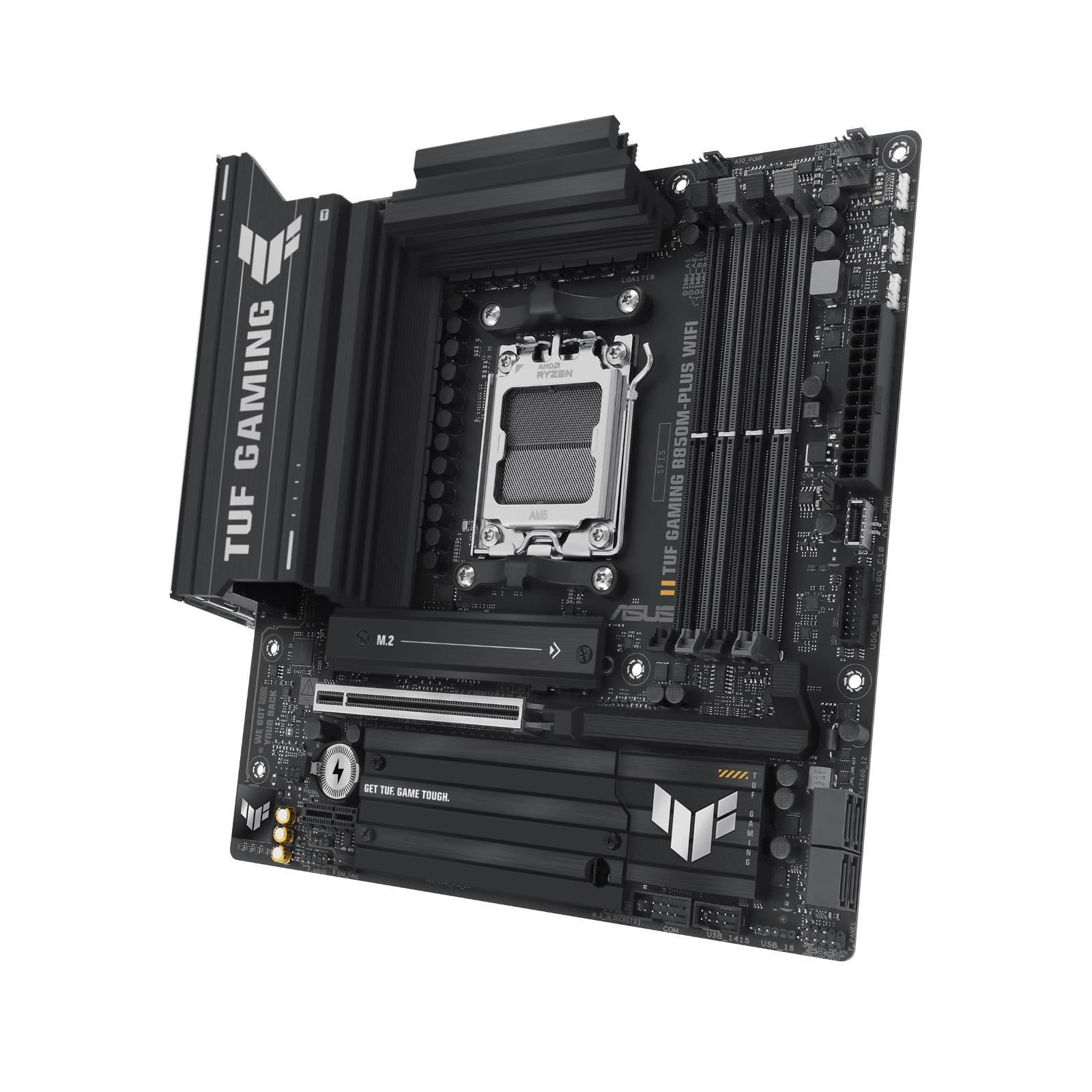

Asus TUF GAMING B850M-PLUS WIFI AMD AM5 4-DDR5 DP HDMI M.2 SATA 2.5Gb-ETH ATX

TUF GAMING B850M-PLUS WIFI

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD B850 Chipset

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

* Adjustments will be made based on the specifications of mass-produced memory products available on the market.

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort**
• 1 x HDMI™ port***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports max. 8K@30Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors (Check ASUS support site for updates)
  • 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD B850 Chipset
  • 1 x PCIe 4.0 x1 slot

** Specifications vary by CPU types.

Storage, Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode). Specifications vary by CPU types.
• AMD B850 Chipset
  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
• AMD RAIDXpert2 Technology
  • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  • Ryzen™ 8000 Series Processors: RAID 0/1
  • Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth® v5.3**

* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.

** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 12 ports)
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 3 x USB 10Gbps ports (3 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 6 ports)
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 3 additional USB 2.0 ports

* USB Type-C® power delivery output: max. 5V/3A.

Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
  • - Impedance sense for front and rear headphone outputs
  • - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • - Supports up to 32-Bit/192 kHz playback*
• Audio Features
  • - Audio Shielding
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • - Audio cover
  • - Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

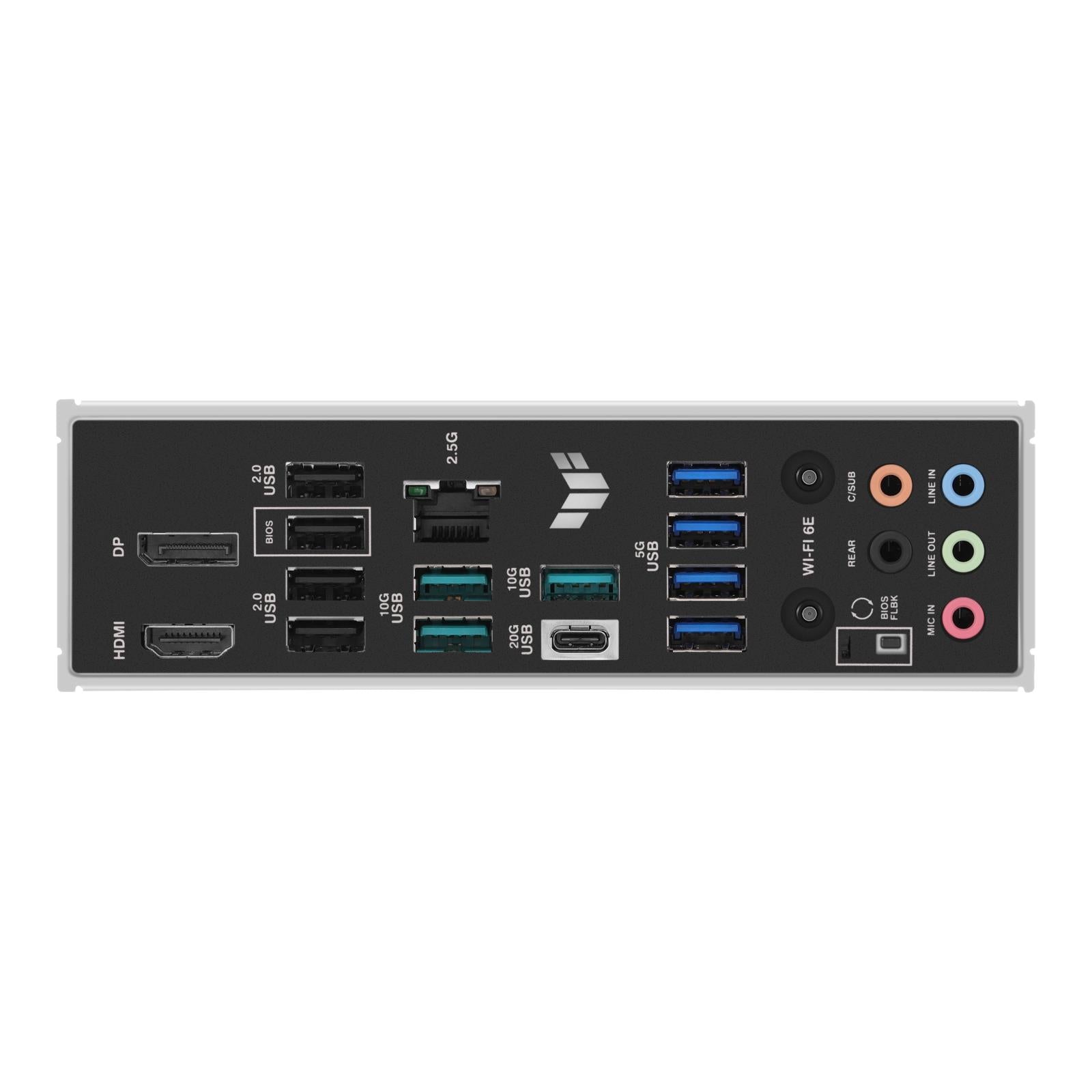

Back Panel I/O Ports

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button

Internal I/O Connectors

• Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
• Power Related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors
• Storage Related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 10Gbps connector (supports USB Type-C® )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x 10-1 pin Front Panel System header

Special Features

• ASUS TUF PROTECTION
  • - DIGI+ VRM (- Digital power design with DrMOS)
  • - ESD Guards
  • - TUF LANGuard
  • - Overvoltage protection
  • - SafeSlot
  • - Stainless-steel back I/O
• ASUS Q-Design
  • - M.2 Q-Latch
  • - PCIe Slot Q-Release
  • - Q-Antenna
  • - Q-Dashboard
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• ASUS Thermal Solution
  • - M.2 heatsink
  • - VRM heatsink design
• ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  • - ProCool
  • - Pre-mounted I/O shield
  • - SafeDIMM
• Aura Sync
  • - Addressable Gen2 headers

Software Features, ASUS Exclusive Software

• Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • - Fan Xpert 4
  • - Power Saving
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• TUF GAMING CPU-Z
• DTS Audio Processing
• Adobe Creative Cloud (Free Trial)
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • - ASUS MyHotkey

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

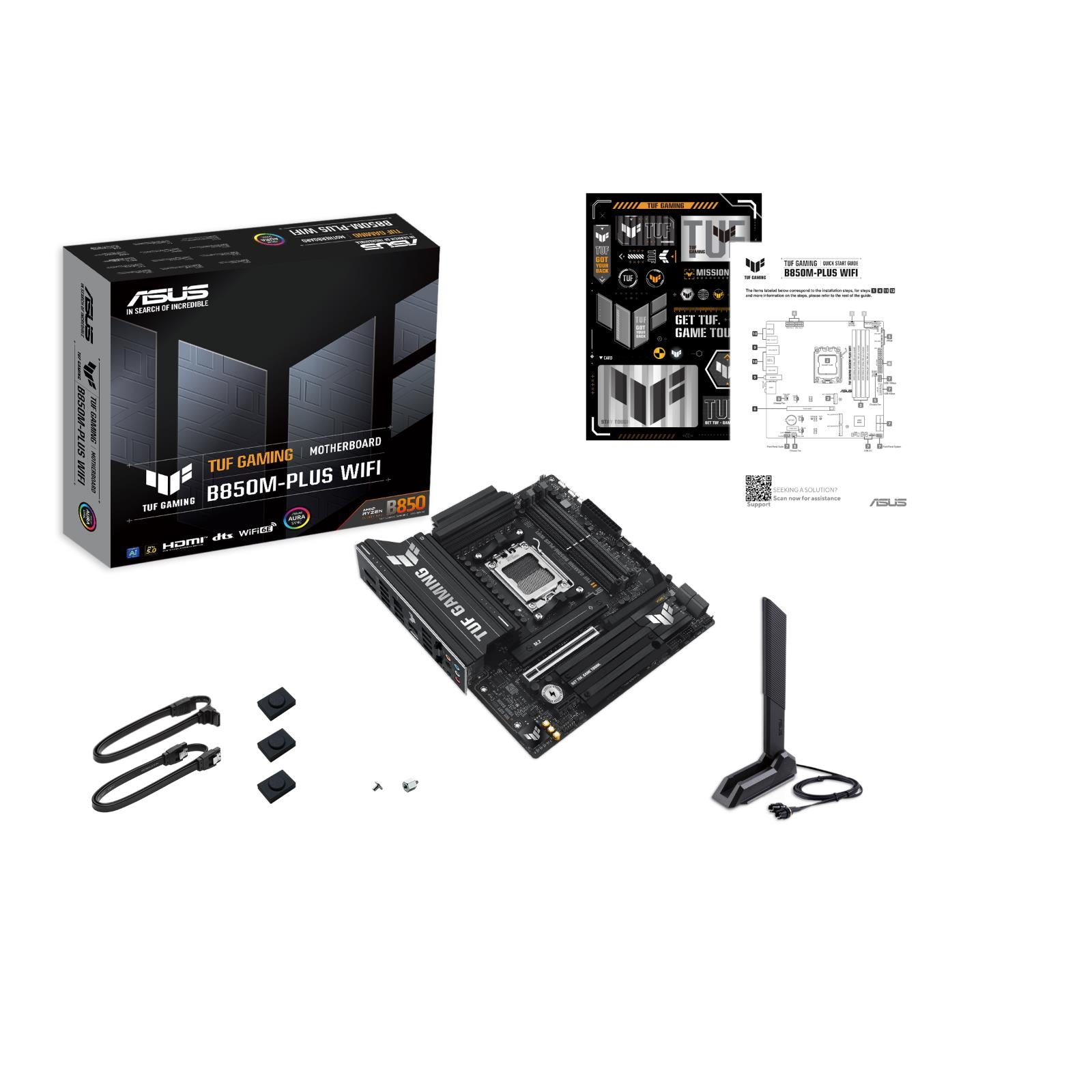

Accessories

• Cables
  • 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x ASUS WiFi Q-Antenna
  • 1 x TUF GAMING sticker
  • 2 x M.2 rubber packages
  • 1 x Screw package for M.2 SSD
• Documentation
  • 1 x Quick start guide

Operating System

• Windows 11, Windows 10 64-bit

Form Factor

• micro-ATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
