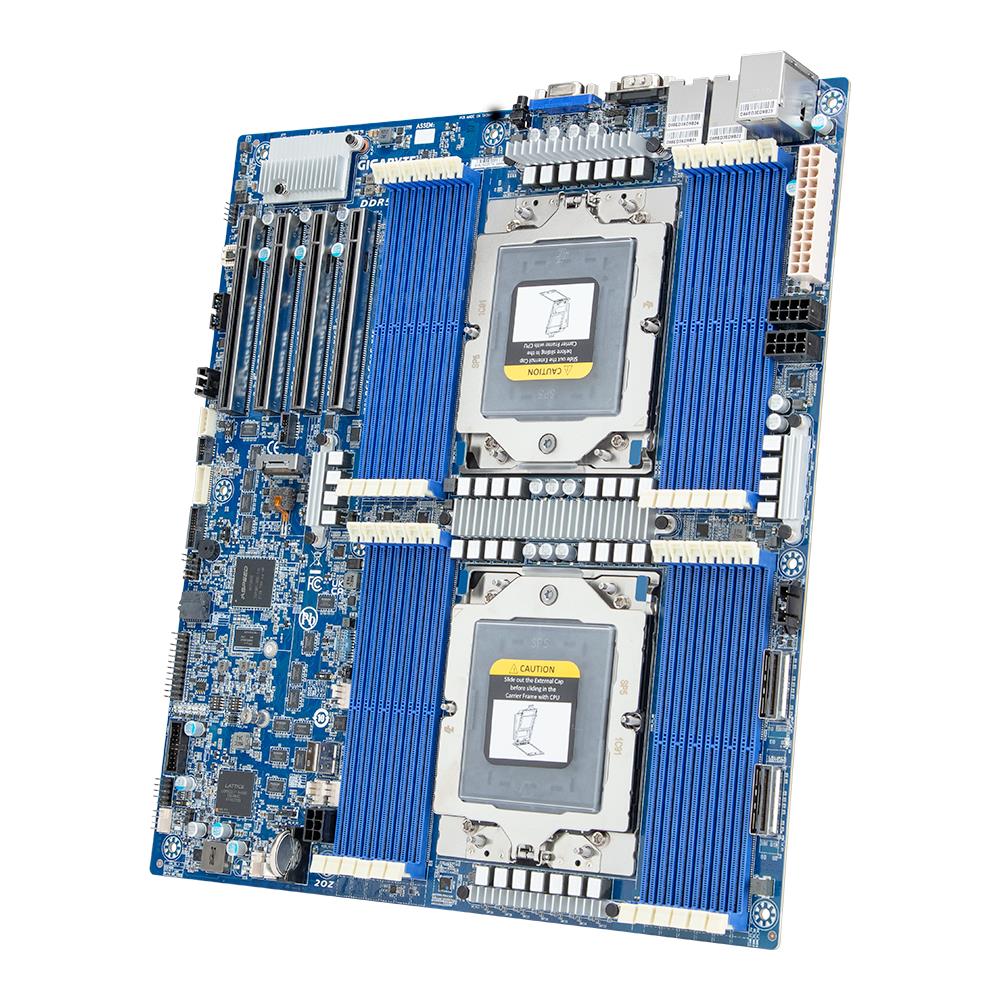

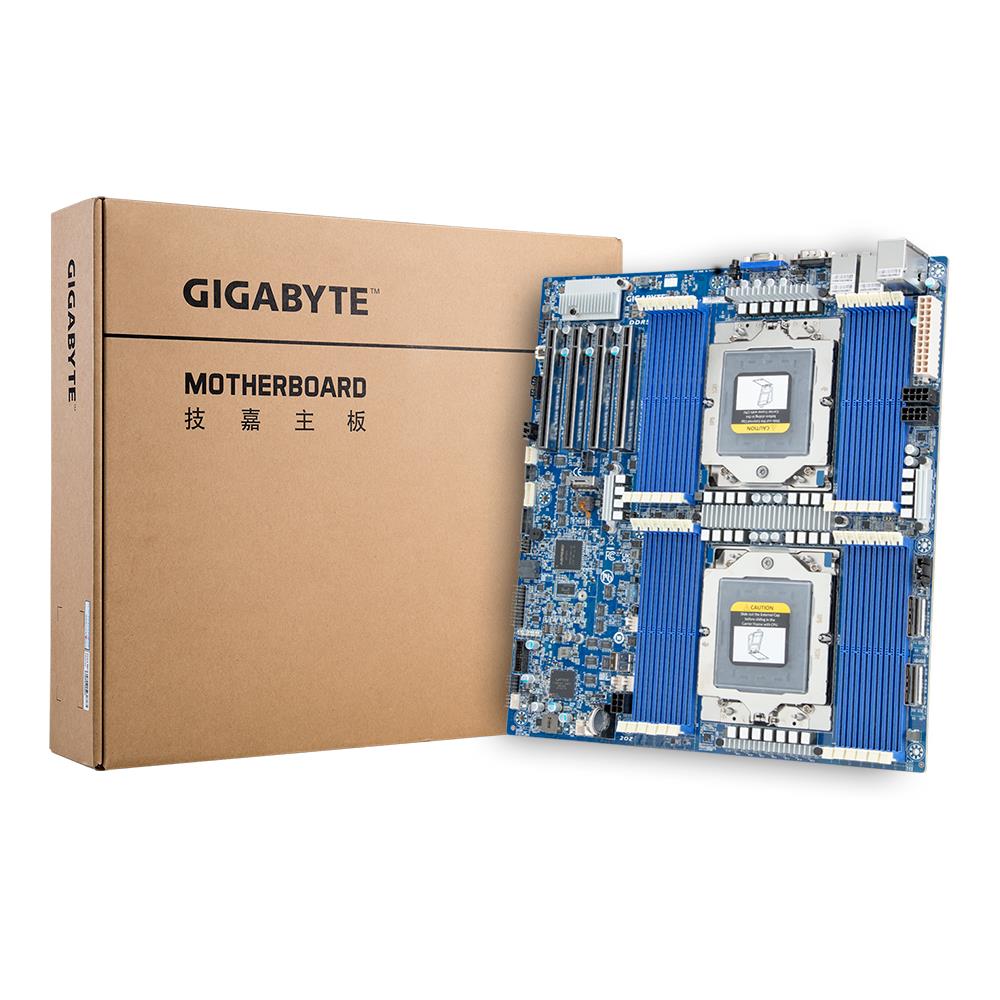

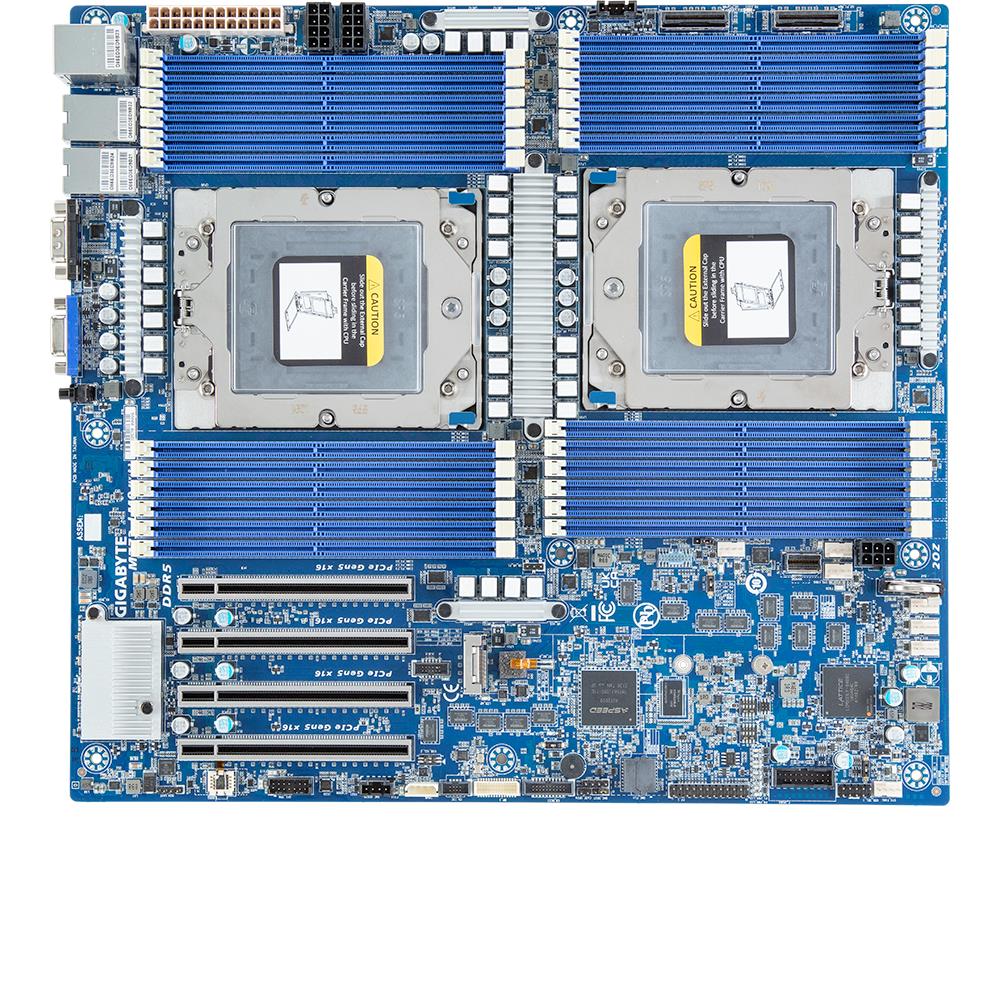

Gigabyte MZ73-LM0 MB AMD 2xLGA6096 SP5 24xDDR5 10Gbe-LAN M.2 SATA VGA COM E-ATX

Detail Specifications

Form Factor

• E-ATX

CPU

• AMD EPYCTM 9004 series processors
• Dual processor, 5nm technology
• Up to 84-core, 168 threads per processor
• cTDP up to 300W

Socket

• 2 x LGA 6096
• Socket SP5

Chipset

• System on Chip

Memory

• 24 x DIMM slots
• DDR5 memory supported only
• 12-Channel memory architecture per processor
• RDIMM modules up to 96GB supported
• 3DS RDIMM modules up to 256GB supported
• Memory speed: Up to 4800 MHz

LAN

• 2 x 10Gb/s BASE-T LAN ports (1 x Broadcom BCM57416)
• NCSI function supported
• 1 x 10/100/1000 management LAN

Video

• Integrated in Aspeed AST2600
• 2D Video Graphic Adapter with PCIe bus interface
• 1920x1200 at 60Hz 32bpp, DDR4 SDRAM

Audio

• Not Available

SAS

• Not Available

SATA

• 1 x SlimSAS 4i with 4 x SATA 6Gb/s ports, from CPU_0
• 2 x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1

RAID

• Not Available

Expansion Slots

• Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot. from CPU_0
• Slot_3: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0
• Slot_2: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
• Slot_1: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
• 1 x M.2 slot:
  • - M-key
  • - PCIe Gen4 x4, from CPU_0
  • - Supports 2280/22110 cards
• 2x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1

Internal I/O

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x 6-pin ATX 12V power connector
• 2 x MCIO 8i connectors
• 1 x M.2 slot
• 2 x CPU fan headers
• 5 x System fan headers
• 1 x USB 3.2 Gen1 header
• 1 x TPM header
• 1 x Front panel header
• 1 x HDD backplane board header
• 1 x PMBus connector
• 1 x IPMB connector
• 1 x Clear CMOS jumper
• 1 x BIOS recovery jumper
• 1 x Buzzer

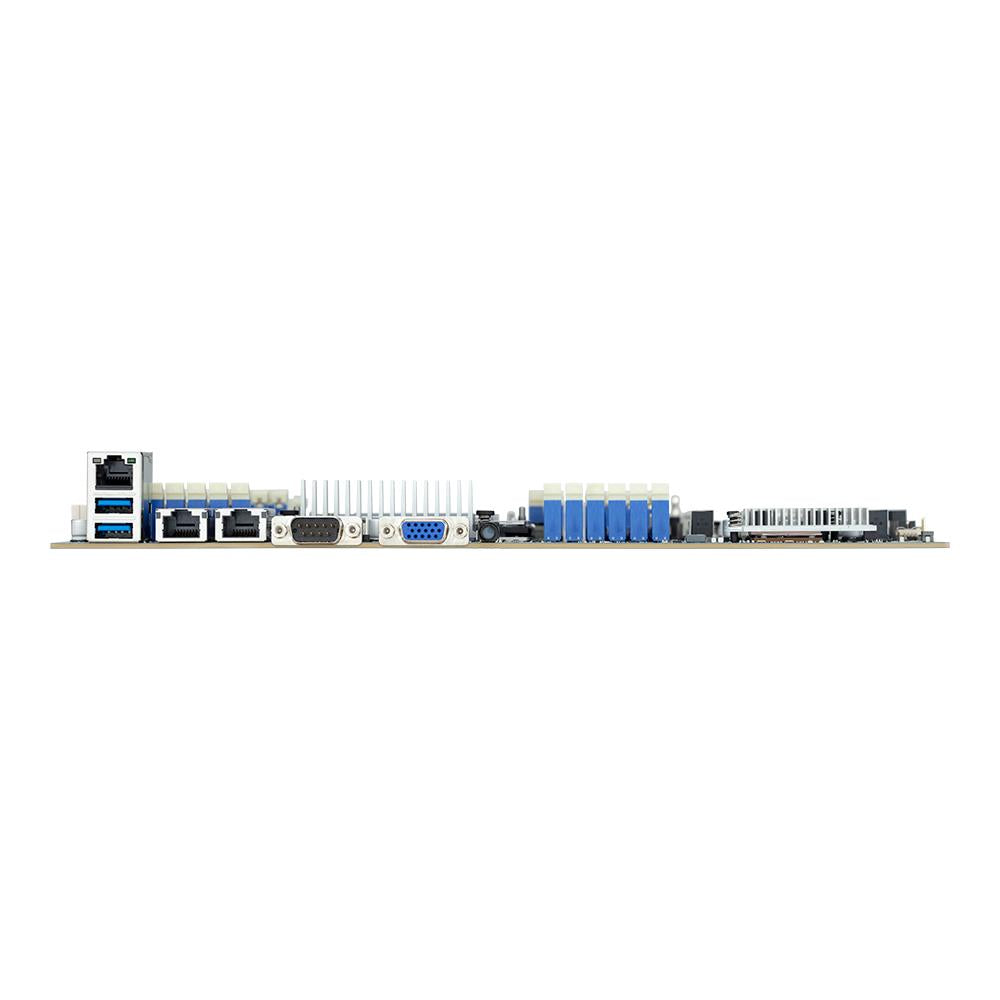

Rear I/O

• 2 x USB 3.2 Gen1
• 1 x VGA
• 1 x COM
• 2 x RJ45
• 1 x MLAN
• 1 x ID button with LED

TPM

• 1 x TPM header with SPI interface
• Optional TPM2.0 kit: CTM010

Board Management

• Aspeed AST2600 management controller
• GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup and Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

PSU Connectors

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x 6-pin ATX 12V power connector

Operating Properties

• Operating temperature: 10oC to 40oC
• Operating humidity: 8-80% (non-condensing)
• Non-operating temperature: -40oC to 60oC
• Non-operating humidity: 20%-95% (non-condensing)

Item Dimension (L inchxW inchxH inch)

• 15 x 13 x 4

Weight

• 6.00 lb

Warranty Information

• 1 year from Gigabyte
