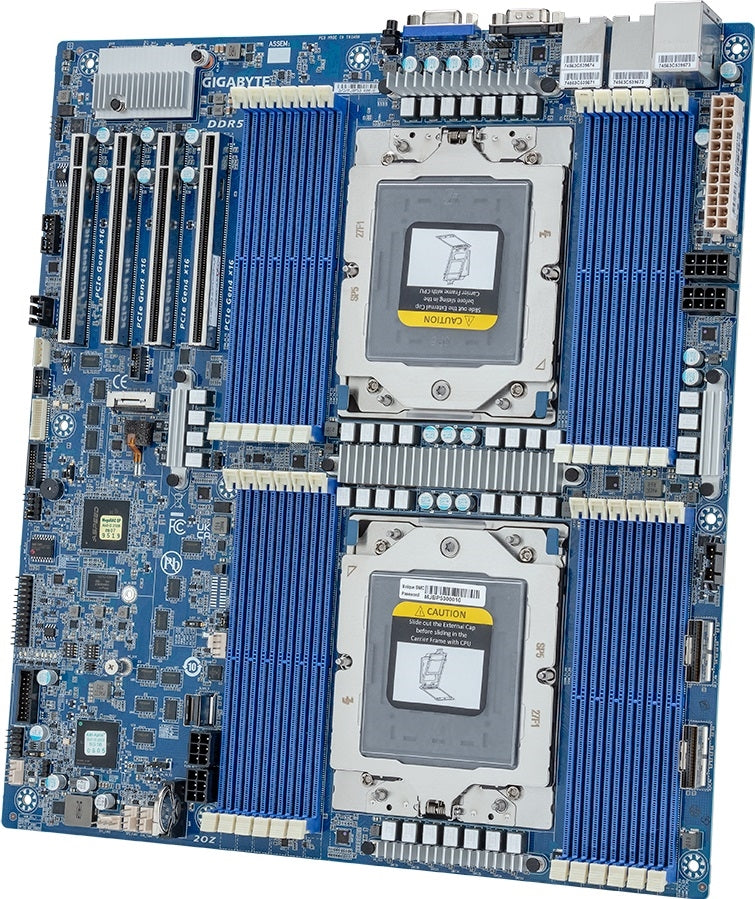

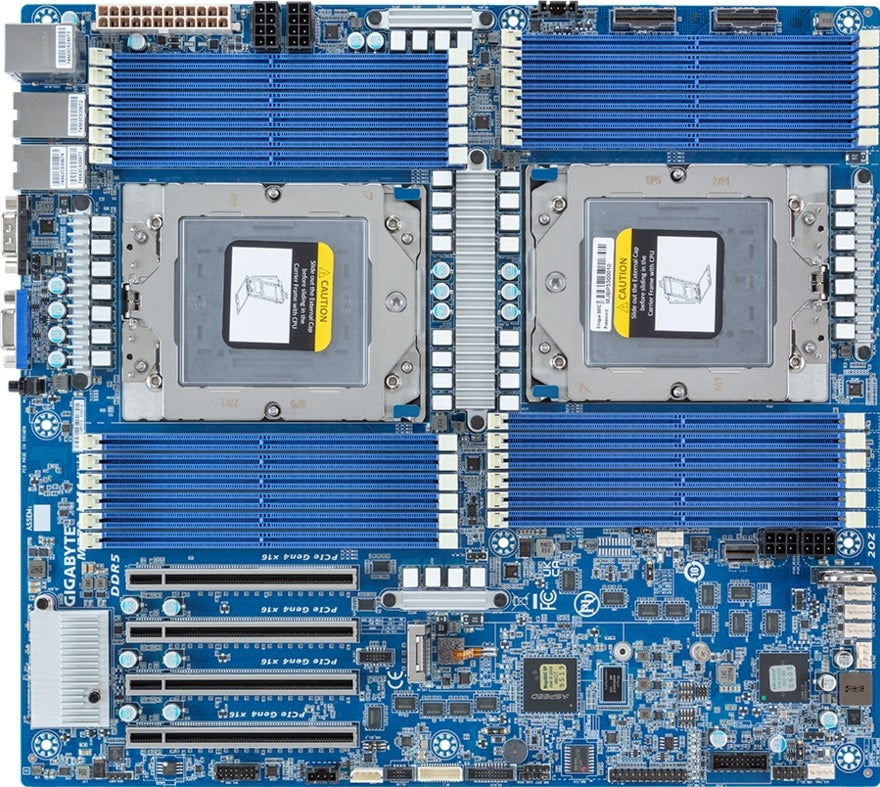

Gigabyte MZ73-LM1 Motherboard - SoC AMD EPYC9004 LGA6096 Max128GB DDR5 E-ATX

Marketing Information

Motherboard - AMD EPYC™ 9004 - E-ATX DP PCIe Gen4 cTDP 400W

• Dual AMD EPYC™ 9004 Series Processors
• 12-Channel DDR5 RDIMM, 24 x DIMMs
• 2 x 10Gb/s LAN ports via Broadcom® BCM57416
• 2 x SlimSAS 8i connectors with PCIe Gen4 x8 or SATA interface
• 1 x SlimSAS 4i connector with SATA interface
• 1 x M.2 slot with PCIe Gen4 x4 interface
• 4 x PCIe Gen4 x16 expansion slots

Detail Specifications

Form Factor (WxD, mm): E-ATX

• 304.8 x 335.2

CPU

• AMD EPYCTM 9005 Series Processors
• AMD EPYCTM 9004 Series Processors
• Dual processor, cTDP up to 400W
• Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

• 2 x LGA 6096
• Socket SP5

Chipset

• System on Chip

Memory

• 24 x DIMM slots
• DDR5 memory supported
• 12-Channel memory per processor
• RDIMM: Up to 4800 MT/s

LAN

• 2 x 10Gb/s LAN (1 x Broadcom BCM57416)
• - Support NCSI function
• 1 x 10/100/1000 Mbps Management LAN

Video

• Integrated in ASPEED AST2600
• - 1 x VGA port

Warranty Information

• 3 years from Gigabyte
