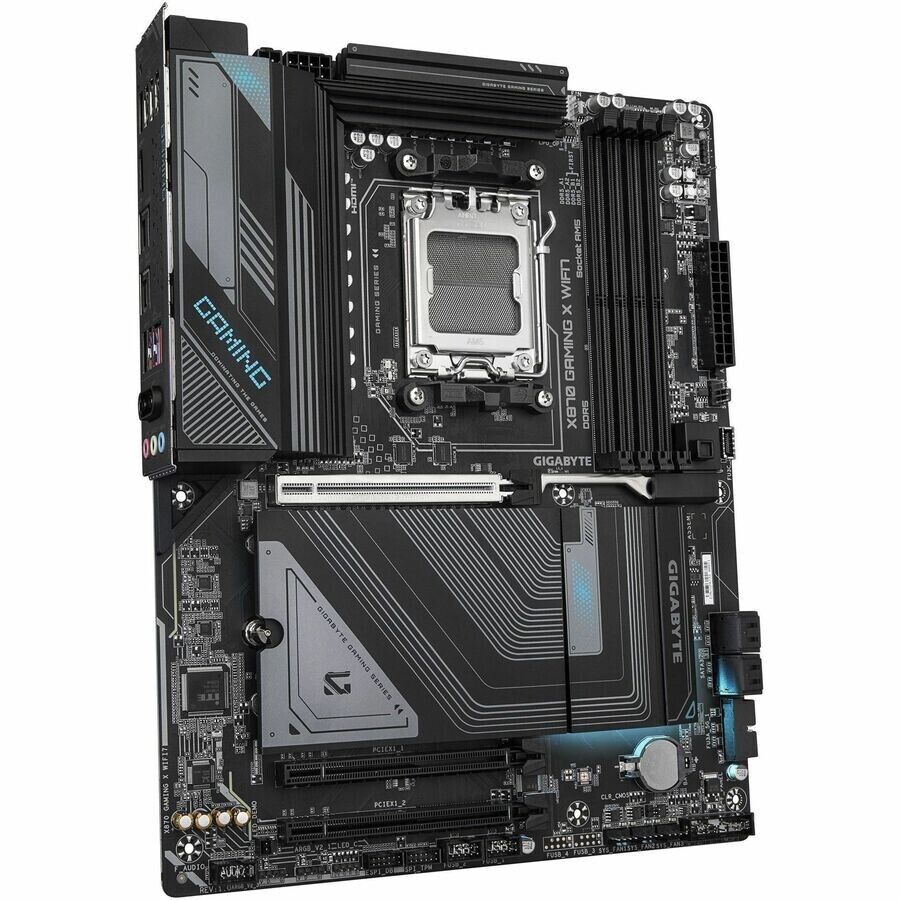

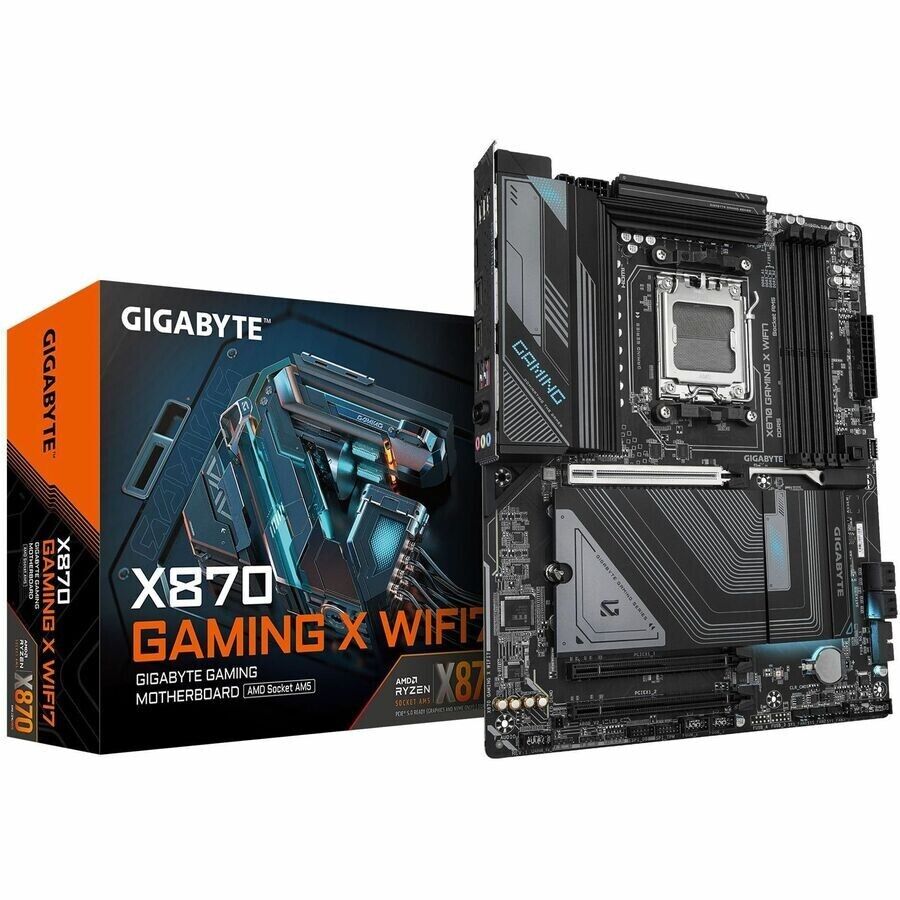

Gigabyte X870 GAMING X WIFI7 Gaming Desktop Motherboard - AMD X870 Chipset

MPN: X870 GAMING X WIFI7

Main Features

• AMD Socket AM5?Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 16+2+2 phases VRM solution
• Dual Channel DDR5?4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus?PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click?M.2 heatsinks with screwless design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage?3*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal?VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
• Fast Networking?2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna

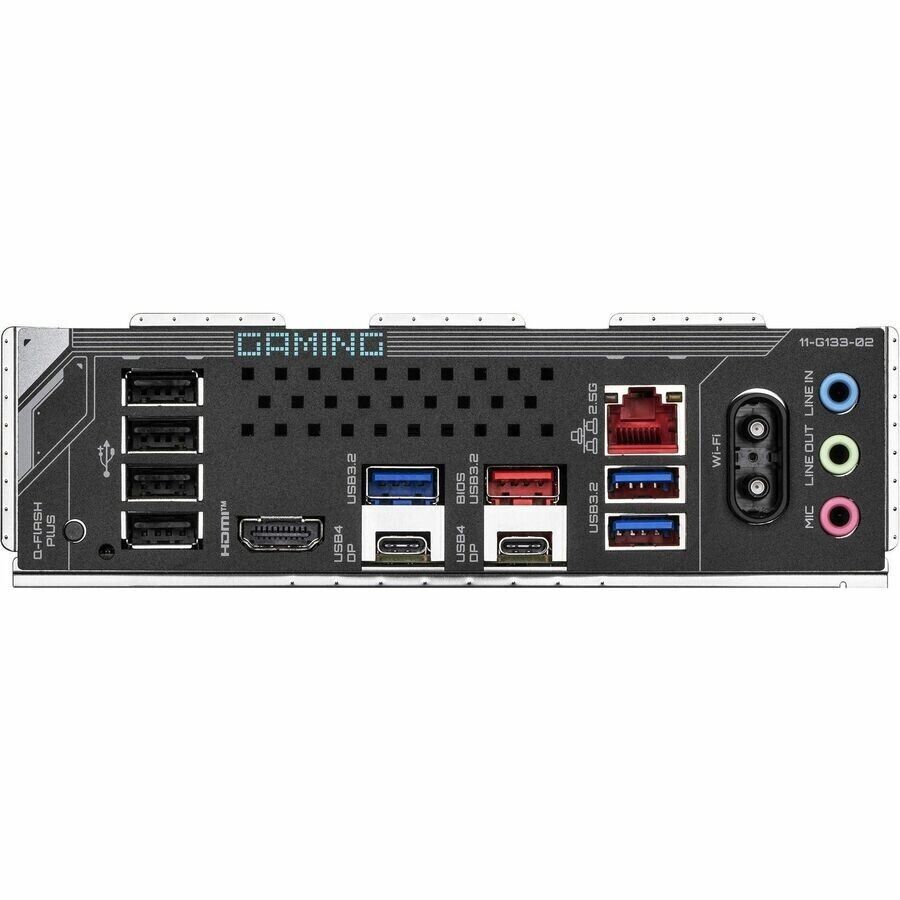

• Extended Connectivity?Dual USB4 Type-C with DP-Alt, HDMI
• AI-powered: Yes
• Chipset Manufacturer: AMD
• Chipset Model: X870
• Total Processor Supported: 1
• Processor Socket: Socket AM5
• Processor Supported
• -Ryzen 9
• -Ryzen 8
• -Ryzen 7
• Memory Form Factor
• -DIMM
• -UDIMM
• Maximum Memory Supported: 256 GB
• Memory Technology: DDR5 SDRAM
• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels
• -0
• -1
• -5
• -10
• Onboard Video: CPU Dependent Video
• Audio Channels: 7.1
• Bluetooth: Yes
• Bluetooth Standard: Bluetooth 5.4
• Gigabit Ethernet: Yes
• 2.5Gigabit Ethernet: Yes
• Wireless LAN: Yes
• Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
• Total Number of Expansion Slots: 3
• PCI Express Standard
• -PCI Express 5.0
• -PCI Express 4.0
• -PCI Express 3.0
• Total Number of PCI Express Slots: 3
• Number of PCI Express x16 Slots: 3
• Total Number of USB Ports: 10
• Number of USB 2.0 Ports: 4
• Number of USB 3.2 Gen 1 Ports: 3
• Number of USB 3.2 Gen 2 Type-A Ports: 1
• HDMI: Yes
• HDMI Version: 2.1
• DisplayPort: Yes
• Number of Network (RJ-45) Ports: 1
• Number of SATA Interfaces: 4
• Number of M.2 Interfaces: 3
• Total Number of Onboard USB Ports: 12
• Number of Onboard USB 2.0 Ports: 8
• Form Factor: ATX
• Width: 12"
• Depth: 9.6"
