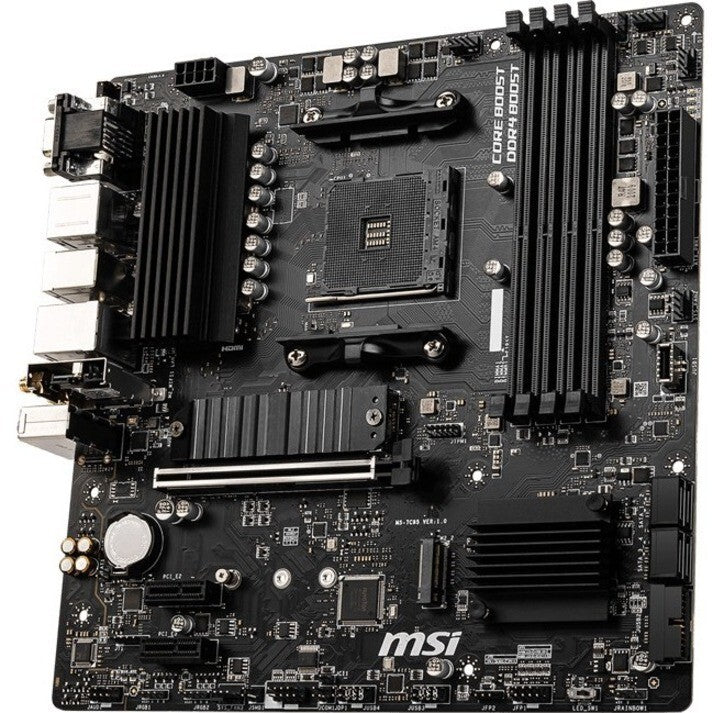

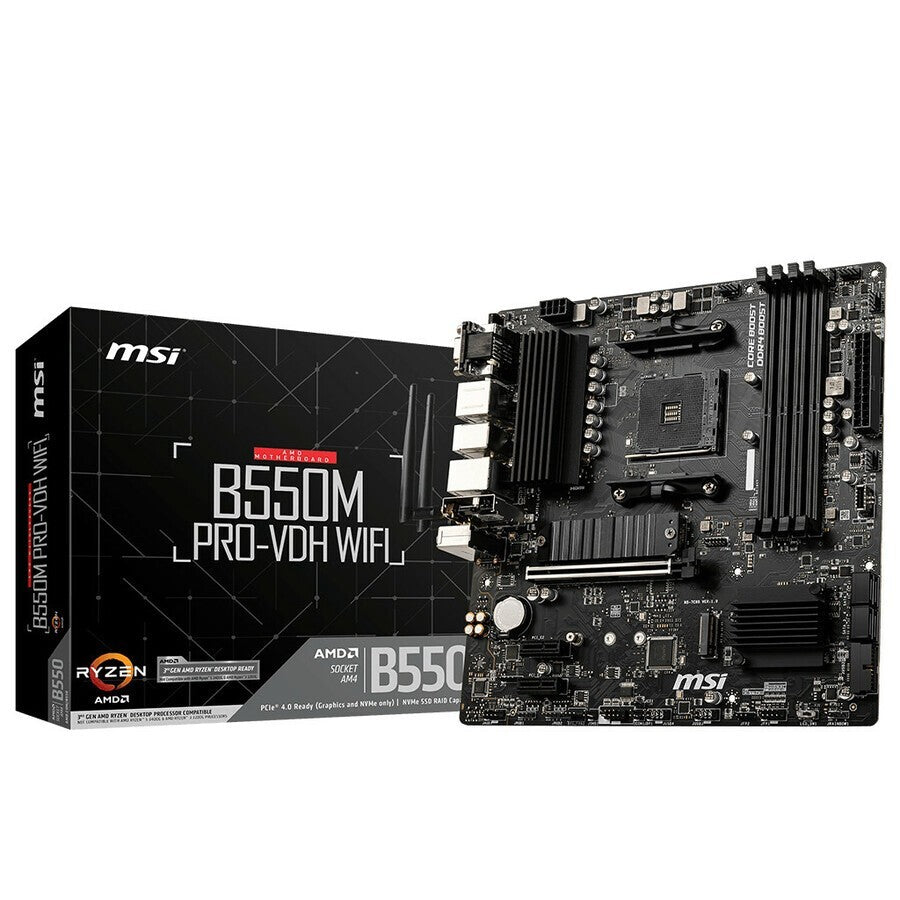

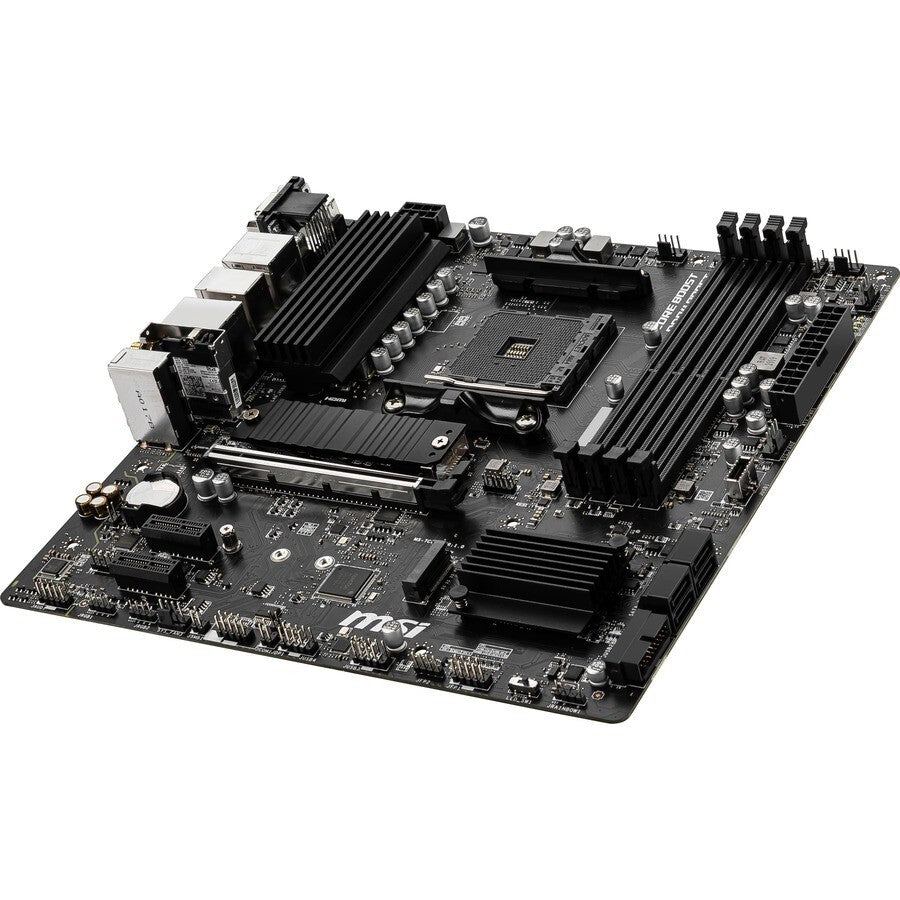

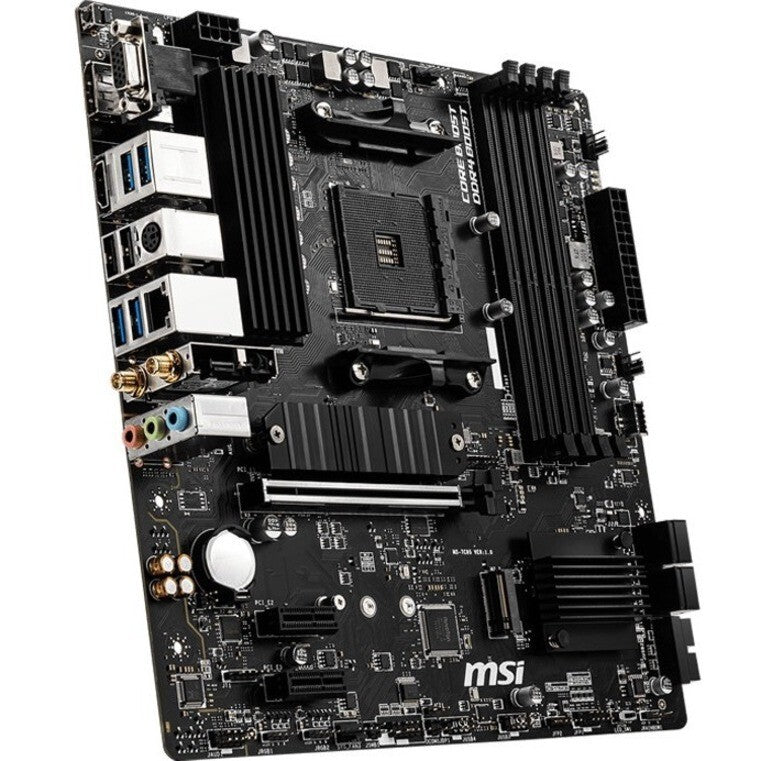

MSI B550MPVDHWIFI B550 AMD AM4 WiFi 4x DDR4 VGA HDI- DP SATA mATX Motherboard

GENERAL INFORMATION

• Manufacturer: MSI
• Manufacturer Part Number: B550MPVDHWIFI
• Brand Name: MSI
• Product Series: PRO
• Product Model: B550M PRO-VDH WIFI
• Product Name: B550M PRO-VDH WIFI Desktop Motherboard
• Product Type: Desktop Motherboard

MARKETING INFORMATION:

MSI B550M PRO-VDH Wifi helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

PROCESSOR & CHIPSET

• Chipset Manufacturer: AMD
• Chipset Model: B550
• Total Processor Supported: 1
• Processor Socket: Socket AM4
• Processor Supported:
  • Ryzen 3
  • Ryzen 5
  • Ryzen 7
  • Ryzen 9
  • Ryzen 7 PRO
  • Ryzen 5 Pro

MEMORY

• Number of Memory Slots: 4
• Memory Form Factor:
  • DIMM
  • UDIMM
• Maximum Memory Supported: 128 GB
• Memory Technology: DDR4 SDRAM
• Memory Speed Supported:
  • 1866 MHz
  • 2133 MHz
  • 2400 MHz
  • 2667 MHz
  • 2800 MHz
  • 2933 MHz
  • 3000 MHz
  • 3066 MHz
  • 3200 MHz
  • 3466 MHz
  • 3600 MHz
  • 3733 MHz
  • 3866 MHz
  • 4000 MHz
  • 4133 MHz
  • 4266 MHz
  • 4400 MHz

I/O CONTROLLER

• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels:
  • 0
  • 10
  • 1

VIDEO

• Onboard Video: CPU Dependent Video

AUDIO

• Audio Channels: 7.1

NETWORK & COMMUNICATION

• Bluetooth: Yes
• Gigabit Ethernet: Yes
• Wireless LAN: Yes
• Wireless LAN Standard: IEEE 802.11ac

I/O EXPANSIONS

• Total Number of Expansion Slots: 3
• Total Number of PCI Express Slots: 3
• Number of PCI Express x1 Slots: 2
• Number of PCI Express x16 Slots: 1

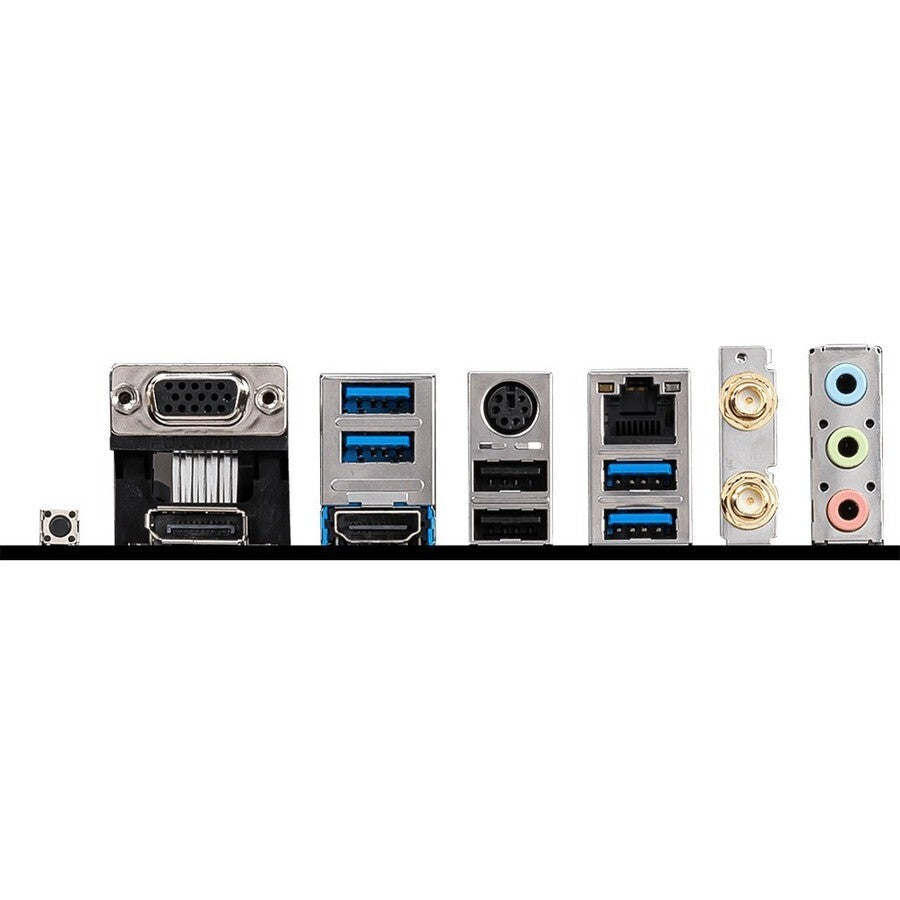

INTERFACES/PORTS

• Total Number of USB Ports: 6
• Number of USB 2.0 Ports: 2
• Number of USB 3.2 Ports: 4
• VGA: Yes
• HDMI: Yes
• DisplayPort: Yes
• Number of Network (RJ-45) Ports: 1

ONBOARD INTERFACES

• Number of SATA Interfaces: 4
• Number of M.2 Interfaces: 2
• Total Number of Onboard USB Ports: 7
• Number of Onboard USB 2.0 Ports: 4
• Number of Onboard USB 3.2 Ports: 3

PHYSICAL CHARACTERISTICS

• Form Factor: Micro ATX
• Width: 9.6"
• Depth: 9.6"

Country of Origin: China
Limited Warranty: 3 Year direct from MSI
