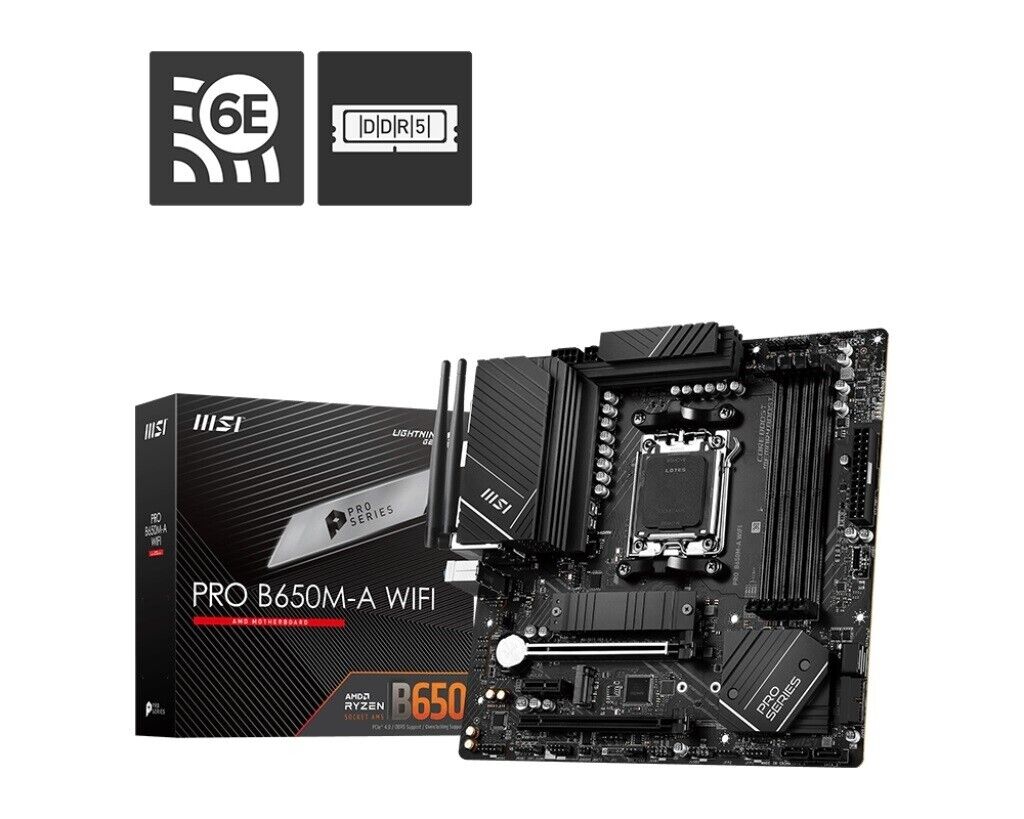

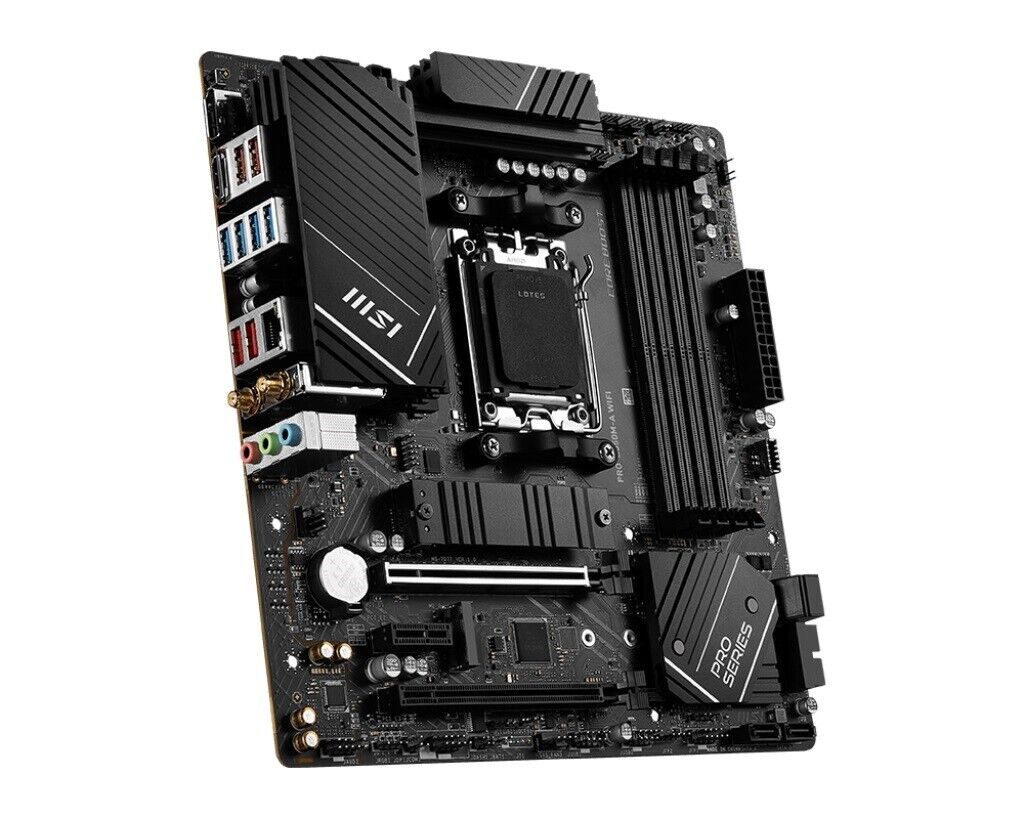

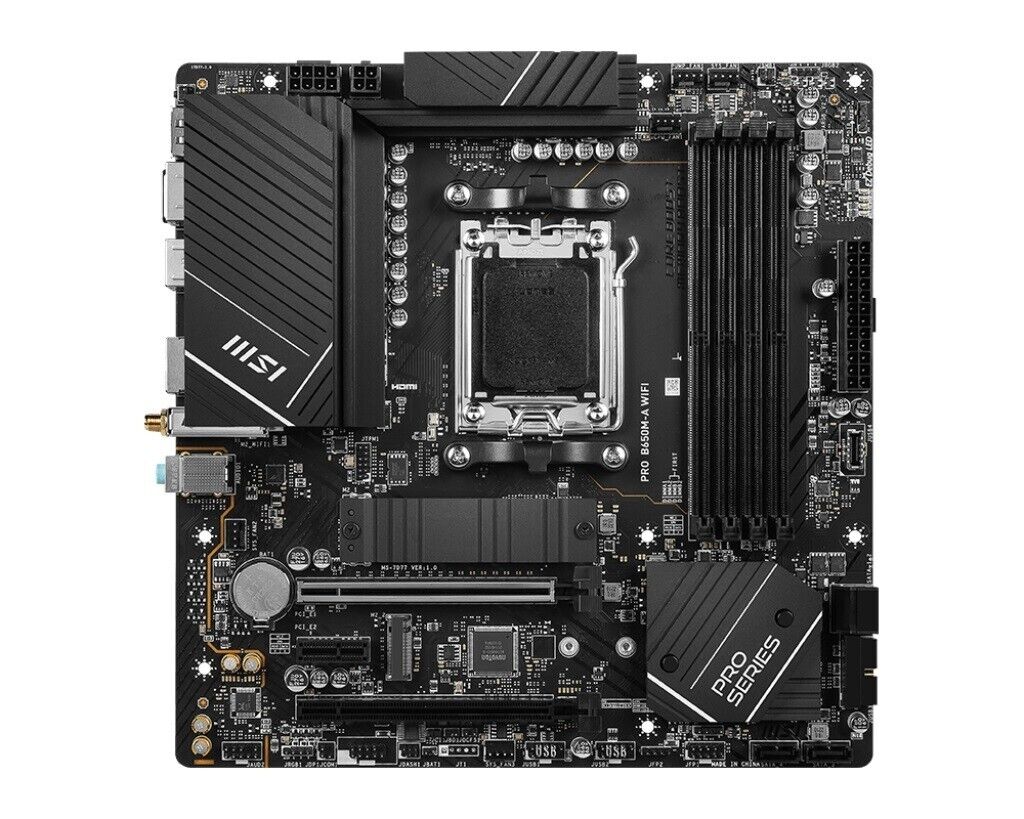

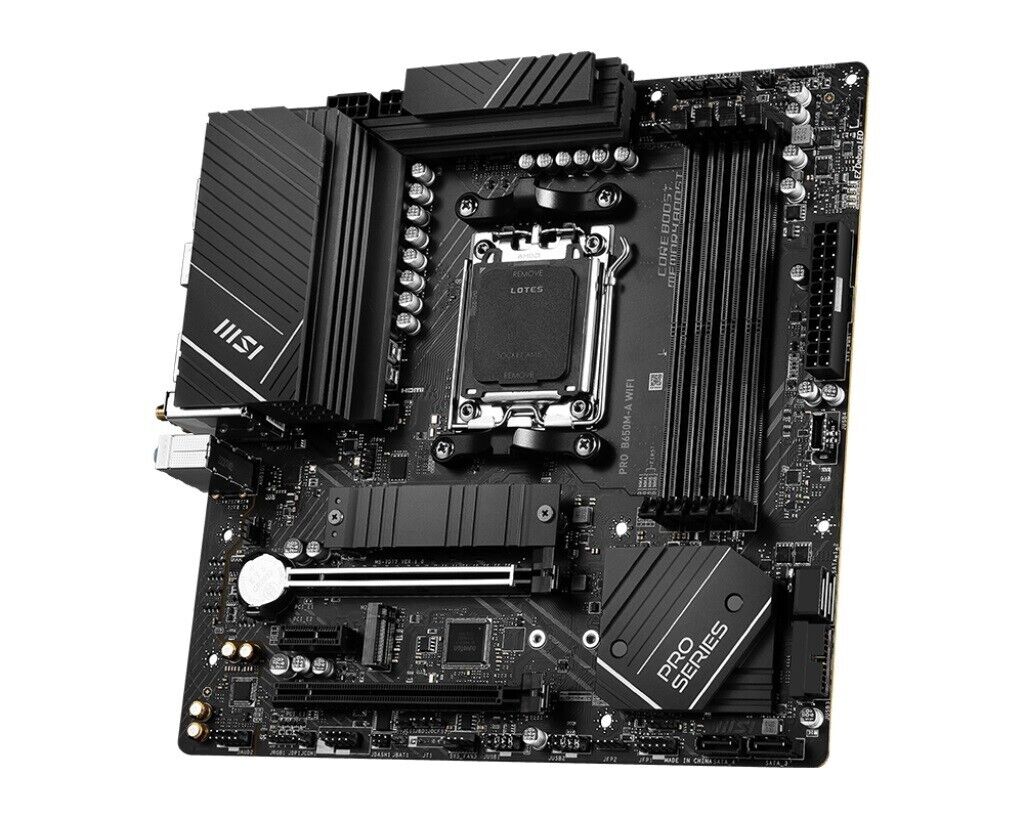

MSI B650MAWIFI MB AMD B650 PRO AM5 4xDDR5 HDI- DP M.2 RAID 2.5GBe WiFi6E BT5.1

PRODUCT SPECIFICATION

CHIPSET

• AMD B650

CPU

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

MEMORY

• 4x DDR5, Maximum Memory Capacity 256GB
  • Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

ONBOARD GRAPHICS

• 1x HDMI™
  • Support HDMITM 2.1, maximum resolution of 4K 60Hz*
• 1x DisplayPort
  • Supports DP1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

• 2x PCI-E x16 slot
  • • Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors)
  • • Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • • Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors)
• 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

AUDIO

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

STORAGE

• 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 4x SATA 6G

• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 4x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Front)

LAN

• Realtek® 8125BG 2.5G LAN

INTERNAL IO

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 3x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH

• AMD Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE

• 4x EZ Debug LED

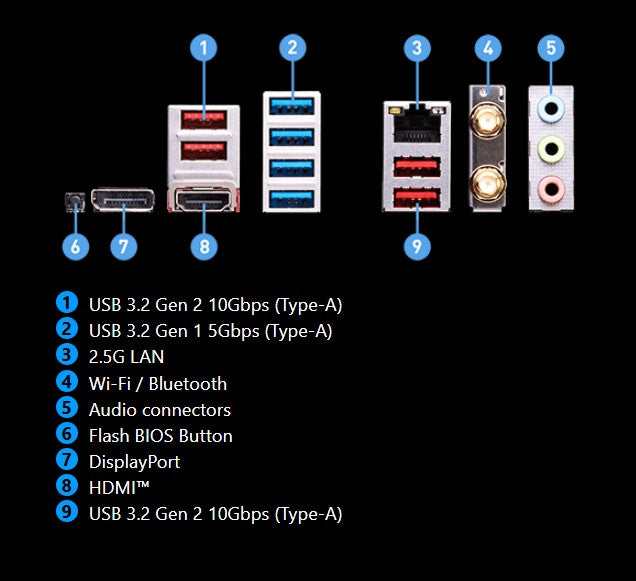

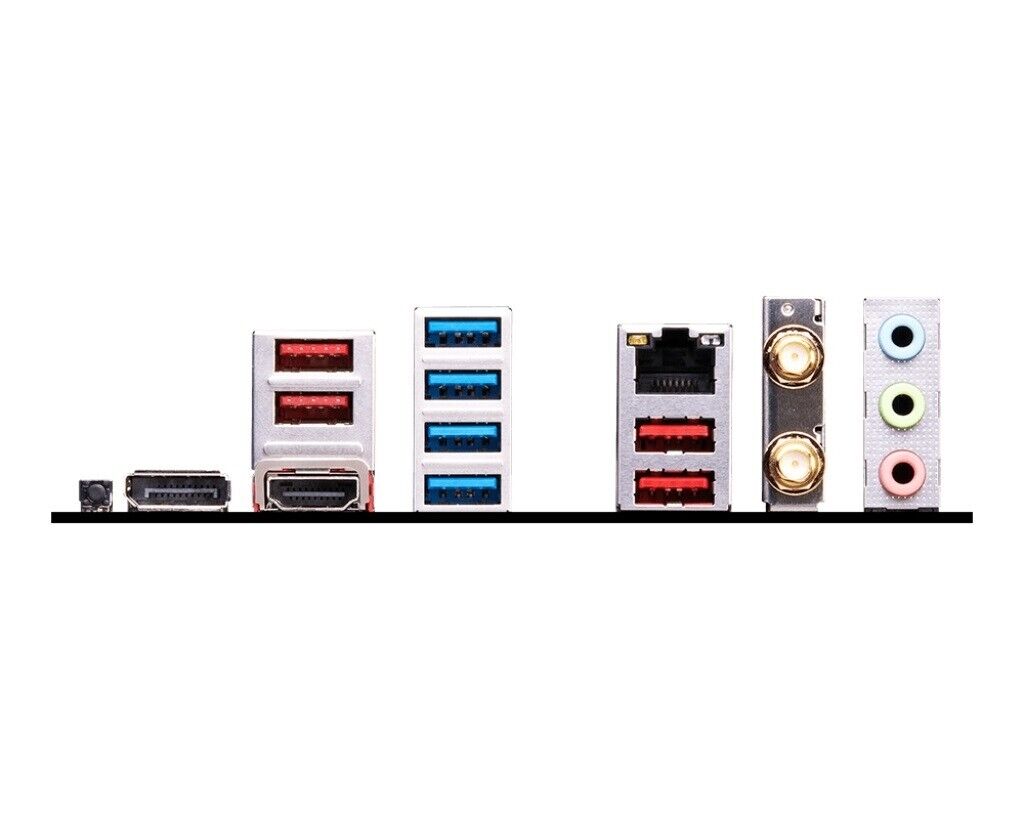

BACK PANEL PORTS

• USB 3.2 Gen 2 10Gbps (Type-A)
• USB 3.2 Gen 1 5Gbps (Type-A)
• 2.5G LAN
• Wi-Fi / Bluetooth
• Audio connectors
• Flash BIOS Button
• DisplayPort
• HDMI™
• USB 3.2 Gen 2 10Gbps (Type-A)

OPERATING SYSTEM

• Support for Windows® 11 64-bit, Windows® 10 64-bit

BOX CONTENTS

• Motherboard
• Quick Installation Guide
• M.2 Screw / Standoff Set
• WiFi Antenna
• SATA Cable
• I/O Shield

PCB Info

• mATX 243.84mmx243.84mm

Warranty

• 3 Years from MSI
