MSI X670EGAMPLUSWIFI MB AMD X670 Ryzen AM5 4xDDR5 HDMI DP M.2 RAID 2.5Gbe WiFi6E

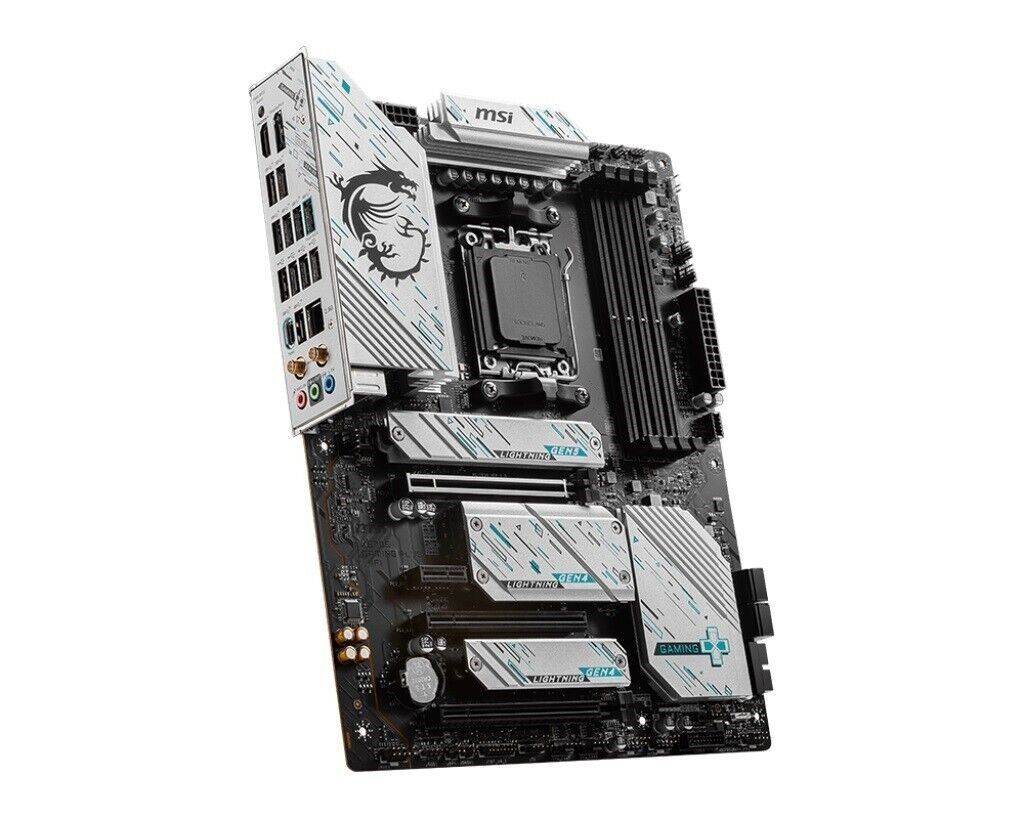

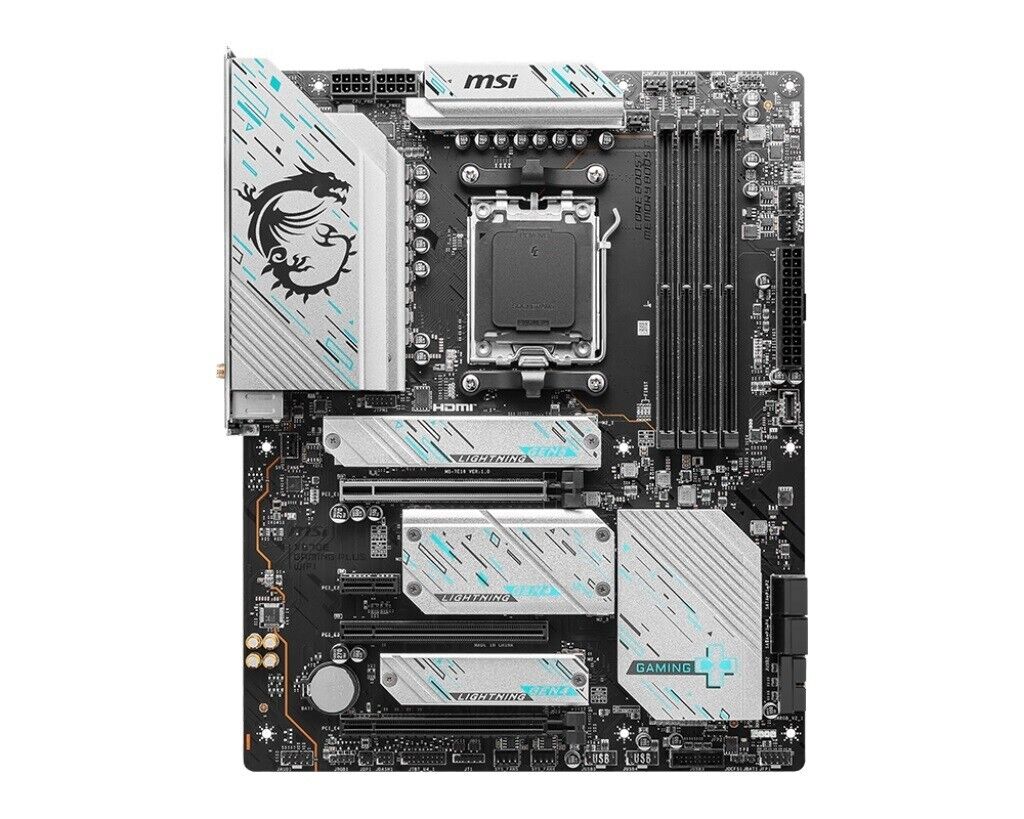

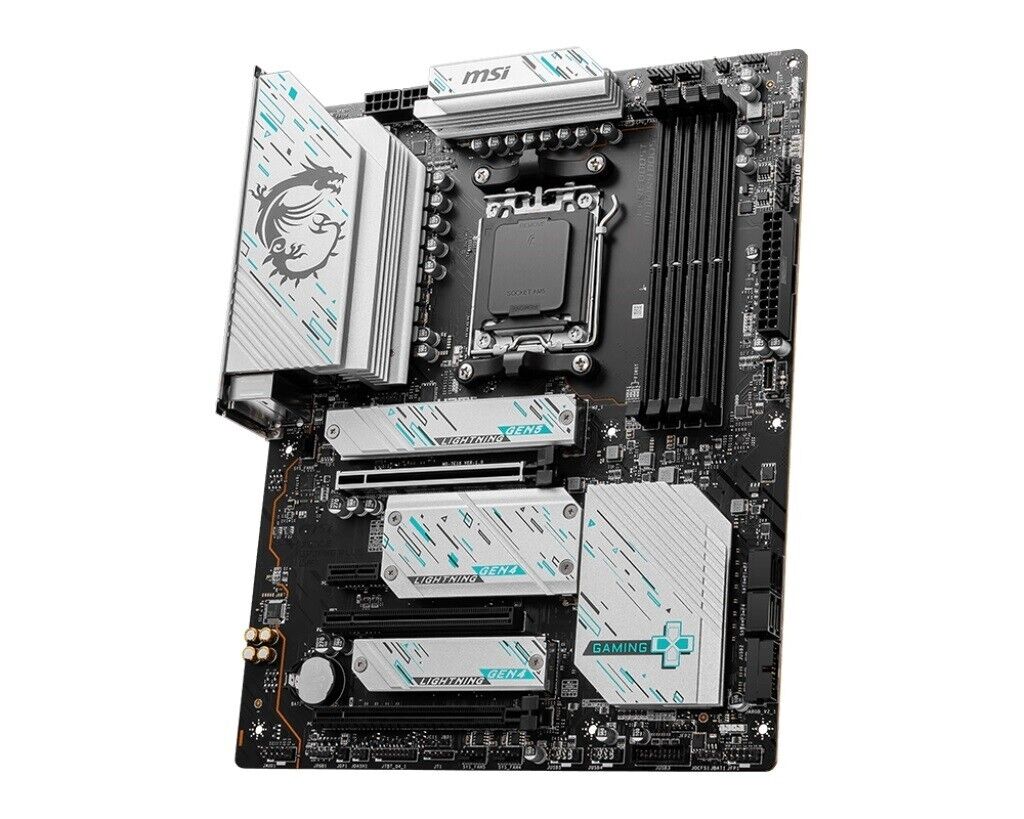

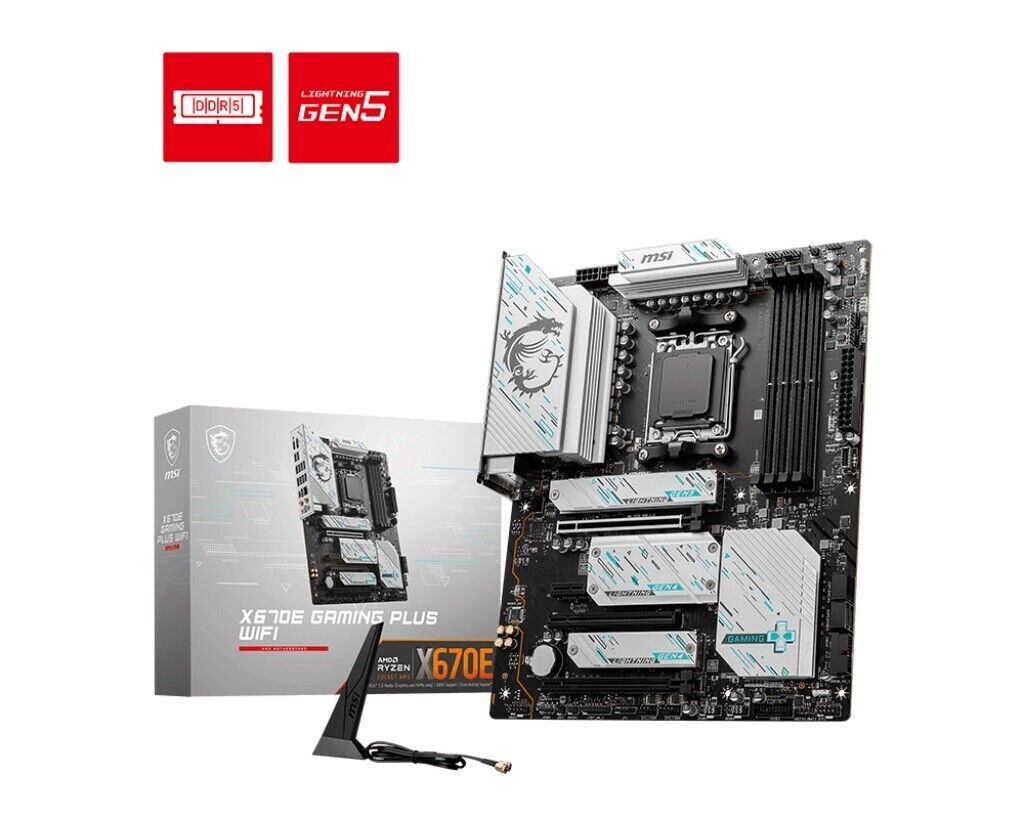

X670E GAMING PLUS WIFI

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 7800+(OC) MHz
• Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2x2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Detail Specifications

Chipset

• AMD X670

CPU

• Supports AMD RyzenTM 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

Memory

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7800+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPOTM

Onboard Graphics

• 1x HDMITM
  • Support HDMITM 2.1, maximum resolution of 4K 60Hz
• 1x DisplayPort
  • Support DP 1.4, maximum resolution of 4K 60Hz

Note: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

• 3x PCI-E x16 slot
  • Supports x16/x1/x4 (For RyzenTM 9000 and 7000 Series processors)
  • Supports x8/x1/x4 (For RyzenTM 7 8700G and RyzenTM 5 8600G processors)
  • Supports x4/x1/x4 (For RyzenTM 5 8500G processor)
• 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Storage

• 4x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 4x SATA 6G
  • - M2_2 supports PCIe 4.0 x2 speed when RyzenTM 5 8500G is installed

RAID

• Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 for M.2 NVMe storage devices

USB

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Rear)
• 4x USB 5Gbps Type A (Front)
• 3x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Front)
• 1x USB 20Gbps Type C (Rear)

LAN

• Realtek RTL8125BG 2.5Gbps LAN

WIRELESS LAN and BLUETOOTH

• AMD Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX
• Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth 5.3

Note1: Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
Note2: Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Internal IO

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 6x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x TBT connector (JTBT, supports RTD3)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 1x USB4 card connector (JTBT_U4_1, supports RTD3)
• 4x USB 2.0 ports
• 4x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

LED FEATURE

• 4x EZ Debug LED

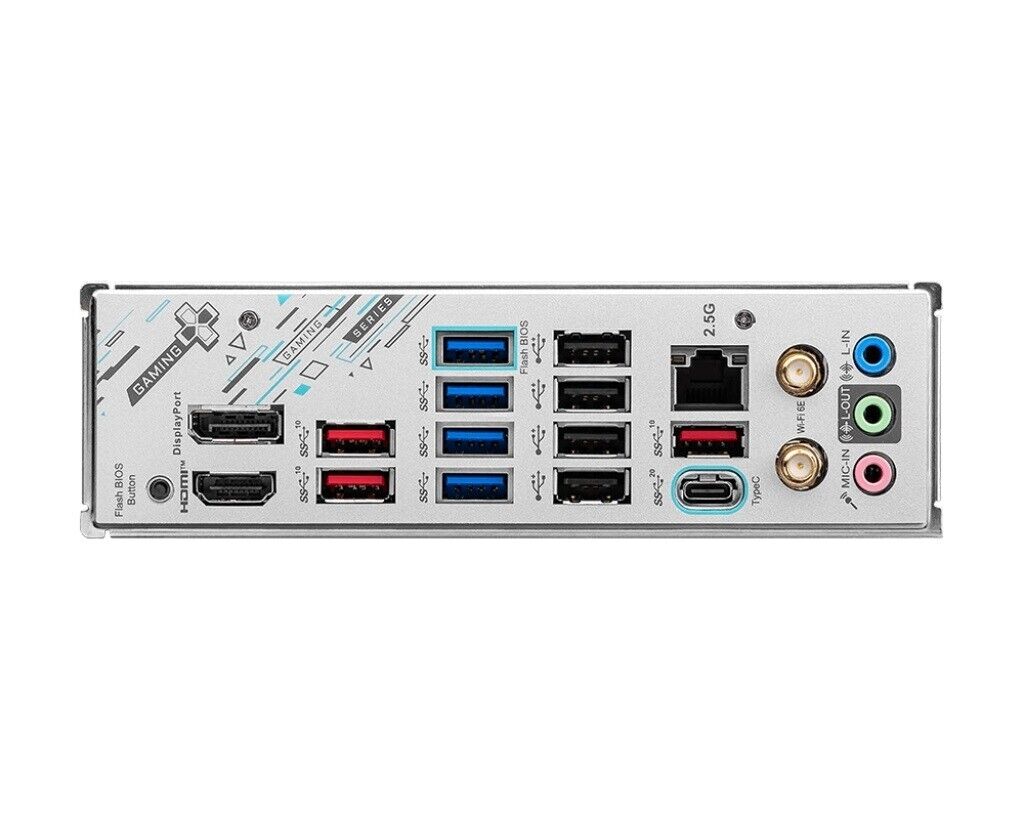

BACK PANEL PORTS

• DisplayPort
• USB 3.2 Gen 2 10Gbps (Type-A)
• USB 3.2 Gen 1 5Gbps (Type-A)
• USB 2.0 (Type-A)
• 2.5G LAN
• Flash BIOS Button
• HDMITM
• USB 3.2 Gen 2x2 20Gbps (Type-C)
• Wi-Fi / Bluetooth
• Audio Connectors

OPERATING SYSTEM

• Support for Windows 11 64-bit, Windows 10 64-bit

PCB Info

• ATX 243.84mm x 304.8mm

Item Dimension (L inchxW inchxH inch): 14 x 11 x 3

Weight: 5.00 lb

Warranty Information: 3 years from MSI
