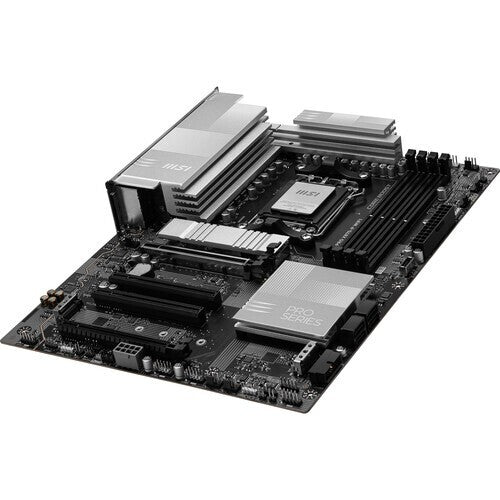

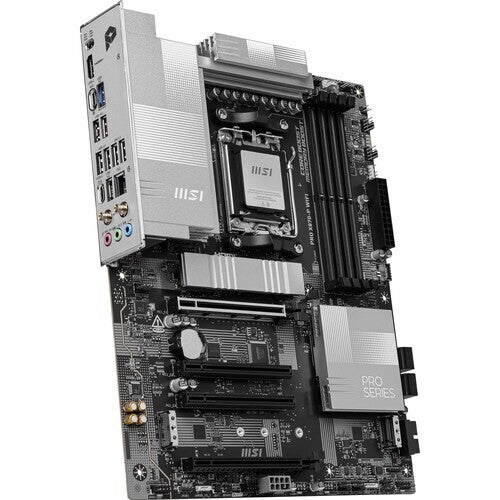

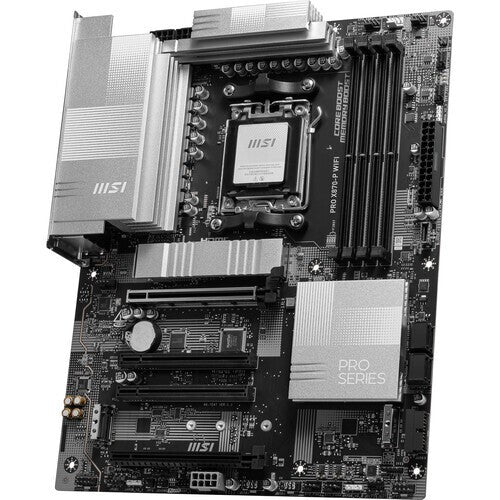

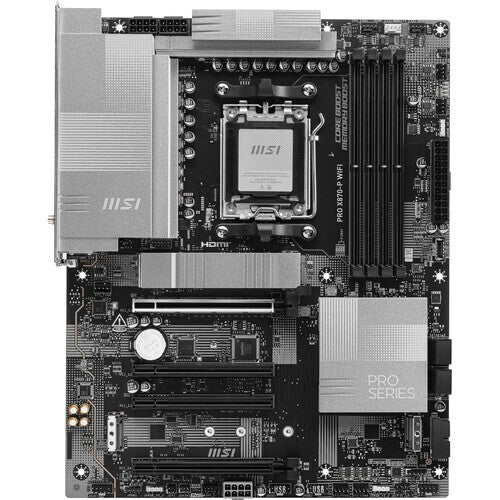

MSI X870PWIFI AMD X870 AM5 Ryzen 7 8 9 4xDDR5 HDI- DP 5G-LAN WF7 SATA ATX MBD

KEY FEATURES

• ATX Form Factor
• AMD X870 Chipset
• AM5 Socket
• 4 x Dual-Channel DDR5 Slots
• 1 x M.2 PCIe 5.0 | 2 x M.2 PCIe 4.0
• PCIe 5.0, 4.0 & 3.0 x16 Slots
• USB4 | USB 3.2 Gen 1, 2 & 2x2 | USB 2.0
• Wi-Fi 7 | Bluetooth 5.4 | 5GbE
• Realtek 7.1-Channel Audio
• For Windows 11 (64-Bit)

KEY SPECS

• Chipset: AMD X870
• CPU Socket: AM5
• Memory Slots: 4x 288-Pin
• Memory Support: DDR5 2400, 3200, 4200, 4700, 4800, 5600, 6400, 8200 MT/s
• Storage Slots
  • 1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
  • 1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
  • 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2)
• Expansion Slots
  • 1x PCIe 5.0 x16
  • 1x PCIe 4.0 x16 (x4 mode)
  • 2x PCIe 3.0 x16 (x1 mode)
• Wi-Fi: Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
• Form Factor: ATX

CPU

• Chipset: AMD X870
• CPU Socket: AM5

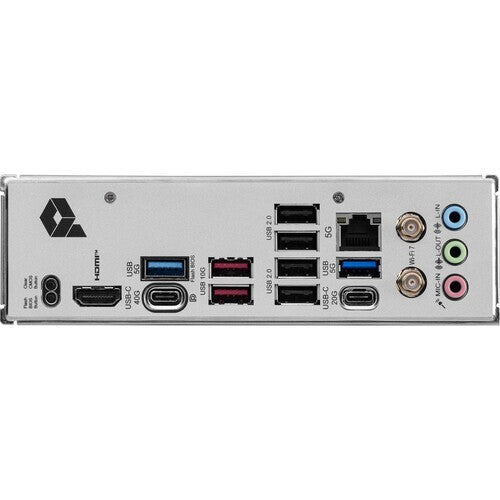

BACK PANEL I/O

• USB
  • 1x USB-C (USB4)
  • 1x USB-C (USB 3.2 Gen 2x2)
  • 2x USB-A (USB 3.1/3.2 Gen 2)
  • 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
  • 4x USB-A (USB 2.0)
• Thunderbolt: No
• Display: 1x HDMI 2.1
• Audio: 3x 1/8" / 3.5 mm
• Ethernet / Controller: 1x Realtek 8126VB 5GbE
• Wi-Fi Antenna: 2x Connector
• Buttons: BIOS Flashback, Clear CMOS

MEMORY

• Memory Slots: 4x 288-Pin
• Memory Support: DDR5 2400, 3200, 4200, 4700, 4800, 5600, 6400, 8200 MT/s
• Maximum Capacity: 256 GB
• Channel Architecture: Dual Channel
• ECC Support: Non-ECC Buffered

STORAGE EXPANSION

• SATA: No
• Storage Slots
  • 1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4)
  • 1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4)
  • 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2)
• Optane Memory Support: No
• RAID Support: RAID 0, 1

INTERNAL I/O

• Expansion Slots
  • 1x PCIe 5.0 x16
  • 1x PCIe 4.0 x16 (x4 mode)
  • 2x PCIe 3.0 x16 (x1 mode)
• USB
  • 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
  • 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
  • 2x USB 2.0 Header (Supports 4 USB-A Port)
• Air Cooling
  • 1x 4-Pin CPU
  • 6x 4-Pin System
• Liquid Cooling: 1x 4-Pin Pump
• Power Connectors
  • 1x 24-Pin Mainboard
  • 2x 8-Pin CPU
  • 1x 8-Pin ATX
• Security: Chassis Intrusion, TPM Header
• LED Header: 4x RGB
• Audio: 1x Speaker
• Diagnostics: 2-Digit Debug LED, Flash BIOS
• Add-On
  • 2x Thunderbolt Card Header
  • 1x Tuning Controller

BIOS

• ROM: 256 Mb

FRONT PANEL I/O

• Front Panel I/O: AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

AUDIO

• Audio Codec: Realtek ALC897 (7.1-Channel)
• DAC: No

WIRELESS

• Wi-Fi: Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
• Bluetooth: 5.4
• Module Support: 1 E Key M.2

SOFTWARE

• OS Compatibility: Windows 11 (64-Bit Only)

PHYSICAL

• Form Factor: ATX
• Dimensions: 12.0 x 9.60" / 304.8 x 243.84 mm

PACKAGING INFO

• Package Weight: 4.22 lb
• Box Dimensions (LxWxH): 13.4 x 10.7 x 2.9"
