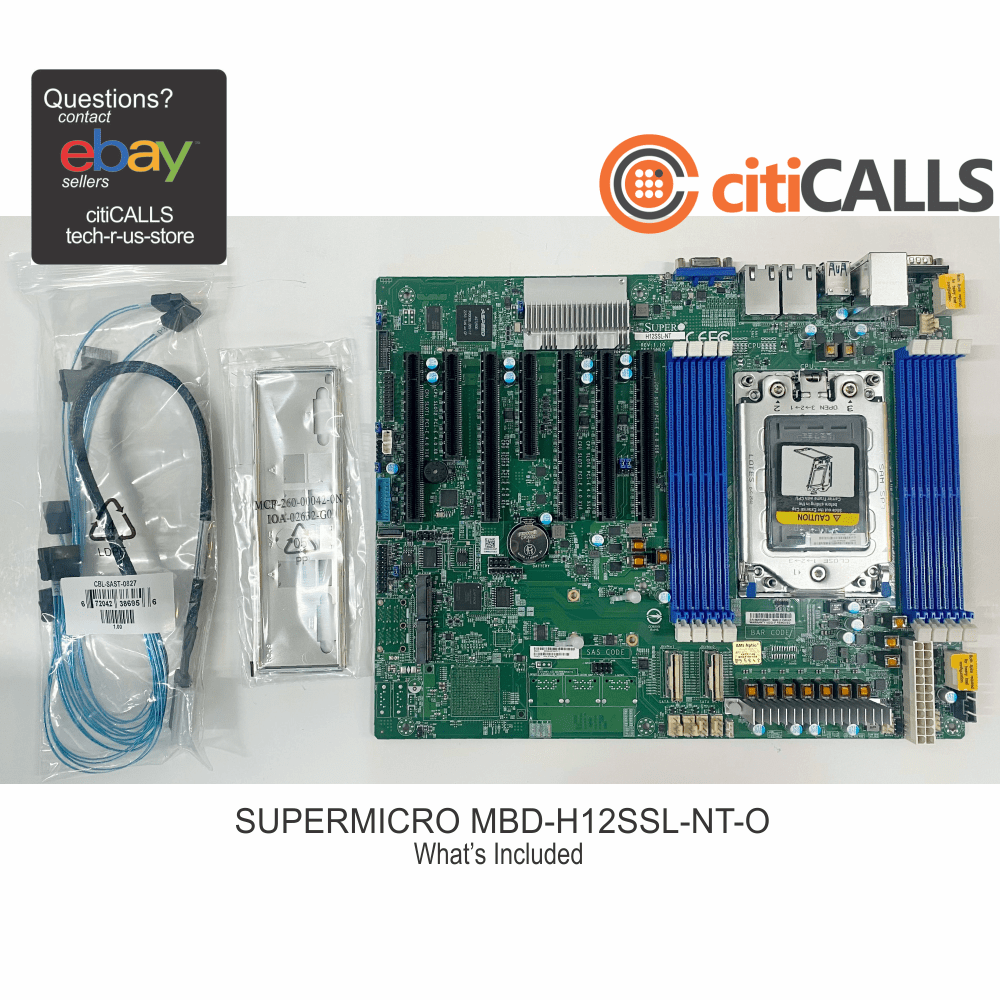

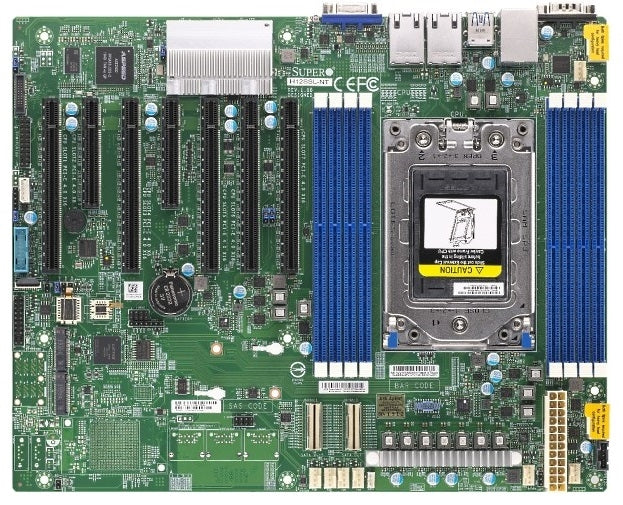

Supermicro MBD-H12SSL-NT-O Motherboard Socket SP3 AMD EPYC7002 Max2TB DDR4

Vendor: Supermicro
SKU: 245975
MPN: MBD-H12SSL-NT-O

Marketing Information
Key Features
1.Single AMD EPYC™ 7002 Series Processor
2.2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
3.Expansion slots:
 5 PCI-E 4.0 x16
 2 PCI-E 4.0 x8
 M.2 Interface: 2 PCI-E 4.0 x4
 M.2 Form Factor: 2280, 22110
  M.2 Key: M-key
4.2 M.2,
2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
5.Dual 10GBase-T LAN via Broadcom BCM57416
6.ASPEED AST2500 BMC graphics
7.Up to 6 USB 3.0 ports  (4 rear + 2 via header)
8.7 PWM 4-pin Fans with tachometer status monitoring

Detail Specifications
Physical Stats
Form Factor
ATX
Processor/Chipset
CPU
Single AMD EPYCTM 7002 series Processor
Socket SP3
Cores
Up to 64 Cores
Chipset
System on Chip
System Memory
Memory Capacity
8 DIMM slots
Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus
Memory Type
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers
Dual 10GBase-T LAN via Broadcom BCM57416
1 Realtek RTL8211F PHY (dedicated IPMI)
VGA
ASPEED AST2500 BMC
Input / Output
SATA/NVMe Hybrid
2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
LAN
Dual 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
6 USB 3.0 ports
(4 rear + 2 via header)
VGA
1 VGA port
Others
1 COM port (rear)
1 TPM 2.0 header
Expansion Slots
PCI-Express
5 PCI-E 4.0 x16
2 PCI-E 4.0 x8
M.2
Interface: 2 PCI-E 4.0 x4
Form factor: 2280, 22110
Key: M-key
System BIOS
BIOS Type
AMI 256Mb SPI Flash EEPROM
BIOS Features
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Management
Software
Super Doctor 5
Watch Dog
NMI
SUM
IPMI 2.0, KVM with dedicated LAN
Power Configurations
ACPI Power Management
Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU
Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby
CPU switching voltage regulator
Supports system management utility
VBAT
FAN
Up to 7-fan status tachometer monitoring
Up to 7 4-pin fan headers
Dual Cooling Zone
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 7x Fan connectors
I2C Temperature Sensing Logic
LED
CPU / System Overheat LED
Other Features
Chassis Intrusion Detection
Chassis Intrusion Header
UID
Operating Environment / Compliance
Environmental Specifications
Operating Temperature:
10oC to 35oC (50oF to 95oF)
Non-operating Temperature:
-40oC to 70oC (-40oF to 158oF)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Warranty Information
1 Year - Direct from the Manufacturer
