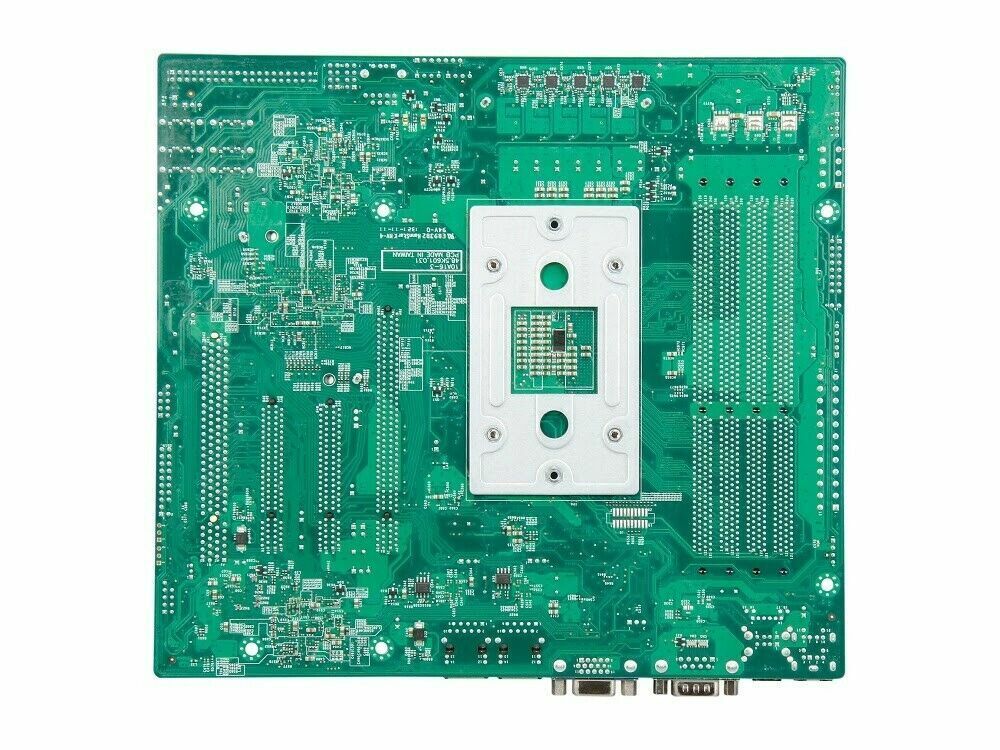

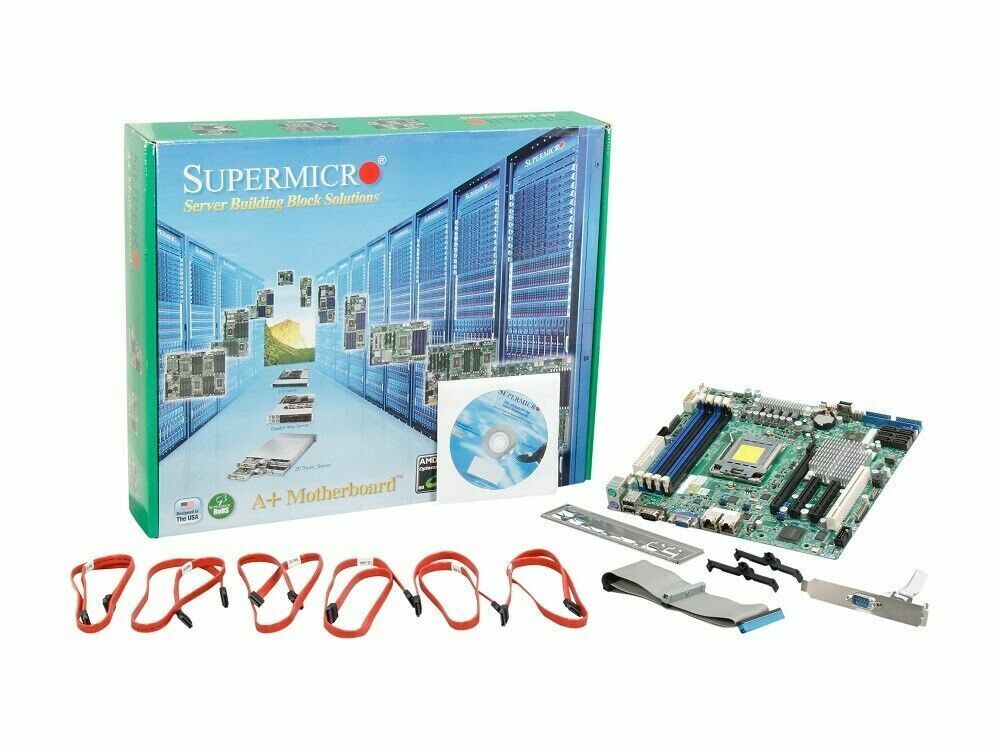

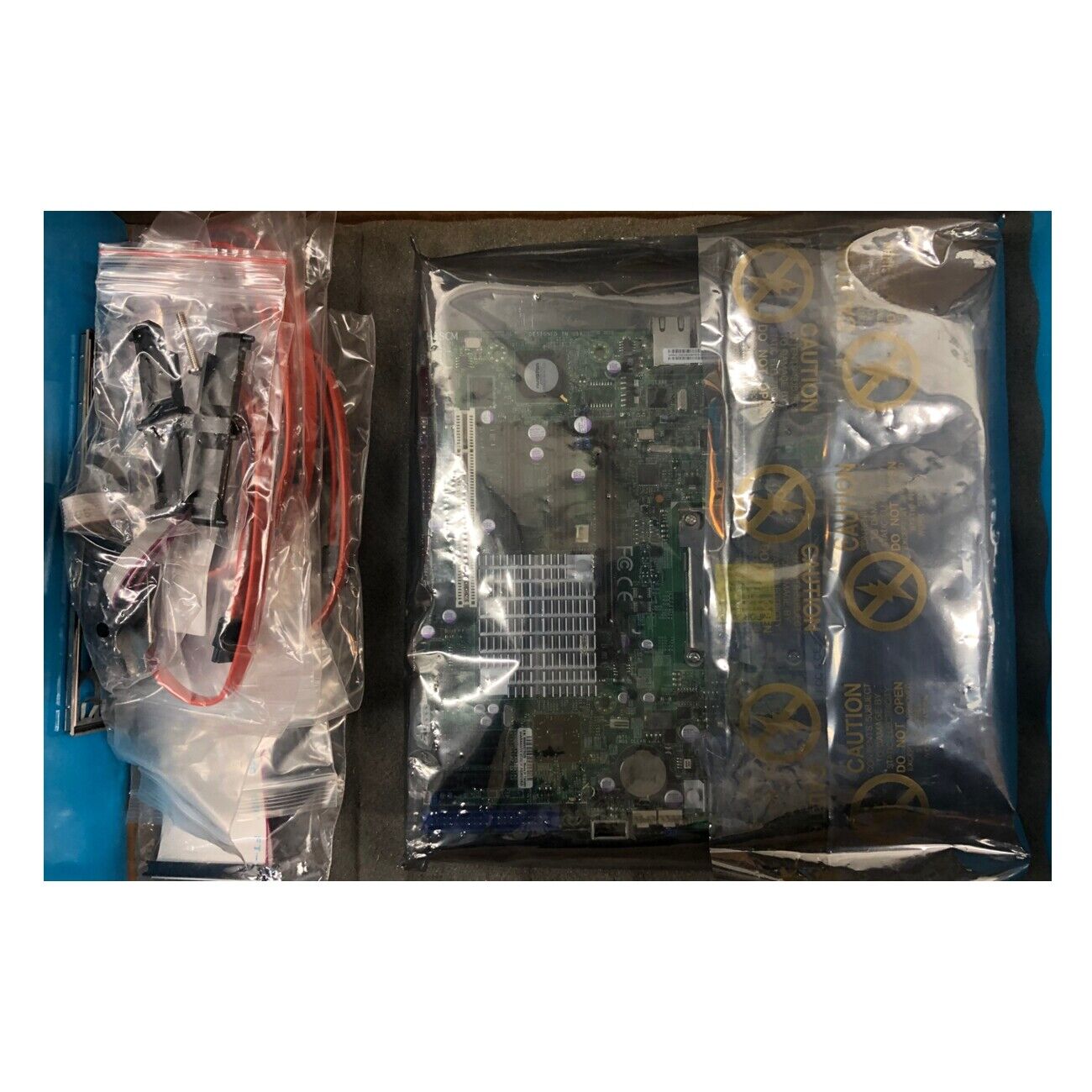

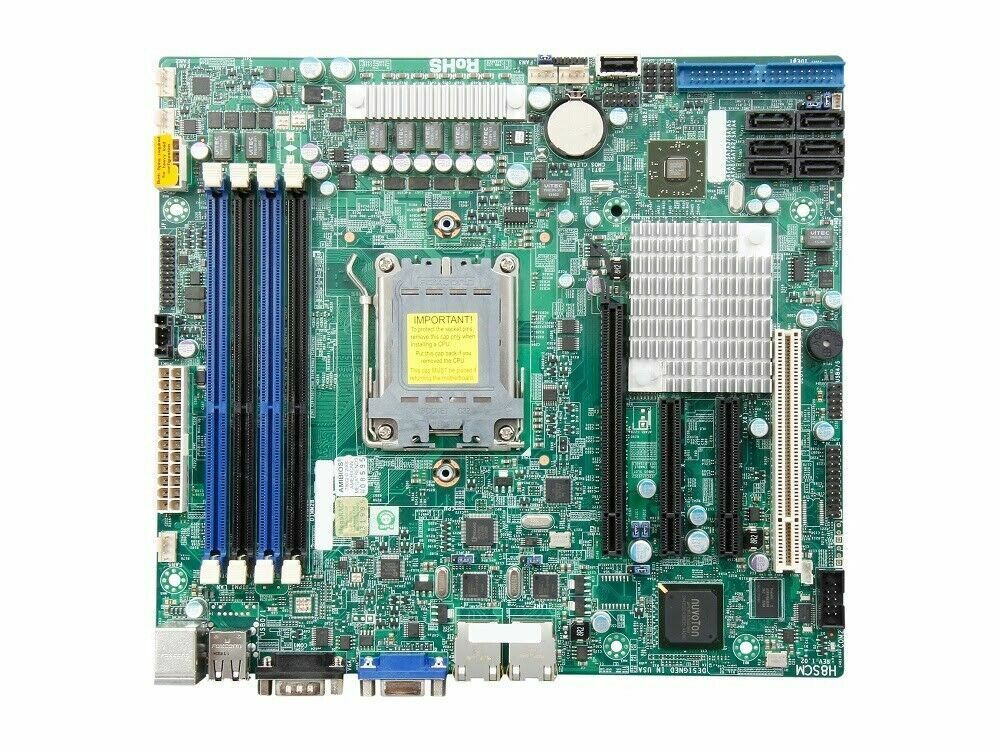

SUPERMICRO MBD-H8SCM Micro ATX Server Motherboard Socket C32 AMD SR5650

Specs:

Brand: SUPERMICRO

Model: MBD-H8SCM

Supported CPU

CPU Socket Type: Socket C32

CPU Type: Six/Four-Core ready AMD Opteron 4100 Series

Chipsets

North Bridge: AMD SR5650

South Bridge: AMD SP5100

Memory

Number of DDR3 Slots: 4 x 240pin

DDR3 Standard: DDR3 1333

Maximum Memory Supported: 64GB

ECC Supported: Yes

Registered: Yes

Expansion Slots

PCI Express x8: 1 x PCI-E 2.0 x8 in x16

1 x PCI-E 2.0 x8

PCI Express x4: 1 x PCI-E 2.0 x4 in x8

PCI Slots: 1 x PCI Slot

Storage Devices

SATA: 6 x SATA 3.0Gb/s

SATA RAID: 0/1/10

Onboard Video

Onboard Video Chipset: Matrox G200eW

Onboard LAN

LAN Chipset: Intel 82574L

LAN Speed: 10/100/1000Mbps

Second LAN Chipset: Intel 82574L

Second LAN Speed : 10/100/1000Mbps

Max LAN Speed: Dual 10/100/1000Mbps

Rear Panel Ports

PS/2: 2

COM: 1

Video Ports: D-Sub

USB 1.1/2.0: 2 x USB 2.0

Form Factor: Micro ATX

Specs:

Brand: SUPERMICRO

Model: MBD-H8SCM

Supported CPU

CPU Socket Type: Socket C32

CPU Type: Six/Four-Core ready AMD Opteron 4100 Series

Chipsets

North Bridge: AMD SR5650

South Bridge: AMD SP5100

Memory

Number of DDR3 Slots: 4 x 240pin

DDR3 Standard: DDR3 1333

Maximum Memory Supported: 64GB

ECC Supported: Yes

Registered: Yes

Expansion Slots

PCI Express x8: 1 x PCI-E 2.0 x8 in x16

1 x PCI-E 2.0 x8

PCI Express x4: 1 x PCI-E 2.0 x4 in x8

PCI Slots: 1 x PCI Slot

Storage Devices

SATA: 6 x SATA 3.0Gb/s

SATA RAID: 0/1/10

Onboard Video

Onboard Video Chipset: Matrox G200eW

Onboard LAN

LAN Chipset: Intel 82574L

LAN Speed: 10/100/1000Mbps

Second LAN Chipset: Intel 82574L

Second LAN Speed : 10/100/1000Mbps

Max LAN Speed: Dual 10/100/1000Mbps

Rear Panel Ports

PS/2: 2

COM: 1

Video Ports: D-Sub

USB 1.1/2.0: 2 x USB 2.0

Form Factor: Micro ATX
