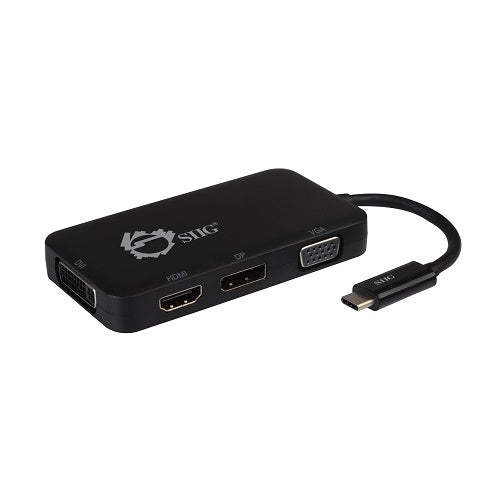

SIIG CB-TC0611-S1 USB-C to DVI VGA DP Multiport Video Adapter

Marketing Information

• Easily adds a 4K display to your Thunderbolt 3 and USB-C DisplayPort Alt enabled Ultrabook, laptop or desktop. Note: The USB-C source connection must support DisplayPort Alternate Mode transmission in order for the adapter's video connectors to pass video and audio
• Supports UHD 4K@60Hz (DisplayPort) & 4K@30Hz (HD-) and HD 1080p@60Hz (DVI & VGA) resolutions. Note: Supports video output to one connected display at a time

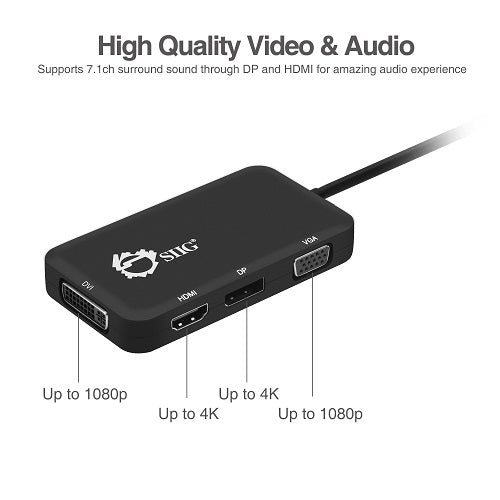

• Supports high quality 7.1ch audio through DisplayPort or HD- connection
• Supports Thunderbolt 3 technology and USB-C with DisplayPort Alternate mode (DisplayPort Alt)
• Compact and lightweight designed to quickly add an additional display convenient to use at home, office or travel makes this the perfect add-on to your workstation
• Bus-powered for extra portability, no need to take an external power adapter while on the go
• Convenient plug and play operation, no driver installation required

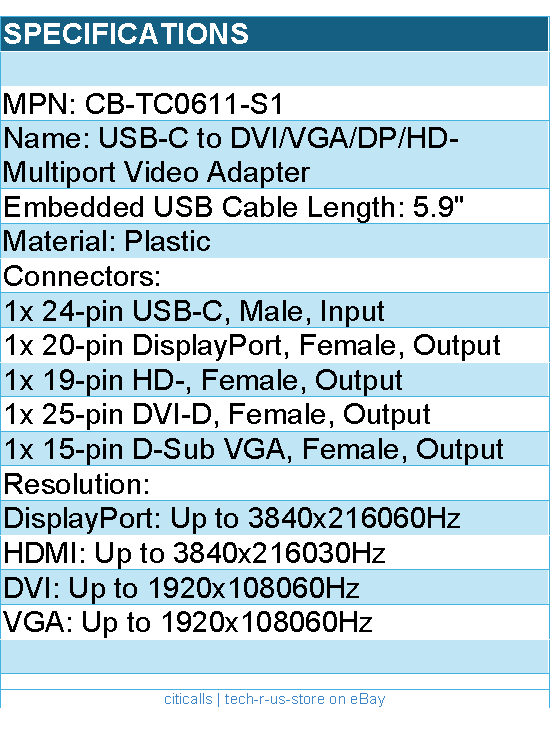

Detail Specifications

• Chipset:
• VL100+PS171+PS8348B+IT6516+IT6561
• Supports DisplayPort 1.2, 1.62 Gbps, 2.7 Gbps, 5.4 Gbps link rates
• Resolution:
• DisplayPort: Up to 3840x216060Hz
• HD-: Up to 3840x216030Hz
• DVI: Up to 1920x108060Hz
• VGA: Up to 1920x108060Hz

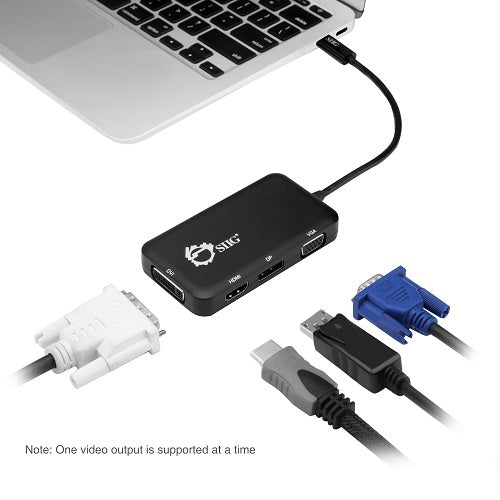

• Note: Supports one connected display at a time
• Product:
• Embedded USB Cable Length: 5.9"

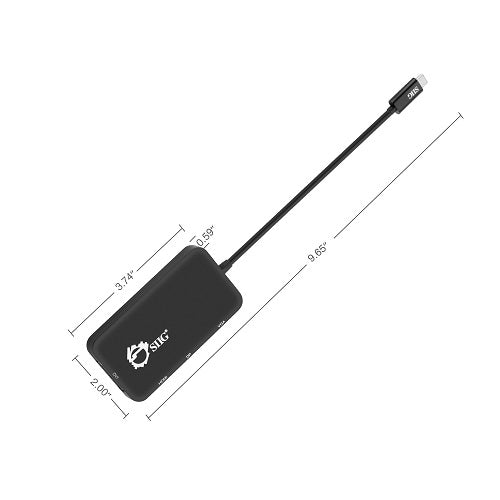

• Total length: 9.65"
• Color: Black
• Material: Plastic
• Connectors:
• 1x 24-pin USB-C, Male, Input
• 1x 20-pin DisplayPort, Female, Output
• 1x 19-pin HD-, Female, Output
• 1x 25-pin DVI-D, Female, Output
• 1x 15-pin D-Sub VGA, Female, Output
• Environmental conditions:
• Operating temperature: 32 to 113 degrees F
• Storage temperature: 14 to 158 degrees F
• Relative humidity: 5% to 90% non-condensing
• Certifications/Standards: FCC, CE, RoHS

Warranty Information

• 2 Years - from SIIG
