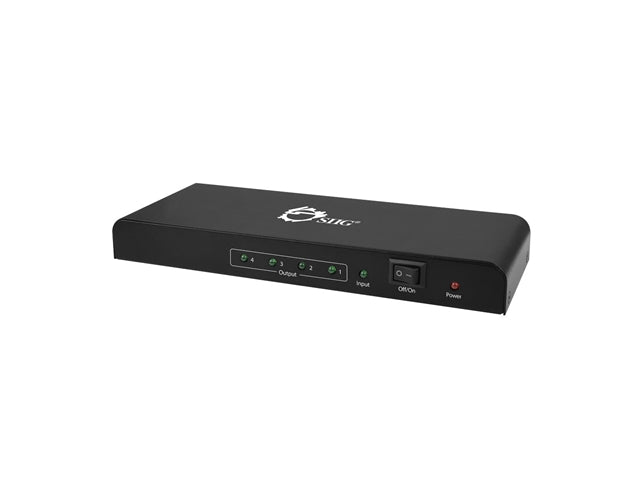

SIIG CE-H22C12-S1 4Kx2K Video 4Port Splitter with 3D Supported RTL

Marketing Information

• SIIGs 4Kx2K HD-  4-Port Splitter with 3D Supported is designed to broadcast HD- content from one HD- source to 4 display units without signal distortion and degradation. It supports premium video quality with full scale display resolutions up to 4Kx2K, 3D video, HD- Deep Color, and multiple digital audio formats including Dolby Digital, DTS-HD and Dolby TrueHD. It is easy and hassle-free to install with no software installation required. And it features automatic EDID learning ability to fully maximize the display units compatibility. This HD- 4-Port Splitter is a great device for digital signage deployment to broadcast high definition audio and video for both home and commercial applications.

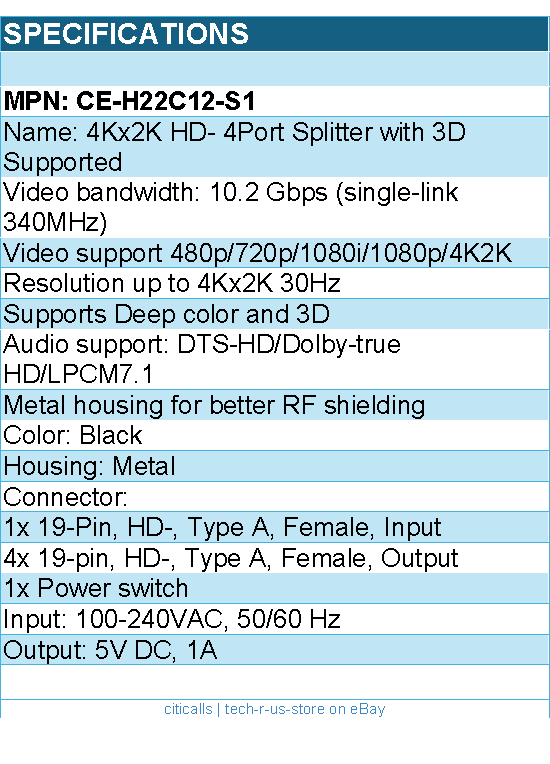

Detail Specifications

• Chipset: Silicon Image 19187B
• Compliant with HD- and HDCP
• Video bandwidth: 10.2 Gbps (single-link 340MHz)
• Video support 480p/720p/1080i/1080p/4K2K
• Resolution up to 4Kx2K 30Hz
• Supports Deep color and 3D
• Audio support: DTS-HD/Dolby-true HD/LPCM7.1
• Supports transmission distance up to 15M (Input 5m / Output 10m)
• LED indication for power and link
• Metal housing for better RF shielding
• Product:
• Color: Black
• Housing: Metal

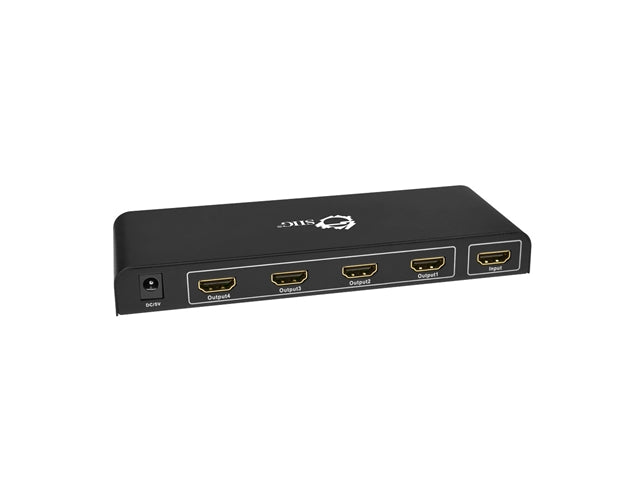

• Connector:
• 1x 19-Pin, HD-, Type A, Female, Input
• 4x 19-pin, HD-, Type A, Female, Output
• 1x Power switch
• Power adapter:
• Input: 100-240VAC, 50/60 Hz
• Output: 5V DC, 1A
• Environmental conditions:
• Operating temperature: 14 to 131 degrees F
• Storage temperature: 5 to 158 degrees F
• Relative humidity: 5 to 90Percent RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS

Warranty Information

• 2 years from SIIG
