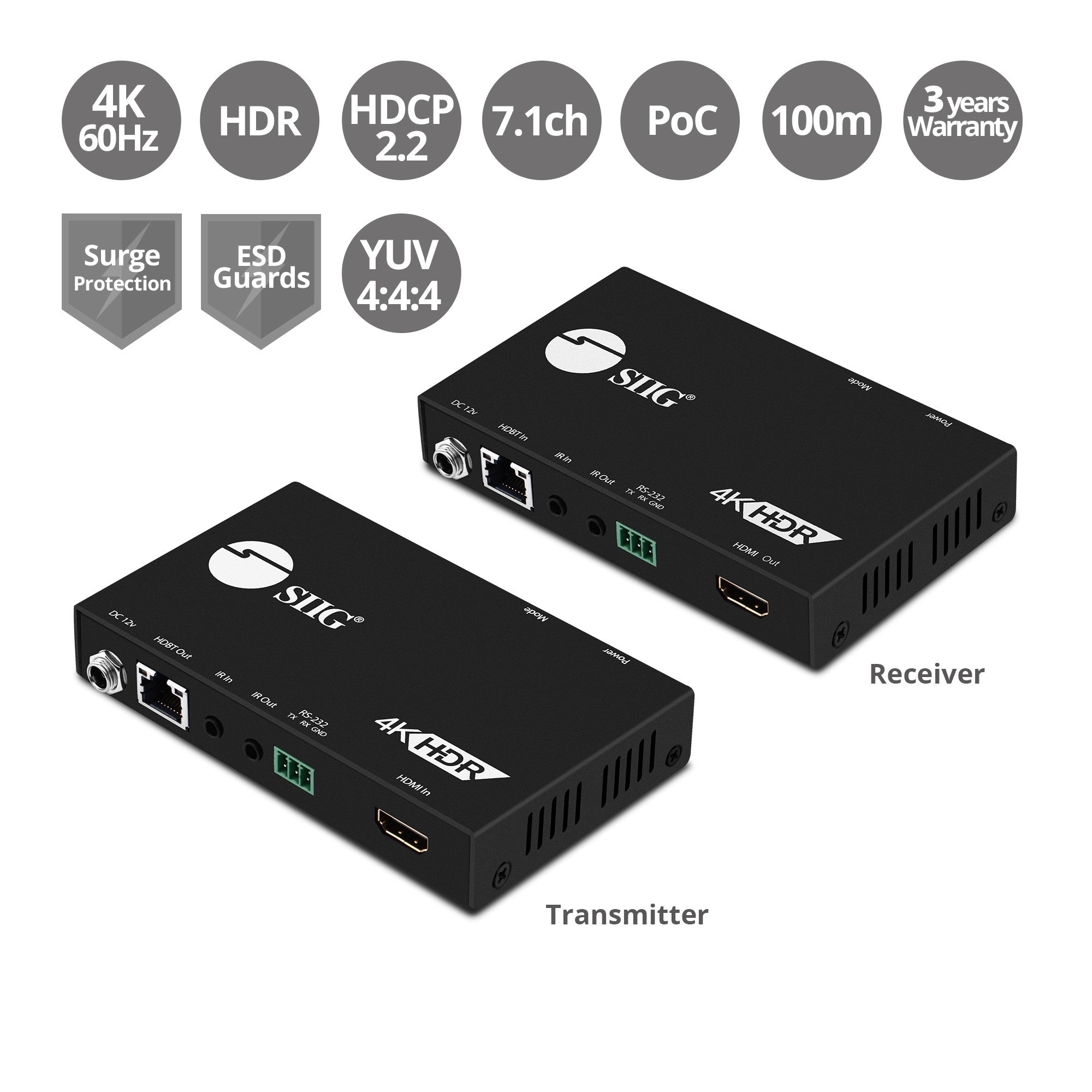

SIIG CE-H23311-S1 4K HDR Video 2.0 HDBaseT Extender Cat5e 6 w RS-232&IR 100m

Marketing Information

• Extends HD- 2.0 audio and video signal from your HD- source to a remote HD- display up to 330ft (100m) away at Full HD 1080p, or 230ft (70m) at 3840x2160@60Hz (YUV 4:4:4 8bit/HDR10 YUV 4:2:0 10bit) through a single premium quality CAT5e/6 cable

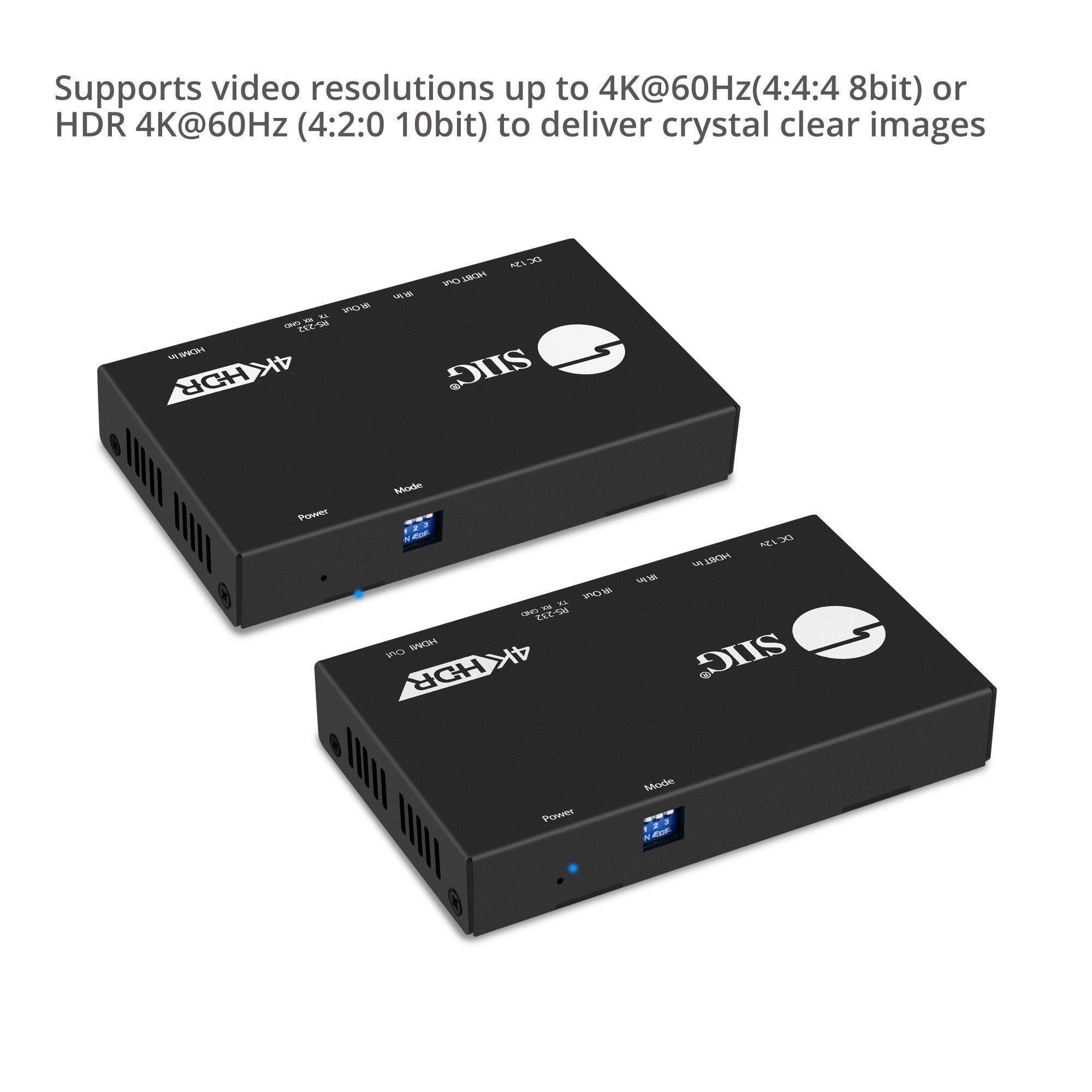

• Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV 4:4:4 8bit and HDR 3840x2160 @60Hz YUV 4:2:0 10bit
• Pure unaltered uncompressed 7.1ch digital HD- over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
• Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter
• Bi-directional IR sensors allow you to remotely control the HD- source device from the remote display side or control the remote display from the source device side
• High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
• Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements
• Note: Does not support connecting to Router or Switch

Detail Specifications

• Compliant with HD- 2.0 and HDCP 2.2
• Supports EDID bypass, CEC, Deep Color 36bit
• Supports 3840x2160 at 60Hz YUV 4:4:4 8bit
• Supports 3840x2160 at 60Hz HDR10 YUV 4:2:0 10bit
• Video bandwidth up to 18Gbps (600MHz per channel)
• Video latency: <20 microsecond
• Auto skew equalization
• Audio support
• DTS-HD Master Audio and Dolby True HD
• Bi-directional IR pass-through supports full frequency IR signal from 20KHz to 60KHz
• Full Duplex RS-232 control up to 115200 bps through connector
• Resolution
• 480p / 720p / 1080i / 1080p / 3840x2160 at 60Hz YUV 4:4:4 8bit / HDR 3840x2160 at 60Hz YUV 4:2:0 10bit
• Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through one power adapter connected to either unit
• Power consumption
• 10 watts (max)
• ESD protection
• +/-15kV Air and +/-8kV Contact
• Aluminum housing with wall mount design
• Transmission protocol
• HDBaseT
• Note: Does not support connecting to Router or Switch
• Transmission Distance
• 1080p at 60Hz: up to 100m
• 3840x2160 at 30Hz/60Hz: up to 70m

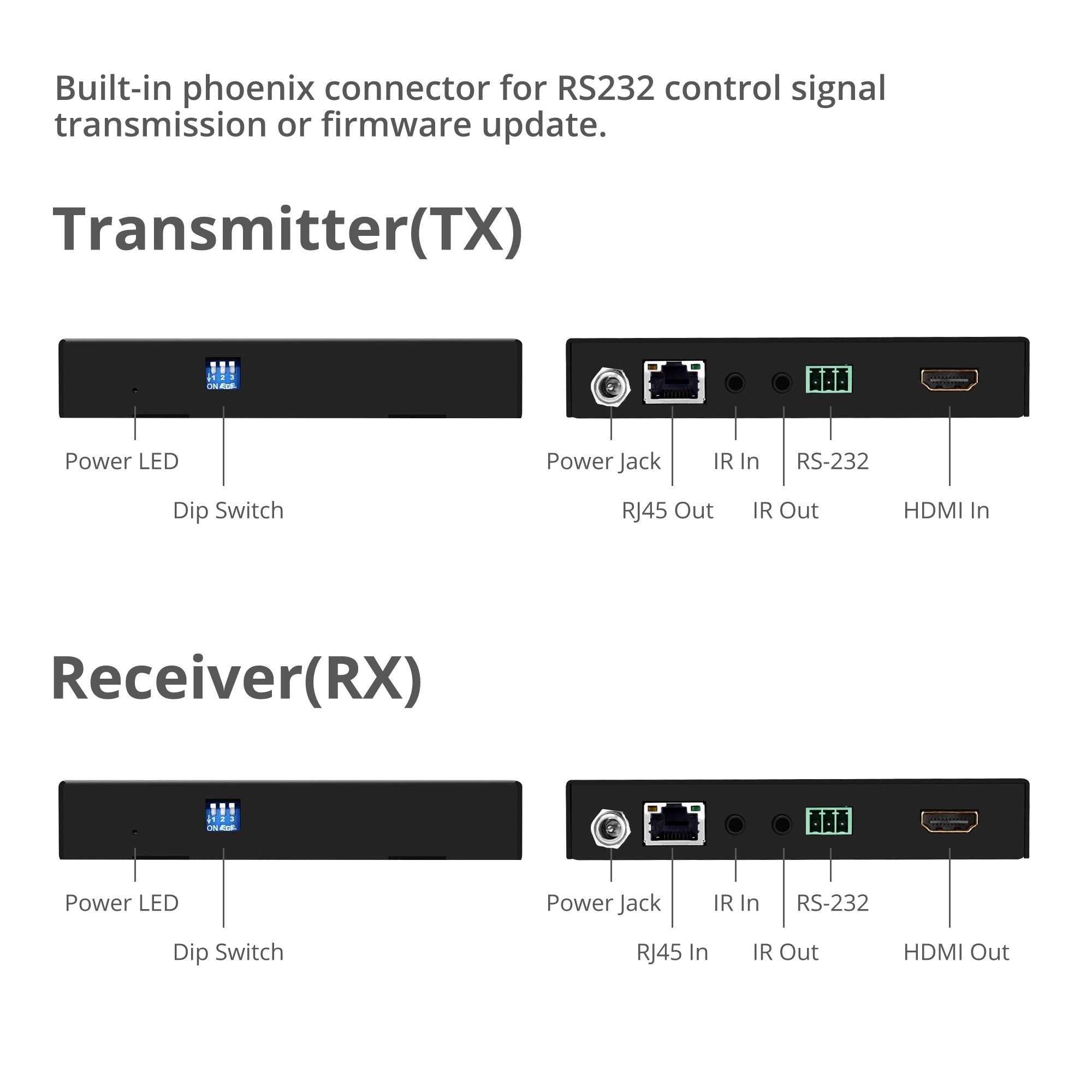

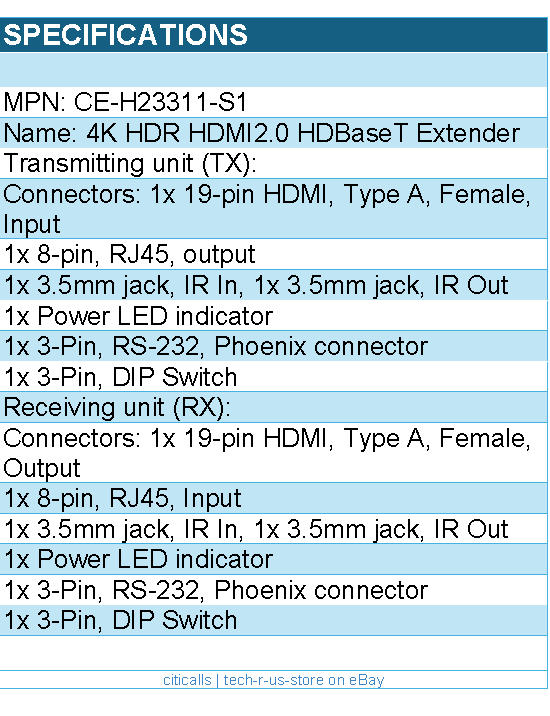

• Product
• Transmitting unit (TX):
• Connectors:
• 1x 19-pin HD-, Type A, Female, Input
• 1x 8-pin, RJ45, output
• 1x 3.5mm jack, IR In
• 1x 3.5mm jack, IR Out
• 1x Power LED indicator
• 1x 3-Pin, RS-232, Phoenix connector
• 1x 3-Pin, DIP Switch
• 1x Power jack
• Receiving unit (RX):
• Connectors:
• 1x 19-pin HD-, Type A, Female, Output
• 1x 8-pin, RJ45, Input
• 1x 3.5mm jack, IR In
• 1x 3.5mm jack, IR Out
• 1x Power LED indicator
• 1x 3-Pin, RS-232, Phoenix connector
• 1x 3-Pin, DIP Switch
• 1x Power jack
• Power adapter
• Input: AC 100-240V / 50-60Hz
• Output: DC 12V/2A
• UL Listed: E163743 / Class VI
• Environmental conditions
• Operating temperature: 32 to 104 degrees F
• Storage temperature: 14 to 158 degrees F
• Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS

Warranty Information

• 3 years from SIIG
