SIIG CE-H24F11-S1 Video 4K HDR with Audio Extractor & ARC Brown Box

Marketing Information

• • Identifies and separates high quality audio track from an incoming HD- signal and sends it to a 3.5mm stereo jack and Toslink S/PDIF port, allowing you to connect to speakers, AV receivers and entertainment systems that lack an HD- connection
• • Works with multi-channel HD- embedded audio
• • Supports PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1 audio
• • Supports audio extraction via stereo and Toslink
• • Supported Optical Audio Formats: PCM 2-CH and Dolby 5.1
• • Supports ARC audio extraction via Toslink connection
• • Wall-mountable metal housing allows easy installation in any environment and provides better RF shielding and heat dissipation for dependable performance and long life
• • Plug and Play Installation - No driver or software installation required

Detail Specifications

• Compliant with HD- 2.0a specification
• Support HDCP 2.2, HDR and CEC bypass
• Supports 4Kx2K at 60 YUV 4:4:4 8bits and 4K HDR YUV 4:2:0 10bit
• Video bandwidth up to 18Gbps (600MHz per channel)
• Resolution:
• 480p / 720p / 1080i / 1080p / 4Kx2K at 60Hz
• Supports audio extraction via 3.5mm stereo jack and Toslink optical
• Supports ARC audio extraction via Toslink
• Supports audio format:
• HD-: PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1
• Optical audio format: PCM 2, Dolby 5.1
• Supports audio embedded via stereo and S/PDIF (Toslink)
• ESD protection:
• +/-15kV Air and +/-8kV Contact
• Matel housing with wall mount design
• Power consumption:
• up to 3 watts

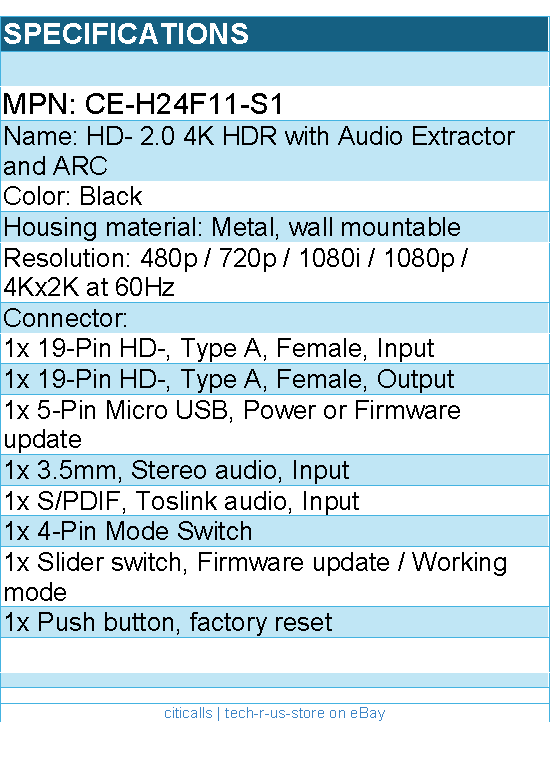

• Product
• Color: Black
• Housing material: Metal, wall mountable
• Connector:
• 1x 19-Pin HD-, Type A, Female, Input
• 1x 19-Pin HD-, Type A, Female, Output
• 1x 5-Pin Micro USB, Power or Firmware update
• 1x 3.5mm, Stereo audio, Input
• 1x S/PDIF, Toslink audio, Input
• 1x 4-Pin Mode Switch
• 1x Slider switch, Firmware update / Working mode
• 1x Push button, factory reset
• Environmental conditions:
• Operating temperature: 32 to 104 degrees F
• Storage temperature: -4 to 140 degrees F
• Relative humidity: 20 to 90% RH (non-condensing)
• TAA compliant
• Certifications/Standards: FCC, CE, RoHS

Warranty Information

• 3 years from SIIG
