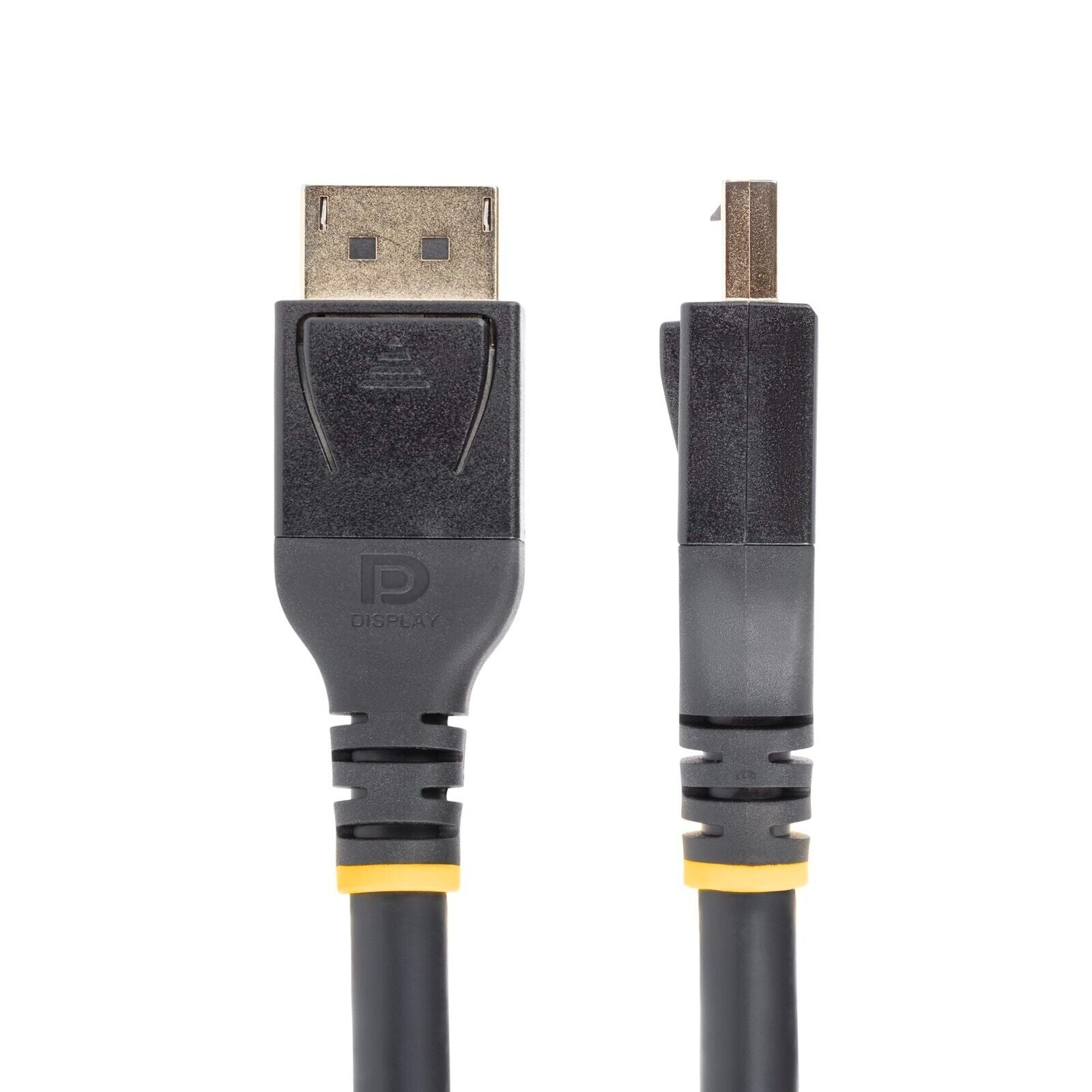

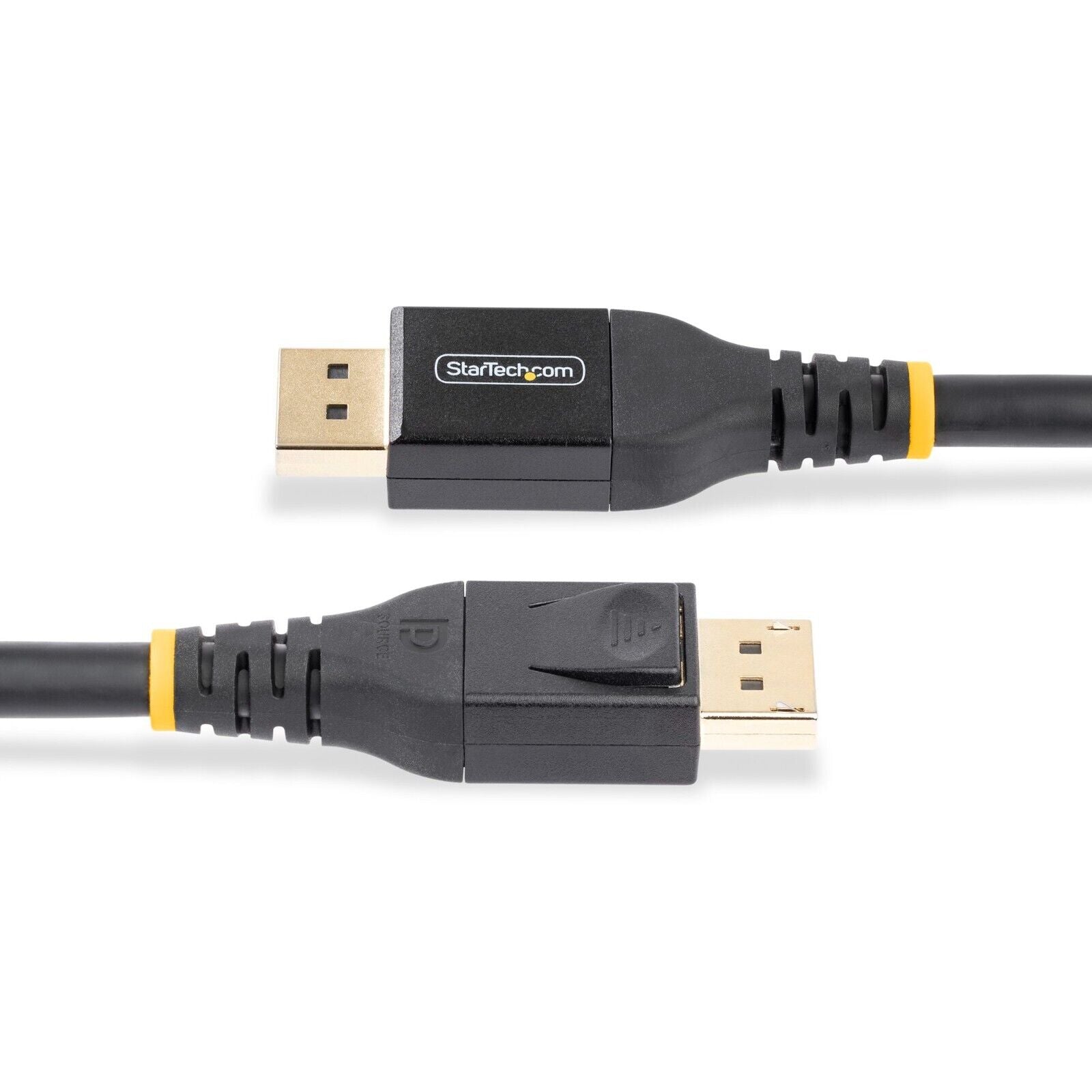

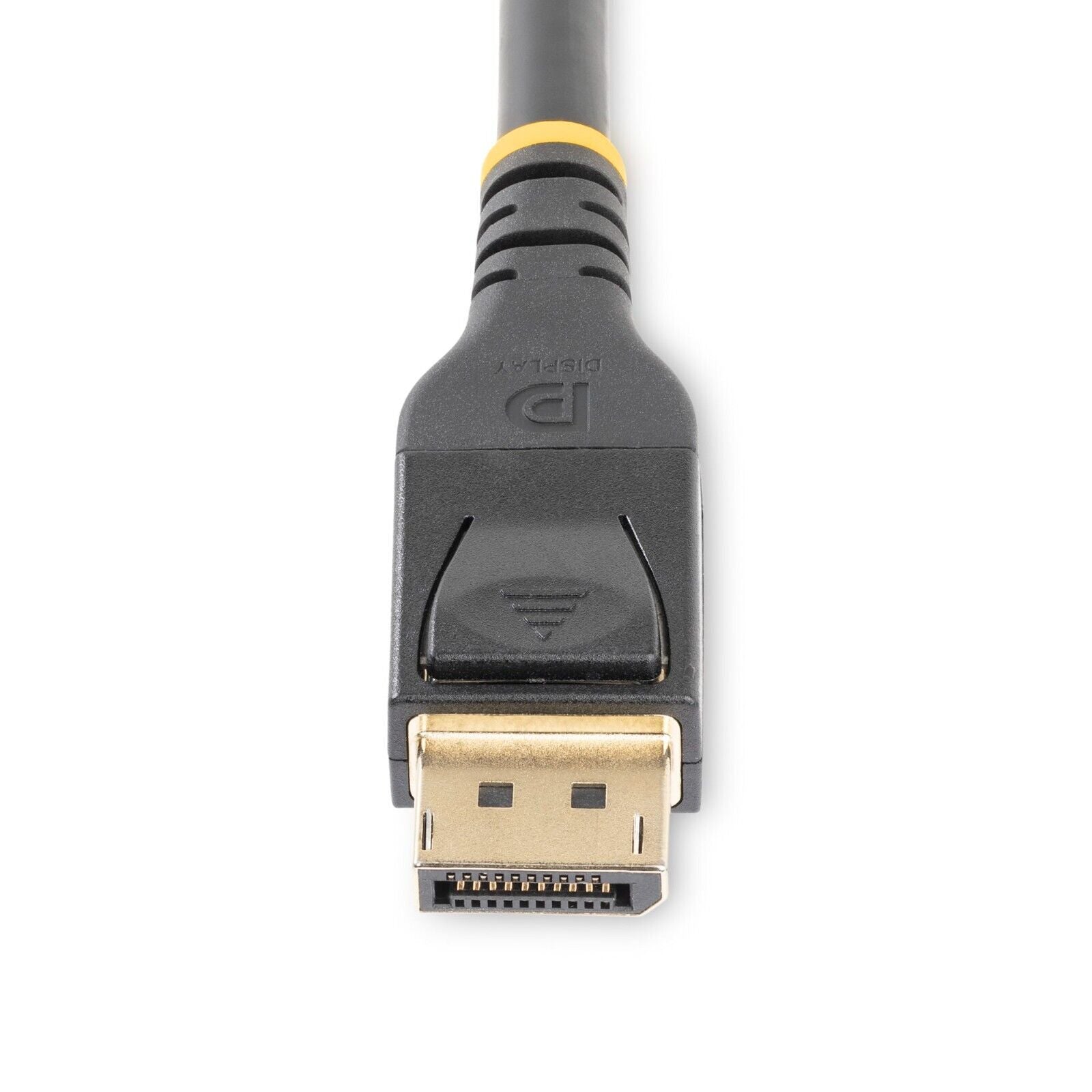

StarTech DP14A-7M-DP-CABLE 25Ft Active DisplayPort 1.4 4K/8K Cable Booster Black

Name: StarTech DP14A-7M-DP-CABLE 25Ft Active DisplayPort 1.4 4K/8K Cable Booster Black
Brand: Startech
SKU: INGaSTA HK9273 - DP14A-7M-DP-CABLE
Price: 114.95 USD
Availability: InStock

$114.95 USD

Shipping calculated at checkout.

In stock: 1

Description

23ft (7m) VESA-Certified Active DisplayPort 1.4 Cable, DP8K DisplayPort Cable w/HBR3, HDR10, MST, DSC 1.2, HDCP 2.2, 8K 60Hz, 4K 120Hz - DP 1.4 Cable M/M

Facilitate a longer 8K connection without requiring an external power source

Warranty Information

Warranty

2 Years

Connector(s)

Connector A

1 - 20 pin DisplayPort Male

Connector B

1 - 20 pin DisplayPort Male

Environmental

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

0%~85% RH

Hardware

Active or Passive Adapter

Active

Connector Plating

Gold

Cable Jacket Material

TPE - Thermoplastic Elastomers

Cable Shield Material

Aluminum-Mylar Foil with Braid

Cable Type

Active Copper Cable

Chipset ID

SPECTRA7® VR8300B0-C-R

Packaging Information

Package Quantity

Package Length

9.9 in [25.2 cm]

Package Width

13.0 in [33.0 cm]

Package Height

1.6 in [4.0 cm]

Shipping (Package) Weight

1.1 lb [0.5 kg]

Performance

Video Revision

DisplayPort 1.4

Maximum Data Transfer Rate

25.92 Gbps

Maximum Digital Resolutions

8K 60Hz
4K 144Hz

Audio Specifications

DisplayPort - 7.1 Channel Audio

General Specifications

Maximum Bandwidth: 32.4 Gbps

Supported Protocols

DisplayPort 1.4
DisplayPort 1.2

Physical Characteristics

Color

Black

Product Length

25.1 ft [7.7 m]

Product Width

0.8 in [2.0 cm]

Product Height

0.4 in [1.1 cm]

Weight of Product

1.1 lb [0.5 kg]

Connector Style

Straight

Wire Gauge

24/28 AWG

Cable Length

25.1 ft [7.7 m]

Cable OD

0.3 in [7.5 mm]

Special Notes / Requirements

System and Cable Requirements

DSC (Display Stream Compression) technology reduces the bandwidth required to transmit video signals, enabling higher resolutions and faster refresh rates without compromising visual quality

Website Filters

Fire Rating

VW-1

What's in the Box

Included in Package

1 - Active DisplayPort 1.4 8K Cable
