Tripp Lite B130-101-2 VGA over Cat5 Cat6 Extender Transmitter Receiver to 1000FT

General Information

• Brand Name: Tripp Lite
• Manufacturer: Tripp Lite
• Manufacturer Part Number: B130-101-2
• Product Name: VGA over Cat5 Extender Kit (Transmitter + Receiver)
• Product Type: Video Console/Extender

Marketing Information:

Tripp Lite's B130-101-2 allows you to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further expanded by adding B132-110 repeater units. Connect up to 3 repeaters, with the B130-101-2 receiver at the end of the chain, for a total of 4 monitors. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wall mounted, rack mounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.

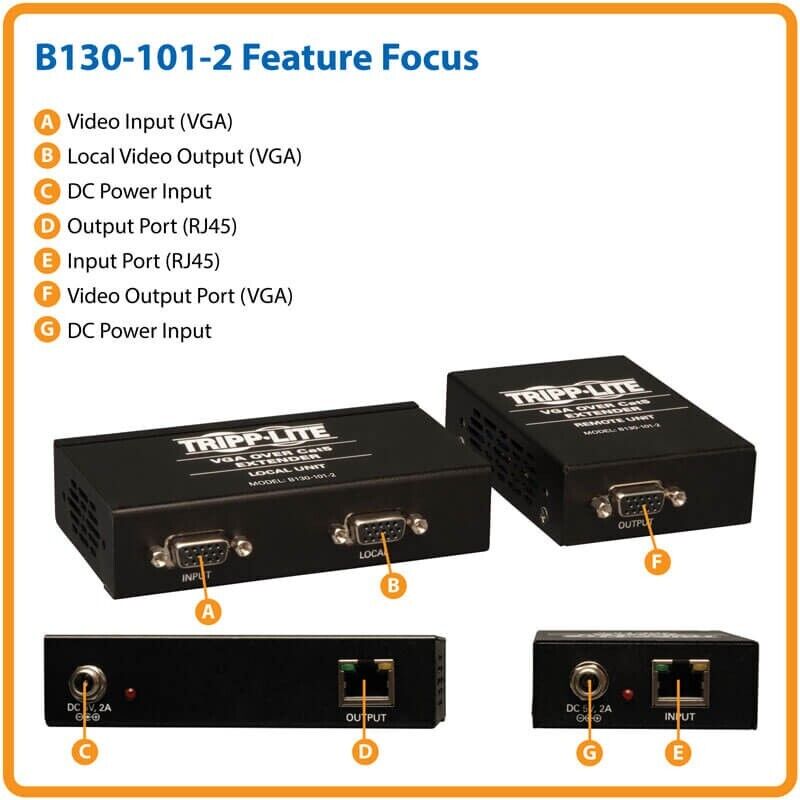

Interfaces/Ports:

• Network (RJ-45): Yes
• Number of Network (RJ-45) Ports: 2
• Number of VGA Inputs: 1
• Number of VGA Outputs: 2
• VGA In: Yes
• VGA Out: Yes

Media & Performance

• Media Type Supported: Twisted Pair
• Twisted Pair Cable Standard: Category 6

Certifications:

• Certifications & Standards: TAA
• Green Compliance Certificate/Authority: RoHS
• Green Compliant: Yes

Package Contents:

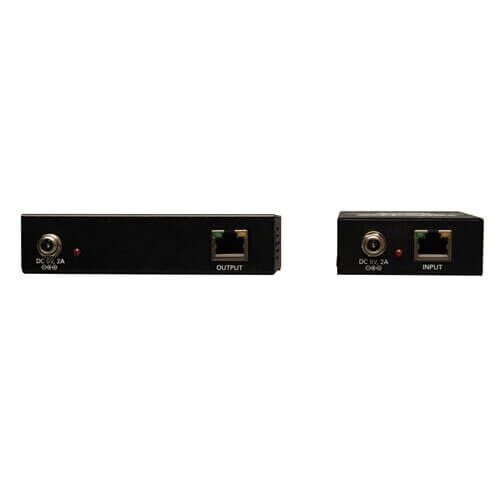

• Local (Transmitter) Unit 1 x 4.5 x 2.5 (in.)
• Remote (Receiver) Unit 1 x 2.5 x 3.5 (in.)
• Mini-Screwdriver for EQ/Gain Adjustment
• 2 x Mounting Hardware Kits
• 2 x External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
• Owner's Manual

Physical Characteristics

• Color: Black
• Form Factor: Pole-mountable
• Rack-mountable
• Wall Mountable

Power Description

• Input Voltage: 110 V AC, 220 V AC

Technical Information

• Connectivity Technology: Wired
• Maximum Operating Distance: 1000 ft
• Number of Input Devices Supported: 1
• Number of Output Devices Supported: 2
• Video
  • Maximum Video Resolution: 1920 x 1440

Limited Warranty: 1 Year - Direct from Tripp Lite
