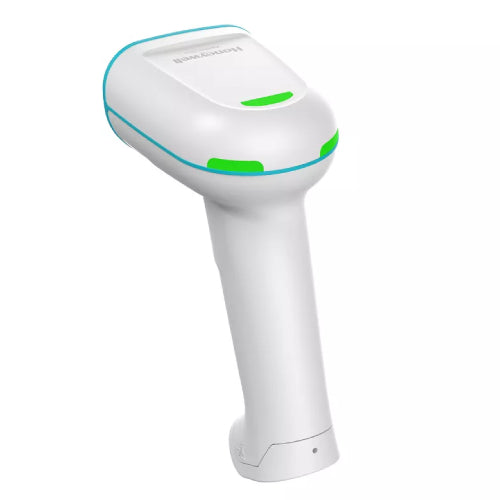

Honeywell 1960HHD-5-N XENON ULTRA 1960H Healthcare Corded Handheld Scanner

General Information

• Manufacturer: Honeywell International, Inc
• Brand Name: Honeywell
• Manufacturer Part Number: 1960HHD5N
• Product Model: 1960H
• Product Name: XENON ULTRA 1960H Healthcare Corded Handheld Scanner
• Product Line: Xenon Ultra
• Product Type: Barcode Scanner

Technical Information

• Barcode Symbology Supported
• Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies Note: Decode capabilities dependent on configuration
• Scanning Distance: 32.07"
• Light Source: LED
• Drop Specification: 31.8 m (6 ft) to concrete across operating temp range
• Depth of Field
  • 18mm - 174mm (0.71in - 6.84 in) @ 3 mil Code 39
  • 7mm - 295mm (0.29 in - 11.62 in) @ 5 mil Code 39
  • 0 mm - 548 mm (0 in - 21.57 in) @ 10 mil Code 39
  • 0 mm - 502 mm (0 in - 19.77 in) @ 13 mil UPC
  • 0 mm - 345 mm (0 in - 13.6 in) @ 7.5 mil Code 128
  • 0 mm - 563 mm (0 in - 22.17 in) @ 15 mil Code 128
  • 4 mm - 814 mm (0.17 in - 32.07 in) @ 20 mil Code 39
  • 22 mm - 173 mm (0.86 in - 6.82 in) @ 5 mil PDF417
  • 8 mm - 237 mm (0.32 in - 9.32 in) @ 6.7 mil PDF417
  • 35 mm - 113 mm (1.39 in - 4.43 in) @ 5 mil DM
  • 16 mm - 183 mm (0.62 in - 7.19 in) @ 7.5 mil DM
  • 2 mm - 249 mm (0.76 in - 9.8 in) @ 10 mil DM
  • 1 mm - 230 mm (0.05 in - 9.07 in) @ 10 mil QR
  • 0 mm - 392 mm (0 in - 15.43 in) @ 20 mil QR
• Scan Pattern: Area
• Image Sensor Type: Imager
• Scanning Capability:
  • 2D
  • 1D
• Field of View (Horizontal): 42°
• Field of View (Vertical): 36°
• Reading Angle (Skew): 65°
• Reading Angle (Pitch): 65°
• Reading Angle (Roll): 360°
• Motion Tolerance: 157.48 in/s
• Maximum Ambient Light: 100000 lux
• Minimum Print Contrast: 15%
• Minimum Element Resolution (Code 39): 3 mil
• Maximum Element Resolution (Code 39): 20 mil
• Minimum Element Resolution (DataMatrix): 5 mil
• Maximum Element Resolution (DataMatrix): 10 mil
• Minimum Element Resolution (PDF417): 5 mil
• Maximum Element Resolution (PDF417): 6.7 mil

Interfaces/Ports

• Host Interface
  • Serial
  • USB
  • Keyboard Wedge

Physical Characteristics

• Form Factor: Handheld
• Product Color: White
• Color Family: White

Miscellaneous

• Application/Usage: Healthcare

Power Description

• Maximum Operating Power Consumption: 2.50 W
