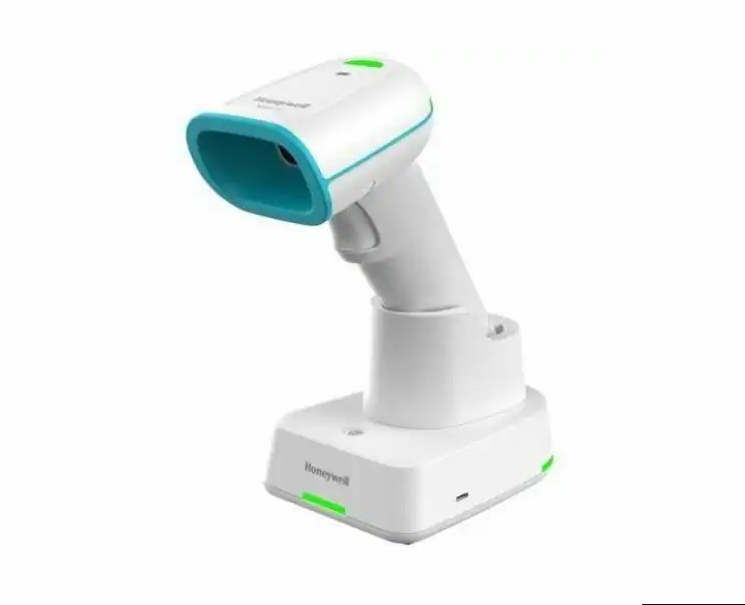

Honeywell 1962HHD-5USB-9BF XENON ULTRA 1962H Cordless Bluetooth Handheld Scanner

General Information

• Manufacturer: Honeywell International, Inc
• Brand Name: Honeywell
• Manufacturer Part Number: 1962HHD5USB9BF
• Product Model: 1962H
• Product Name: XENON ULTRA 1962H Cordless Bluetooth Handheld Scanner
• Product Line: Xenon Ultra
• Product Type: Barcode Scanner Kit

Technical Information

• Barcode Symbology Supported: Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
• Scanning Distance: 32.07"
• Light Source: LED
• Drop Specification: Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range
• Scan Pattern: Area
• Image Sensor Type: Imager
• Cable Type Included: USB
• Scanning Capability
  • 1D
  • 2D
• Field of View (Horizontal): 42°
• Field of View (Vertical): 36°
• Reading Angle (Skew): 65°
• Reading Angle (Pitch): 65°
• Reading Angle (Roll): 360°
• Motion Tolerance: 157.48 in/s
• Maximum Ambient Light: 100000 lux
• Minimum Print Contrast: 15%
• Minimum Element Resolution (Code 39): 3 mil
• Maximum Element Resolution (Code 39): 20 mil
• Minimum Element Resolution (DataMatrix): 5 mil
• Maximum Element Resolution (DataMatrix): 10 mil
• Minimum Element Resolution (PDF417): 5 mil
• Maximum Element Resolution (PDF417): 6.7 mil

Physical Characteristics

• Form Factor: Handheld
• Length: 4.3"
• Height: 6.3"
• Width: 2.8"
• Product Color: White
• Color Family: White

Power Description

• Maximum Operating Power Consumption: 10 W

Interfaces/Ports

Host Interface

• USB
• Serial

Network & Communication

• Bluetooth: Yes
• Radio Frequency: Yes

Miscellaneous

• Application/Usage:
  • Pharmacy
  • Healthcare
  • Hospitality
  • Inventory
  • Component Tracking
  • Specimen Collection
• Package Contents
  • 1 x XENON ULTRA 1962H Cordless Bluetooth Handheld Scanner
  • 1 x White Anti-microbial housing
  • 1 x HD Focus
  • 1 x USB Type A 2.7M straight cable (3012-6337-001)
  • 1 x Horizontal Desktop/Wall Mount Charge and Communication Base (CCB-ULTRA-HORIZ-HC)

Warranty

• Additional Warranty Information
• Supercapacitor: 5 year factory warranty from Honeywell
• Lithium-ion Battery Pack: 1 year from Honeywell
• Limited Warranty: 3 Year from Honeywell
