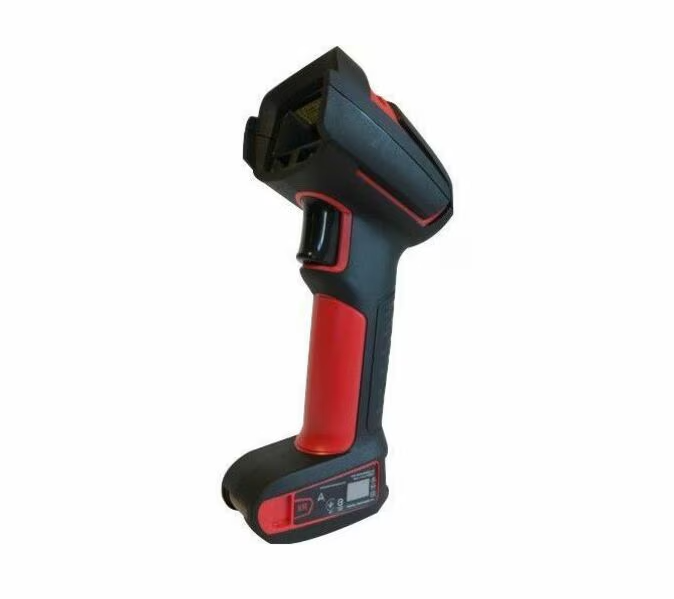

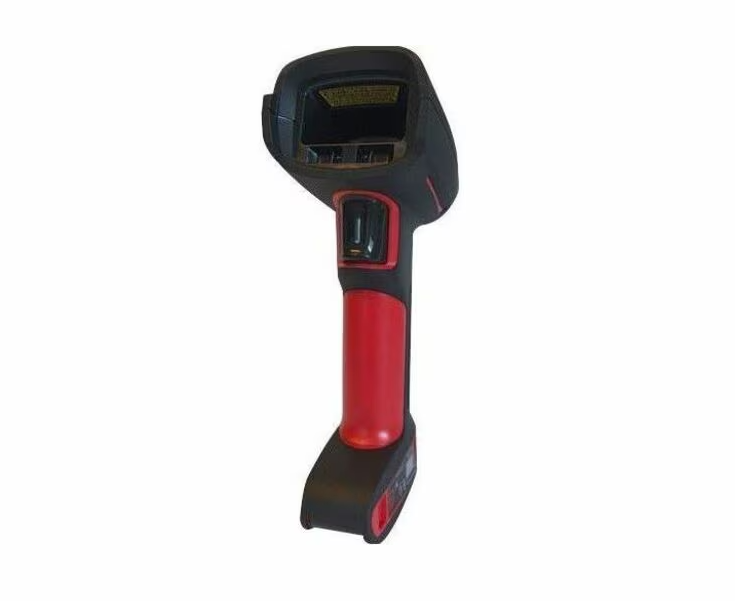

Honeywell 1990ISR-3USB-N Granit 1990iSR Ultra-Rugged Standard Range Scanner

General Information

• Manufacturer: Honeywell International, Inc
• Brand Name: Honeywell
• Manufacturer Part Number: 1990ISR3USBN
• Product Model: 1990iSR
• Product Name: Granit 1990iSR Ultra-Rugged Standard Range Scanner
• Product Line: Granit XP
• Product Type: Barcode Scanner

Overview

Ensure maximum productivity and uptime with Granit™ 1990iSR standard range ultra-rugged barcode scanner. Best-in-class durability ensures low TCO. Premium scanning performance ensures even damaged or low quality codes scan quickly. Granit XP expands capabilities and redefines ultra-rugged scanning.

• Built to survive harsh treatment including 3 m (10 ft) drops, 7,000 1 m (3.3 ft) tumbles, operating temperatures from -30°C to 50°C (-22°F to 122°F) and IP67 sealing, Granit XP reduces service costs and increases device uptime.
• Granit provides extreme performance scanning, even on damaged and low-quality barcodes. High-quality barcodes scan and transmit faster than ever.
• The SR model is ideally suited to normal, near-field scanning operations on 1D and 2D barcodes. For longer distances, refer to other models in the Granit family.
• Honeywell Operational Intelligence software delivers on-demand scan insights, enabling higher employee productivity and throughput.
• The Honeywell Scanner Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.

Physical Characteristics

• Form Factor: Handheld
• Length: 7.6"
• Height: 3.9"
• Width: 3"
• Product Color: Red
• Color Family: Red
• Rugged: Yes

Technical Information

• Barcode Symbology Supported
• Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies
• Drop Specification
  • 2 m (6.5 ft): 50 drops from -30°C toNEWLINE50°C (-22°F to 122°F), uncontrolled RH
  • 2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH
  • 3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH
• Scan Pattern: Area
• Image Sensor Type: Imager
• Scanning Capability:
  • 2D
  • 1D
• Field of View (Horizontal): 40°
• Field of View (Vertical): 30°
• Reading Angle (Skew): 65°
• Reading Angle (Pitch): 45°
• Reading Angle (Roll): 360°
• Motion Tolerance: 177 in/s
• Maximum Ambient Light: 100000 lux
• Minimum Print Contrast: 20%
• Minimum Element Resolution (Code 39): 5 mil
• Maximum Element Resolution (Code 39): 20 mil
• Minimum Element Resolution (DataMatrix): 6 mil
• Maximum Element Resolution (DataMatrix): 10 mil
• Minimum Element Resolution (PDF417): 6.7 mil

Network & Communication

Bluetooth: No

Power Description

• Maximum Operating Power Consumption 2.35 W

Interfaces/Ports

Host Interface:

• Keyboard Wedge
• USB
• Serial

Miscellaneous

Application/Usage:

• Warehouse
• Industrial

TAA Compliant: Yes
