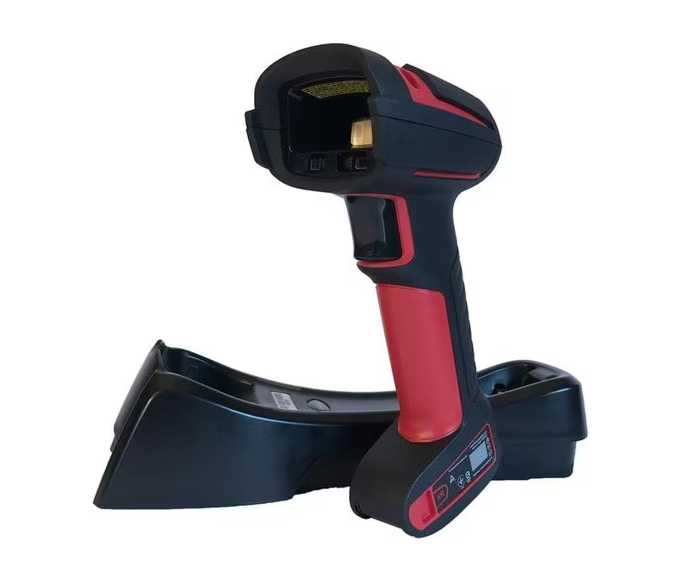

Honeywell 1991IXR-3USB-5-N Granit XP 1991iXR Ultra-Rugged Area-Imaging Scanner

General Information

• Manufacturer: Honeywell International, Inc
• Brand Name: Honeywell
• Manufacturer Part Number: 1991IXR3USB5N
• Product Model: 1991iXR
• Product Name: Granit XP 1991iXR Wireless Ultra-Rugged Area-Imaging Scanner
• Product Line: Granit XP
• Product Type: Barcode Scanner Kit

FEATURES AND BENEFITS

Built to survive harsh treatment including 3 m (10 ft) drops, 7,000 1 m (3.3 ft) tumbles, operating temperatures from -20°C to 50°C (-4°F to 122°F) and IP67 sealing, Granit XP reduces service costs and increases device uptime.

Granit provides extreme performance scanning, even on damaged and low-quality barcodes. High-quality barcodes scan and transmit faster than ever.

The XR model is ideally suited to normal, near-field scanning operations on 1D and 2D barcodes, plus eXpanded Range scanning of UPC to 1.5 m (5 ft) and 100 mil codes to 10 m (33 ft).

Honeywell Operational Intelligence software delivers on-demand scan insights, enabling higher employee productivity and throughput.

The Honeywell Scanner Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.

• With Bluetooth technology, you can scan barcodes and then transmit data from the base
• Allows productive and precise reading of 1D barcodes
• Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes

Physical Characteristics

• Form Factor: Handheld
• Length: 7.6"
• Height: 3.9"
• Width: 3"
• Product Color: Red
• Color Family: Red
• Rugged: Yes

Technical Information

• Barcode Symbology Supported: Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies
• Scanning Distance: 33 ft
• Drop Specification: 10 ft
• Image Sensor Type: Imager
• Cable Type Included: USB
• Scanning Capability:
  • 1D
  • 2D
• Field of View (Horizontal): 40°
• Field of View (Vertical): 30°
• Reading Angle (Skew): 65°
• Reading Angle (Pitch): 45°
• Reading Angle (Roll): -360°
• Motion Tolerance: 177 in/s
• Maximum Ambient Light: 100000 lux
• Minimum Print Contrast: 20%
• Minimum Element Resolution (Code 39): 5 mil
• Maximum Element Resolution (Code 39): 100 mil
• Maximum Element Resolution (DataMatrix): 10 mil
• Maximum Element Resolution (PDF417): 6.7 mil

Interfaces/Ports

• Host Interface: USB

Network & Communication

• Bluetooth: Yes

Power Description

• Maximum Operating Power Consumption: 5 W

Miscellaneous

Application/Usage:

• Warehouse
• Industrial

Package Contents

• Granit XP 1991iXR Wireless Ultra-Rugged Area-Imaging Scanner
• USB Cable
• Desktop Base

Warranty

• Additional Warranty Information: Battery Pack: One-year factory warranty
• Limited Warranty: 3 Year from Honeywell
