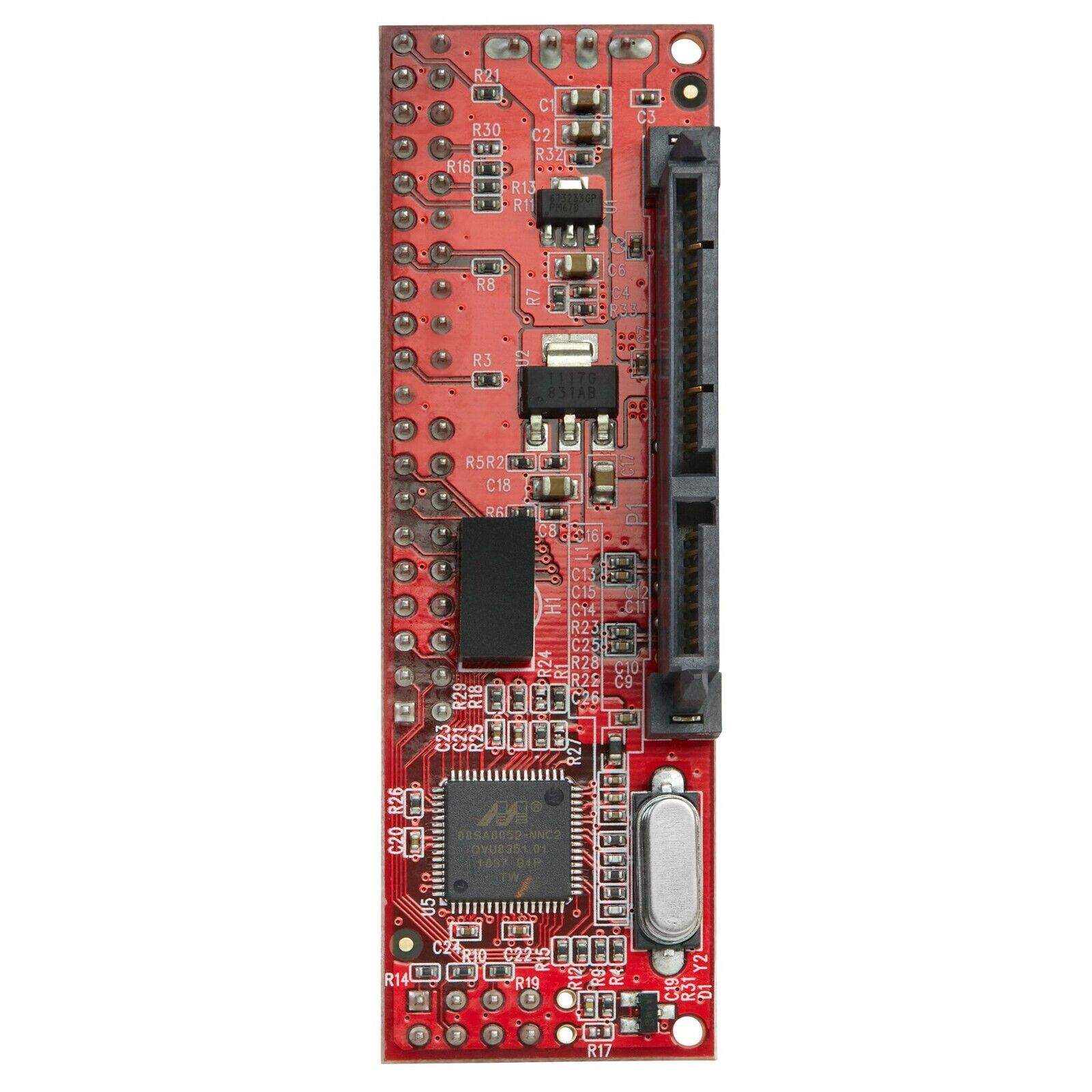

StarTech IDE2SAT2 40 Pin IDE to 2.5" SATA HDD SSD ODD Converter Adapter
$36.33 USD $36.33 USD $21.99 USD
Shipping calculated at checkout.
In stock: 10
Description

IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to 2.5" SATA HDD/SSD/ODD Converter - TAA

Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard

Warranty Information

Warranty
2 Years
Connector(s)
Connector Type(s)
1 - SP4 (4 pin, Small Drive Power)
1 - IDE (40 Pin, EIDE/PATA)
1 - SATA Data & Power Combo (7+15 pin)
Environmental
Operating Temperature
5°C to 50°C (40°F to 122°F)
Storage Temperature
-25°C to 80°C (-13°F to 176°F)
Humidity
15~90% RH
Hardware
Interface
IDE
Number of Drives
1
Drive Size
2.5in & 3.5in
Compatible Drive Types
SATA
Chipset ID
Marvell - 88SA8052
Packaging Information
Package Height
1.3 in [3.2 cm]
Package Length
6.9 in [17.4 cm]
Shipping (Package) Weight
3.3 oz [94.0 g]
Package Width
5.7 in [14.4 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
133MB/sec
Hardware Raid Supported
No
MTBF
703,614 hours
Physical Characteristics
Weight of Product
1.0 oz [29 g]
Color
Red
Material
Steel
Product Length
3.0 in [75.5 mm]
Product Width
0.8 in [2 cm]
Product Height
0.9 in [2.3 cm]
Power
Input Voltage
5V DC / 12V DC
Output Voltage
5 DC
Software
OS Compatibility
OS independent; No software or drivers required
Special Notes / Requirements
System and Cable Requirements
An IDE controller and ATA cable (not included).
What's in the Box
Included in Package
1 - IDE to SATA adapter
1 - LP4 Molex to SP4 Power Cable
1 - Instruction Manual

..

Shipping Notes:

All our StarTech products are normally shipped within 1-2 business days from any of our warehouse locations below:

  • Monrovia, CA 91016 (Most usual)
  • Fort Worth, TX 76155
  • Carol Stream, IL 60188
  • Moore, SC 29369
  • Hazelton, PA 18202

…MJ5
