SIIG JU-DK0N11-S1 USB-C Dual Video MST Docking Station w 60W PD Charging RJ45 SD

Overview

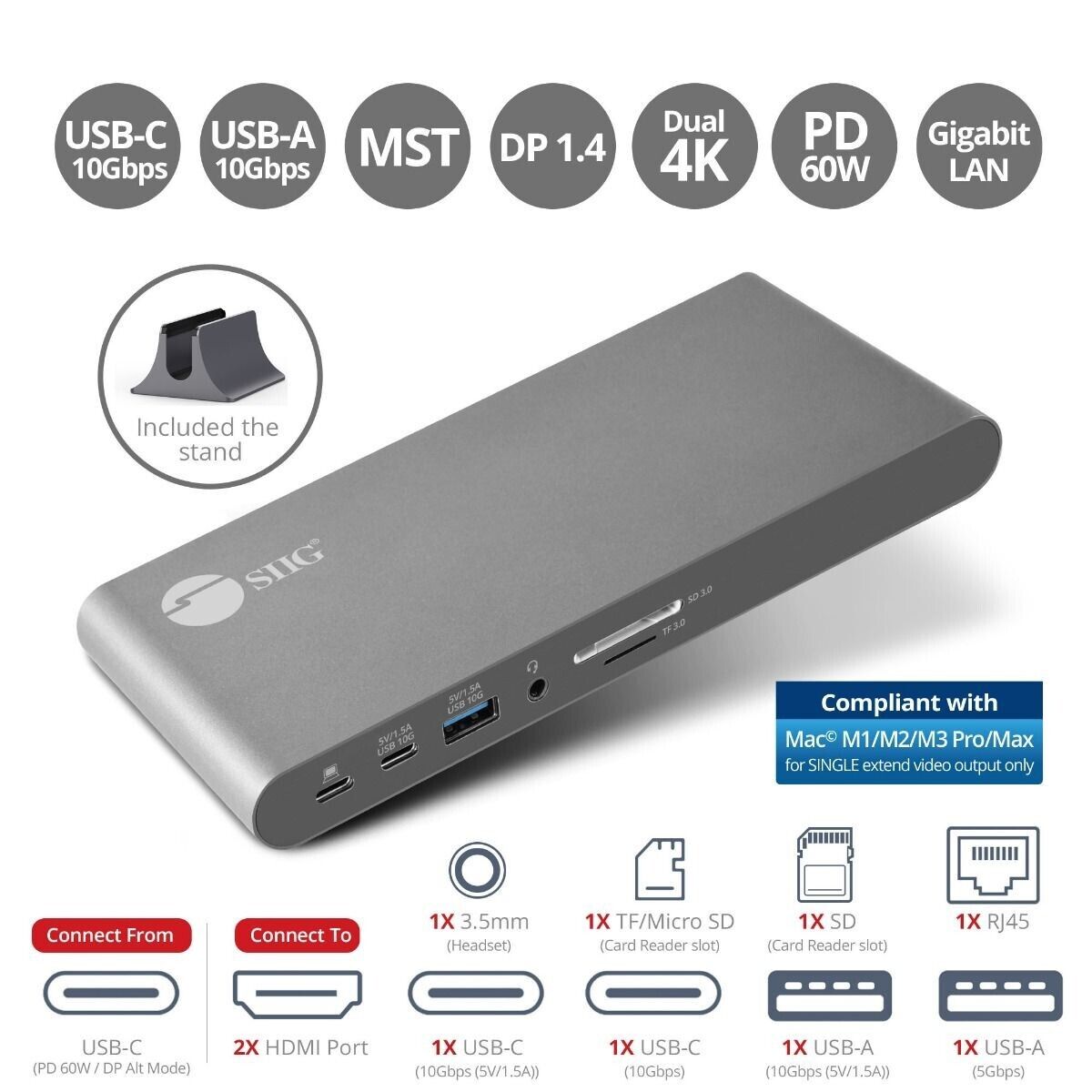

Advanced docking station adds Dual 4K@60Hz displays, one USB-C 10Gbps with 5V/1.5A ports, one USB-C 10Gbps ports, one USB-A 10Gbps with 5V/1.5A port, one USB-A 5Gbps port, one Gigabit Ethernet port, one SD & TF (Micro SD) 3.0 Card Reader, one stereo audio/microphone port, and USB Power Delivery charging up to 60 watts to Windows/Mac computers. Compliant with Mac® system for M1, M2, M3 Pro, & Max

Features

Dual 4K HDMI displays with MST technology, multiple connections, and 60W PD by a single USB-C with DP 1.4 Alt mode input to increase your work efficiency

4K Video Resolution

Supports Ultra HD video resolution up to Dual 4K (3840x2160) @60Hz with DP 1.4 DSC or Dual 4K (3840x2160) @30Hz without DP 1.4 through two HDMI video output ports and 5.1-ch. surround sound

SPECIFICATIONS

Hardware

• Chipset: VMM5200, RTL8153, AU84612, VL822
• Compliant with Universal Serial Bus 3.1, 3.0 and 2.0 specification

Software

• OS Compatibility: Windows®(Intel/AMD/Snapdragon) 11 & mac OS® 12 or newer
  * macOS® 10.13.4 to 10.13.6 is not supported
  * Compliant with mac® M1, M2, M3 Pro, Max systems for single extend video output

Video

• HDMI: x2, with DP 1.4 DSC: 4K@60Hz, cable up to 5M; with DP 1.4: 4K@30Hz, cable up to 5M; with DP 1.2: 1080p@60Hz, cable up to 10M
  * macOS® system for HDMI video output

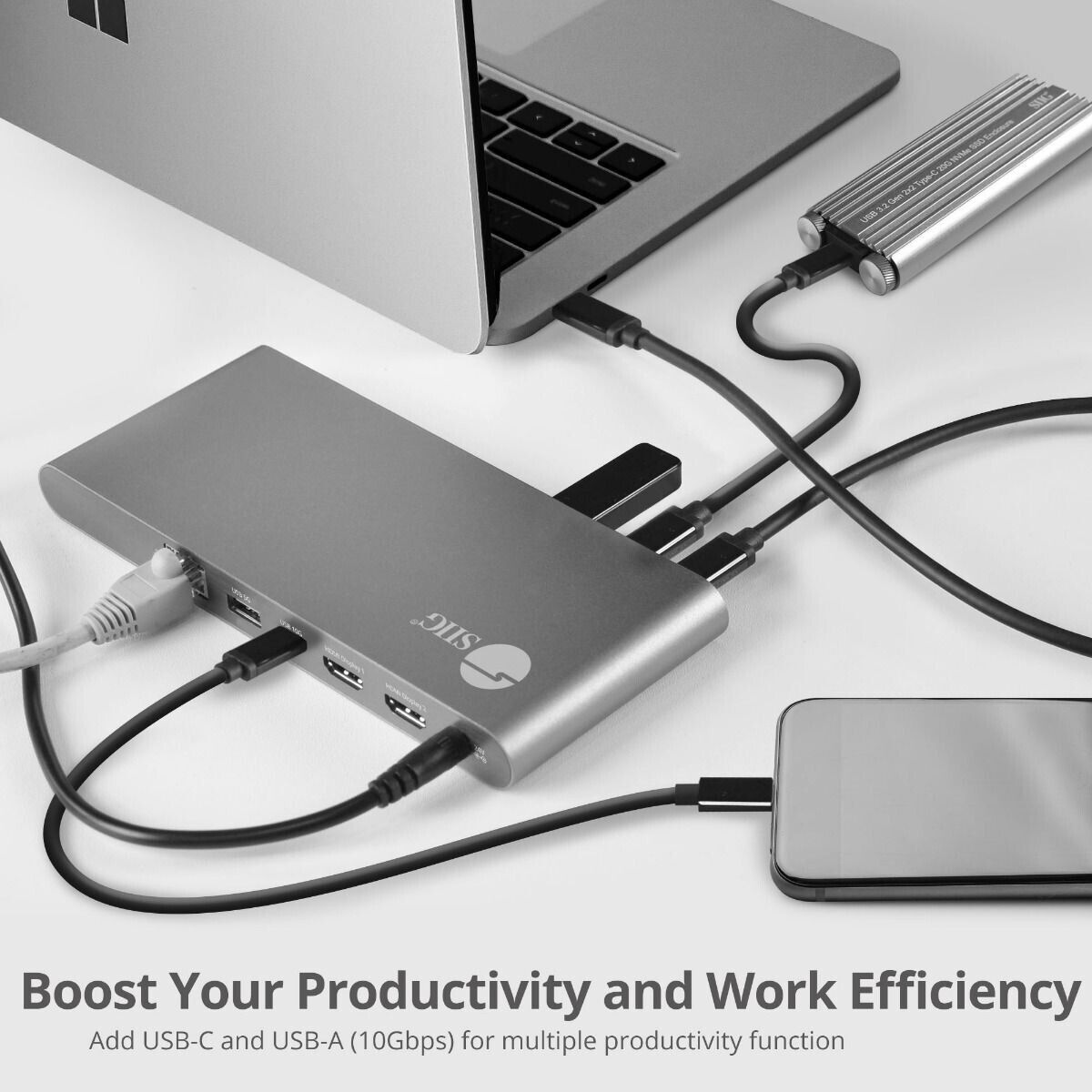

USB

• USB-C: x1, data transfer rate up to 10Gbps, 5V/1.5A charging
• USB-C: x1, data transfer rate up to 10Gbps
• USB-A: x1, data transfer rate up to 10Gbps, 5V/1.5A charging
• USB-A: x1, data transfer rate up to 5Gbps, 5V/900mA
• Fast Charging Port: Yes

Audio

• 5.1 channel surround sound from HDMI output
• 2 channel stereo audio from 3.5mm audio/microphone jack

Display Mode

• Mirror, Extended, Primary video modes (macOS® only supports Mirror mode)

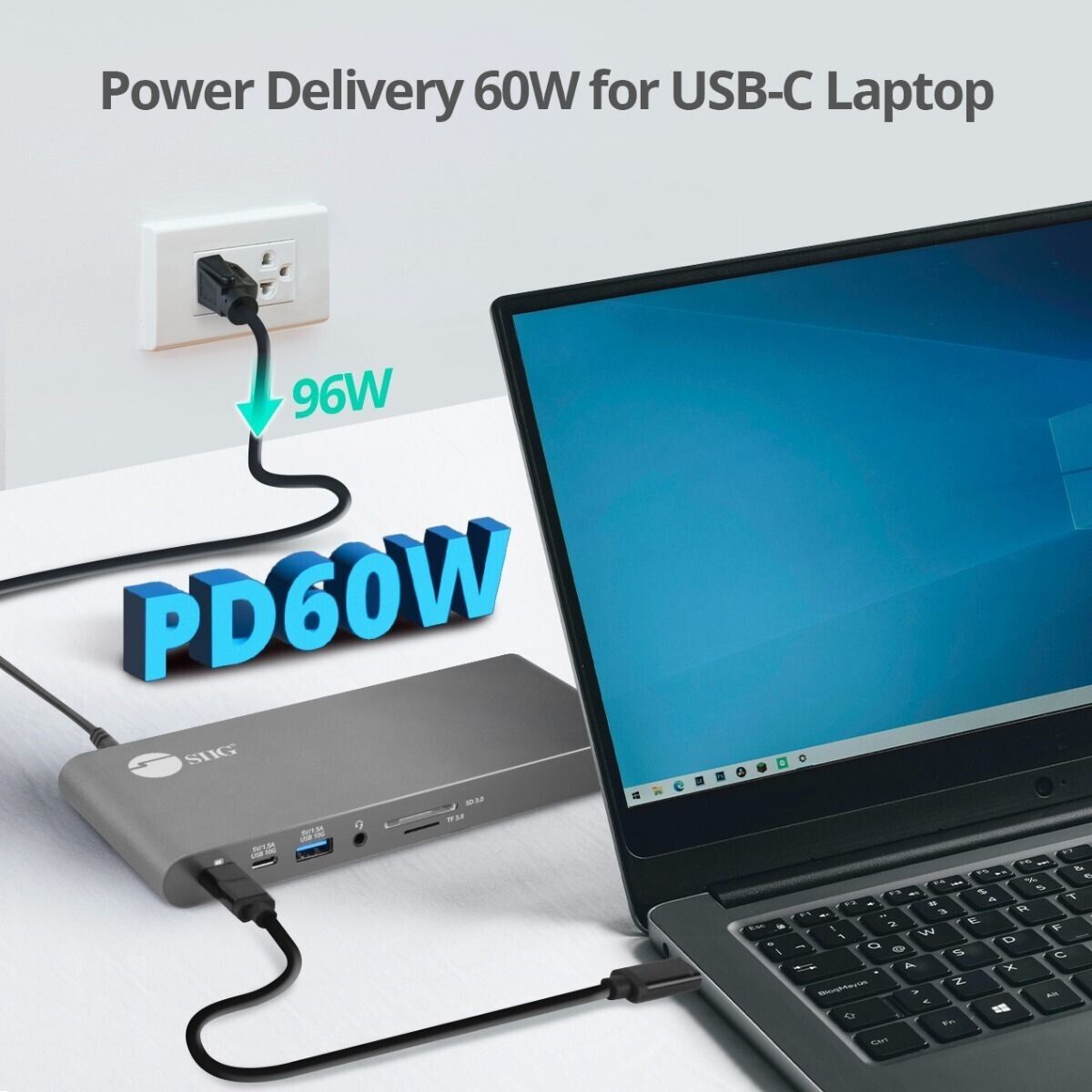

Power

• Power Delivery 3.0: up to 60W via USB-C port (Host)
• Power Adapter: Input: AC 100-240V/50-60Hz; Output: DC 24V/4A, UL listed: E361658 / Level: VI

Ethernet

• Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
• Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
• Compatible with IEEE 802.3, 802.3u
• Enterprise features: Wake on LAN and PXE boot (*Note: Mac address pass-through not supported)

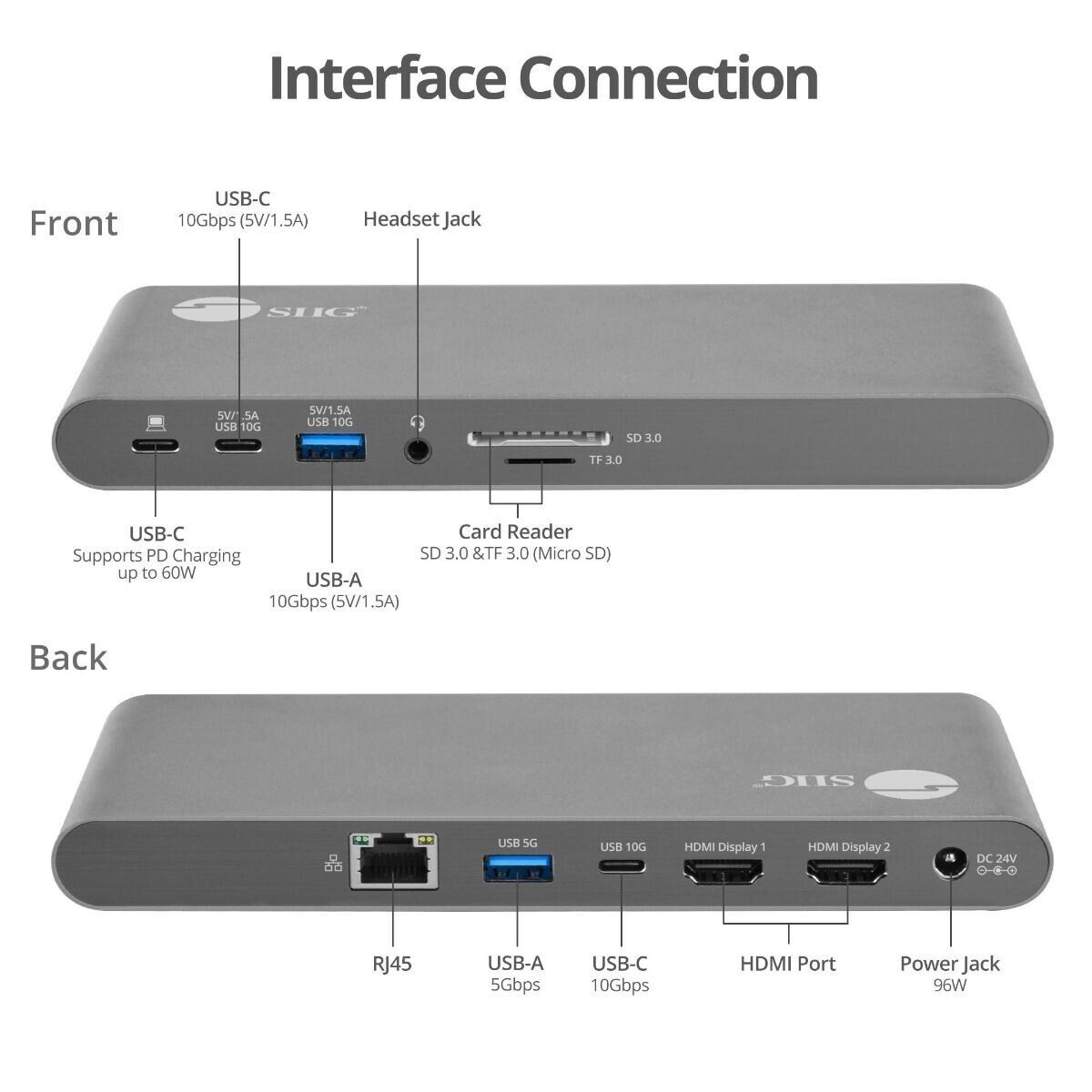

Input:

• 1x 24-pin, USB-C with DP 1.4 Alt mode, Female (Host)
• 1x DC power jack (DC 24V/4A)

Output:

• 2x 19-pin, HDMI with MST technology, Female
• 1x 24-pin, USB-C, 10Gbps, 5V/1.5A charging, Female
• 1x 24-pin, USB-C, 10Gbps Female
• 1x 9-pin, USB-A,10Gbps, 5V/1.5A charging, Female
• 1x 9-pin, USB-A, 5Gbps, Female
• 1x 8-pin, RJ45, Gigabit Ethernet, Female
• 1x 3.5mm, Headset jack, stereo audio & mic
• 1x SD 3.0 memory card slot, UHS-I, up to 104MB
• 1x Micro SD (TF) 3.0 memory card slot, UHS-I, up to 104MB

Environmental conditions

• Operating temperature: 32 to 104 degrees F
• Storage temperature: -4 to 140 degrees F
• Relative humidity: 20% to 90% RH (non-condensing)

Product Info

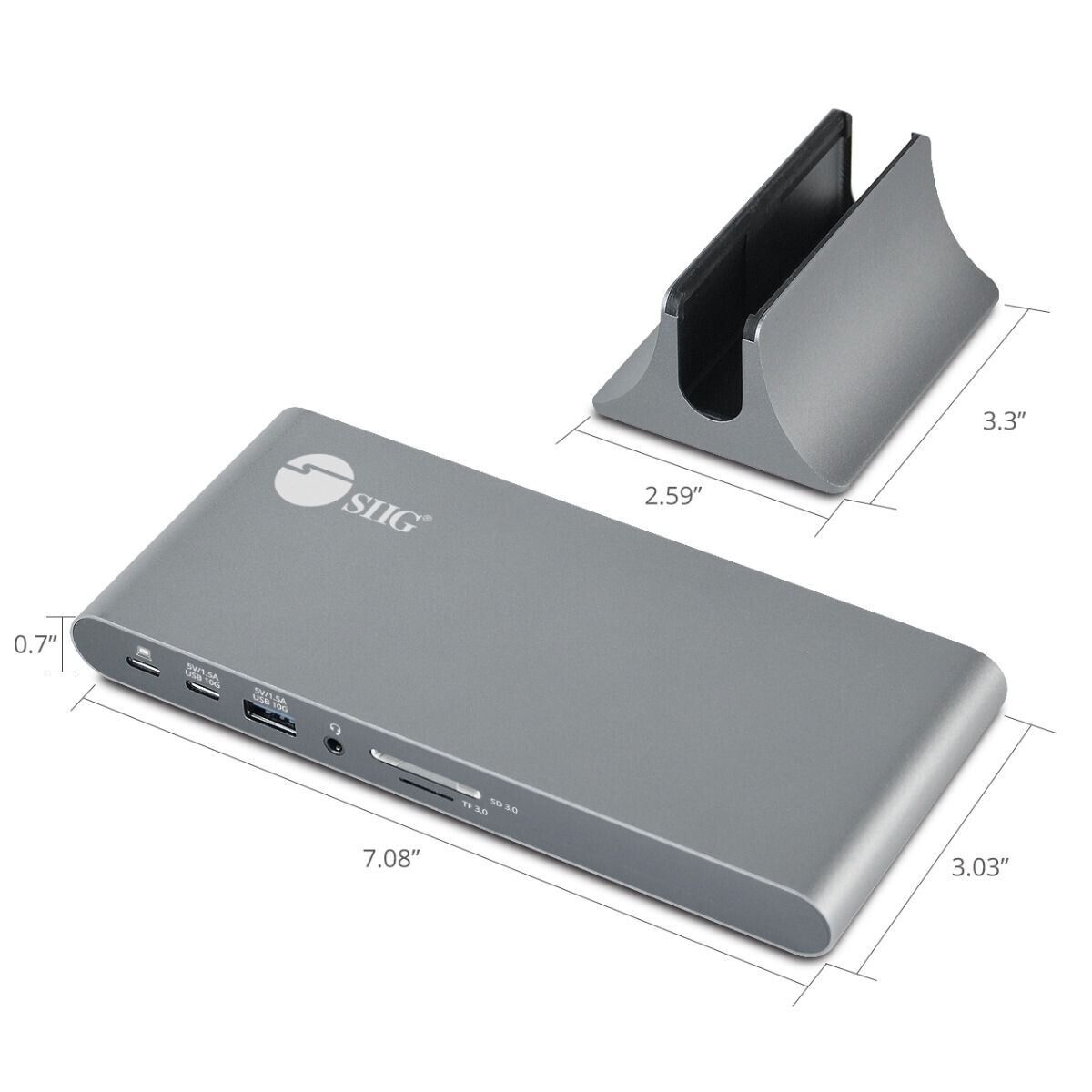

• Dimensions: 7.09” (L) x 0.75” (H) x 3.03" (W)
• Weight: 0.71 lbs
• Color: Black
• Housing material: Aluminum
• Unit package:
  • Dimensions: 8.07” (L) x 2.76” (H) x 4.72" (W)
  • Weight: 2.36 lbs

Certifications/Standards

• FCC, CE, RoHS 2.0, Reach
• UPC Code: 662774-045078
• Warranty: 2 years from SIIG
• Country of origin: China

System Requirements

• Desktop or Laptop with an available USB-C with DP 1.4 Alt mode or Thunderbolt 3/4 port
• Compliant with mac® M1, M2, M3 Pro, & Max systems for single extend video output
• Windows® (Intel/AMD/Snapdragon) 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
• macOS® 12 / 11 / 10.15 to 10.13
  * Note: macOS® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier

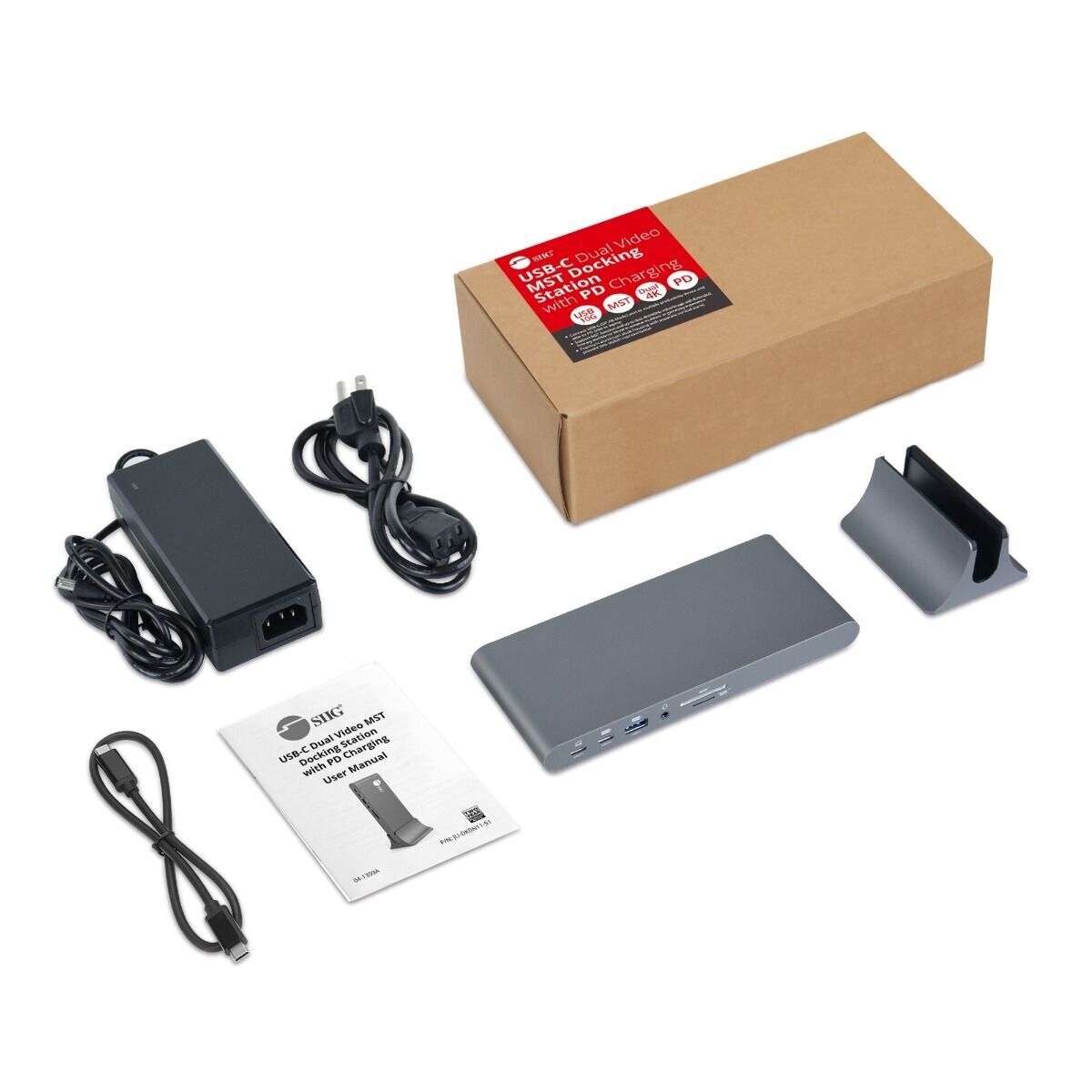

Package contents

• 1x USB-C Dual Video MST Docking Station with PD Charging
• 1x USB-C to C cable
• 1x Power Adapter, 24V/4A
• 1x Vertical stand
• 1x User Reference Guide
