StarTech HSB4SATSASBA 4 Bay Alum Trayless Hot Swap Rack BackPlane 3.5" SAS SATA

Name: StarTech HSB4SATSASBA 4 Bay Alum Trayless Hot Swap Rack BackPlane 3.5" SAS SATA
Brand: Startech
SKU: INGaSTT YB0876 - HSB4SATSASBA
Price: 148.2 USD
Availability: InStock

$148.20 USD

Shipping calculated at checkout.

In stock: 1

Description

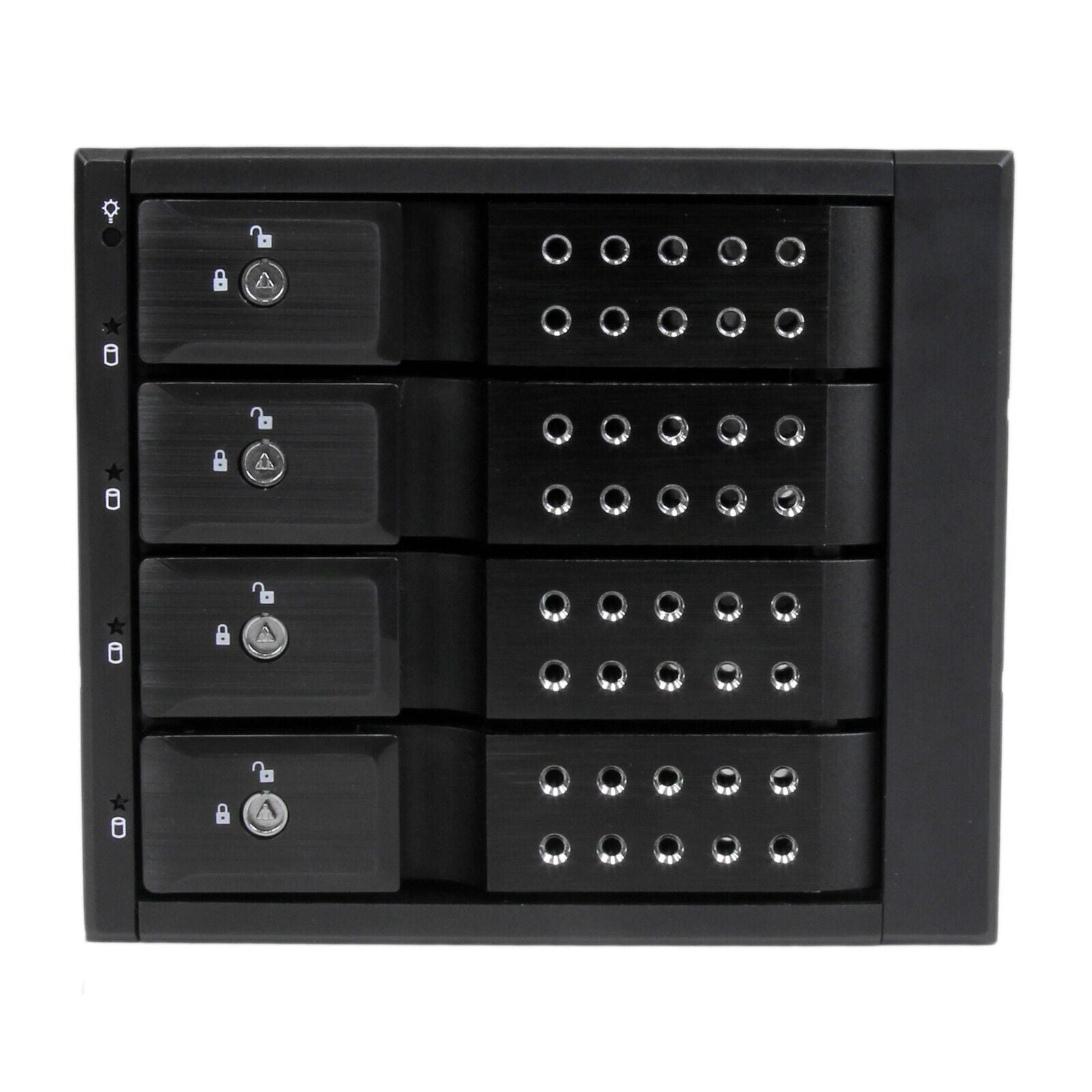

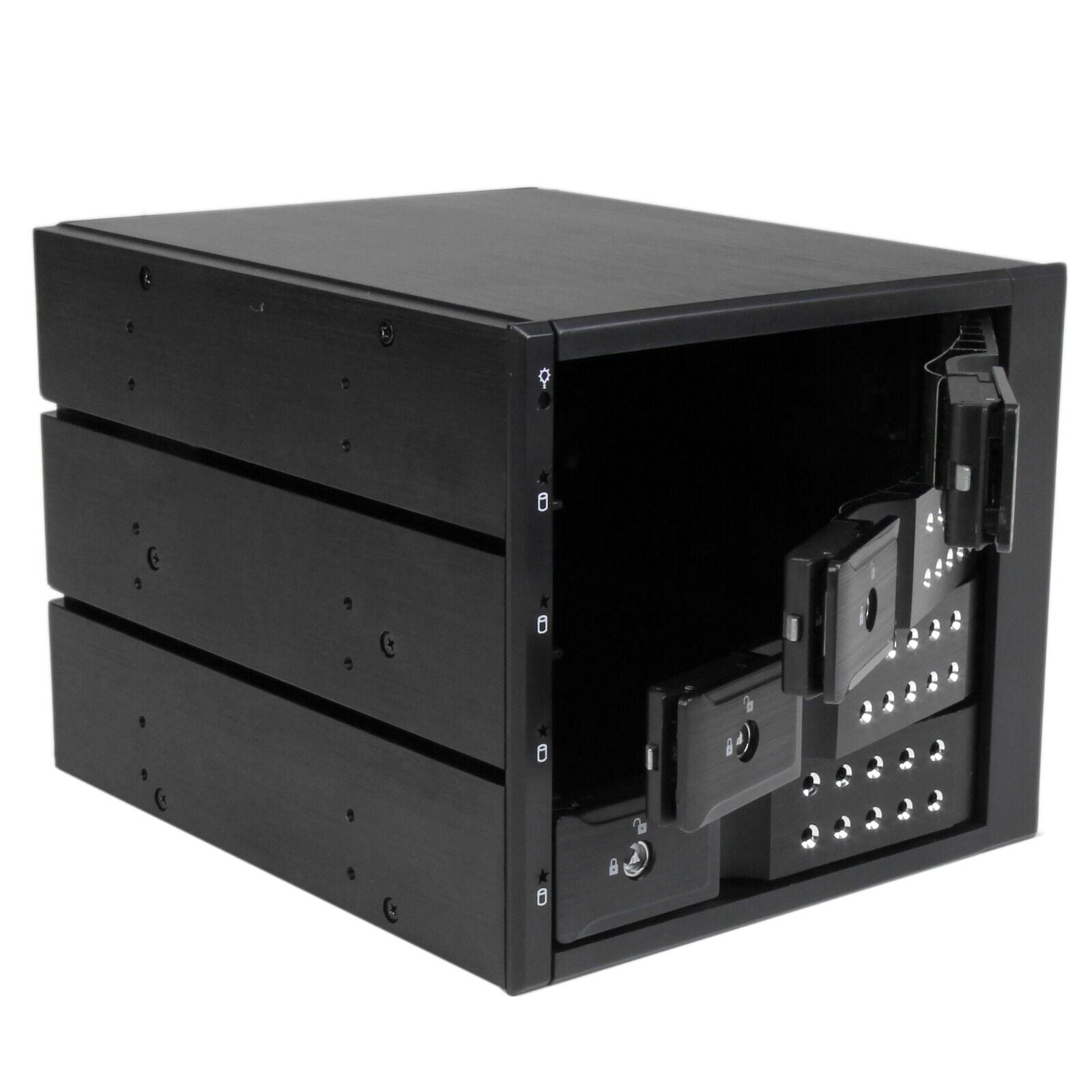

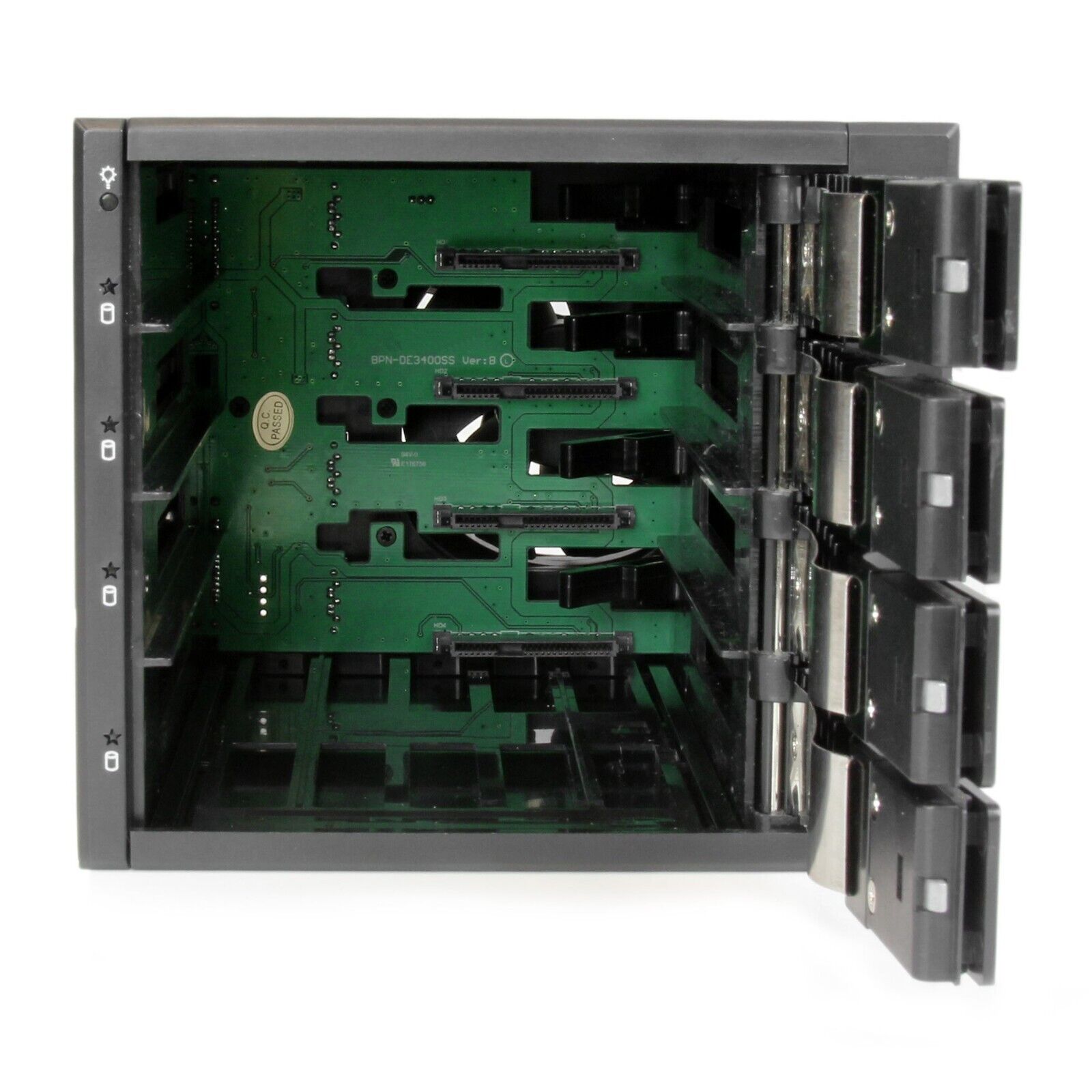

4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD

Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps

Warranty Information

Warranty

2 Years

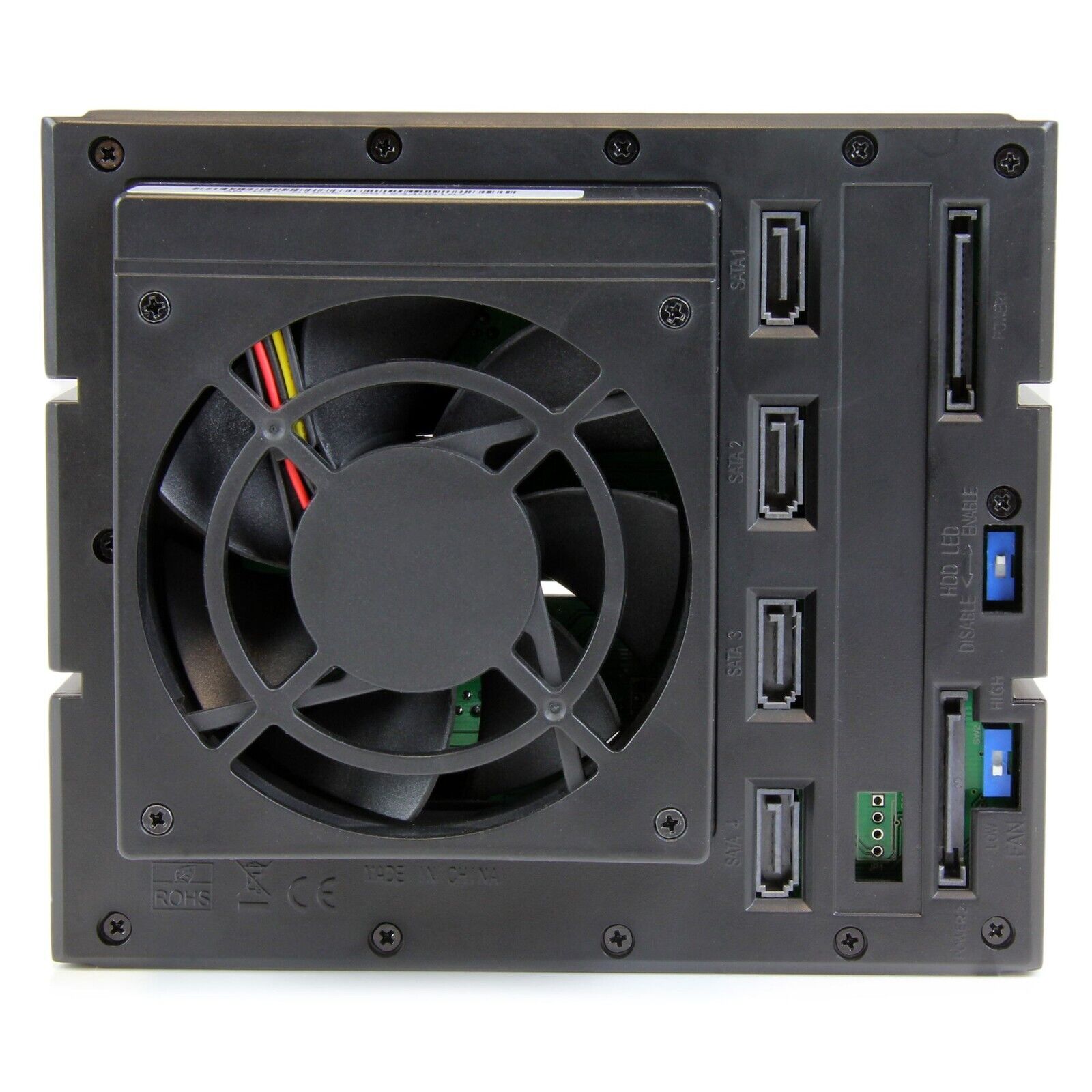

Connector(s)

Drive Connectors

4 - SFF-8482 (29 pin, Data & Power, Internal SAS)

Host Connectors

2 - SATA Power (15 pin)

4 - SATA (7 pin, Data)

Environmental

Operating Temperature

0°C to 55°C (23°F to 95°F)

Storage Temperature

-20°C to 60°C (-4°F to 122°F)

Humidity

5%~85% RH

Hardware

Interface

SATA

SAS

Front Door Key Lock

Yes

Number of Drives

Drive Size

3.5in

Compatible Drive Types

SAS & SATA

Drive Installation

Removable

Number of internal 3.5 inch bays

Fan(s)

Yes

Fans

1 - 70 mm

Fan Bearing Type

Sleeve Bearing

Indicators

LED Indicators

1 - Power LED

1 - Drive 1 Activity LED

1 - Drive 2 Activity LED

1 - Drive 3 Activity LED

1 - Drive 4 Activity LED

Packaging Information

Package Height

6,9 in [17,6 cm]

Package Length

10,0 in [25,4 cm]

Shipping (Package) Weight

3,4 lb [1,6 kg]

Package Width

6,5 in [16,6 cm]

Package Quantity

Performance

Maximum Data Transfer Rate

6 Gbit/s

Max Drive Capacity

Currently tested with up to 6TB 7200 RPM hard drives

Physical Characteristics

Weight of Product

2,8 lb [1,3 kg]

Color

Black

Product Length

7,8 in [19,7 cm]

Product Width

5,7 in [14,6 cm]

Product Height

5,0 in [12,6 cm]

Software

OS Compatibility

OS independent; No software or drivers required

Special Notes / Requirements

System and Cable Requirements

Flammability rating: UL94 - V0

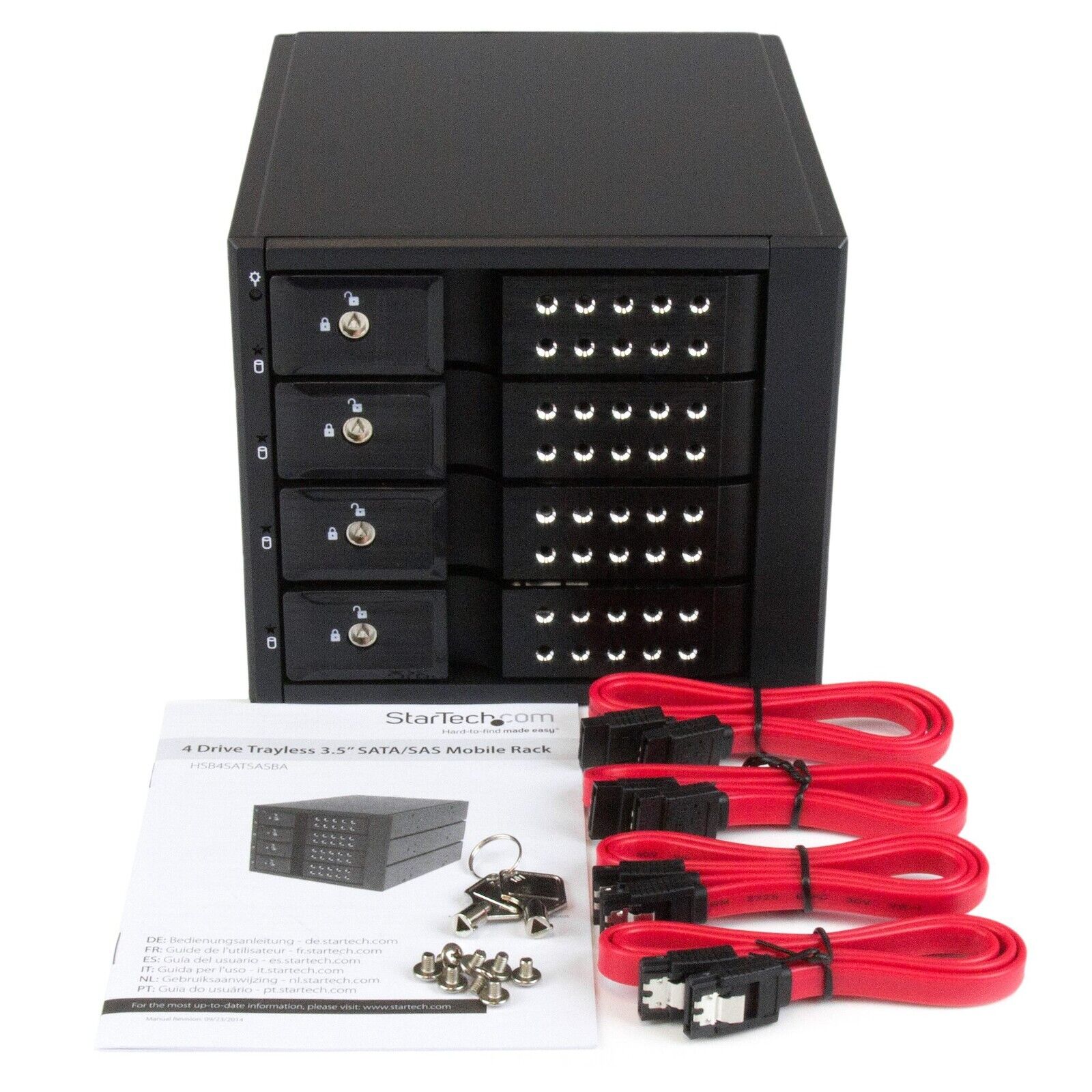

What's in the Box

Included in Package

1 - 4 Drive Trayless 3.5in SATA/SAS Mobile Rack

8 - Installation screws

2 - Drive bay keys

4 - SATA cables

1 - Instruction manual
