StarTech M2-HDD-DUPLICATOR-N1 1:1 M.2 NVMe Duplicator Clone Copy +USB-C/A Cables
Regular price
$223.43 USD
Sale price
$223.43 USD
Regular price
$199.99 USD
Description
Couldn't load pickup availability
StarTech M2-HDD-DUPLICATOR-N1 1:1 M.2 NVMe Duplicator Clone Copy +USB-C/A Cables
Current product
Current
Vendor:
Startech
StarTech M2-HDD-DUPLICATOR-N1 1:1 M.2 NVMe Duplicator Clone Copy +USB-C/A Cables
Regular price
$223.43 USD
Sale price
$223.43 USD
Regular price
$199.99 USD
Options
Descriptions
1:1 M.2 NVMe Drive Duplicator, Standalone M.2 SSD Cloner/Copier up to 90GBpm, USB 3.2 20Gbps M.2 Dual-Bay Drive Dock, USB-C/A Cables Included
Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB
Product ID: M2-HDD-DUPLICATOR-N1
..
Warranty Information
Warranty
2 Years
Connector(s)
Drive Connectors
2 - M.2 (NVMe, M-Key, PCIe x4)

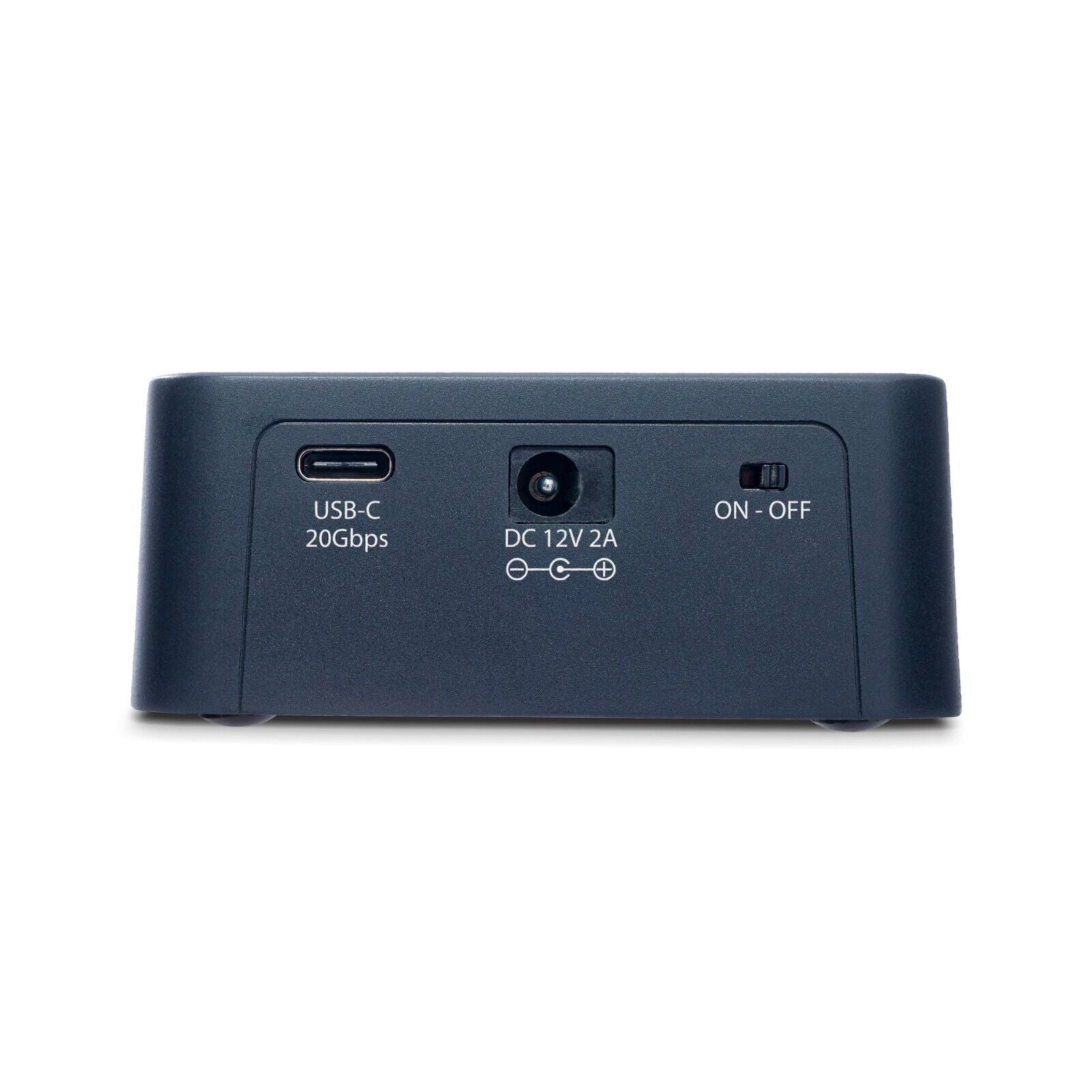

Host Connectors
1 - USB Type-C (24 pin, Gen 2x2, 20Gbps)
Other Interface(s)
1 - Barrel Power Connector (Size M, OD:5.50, ID: 2.10)
Environmental
Operating Temperature
5°C to 55°C (41°F to 131°F)
Storage Temperature
-20°C to 55°C (-4°F to 131°F)
Humidity
20% ~ 80% RH
Hardware
Fan(s)
Yes
Fans
1 - 60 mm
Number of Drives
2
Drive Size
22 mm - M.2 NVMe
Compatible Drive Types
M.2 (PCIe, NVMe, M-Key, NGFF)
Drive Installation
Removable
Supported Drive Height(s)
2230
2242
2260
2280
22110
Chipset ID
JMS586U
Indicators
LED Indicators
4 - Progress LEDs: Indicates 25%, 50%, 75%, and 100% progress during the duplication process
2 - Drive LEDs:
Solid Blue: Indicates the M.2 Drive is detected
Flashing Red: There is an error reading the M.2 Drive or the M.2 Drive was removed during duplication
Solid Purple: Indicates the Target M.2 Drive is too small to duplicate to
Solid Blue: Indicates the M.2 Drive is detected
Flashing Red: There is an error reading the M.2 Drive or the M.2 Drive was removed during duplication
Solid Purple: Indicates the Target M.2 Drive is too small to duplicate to
2 - Mode LEDs:
Solid Green: PC Mode
Solid Blue: Duplicator Mode
Solid Green: PC Mode
Solid Blue: Duplicator Mode
Packaging Information
Package Quantity
1
Package Height
3.7 in [9.5 cm]
Package Length
3.5 in [9.0 cm]
Shipping (Package) Weight
1.1 lb [0.5 kg]
Package Width
6.3 in [16.0 cm]
Performance
Duplication Modes
Sector by Sector (Whole Drive)
Duplication Speed
90GBpm
Hot Swap Capability
No
MTBF
50,000 Hours
Physical Characteristics
Color
Black
Product Height
1.7 in [4.4 cm]
Product Length
3.0 in [7.7 cm]
Weight of Product
4.6 oz [129.0 g]
Product Width
3.0 in [7.7 cm]
Material
Plastic
Cable Length
39.4 in [100 cm]
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.6A
Output Voltage
12V DC
Output Current
2A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
0.1W
Software
OS Compatibility
OS Independent - No Drivers or Software Required
Special Notes / Requirements
Note
For duplication, the target drive must be of equal or greater size than the source drive.
Duplication speed of up to 90 GB per minute achieved in benchmark testing environment; actual speed will vary based on drive model, algorithm, and other factors. Results may vary.

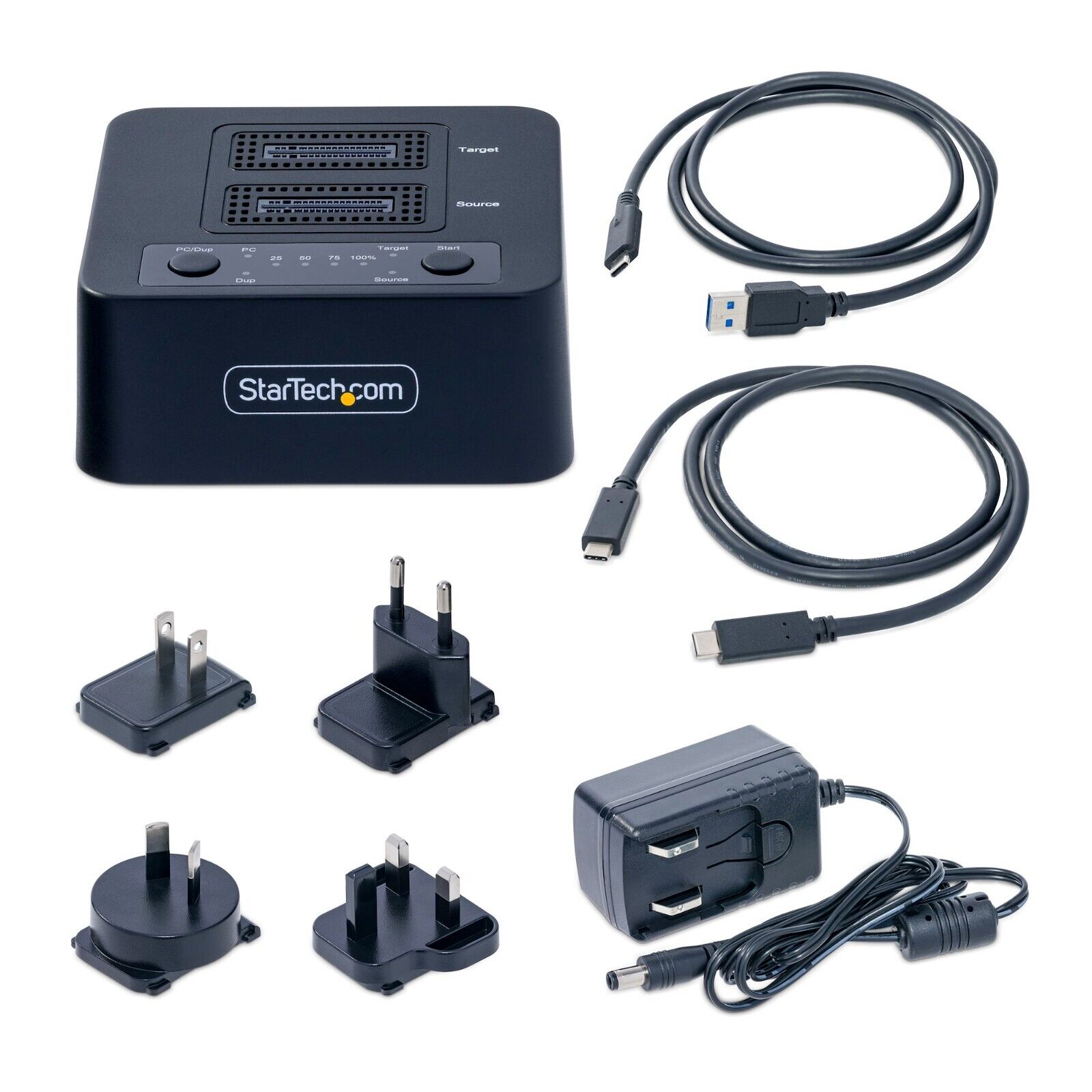

What's in the Box
Included in Package
1 - M.2 Drive Duplicator Dock
1 - 3.3ft (1m) USB-C to USB-C Cable
1 - 3.3ft (1m) USB-A to USB-C Cable
1 - Universal Power Adapter (NA/EU/UK/ANZ)
1 - Quick-Start Guide
