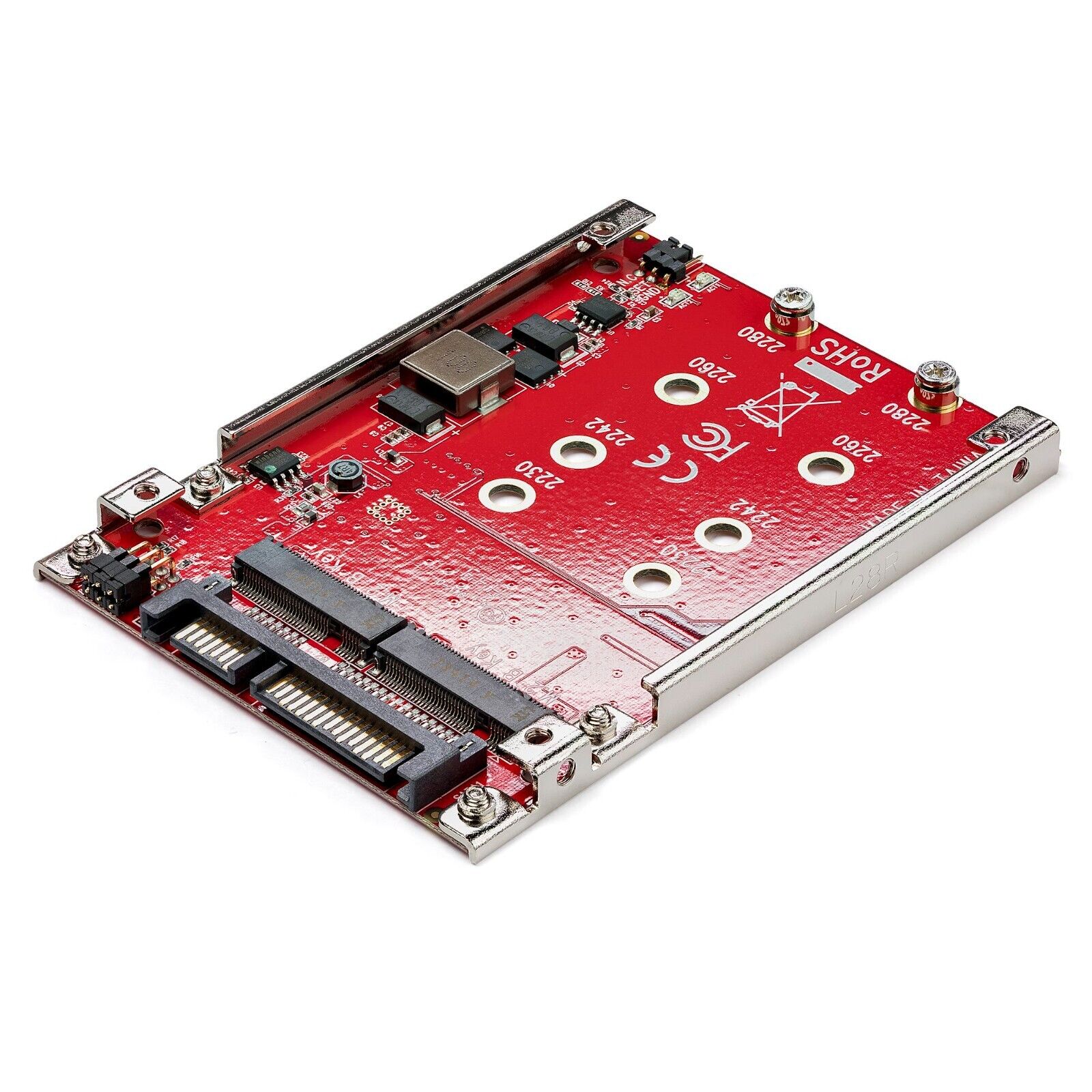

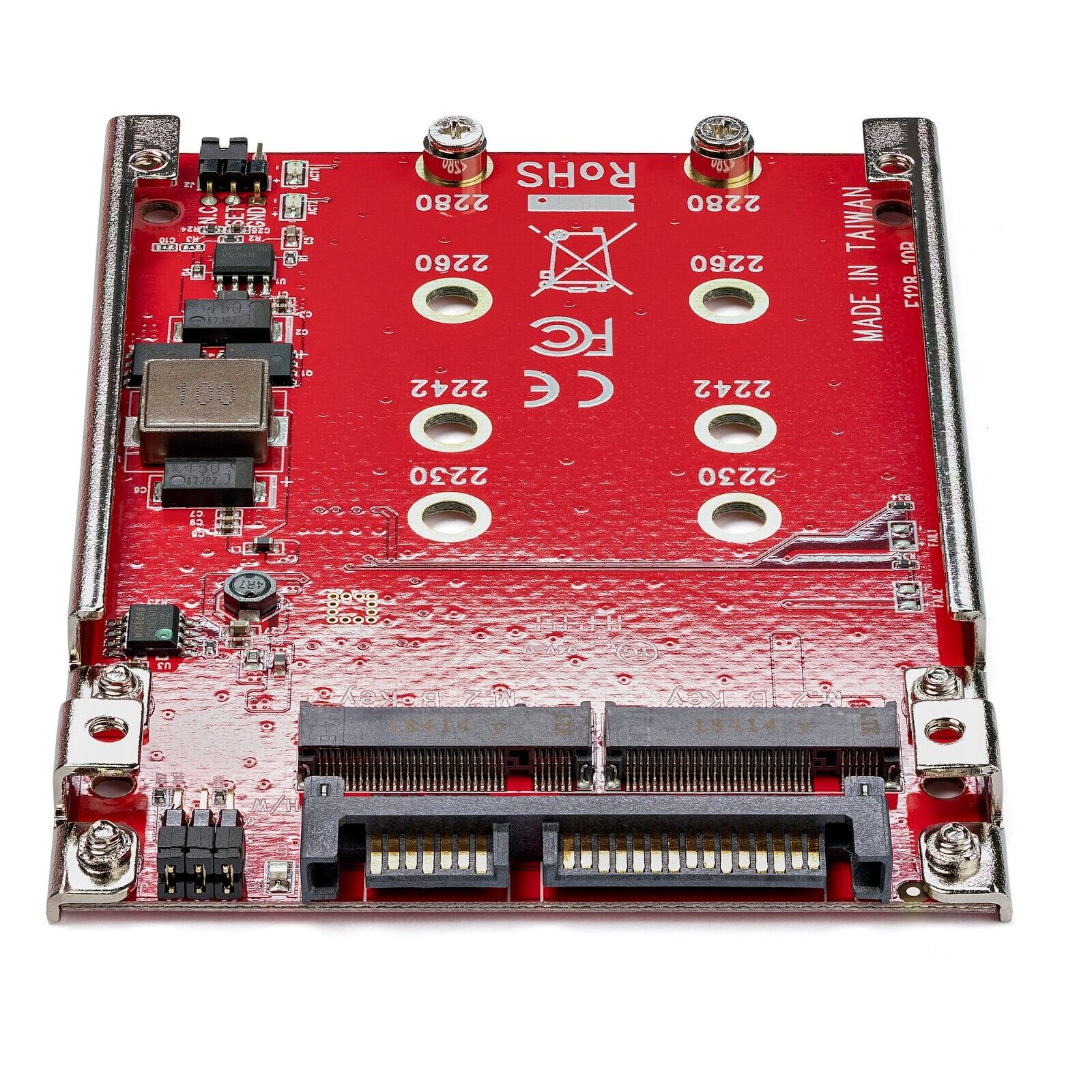

StarTech S322M225R Dual M.2 Drive to SATA Adapter for 2.5" RAID w Mount Screws
Regular price
$63.34 USD
Sale price
$63.34 USD
Regular price
$59.99 USD
Description
StarTech S322M225R Dual M.2 Drive to SATA Adapter for 2.5" RAID w Mount Screws
Current product
Current
Vendor:
Startech
StarTech S322M225R Dual M.2 Drive to SATA Adapter for 2.5" RAID w Mount Screws
Regular price
$63.34 USD
Sale price
$63.34 USD
Regular price
$59.99 USD
Options
Descriptions
Dual-Slot M.2 Drive to SATA Adapter for 2.5" Drive Bay - RAID - TAA
Create high-performance storage with configurable RAID, by installing two M.2 SATA SSDs into a 2.5” SATA interface
Warranty Information
Warranty
2 Years
Connector(s)
Drive Connectors
2 - M.2 (SATA, B-Key, NGFF)
Host Connectors
1 - SATA Data & Power Combo (7+15 pin)
Environmental
Operating Temperature
+5°C to +50°C (+41°F to +122°F)
Storage Temperature
-25°C to +70°C (-13°F to +158°F)
Humidity
15% to 90%
Hardware
Interface
SATA
Number of Drives
2
Compatible Drive Types
M.2 (SATA, B-Key, NGFF)
Drive Installation
Fixed
Supported Drive Height(s)
2230
2242
2260
2280
Chipset ID
ASMedia - ASM1092R
Packaging Information
Shipping (Package) Weight
3.9 oz [110 g]
Package Quantity
1
Package Length
6.7 in [17.0 cm]
Package Width
5.7 in [14.4 cm]
Package Height
1.3 in [3.2 cm]
Performance
Maximum Data Transfer Rate
6 Gbps
TRIM Support
Yes
S.M.A.R.T. Support
Yes
Type and Rate
SATA III (6 Gbps)
Port Multiplier
Yes
Hardware Raid Supported
Yes
Supported RAID Modes
RAID 0 (Striped Disks)
RAID 1 (Mirrored Disks)
JBOD - (Just a Bunch of Disks)
BIG (Spanning or Concatenation)
Hot Swap Capability
No
General Specifications
Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
In order to see multiple drives in JBOD mode, your computer’s SATA controller must also support Port Multiplier.
In order to see multiple drives in JBOD mode, your computer’s SATA controller must also support Port Multiplier.
Physical Characteristics
Color
Red
Material
Steel
Product Length
3.9 in [10 cm]
Product Width
2.8 in [7 cm]
Product Height
0.3 in [0.7 cm]
Weight of Product
1.4 oz [41 g]
Power
Input Voltage
5V DC / 12V DC
Output Voltage
5 DC
Software
OS Compatibility
OS independent; No software or drivers required
Special Notes / Requirements
Note
TRIM and SMART have limited support while in a RAID configuration. A SATA controller with Port Multiplier support is required, in addition to the product configured in JBOD mode, to provide full TRIM and SMART support.

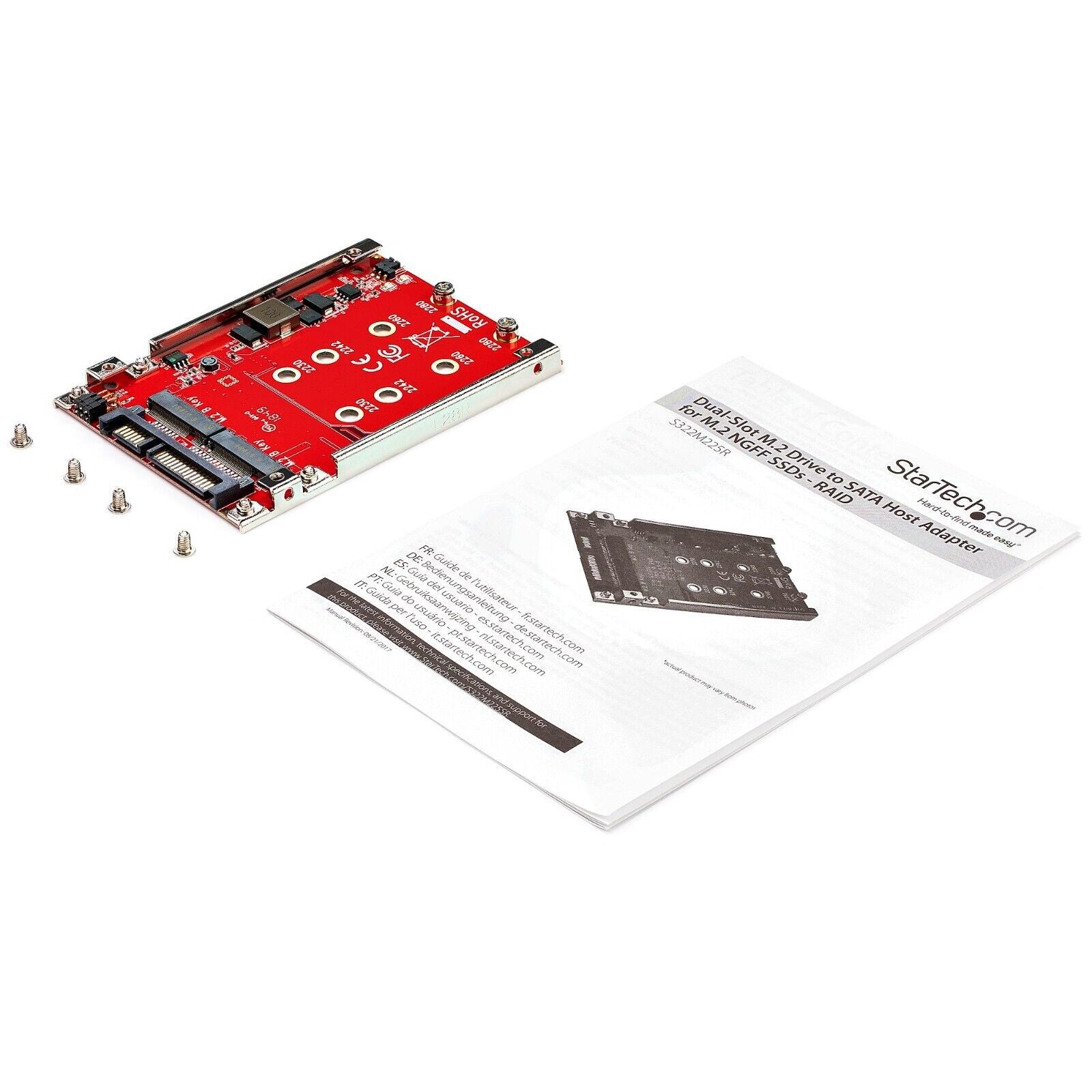

What's in the Box
Included in Package
1 - dual M.2 to SATA host adapter
2 - sets of drive-mounting hardware
4 - adapter-mounting screws
1 - quick-start guide
..
