StarTech SDOCK2U33EB Dual Bay USB 3.0 to 2.5" 3.5" eSATA to SATA Docking Station

Name: StarTech SDOCK2U33EB Dual Bay USB 3.0 to 2.5" 3.5" eSATA to SATA Docking Station
Brand: Startech
SKU: INGaSTA VM2988 - SDOCK2U33EB
Price: 111.99 USD
Availability: InStock

$111.99 USD

Shipping calculated at checkout.

In stock: 1

Description

Dual-Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading

External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) / eSATA to SATA

Warranty Information

Warranty

2 Years

Connector(s)

Drive Connectors

2 - SATA Data & Power Combo (7+15 pin)

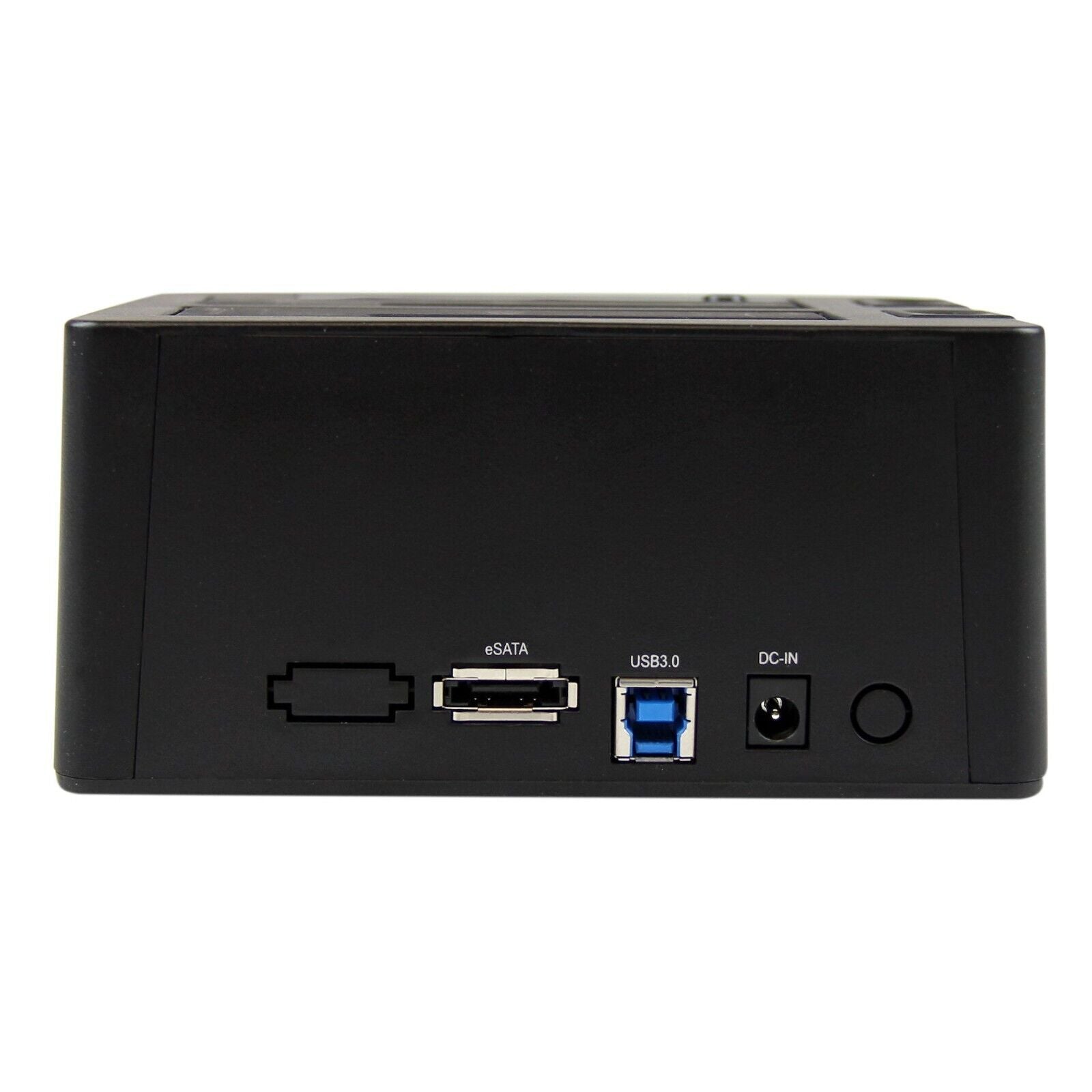

Host Connectors

1 - eSATA (7 pin, Data)

1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps)

Environmental

Operating Temperature

5°C to 35°C (41°F to 95°F)

Storage Temperature

-20°C to 50°C (-4°F to 122°F)

Humidity

20%RH~80%RH

Hardware

Interface

USB 3.0 & eSATA

Number of Drives

Drive Size

2.5in & 3.5in

Compatible Drive Types

SATA

Drive Installation

Removable

Chipset ID

JMicron - JMS562

Indicators

LED Indicators

1 - Power

1 - Drive 1 Activity

1 - Drive 2 Activity

Packaging Information

Package Height

4,7 in [12,0 cm]

Package Length

8,4 in [21,4 cm]

Shipping (Package) Weight

2,2 lb [1,0 kg]

Package Width

7,5 in [19,0 cm]

Performance

Type and Rate

USB 3.0 - 5 Gbit/s

UASP Support

Yes

Type and Rate

SATA III (6 Gbps)

Port Multiplier

Yes

Max Drive Capacity

Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total)

Insertion Rating

15,000 Cycles

Physical Characteristics

Weight of Product

18,5 oz [524 g]

Color

Black

Material

Plastic

Product Length

5,6 in [14,3 cm]

Product Width

5,2 in [13,2 cm]

Product Height

2,8 in [7 cm]

Power

Power Source

AC Adapter Included

Input Voltage

100 - 240 AC

Input Current

1.5 A

Output Voltage

12V DC

Output Current

3.0 A

Plug Type

Power Consumption (In Watts)

Software

OS Compatibility

OS independent; No software or drivers required

Special Notes / Requirements

Note

For both drives to be detected while connected via eSATA the host controller must support SATA Port Multiplier.

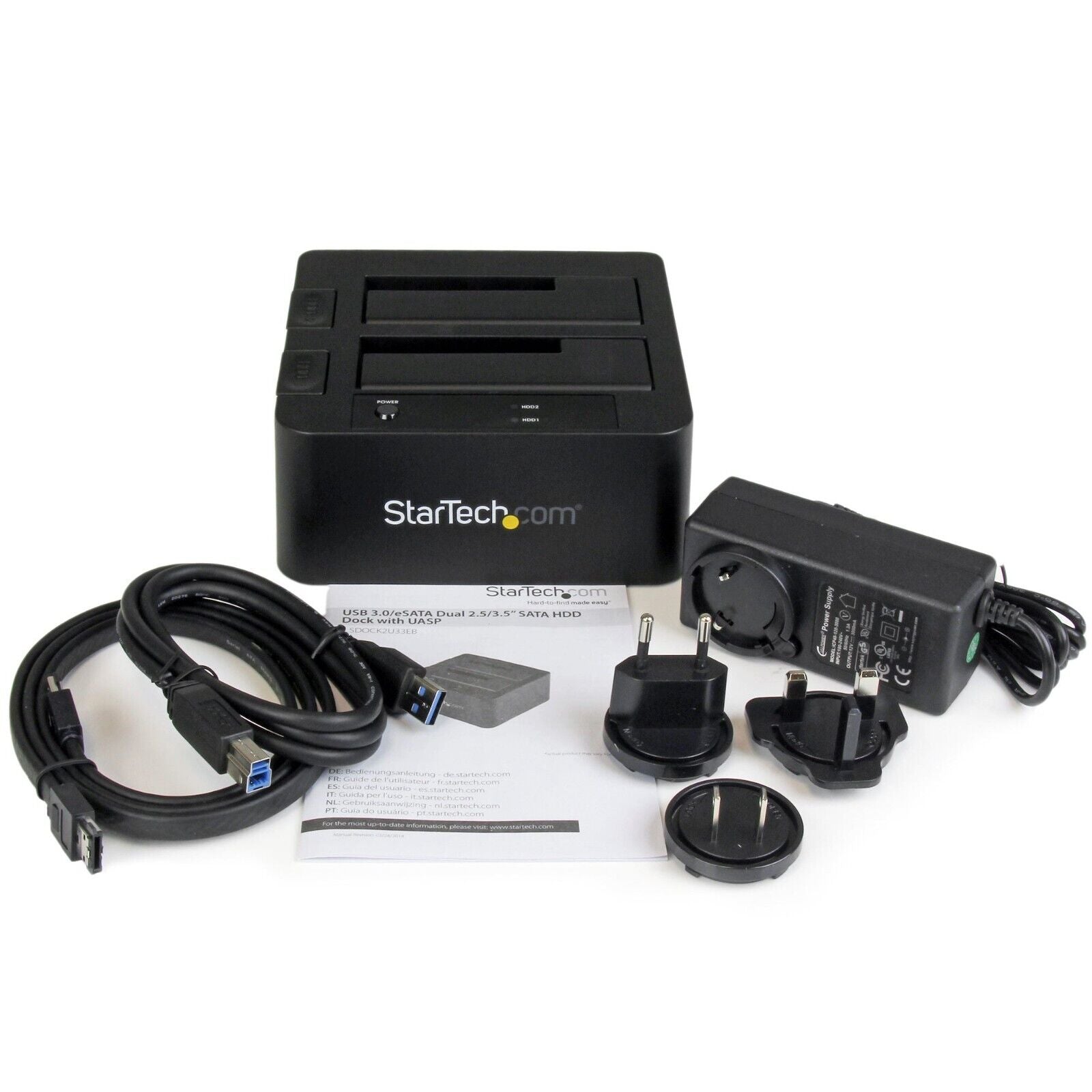

What's in the Box

Included in Package

1 - USB 3.0/eSATA to Dual 2.5/3.5in SATA Hard Drive Docking Station

1 - USB 3.0 Cable

1 - eSATA Cable

1 - Universal Power Adapter (NA,EU,UK,ANZ)

1 - Instruction Manual
