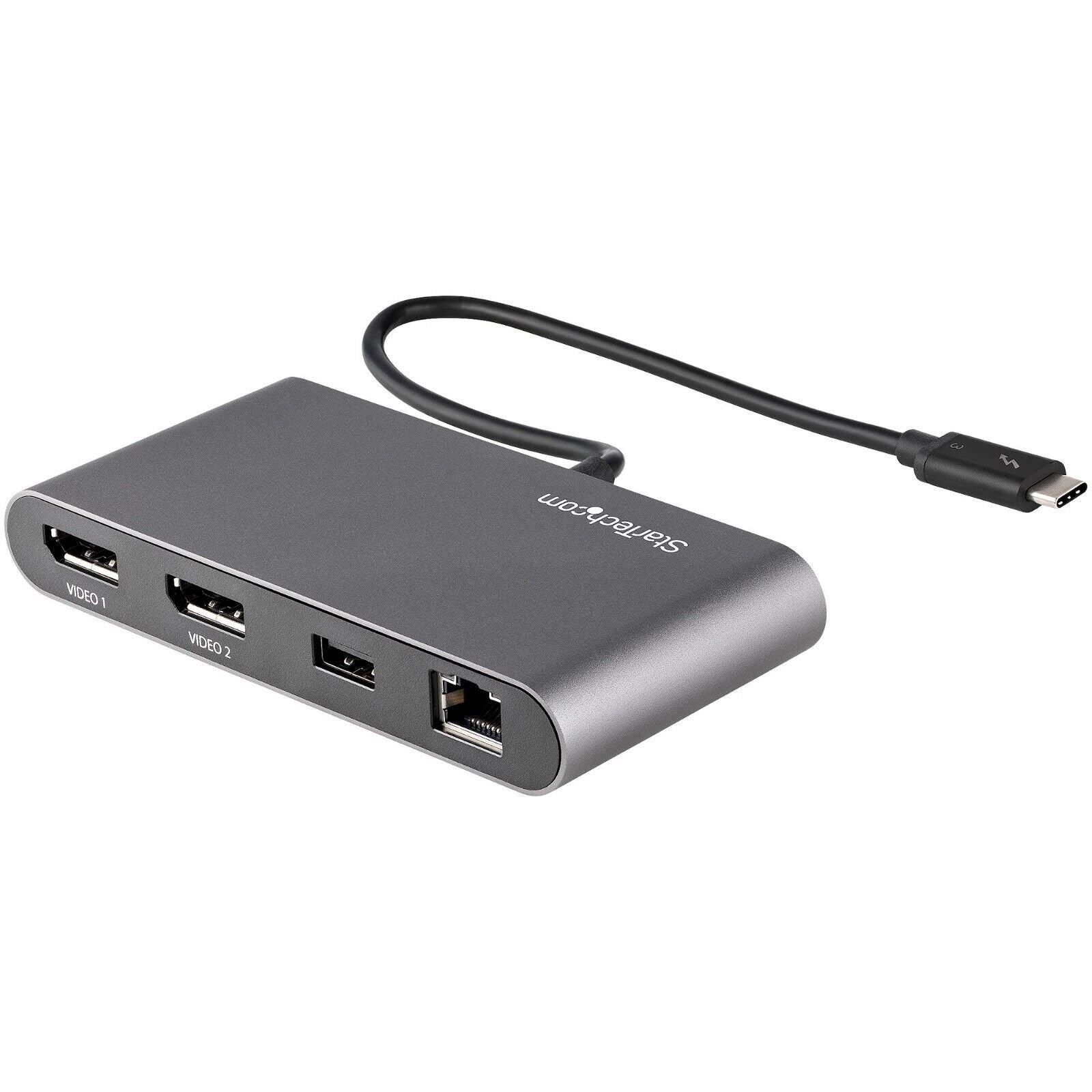

StarTech TB3DKM2DPL Thunderbolt-3 Dual Monitor DisplayPort DP RJ45 Docking Hub
$127.86 USD $127.86 USD $118.99 USD
Shipping calculated at checkout.
In stock: 1
Description

Thunderbolt 3 Mini Dock - Portable Dual Monitor Docking Station with DP 4K 60Hz, 1x USB-A Hub (USB 3.0/5 Gbps), GbE - 11in/28cm Cable - TB3 Multiport Adapter - Mac/Windows

Laptop Docking Station | Mac & Windows® | Bus-Powered | 1x USB-A

Product ID: TB3DKM2DPL

..

This certified Thunderbolt™ 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K DisplayPort displays, Gigabit Ethernet, and one USB-A (USB 3.2) port and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).

  • HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Driverless setup for plug-and-play installation; Thunderbolt 3 (40 Gbps); Dual 4K 60Hz DisplayPort (DP) outputs; 1x USB 3.2 Gen 1 Type-A (5Gbps) port; Gigabit Ethernet port with PXE boot and WoL
  • FOR HIGH-POWERED LAPTOPS: Dual 4K 60Hz video output with direct GPU performance and no software or compression; Ideal for high-performance laptops that need a direct power adapter connection, but require Thunderbolt 3 dock performance & functionality
  • COMPATIBILITY: Mini dock is compatible with Windows, macOS & Ubuntu; Works with all Thunderbolt 3/4 laptops; Extended dual displays on Apple M1/M2/M3 Max & Pro MacBooks; Single Display on Apple M1/M2/M3 MacBooks & iPad Pro M1 and later

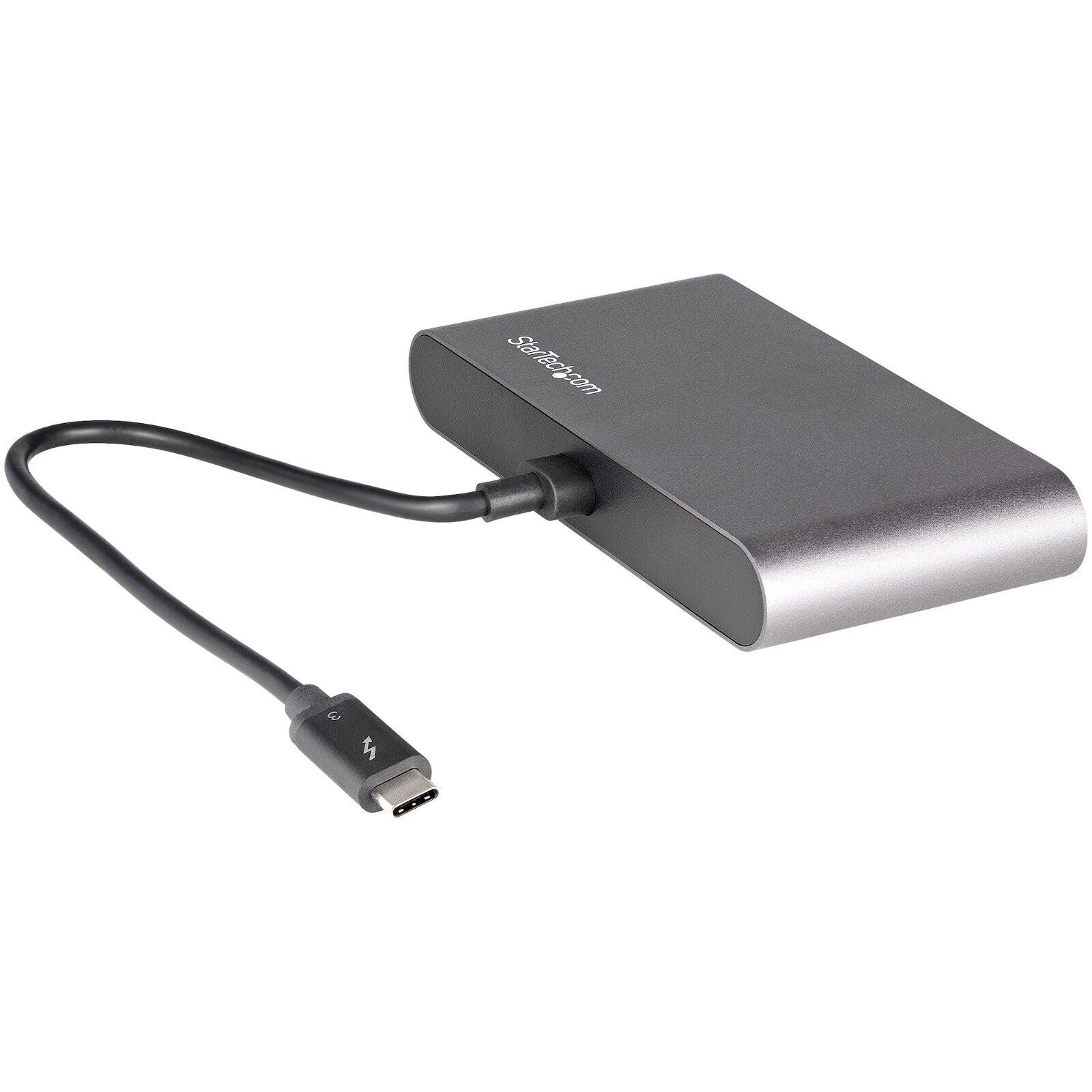

  • EXTRA-LONG CABLE: Attached 11in (28cm) cable provides long reach for easy setup and prevents adapter from dangling on the host connector; Ideal cable length to reduce port strain on 2-in-1 convertible laptops, or host laptops on riser stands

Warranty Information

Warranty
3 Years
Form Factor
Compact
Package Quantity
1
Maximum Cable Length
11.0 in [28 cm]

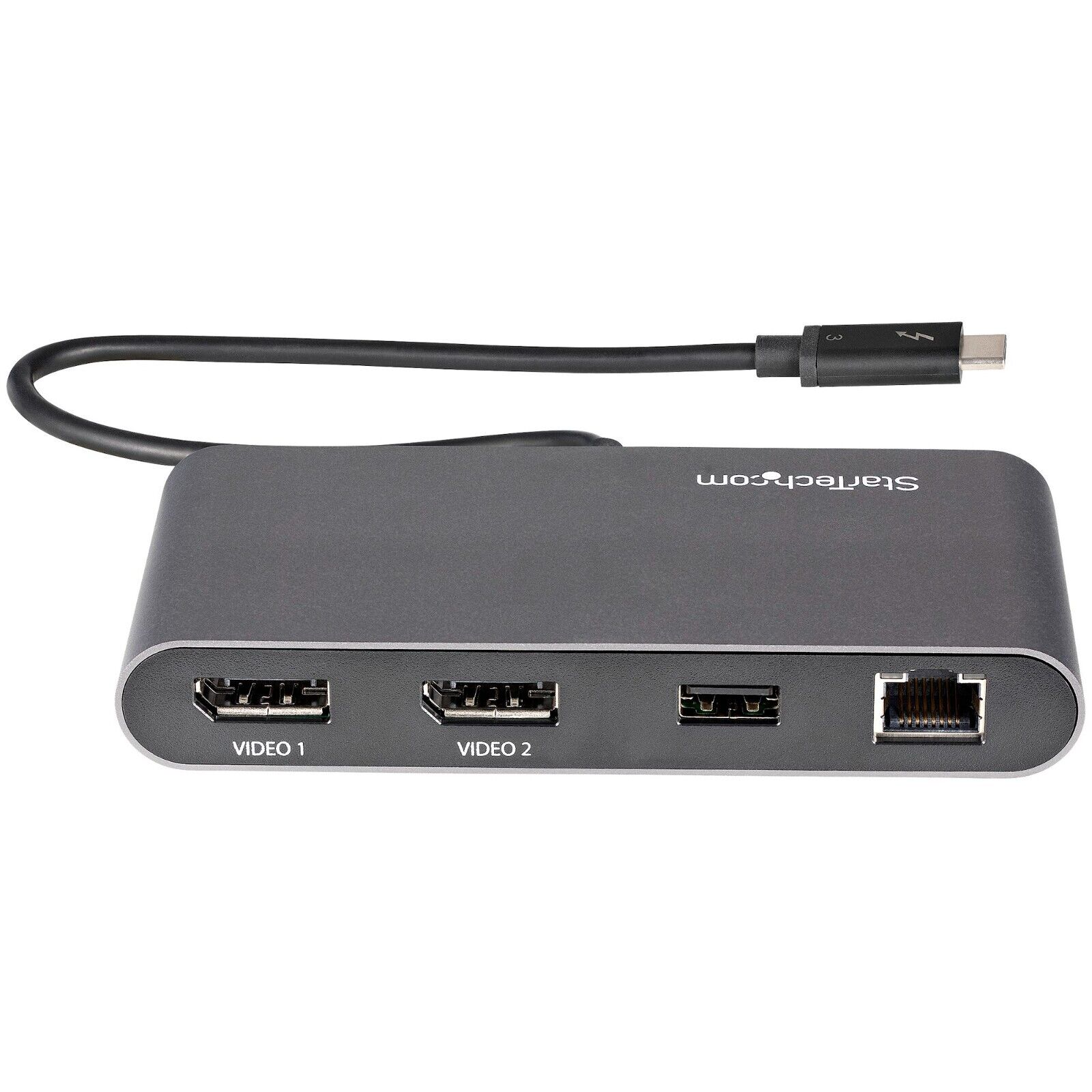

Connector(s)
External Ports
2 - DisplayPort (20 pin)
1 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
1 - RJ-45
Host Connectors
1 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps)
Environmental
Operating Temperature
5°C to 40°C
Storage Temperature
-20°C to 70°C
Humidity
0% to 95% (non-condensing) at 25°C
Hardware
Displays Supported
2
Fast-Charge Port(s)
No
4K Support
Yes
Industry Standards
1Gb connectivity to any 1000Base-T device (IEEE802.3ab Compliant)
100Mb connectivity to any 100Base-TX device (IEEE802.3u Compliant)
10Mb connectivity to any 10Base-T device (IEEE802.3i Compliant)
Audio
No
Interface
Thunderbolt 3
Bus Type
Thunderbolt 3
Chipset ID
Intel JHL6540 (Alpine Ridge)
Texas Instruments TPS65983A
Parade PS176
ASMedia ASM1042A
Intel WGI210
Packaging Information
Package Height
1.5 in [3.8 cm]
Package Length
8.1 in [20.6 cm]
Shipping (Package) Weight
9.3 oz [264.0 g]
Package Width
5.8 in [14.8 cm]
Performance
Wake On Lan
Yes
Maximum Digital Resolutions
4K 60Hz
PXE
Yes
Physical Characteristics
Color
Black & Silver
Product Height
1.1 in [2.7 cm]
Product Length
4.9 in [12.4 cm]
Weight of Product
5.2 oz [147.8 g]
Product Width
2.7 in [6.9 cm]
Material
Aluminum and Plastic
Cable Length
11.0 in [28 cm]
Power
Power Source
Bus Powered
Software
OS Compatibility
Windows® 11, 10 (32/64 bit), 8.1 (32/64bit), 7 (32/64bit)
Windows® Server 2008 R2, 2012(32/64bit)
macOS 10.10 -10.15, 11.0, 12.0, 13.0, 14.0
Special Notes / Requirements
Note
MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3.
What's in the Box
Included in Package
1 - Docking Station
1 - User Manual

Shipping Notes:

All our StarTech products are normally shipped within 1-2 business days from any of our warehouse locations below:

  • Monrovia, CA 91016 (Most usual)
  • Fort Worth, TX 76155
  • Carol Stream, IL 60188
  • Moore, SC 29369
  • Hazelton, PA 18202

…MJ5
