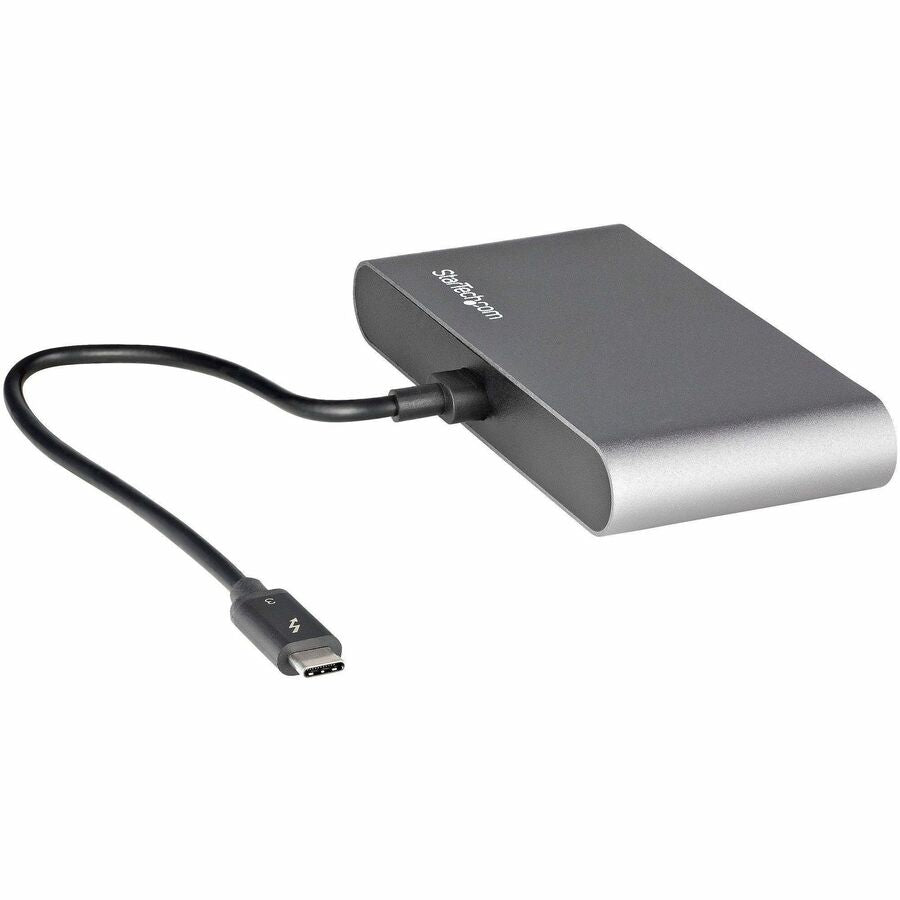

StarTech TB3DKM2HDL Thunderbolt 3 Mini Dock -Laptop Docking Station

General Information

• Manufacturer: StarTech
• Brand Name: StarTech
• Manufacturer Part Number: TB3DKM2HDL
• Product Name: Thunderbolt 3 Mini Dock - Portable Dual Monitor TB3 Laptop Docking Station HD- 4K 60Hz
• Packaged Quantity: 1 Each
• Product Type: Docking Station

Marketing Information:

• This certified Thunderbolt 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K HD- displays, Gigabit Ethernet, and two USB-A (USB 3.2 / 2.0) ports and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).

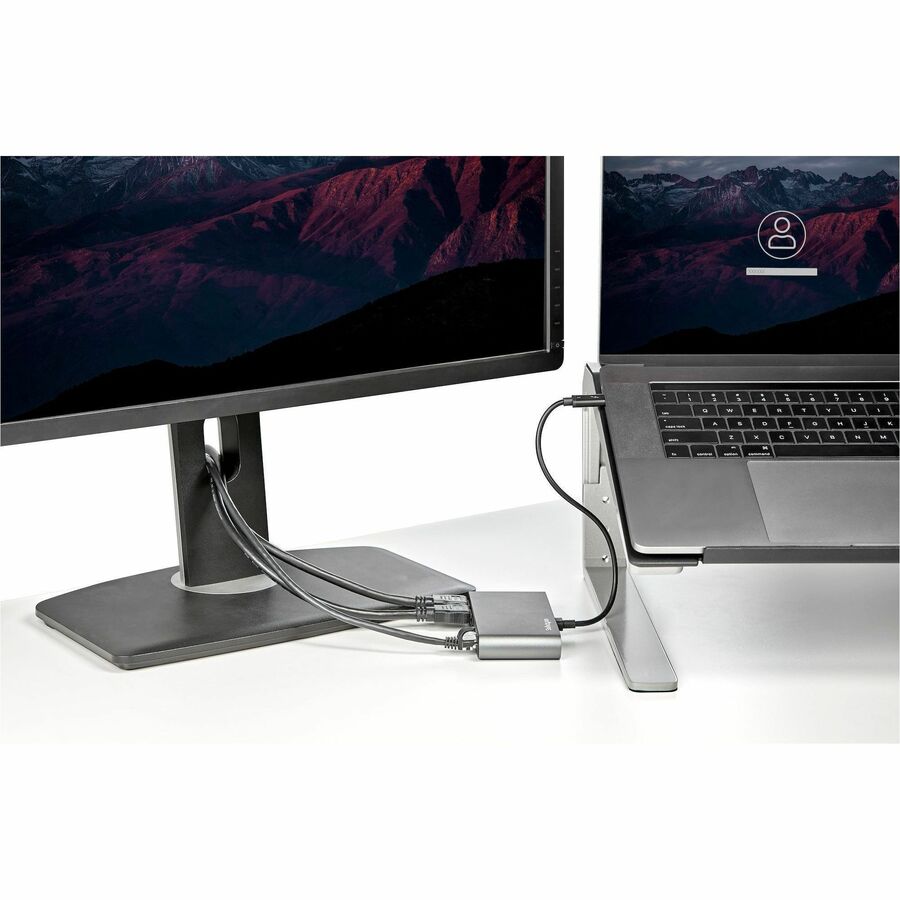

• Create a Dual-4K 60Hz Workstation
• Great for editing 4K video or other Ultra HD tasks, this portable Thunderbolt™ 3 to HD- dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual HD- monitors, through a single Thunderbolt™ 3 port. Run resource-demanding applications on two independent displays without draining system resources.
• Connect your laptop to:
  • 2x 4K HD- displays (up to 4096 x 2160p @ 60Hz)

  Compact Size & 11-Inch Attached Host Cable

• At just 2.4" x 4.9" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 28 cm (11 inches) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk.

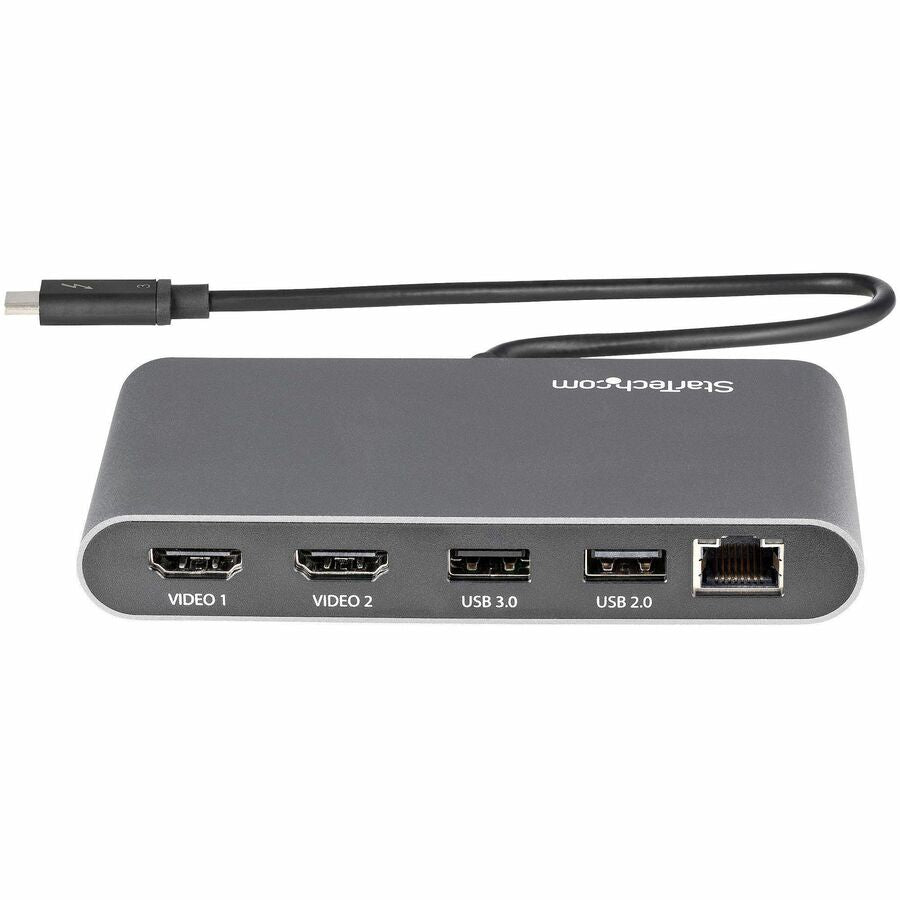

• The Ports You Need Most
  • 1x USB 3.2 Gen 1 Type-A port (5Gbps)
  • 1x USB 2.0 Type-A port
  • 1x Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support)
• Ideal for Power-Demanding Workstation Setups
• As many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged.
• This bus-powered TB3 mini dock is ideally suited for those users, providing full Thunderbolt™ 3 docking station performance and functionality, while their workstation laptops are separately charged.
• The TB3DKM2HDL is Thunderbolt Certified and backed by a StarTech 3-year warranty and free lifetime technical support.

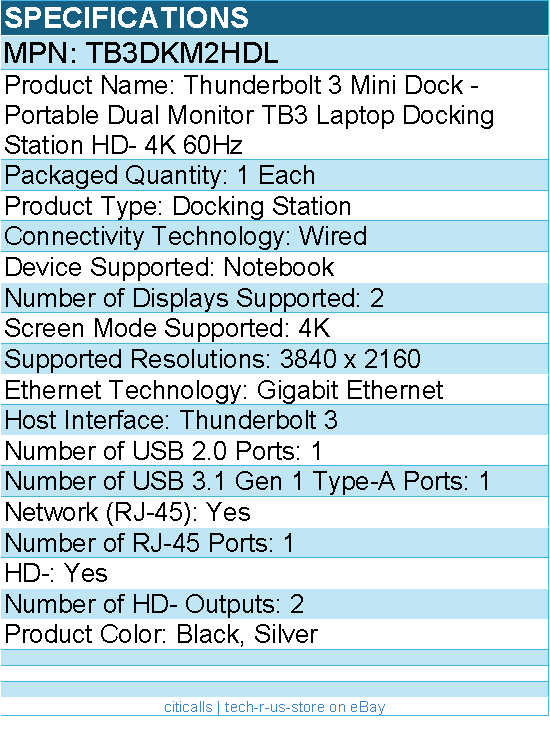

Technical Information

• Connectivity Technology: Wired
• Device Supported: Notebook
• Number of Displays Supported: 2
• Screen Mode Supported: 4K
• Supported Resolutions: 3840 x 2160

Network & Communication

• Ethernet Technology: Gigabit Ethernet

Interfaces/Ports

• Host Interface: Thunderbolt 3
• Number of USB 2.0 Ports: 1
• Number of USB 3.1 Gen 1 Type-A Ports: 1
• Network (RJ-45): Yes
• Number of RJ-45 Ports: 1
• HD-: Yes
• Number of HD- Outputs: 2

Software

• Operating System Supported:
  • Windows 11
  • Windows 10
  • Windows 8.1
  • Windows 7
  • Windows Server 2008 R2
  • Windows Server 2012
  • Mac OS X 10.10 Yosemite
  • Mac OS X 10.15 Catalina
  • Mac OS X 11.0 Big Sur
  • Mac OS X 12.0 Monterey
  • Mac OS X 13.0 Ventura

Physical Characteristics

• Color Family: Dual Color
• Product Color: Black, Silver

Miscellaneous

• Package Contents:
  • Docking Station
  • 1 x User Manual
• Compatibility:
• Compatible Products:
  • Dell XPS
  • HP EliteBook
  • Lenovo X1 Carbon
  • Apple MacBook Pro 13
  • Apple MacBook Pro 16
  • Apple MacBook Air
  • Brand Compatibility:
  • Apple
  • Dell
  • HP
  • Lenovo
• Environmentally Friendly: Yes
• Environmental Certification: EU RoHS
• Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS) 2
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
• Country of Origin: Thailand

Warranty

• Limited Warranty: 3 Year from StarTech
