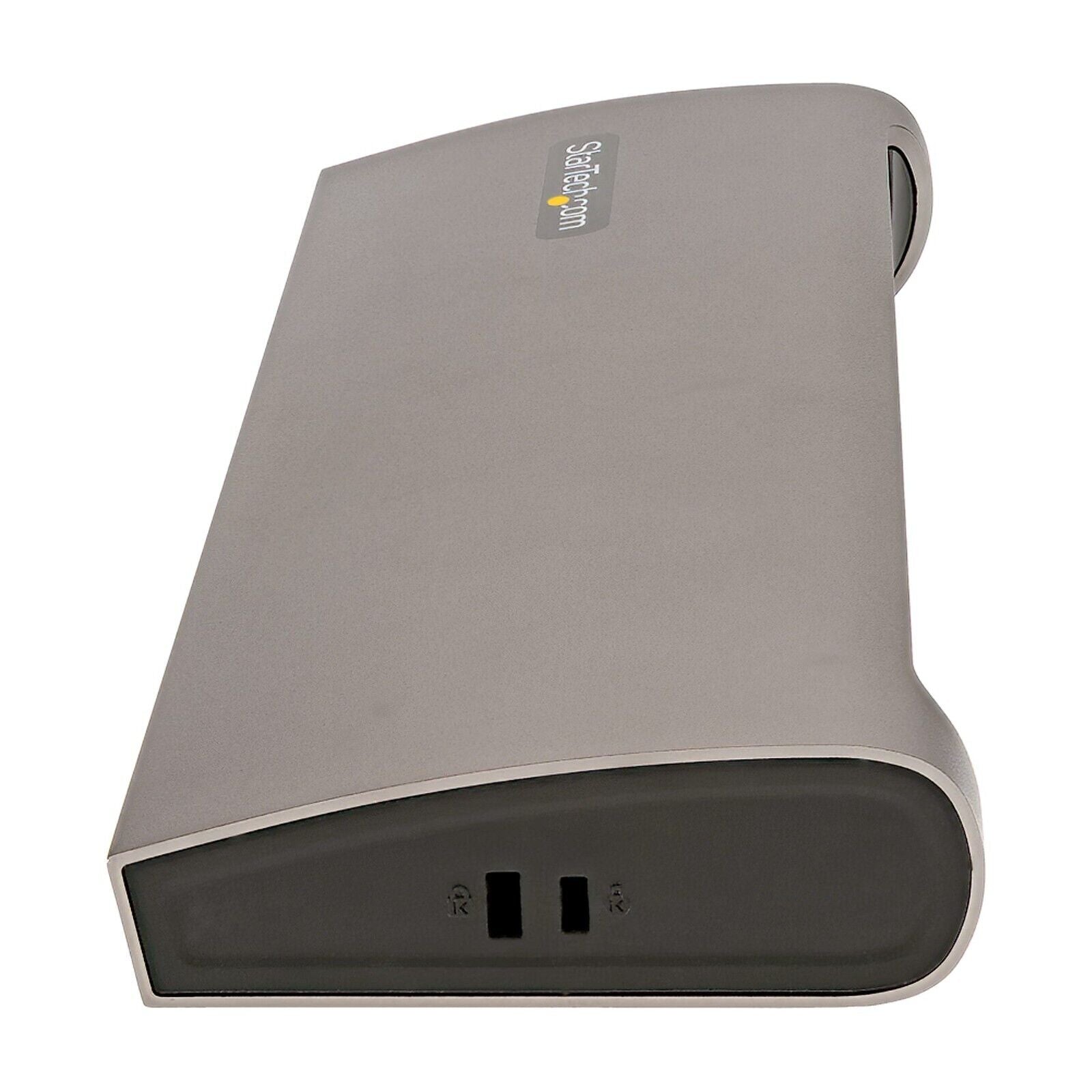

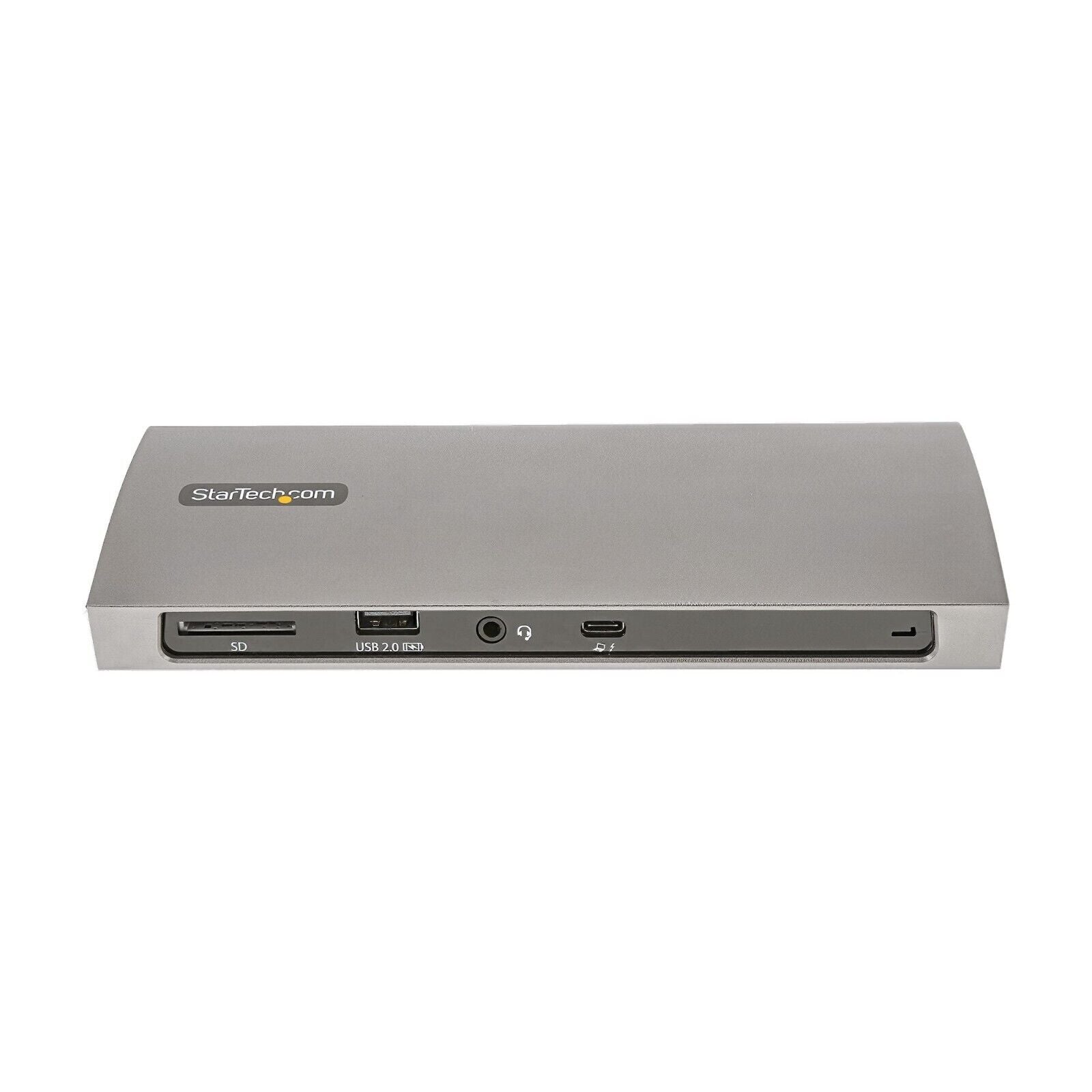

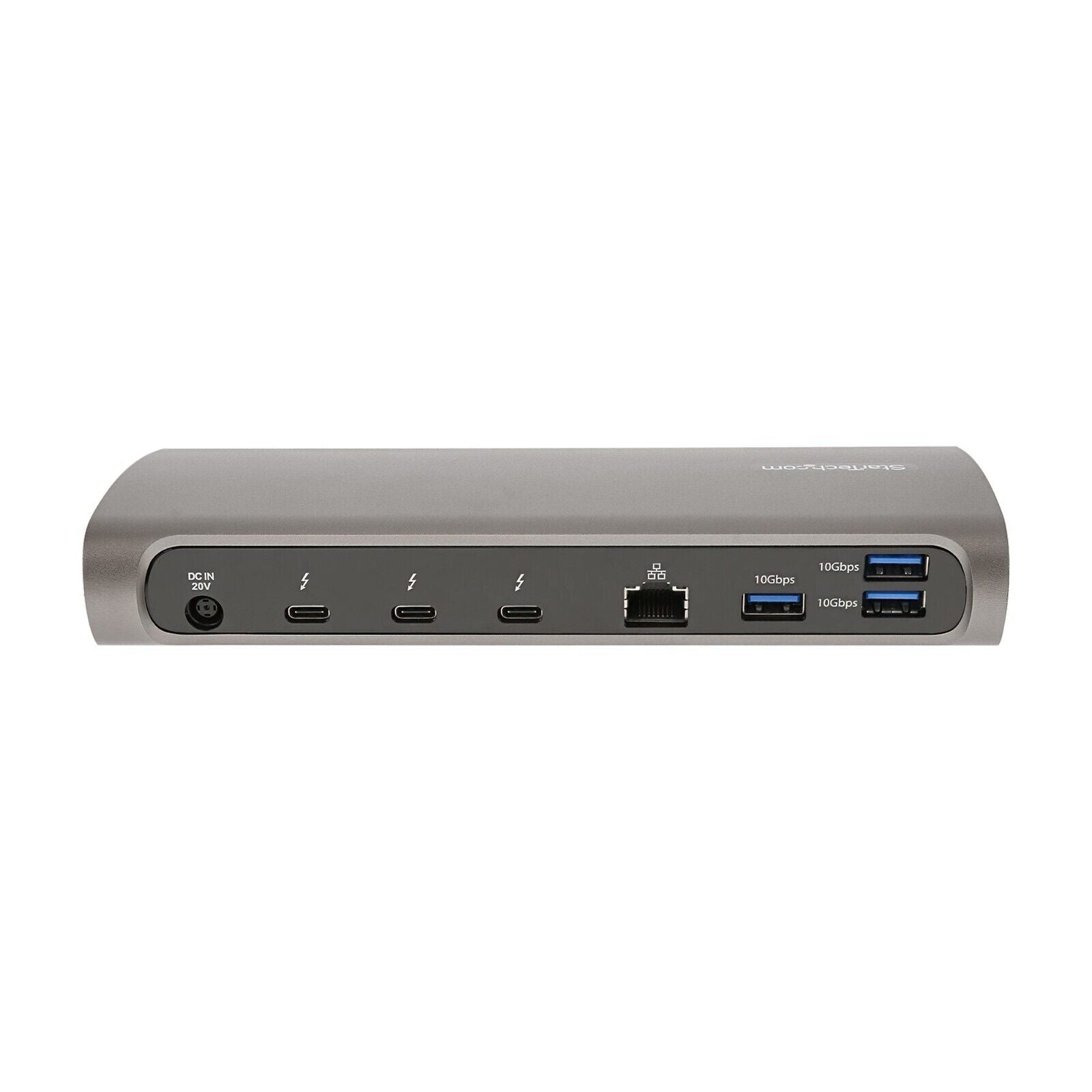

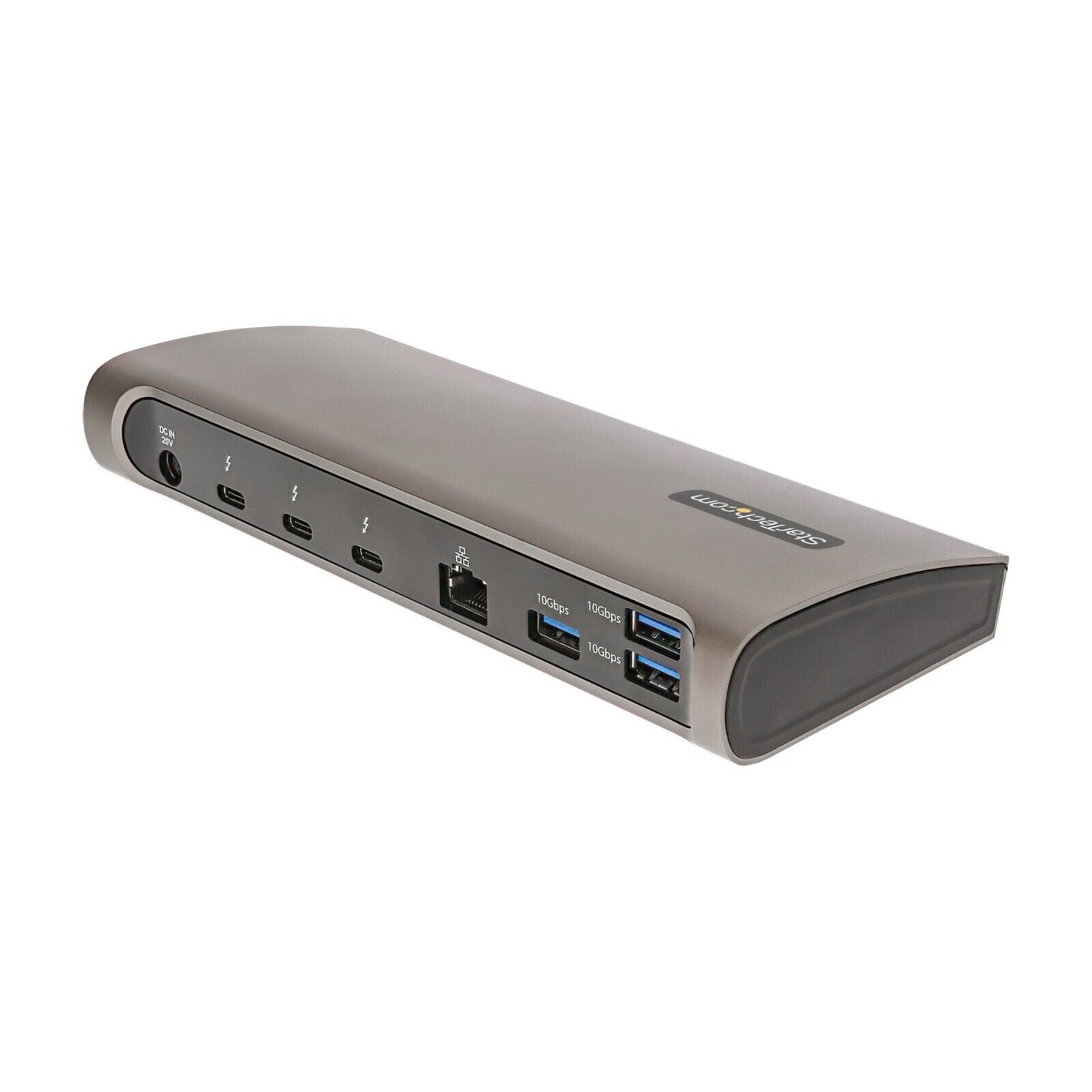

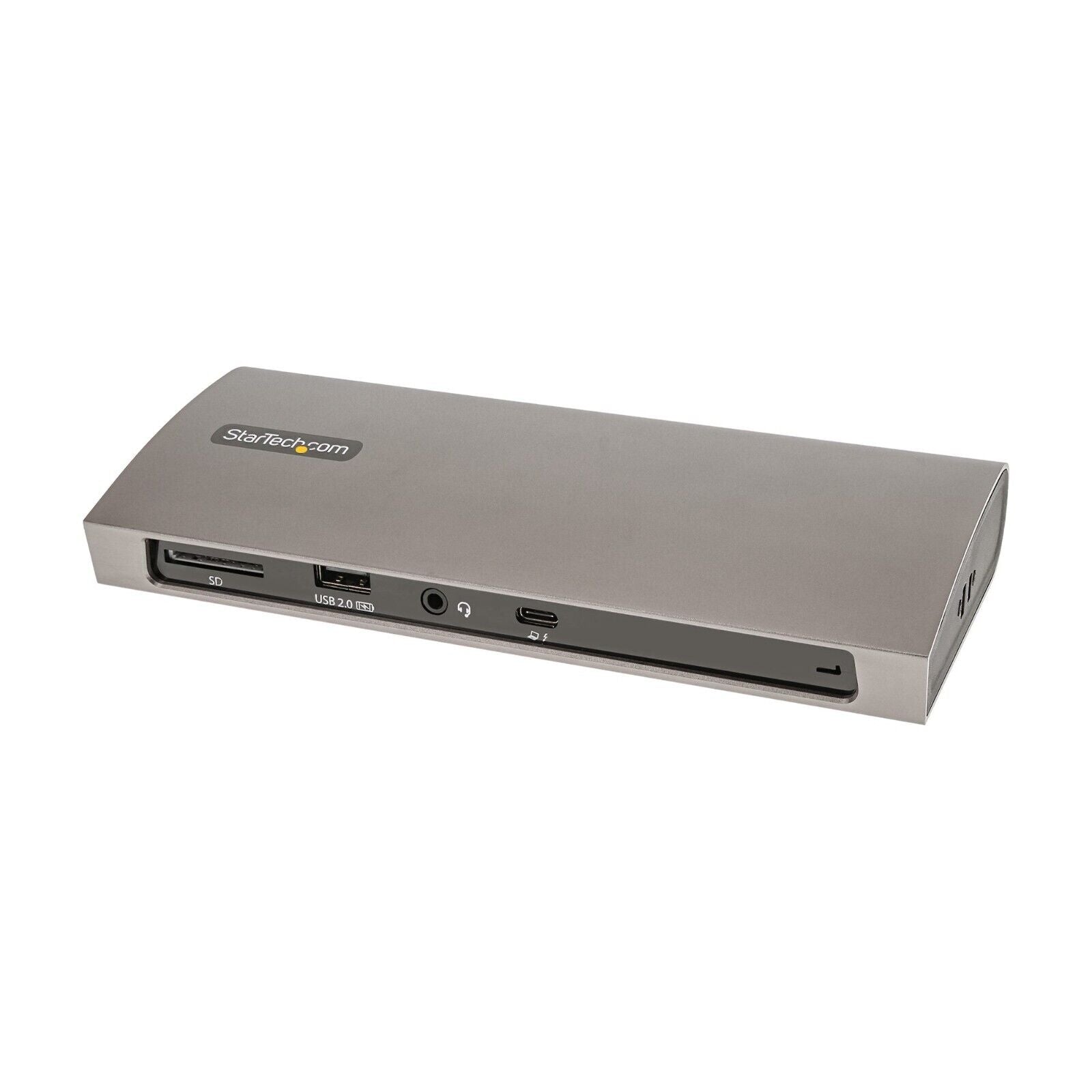

StarTech TB4CDOCK Dual Monitor Thunderbolt4 Dock w 3xTB4/USB4 PD Docking Station

Regular price $328.36 USD Sale price $328.36 USD Regular price $296.99 USD
Shipping calculated at checkout.
In stock: 2
Description

Thunderbolt 4 Dock, 96W Power Delivery, Single 8K/Dual Monitor 4K 60Hz, 3xTB4/USB4 ports, 4xUSB-A, SD, GbE, Thunderbolt 4 Docking Station for Windows or TB3 MacBook, 0.8m Cable

Dual DP 4K 60Hz | macOS & Windows® | 3x Thunderbolt™ 4 | 3x USB-A 10Gbps | 1x USB-A 480Mbps BC 1.2 Fast Charge | 96W PD | 0.8 m Cable

Product ID: TB4CDOCK

..

This Thunderbolt 4 Certified docking station lets you use a single Thunderbolt 4, Thunderbolt 3 or USB4 port to add high-performance connectivity and charge your Thunderbolt 4 or USB4 Windows laptop, Thunderbolt 4 M1 Max/M1 Pro MacBook, or your Thunderbolt 3 M1 or Intel MacBook (macOS 11 Big Sur or higher).

For easy deployment the dock includes a 2.6 ft. (0.8 m) Thunderbolt 4 cable that connects to the front-facing host port, and features Kensington-style security slots.

  • HIGH-PERFORMANCE THUNDERBOLT 4 CERTIFIED DOCK: Easy Driverless setup; 3x downstream Thunderbolt 4 (40Gbps) ports; 4x USB-A ports (3x 10Gbps/1x BC 1.2 fast charge); SD card reader; GbE; 2.6ft TB4 cable; Front host port; Kensington-style security slots;
  • CERTIFIED 96W POWER DELIVERY: Includes fully spec'd power adapter to simultaneously charge laptop (96W PD) & power to all ports; Downstream TB4 / TB3 / USB4 ports support 15W (3A) charging; 1x BC 1.2 USB-A port with 7.5W (1.5A) for charging mobile devices
  • COMPATIBILITY: Windows, macOS & Ubuntu; Up to single 8K30Hz/6K60Hz/5K60Hz or dual monitors at 4K60Hz; Works with Thunderbolt 4/USB4 laptops; Dual display on Apple M1/M2/M3 Max & Pro MacBooks; Single Display on Apple M1/M2/M3 MacBooks & iPad Pro M1 and later
  • 3x THUNDERBOLT 4 PORTS: The dock features three downstream Thunderbolt 4 ports for connecting TB4, TB3, USB4 or USB peripherals; The TB4 ports can be used for connecting up to two external displays supporting dual 4K 60Hz or a single 5K/6K/8K monitor

Warranty Information

Warranty
3 Years

Connector(s)
External Ports
1 - SD Slot
1 - USB 2.0 A (Fast-Charge, 4 pin)
1 - 3.5mm Audio (4-Position, Speakers + Mic, CTIA)
3 - Thunderbolt 4 (USB 4.0)
1 - Ethernet Gigabit
3 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
Host Connectors
1 - Thunderbolt 4 (USB 4.0)

Environmental
Operating Temperature
0 to 50°C
Storage Temperature
-20 to 70°C
Humidity
0% to 95% (non-condensing) at 25°C

Hardware
Fast-Charge Port(s)
Yes
Displays Supported
2
Audio
Yes
Bus Type
Thunderbolt 4
Compatible Lock Slot
Kensington Mini Slot / Standard Slot
Kensington Standard Slot (K-Slot)
Chipset ID
Intel - JHL8440
Cypress - CYUSB4357
Parade - FL5801
Parade - FL5801
Cypress - CYPD5235
Realtek - RTL8153B
Realtek - ALC4042
Genesys Logic - GL3226

Indicators
LED Indicators
1 - White On: Power
1 - Green On: Connected to Host

Packaging Information
Shipping (Package) Weight
2.4 lb [1.1 kg]
Package Length
5.7 in [14.5 cm]
Package Height
3.5 in [9.0 cm]
Package Width
9.3 in [23.5 cm]
Package Quantity
1

Performance
Wake On Lan
Yes
Maximum Digital Resolutions
Thunderbolt 4 Windows Systems: Dual 4K 60Hz or Single 8K 30Hz / 6K 60Hz / 5K 60Hz / 4K 60Hz
Thunderbolt 4 M1 Pro & M1 Max Mac Systems: Dual 4K 60Hz or Single 5K 60Hz / 4K 60Hz
Thunderbolt 3 Intel Mac Systems: Dual 4K 60Hz or Single 6K 60Hz / 5K 60Hz / 4K 60Hz
Thunderbolt 3 M1 Mac Systems: Single 4K 60Hz or 6K 60Hz /5K 60Hz / 4K 60Hz
Thunderbolt 4 & Compatible USB4 Systems: Dual 4K 60Hz or Single 8K 30Hz / 6K 60Hz / 5K 60Hz / 4K 60Hz
USB4 Systems: Single 8K 30Hz / 6K 60Hz / 5K 60Hz / 4K 60Hz

USB4 Windows laptops may support dual-displays over Thunderbolt if supported by the USB4 Windows Laptop
Audio Specifications
Analog Stereo - 2 Channel Audio
Memory Media Type
SD/MMC (Secure Digital/Multimedia Card)
SDHC (Secure Digital High Capacity)
SDXC (Secure Digital eXtended Capacity)
microSD (Micro Secure Digital) (adapter required)
microSDHC (Micro Secure Digital High Capacity) (adapter required)
microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)
Compatible Networks
10/100/1000 Mbps
Auto MDIX
Yes
PXE
Yes
Full Duplex Support
Yes

Physical Characteristics
Color
Black & Gray
Product Height
1.1 in [2.9 cm]
Weight of Product
2.2 lb [1.0 kg]
Product Width
7.6 in [19.4 cm]
Product Length
3.3 in [8.4 cm]
Material
Aluminum and Plastic
Cable Length
31.5 in [80 cm]

Power
Power Source
AC Adapter Included
Power Delivery
100W
Input Voltage
100 - 240 AC
Input Current
2.5 A
Output Voltage
20V DC
Output Current
6.75 A
Center Tip Polarity
Positive
Plug Type
7.4mm OD, 5.5mm ID, 0.5mm CPD
Power Consumption (In Watts)
135

Software
OS Compatibility
Windows 11
Windows 10
macOS Big Sur (11.0)
macOS Monterey (12.0)
macOS Ventura (13.0)
macOS Sonoma (14.0)

Special Notes / Requirements
Note
The docking station is compatible with Thunderbolt 4/USB4 Windows laptops, Thunderbolt 4 M1/M2/M3 Max/Pro MacBooks, and Thunderbolt 3 M1/Intel MacBooks (macOS 11 Big Sur or higher)

What's in the Box
Included in Package
1 - Thunderbolt 4 Docking Station
1 - Thunderbolt 4 Cable
1 - Universal Power Adapter (NA/JP)
1 - Quick-Start Guide
