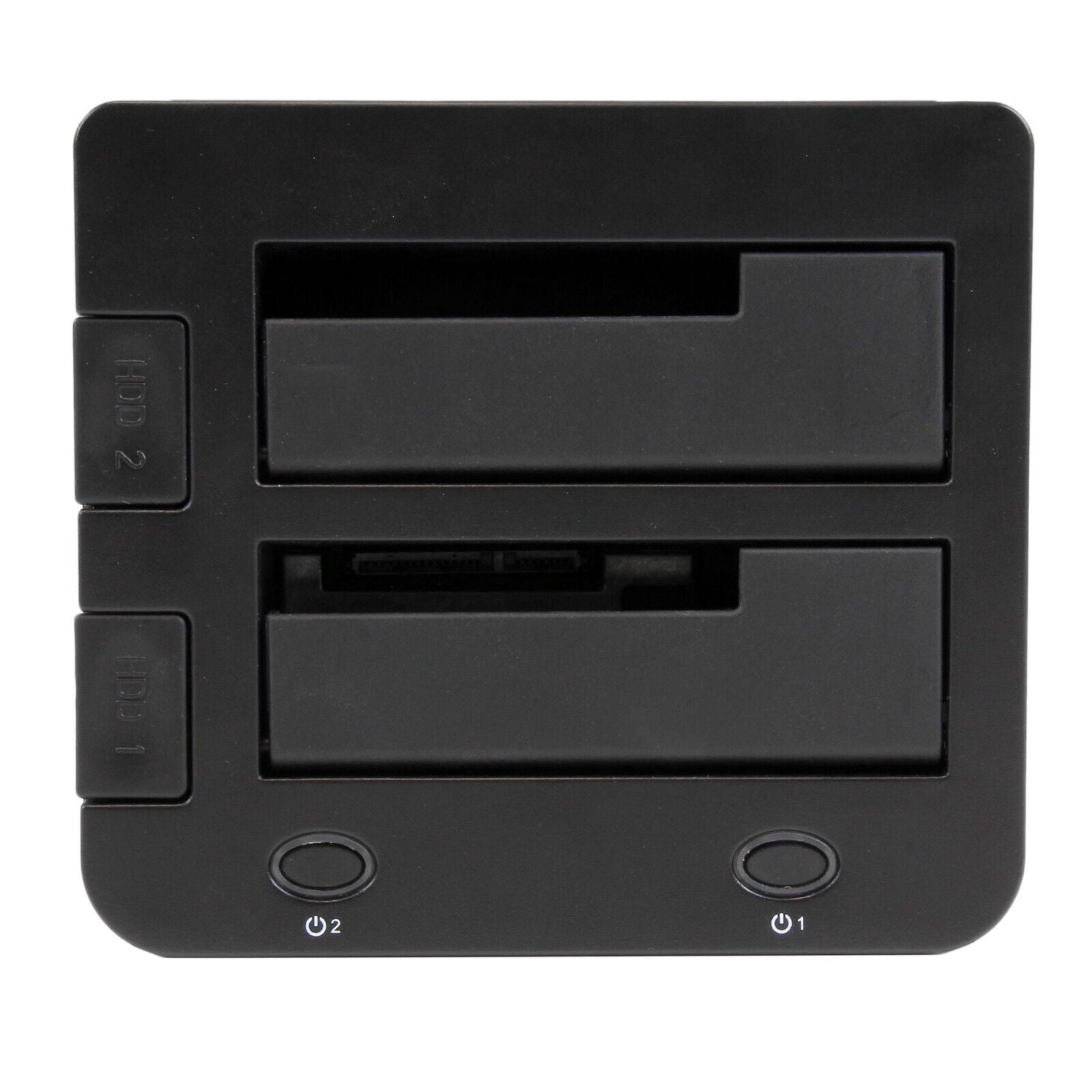

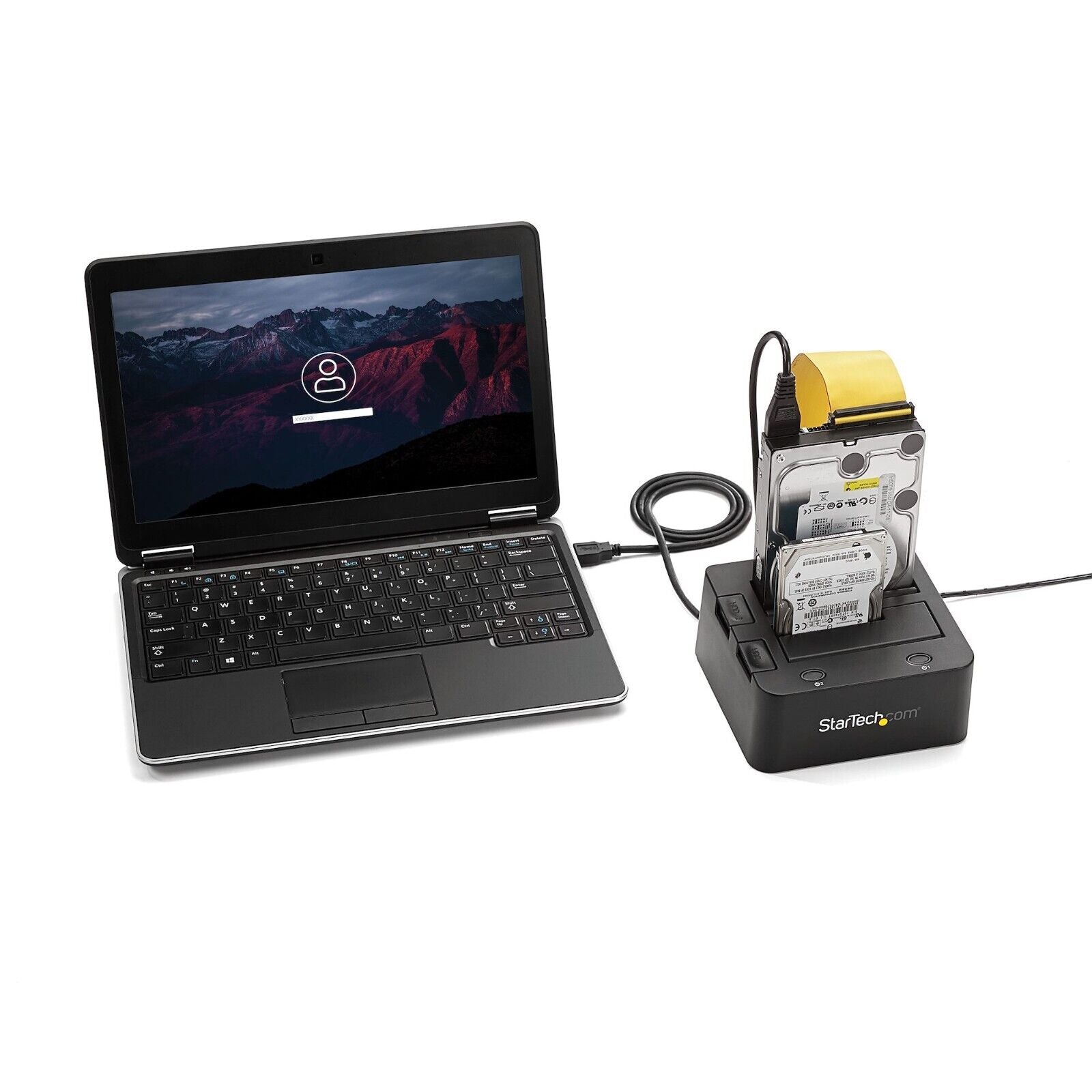

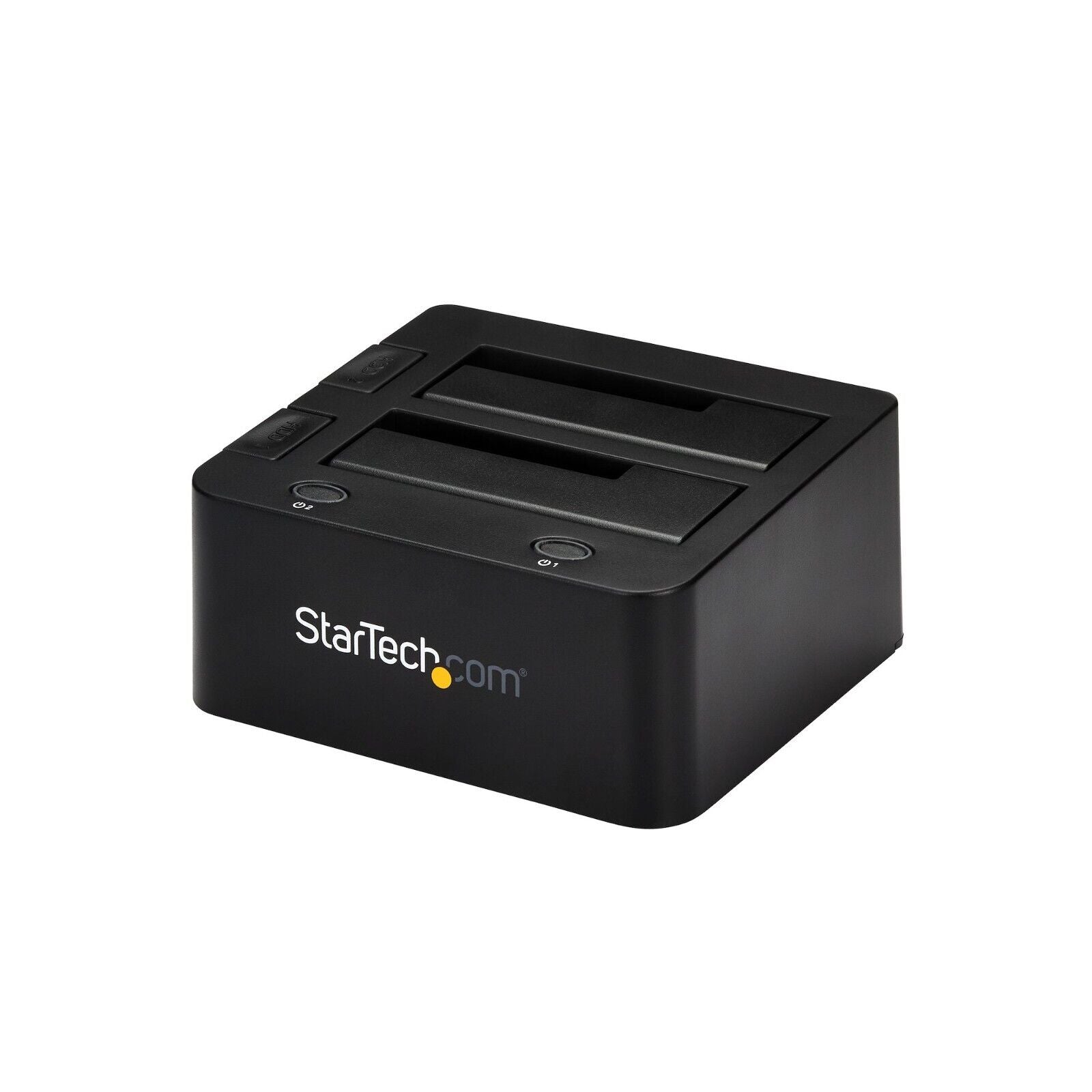

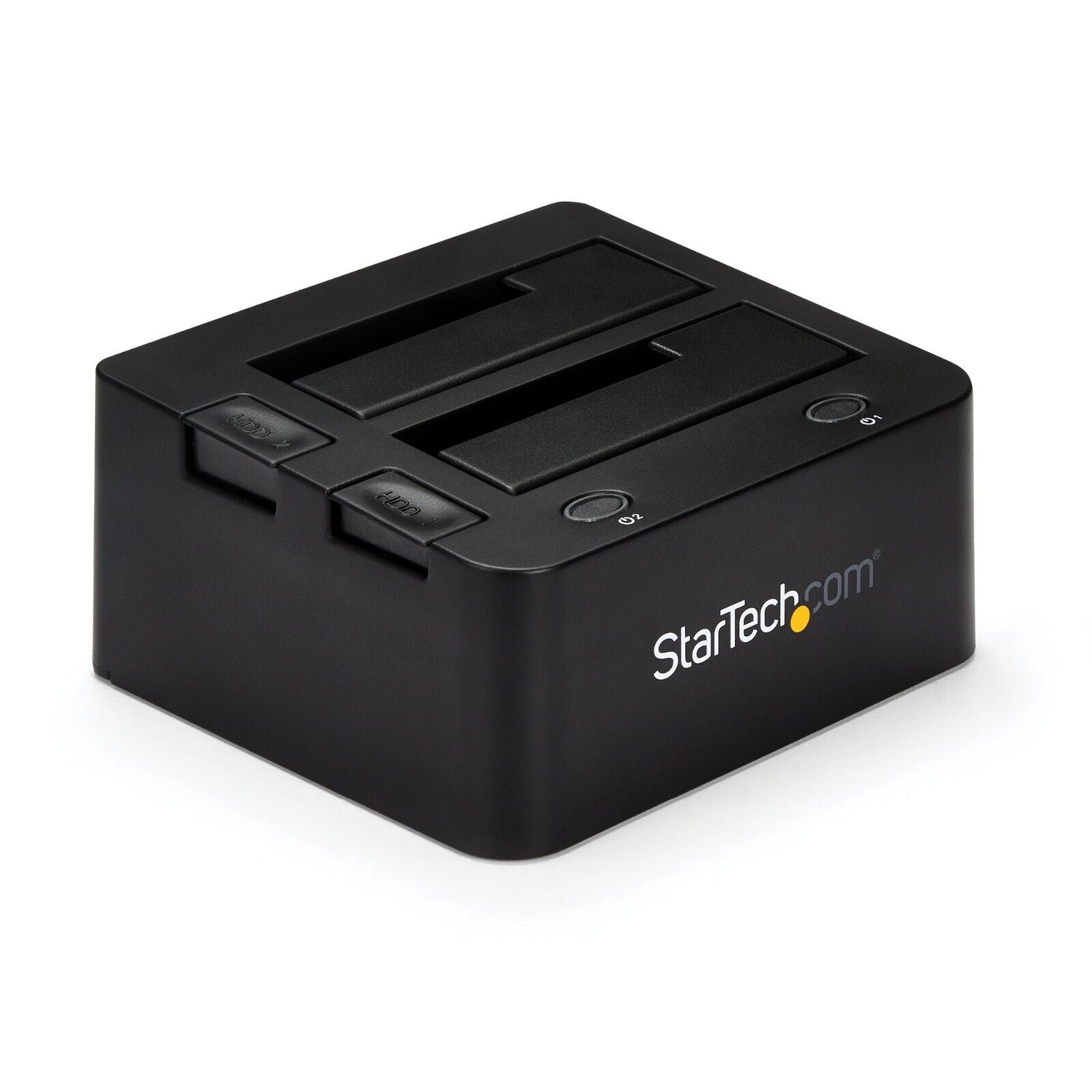

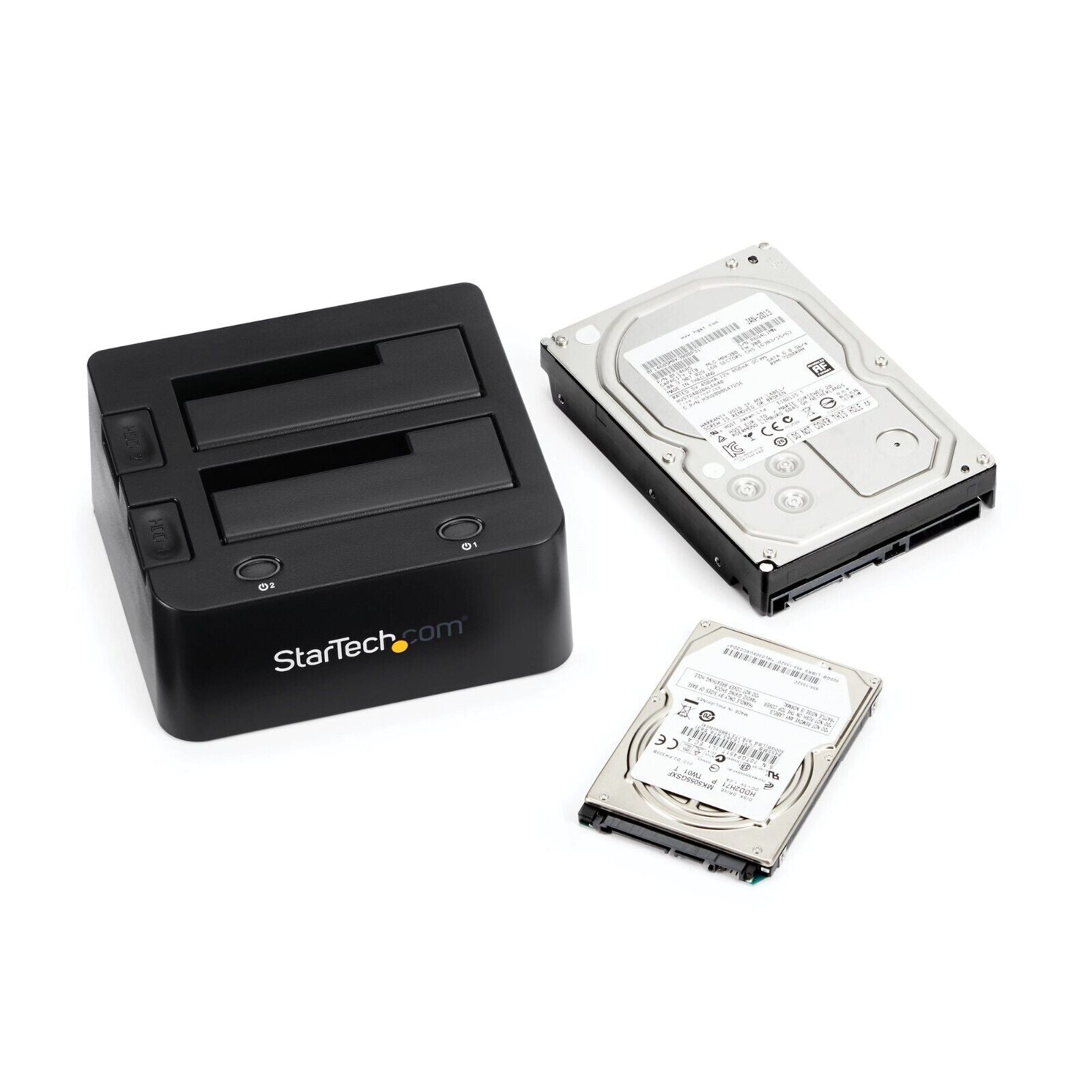

StarTech UNIDOCKU33 Dual Bay USB to SATA IDE SSD HDD Hot-Swap Docking Station

Name: StarTech UNIDOCKU33 Dual Bay USB to SATA IDE SSD HDD Hot-Swap Docking Station
Brand: Startech
SKU: INGaSTA YW7229 - UNIDOCKU33
Price: 102.1 USD
Availability: InStock

$102.10 USD

Shipping calculated at checkout.

In stock: 2

Description

Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading

External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA III and IDE

Warranty Information

Warranty

2 Years

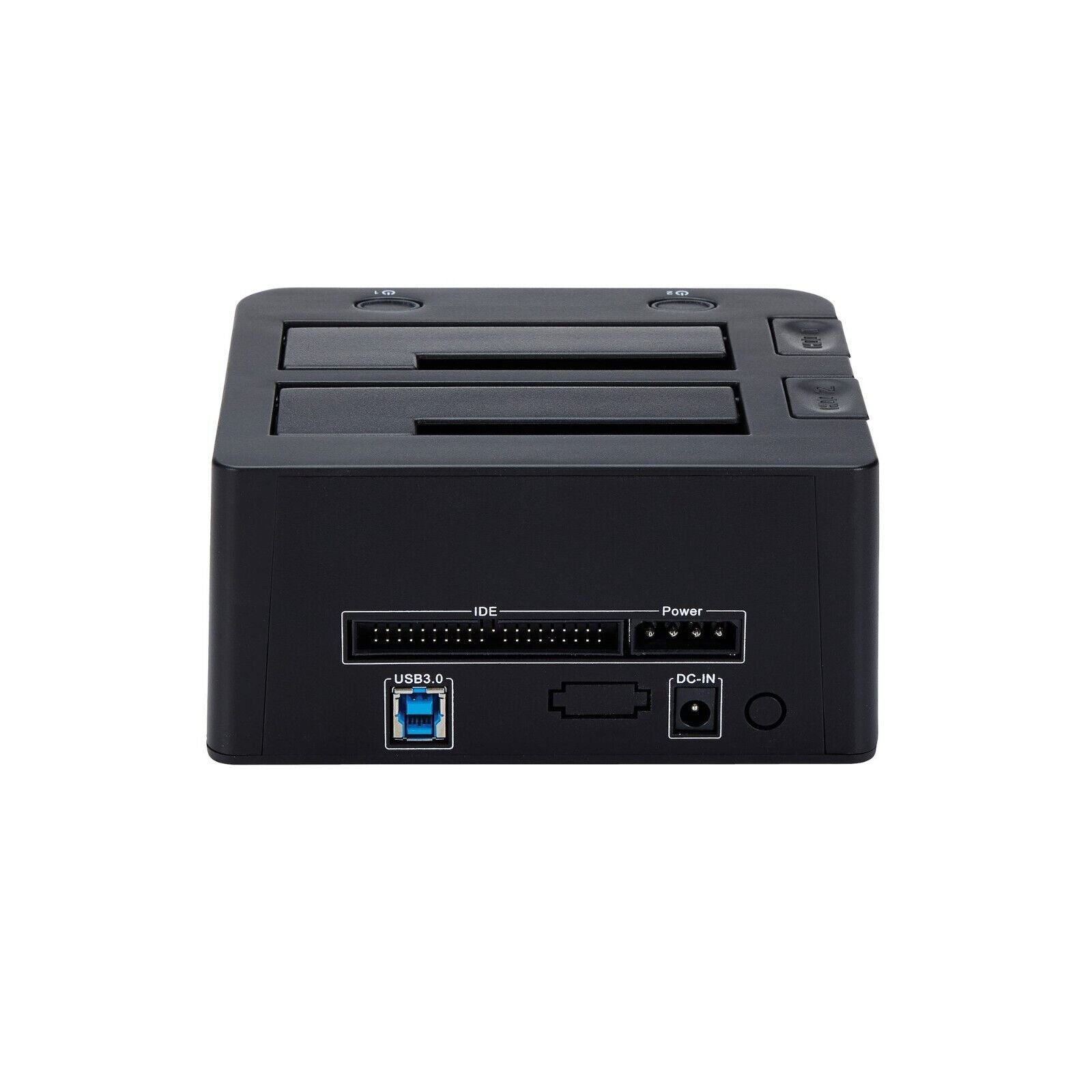

Connector(s)

Drive Connectors

1 - LP4 (4 pin; Large Drive Power)

1 - IDE (40 Pin, EIDE/PATA)

1 - SATA Data & Power Combo (7+15 pin)

Host Connectors

1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps)

Environmental

Operating Temperature

5°C to 80° (41°F to 176°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Humidity

8% ~ 90% RH

Hardware

Interface

USB 3.2 Gen 1 (5Gbps)

Number of Drives

Drive Size

2.5in & 3.5in

Compatible Drive Types

SATA & IDE

Drive Installation

Removable

Fan(s)

Chipset ID

JMicron - JMS561U
JMicron - JMD330

Indicators

LED Indicators

2 - Power and Drive Activity

Packaging Information

Package Height

8.3 in [21.2 cm]

Package Length

7.4 in [18.8 cm]

Shipping (Package) Weight

2.4 lb [1.1 kg]

Package Width

4.9 in [12.4 cm]

Package Quantity

Performance

Maximum Data Transfer Rate

5 Gbps

Type and Rate

USB 3.0 - 5 Gbit/s

UASP Support

Yes

Type and Rate

SATA III (6 Gbps)

Hardware Raid Supported

Max Drive Capacity

Currently tested with up to 6TB 7200 RPM 3.5" hard drives and 2TB 5400 RPM 2.5" hard drive

Insertion Rating

15,000 Cycles (SATA)

MTBF

30000 hours

Physical Characteristics

Weight of Product

1.1 lb [0.5 kg]

Color

Black

Material

Plastic

Product Length

5.8 in [14.7 cm]

Product Width

5.1 in [13.0 cm]

Product Height

2.8 in [7.0 cm]

Power

Power Source

AC Adapter Included

Input Voltage

100 - 240 AC

Input Current

1.3 A

Output Voltage

12V DC

Output Current

3 A

Center Tip Polarity

Positive

Plug Type

Power Consumption (In Watts)

Software

OS Compatibility

OS independent; No software or drivers required

What's in the Box

Included in Package

1 - Universal Hard Drive Dock

1 - USB 3.0 Cable

1 - IDE 40 to 40 Pin Cable

1 - LP4 Power Cable

1 - 40 Pin + LP4 to 44 Pin IDE Cable

1 - Universal Power Adapter (NA/UK/EU/AUS)

1 - Instruction Manual
