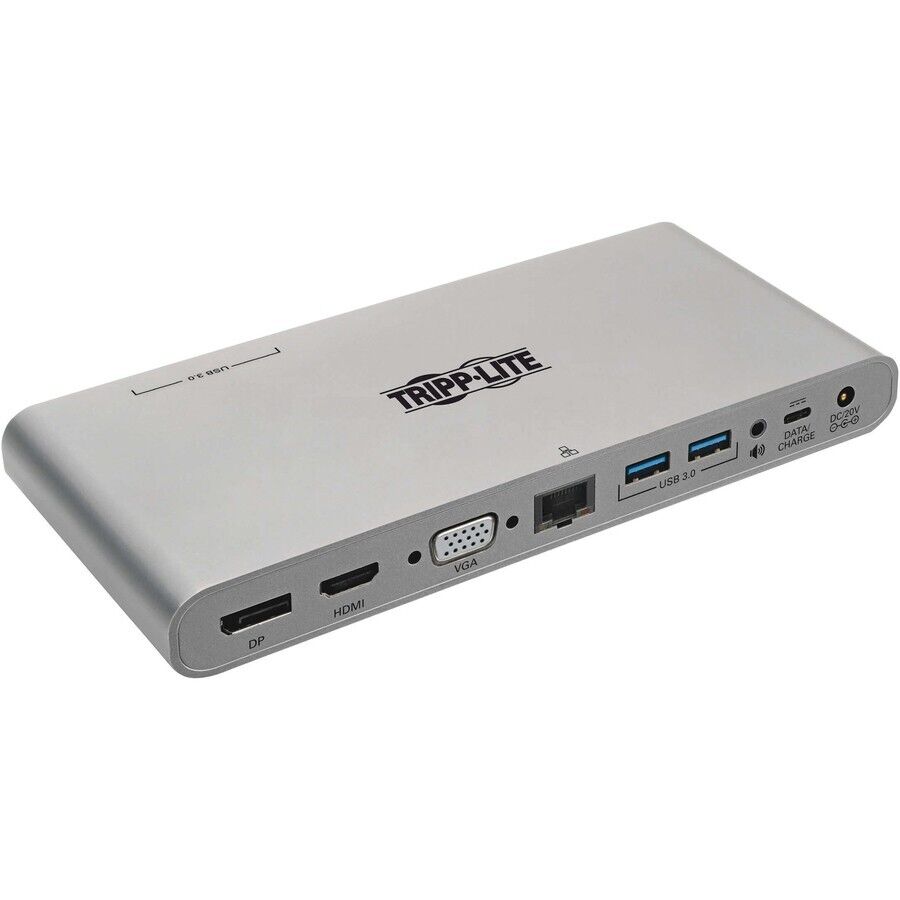

Tripp Lite U442-DOCK4-S USB-C Docking HUB Station USB-A VGA DPMI DP Gigabit RJ45

Tripp Lite by Eaton USB-C Dock, Triple Display - 4K HDMI/DisplayPort, VGA, USB 3.x (5Gbps), USB-A/C Hub Ports, GbE, 100W PD Charging - Thunderbolt 3, Silver - for Notebook/Tablet PC/Desktop PC/Smartphone - 100 W - USB Type C - 6 x USB Ports - 4 x USB 3.0 - Network (RJ-45) - HDMI - VGA - DisplayPort - Audio Line Out - Microphone - Thunderbolt - Wired

This docking station with power expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC USB-C or Thunderbolt 3 port. It's ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD charging-compliant mobile device, connecting to a Gigabit Ethernet network and more. With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary. To send digital audio and Ultra High Definition video to a 4K-ready HDMI or DisplayPort TV, projector or monitor, connect the corresponding port to the display using an HDMI or DP cable (sold separately). The HDMI and DisplayPort ports support UHD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz.

Features

• USB-C docking station with power adds HDMI, VGA, DP, USB, PD Charging and other ports to your Chromebook, MacBook or PC.
• Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode
• Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
• Connects you to a wired Ethernet network when no Wi-Fi is available
• Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks
• Easy installation with plug-and-play operation-no software required

General Information

• Product Type: Docking Station
• Manufacturer Part Number: U442-DOCK4-S
• Manufacturer: Tripp Lite by Eaton
• Product Model: U442-DOCK4-S
• Product Name: U442-DOCK4-S Docking Station
• Brand Name: Tripp Lite by Eaton

Interfaces/Ports

• Host Interface: USB Type C
• Microphone: Yes
• HDMI: Yes
• VGA: Yes
• Network (RJ-45): Yes, 10/100/1000
• Audio Line Out: Yes
• DisplayPort: Yes
• Total Number of USB Ports: 6
• Number of USB 3.0 Ports: 4
• Thunderbolt: Yes
• Maximum Power Supply Wattage: 100 W

Package Contents

• U442-DOCK4-S Docking Station
• USB-C cable (M/M), 1 ft.
• External power supply (Input: 100-240V, 50/60 Hz, 1.8A; Max Output: 20V 3.6A)
• Owner's manual

Physical Characteristics

• Weight (Approximate): 15.17 oz
• Height: 0.87"
• Width: 7.80"
• Depth: 3.30"

Country of Origin: Vietnam
