Epson V12H758020 DC-21 Document Camera 2MP CMOS 12x Zoom USB HDMI VGA +SoftCase

The HD quality document camera that makes ordinary lessons extraordinary.

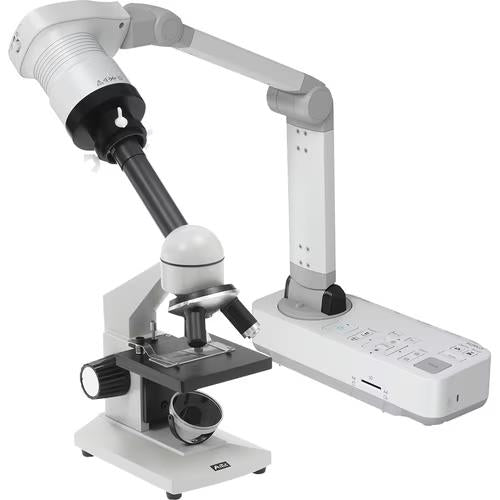

Engage students like never before with the Epson® DC-21 document camera. This portable performer easily captures and displays books, 3D objects and experiments with amazing clarity, thanks to HD 1080p resolution, a large imaging sensor and HDMI® connectivity. Share the finest detail with 12x optical zoom and 10x digital zoom. Or, display magnified images with the microscope adapter. Record audio with video using the built-in microphone. At 30 fps, video playback is seamless. And, there are convenient Freeze and Capture buttons. Plus, you can save lessons to an SD card1 or computer.

• Imaging Element: 1/2.7" CMOS, 2M pixel
• Resolution: HD 1080p
• Lens: 3.4-5

Model: V12H758020

Camera:

• Output Signals / Resolution:
• VGA: SXGA (1280 x 1024), XGA (1024 x 768),WXGA (1280 x 800), HD (1360 x 768), 1080p (1920 x 1080)
• USB: VGA, SVGA, XGA, SXGA, WXGA, 720p, 1080p
• HDMI: 480p/720p/1080p
• Frame Rate: 30 fps max.
• Imaging Element:
  • Pick-up device: 1/2.7" CMOS sensor
  • Effective pixels: 1920 x 1080, 2 megapixels
  • White Balance: Auto
  • Exposure: Adjustable
  • Brightness: Adjustable
• Lighting Source:
  • Upper: White LED x 2
  • Brightness: 250 lx or above @ A3 shooting area

Optics:

• Lens: F-number: 3.4-5
• Capture Area: Max: 11.7" x 20.7" (at 1080p); 11.7" x 16.5" (at XGA)
• Zoom: 10x digital zoom, 12x optical zoom
• Focus: Automatically with one-touch button
• Iris: 250 lx or above @ A3 shooting area

Functions:

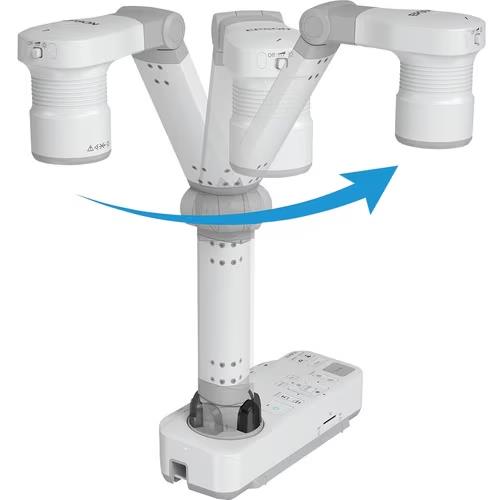

• Image Rotation: Camera Head Rotation: 180 degrees (Horizontal/Vertical)
• Internal Memory: SD card slot (SD/SDHC only)1
• User Functions: Zoom, Freeze, Auto Focus, Focus Lock, LED, Brightness, Contrast, Negative, Black and White, Split Screen, Playback, Video Capture, Digital Scroll (pan/tilt), Flicker Reduction, Image Rotation, Source (PC/ DC), Auto-detect Aspect, Video Recording, Video Playing

Input Terminal:

• HDMI
• Computer In (VGA)
• Display Out (VGA)
• USB-B (for connection to PC/Mac®)
• SD Card Slot1

What's in the box:

• DC-21 Document Camera
• AC power adapter with cord
• USB cable
• Application software CD
• Remote control
• (2) AA batteries
• VGA cable
• Microscope adapter
• User's Guide CD
• Quick Start Guide
• Warranty card
• Soft carrying case
