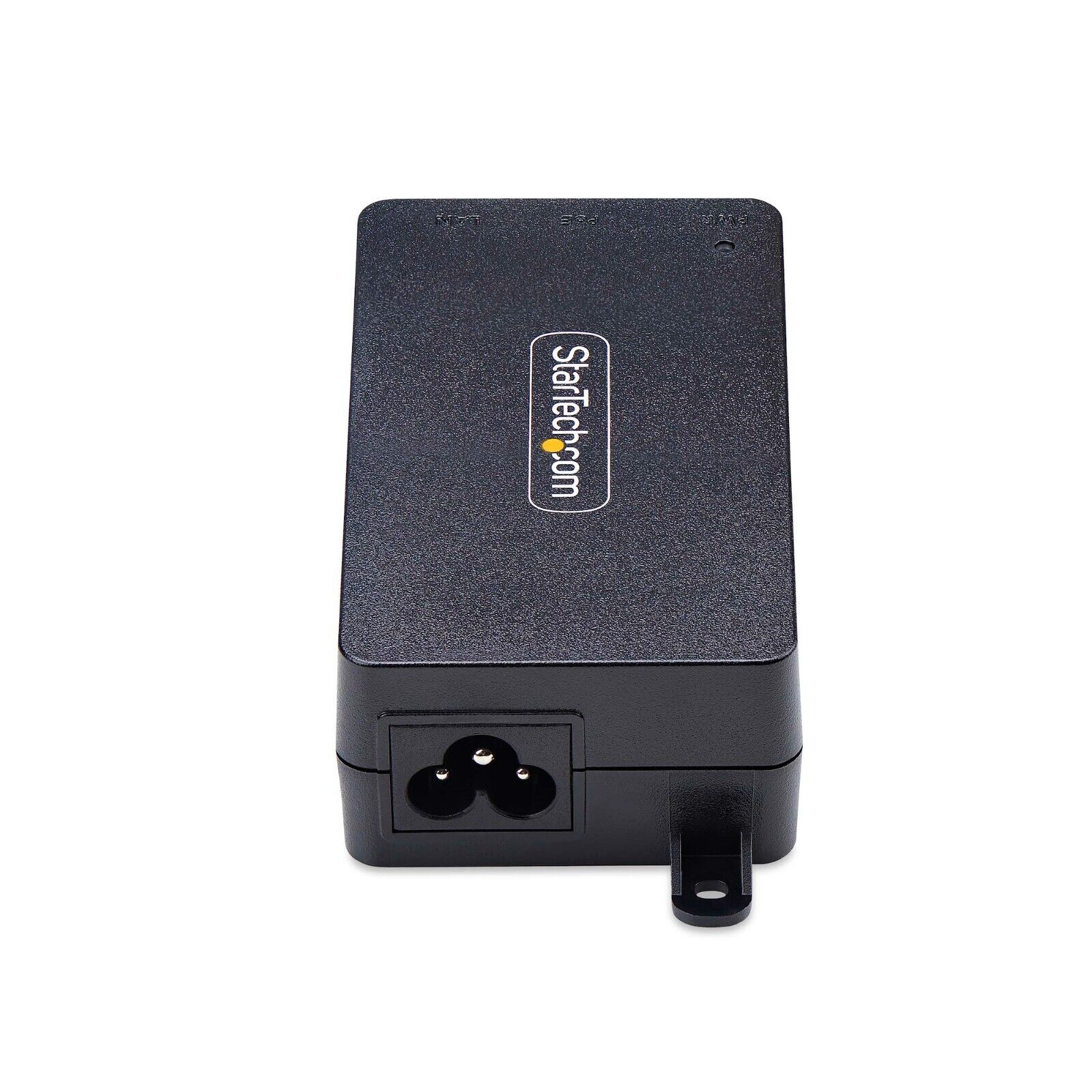

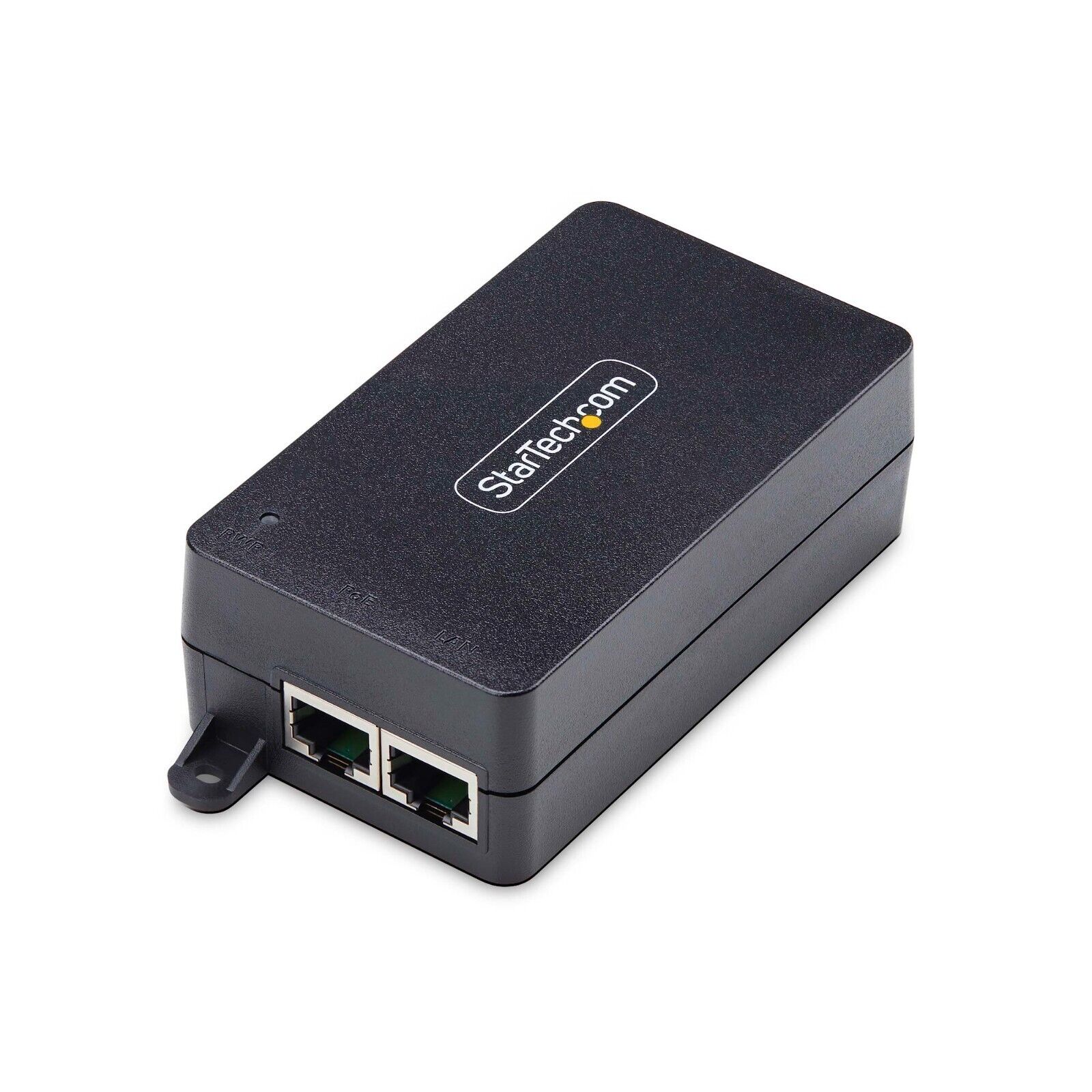

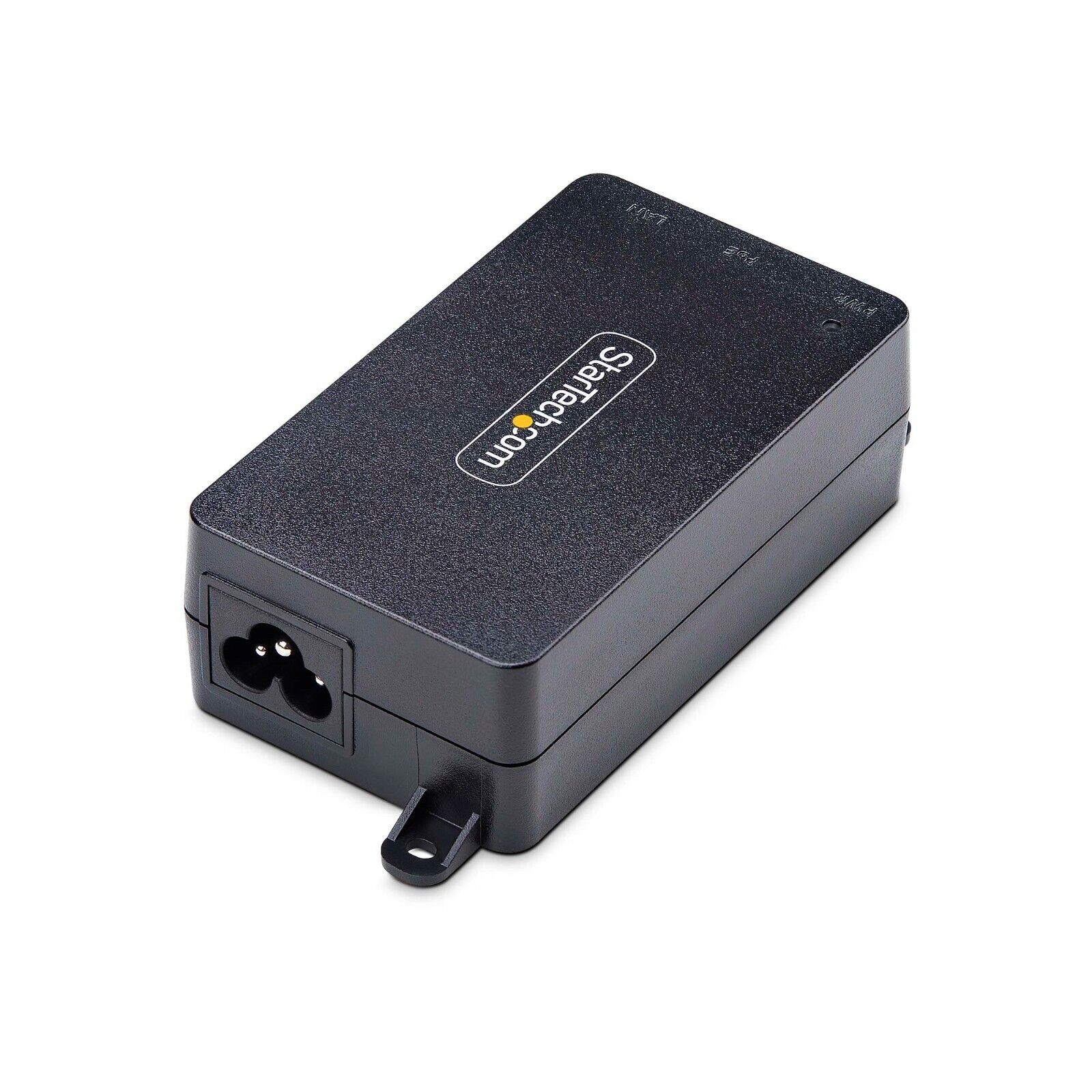

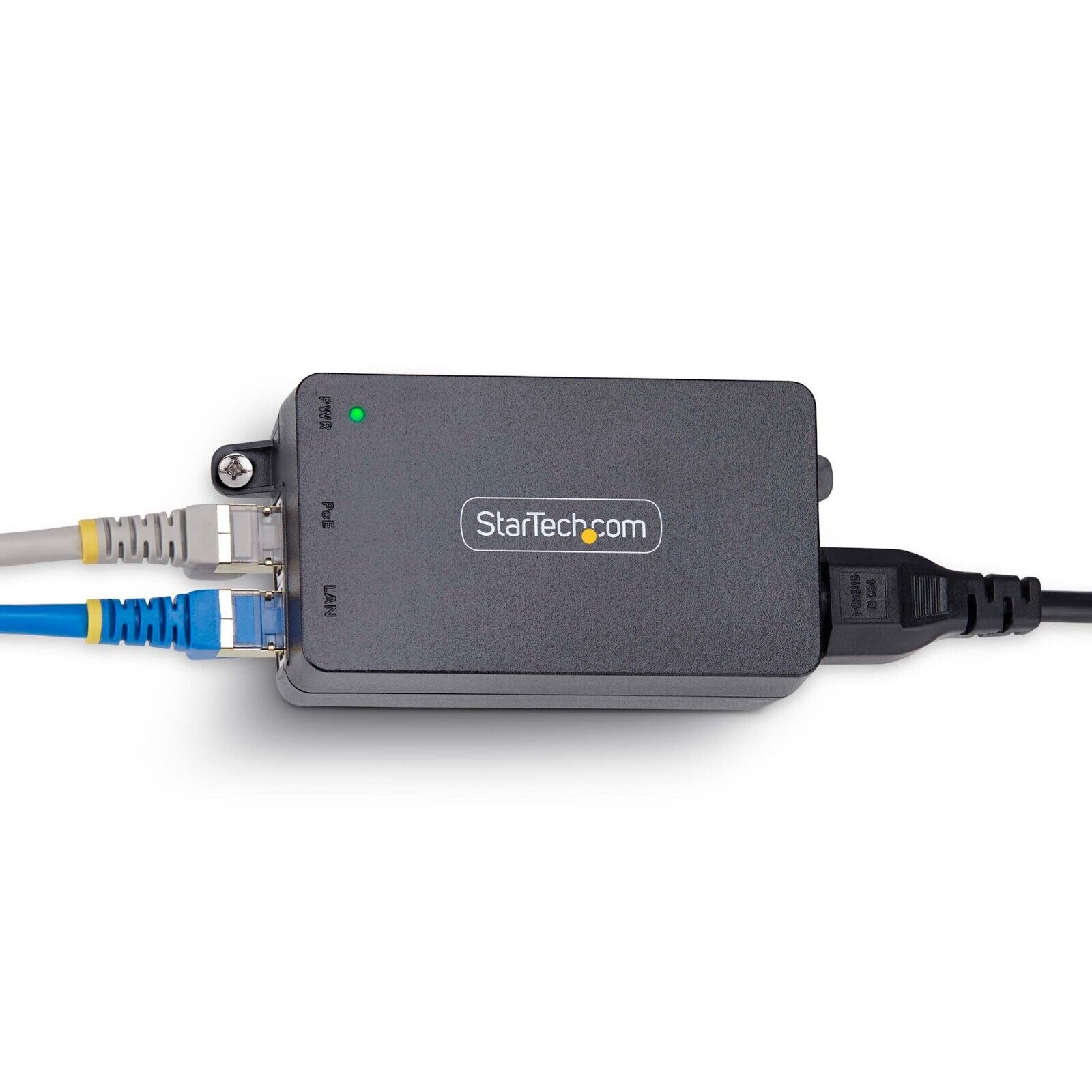

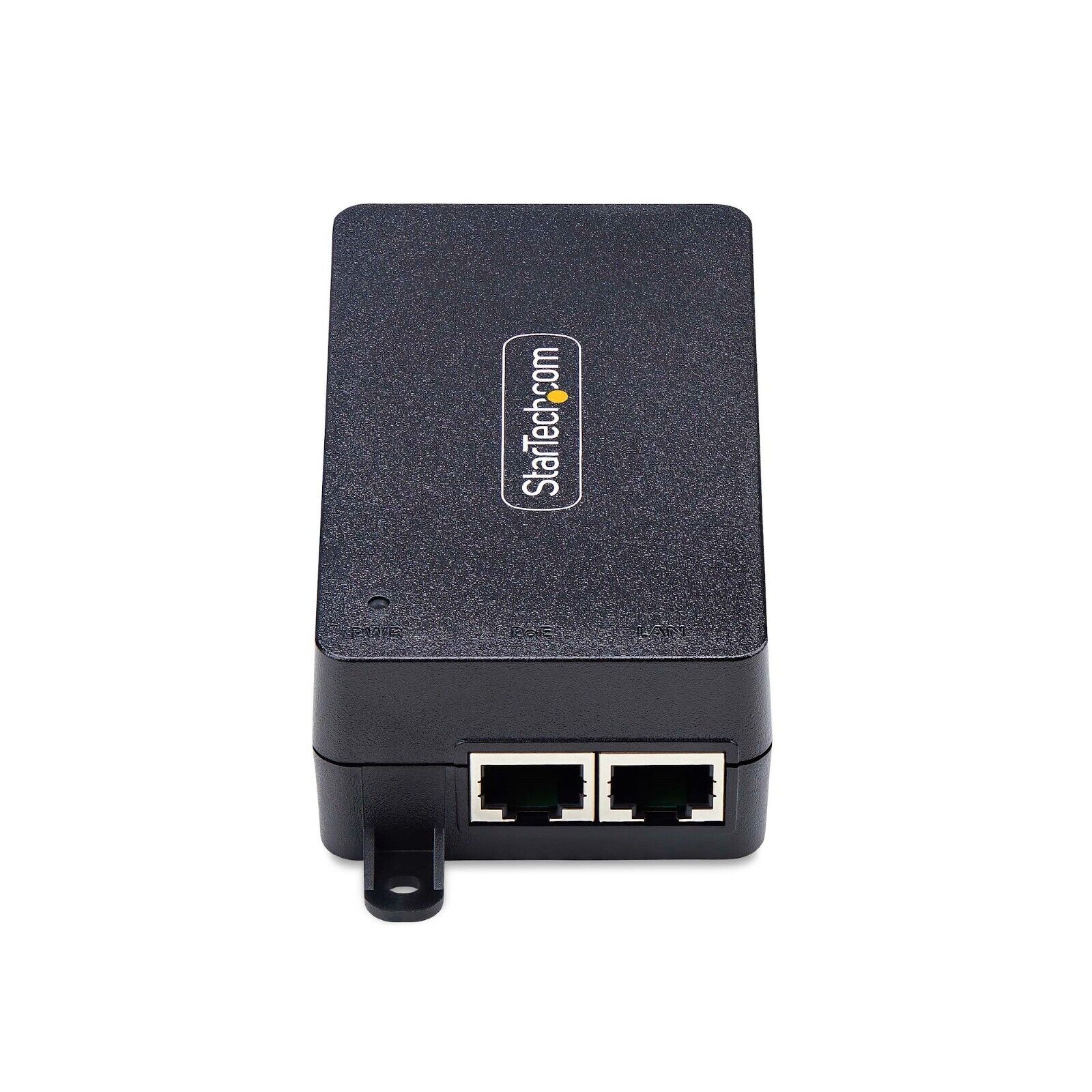

StarTech AF211C-POE-INJECTOR 1-Port Gigabit PoE+ Injector 30W Power Unmanaged
Current product
Current
Vendor:
Startech
StarTech AF211C-POE-INJECTOR 1-Port Gigabit PoE+ Injector 30W Power Unmanaged
Regular price
$52.65 USD
Sale price
$52.65 USD
Regular price
$43.99 USD
Options
Descriptions
1-Port Gigabit PoE+ Injector, 10M/100M/1G Ethernet, PoE/PoE+ (802.3af/802.3at), 30W Power Budget, Wall Mountable, Unmanaged Inline Power Over Ethernet - TAA
Supply power and data to a remote Powered Device (PD) with this PoE/PoE+ injector
Product ID: AF211C-POE-INJECTOR
..
Warranty Information
Warranty
2 Years
Connector(s)
Connector A
1 - RJ-45 (PoE+)
Connector B
1 - RJ-45
External Ports
1 - IEC 60320 C6
Environmental
Operating Temperature
32°F to 122°F (0°C to 50°C)
Storage Temperature
14°F to 158°F (-10°C to 70°C)
Humidity
5~95% RH (Non-Condensing)
Hardware
Ports
1
Industry Standards
IEEE 802.3at Type 2 / PoE+ (30 W)
IEEE 802.3af Type 1 / PoE (15.4 W)
IEEE 802.3ab (1000BASE-T)
IEEE 802.3u (100BASE-TX)
IEEE 802.3i (10BASE-T)
IEC 61000-4-2 Level-4 ESD protection (8kV contact/15kV air)
IEEE 802.3af Type 1 / PoE (15.4 W)
IEEE 802.3ab (1000BASE-T)
IEEE 802.3u (100BASE-TX)
IEEE 802.3i (10BASE-T)
IEC 61000-4-2 Level-4 ESD protection (8kV contact/15kV air)
Chipset ID
Monolithic Power Systems - MP3924
Indicators
LED Indicators
1 - Power LED:
Steady Green - Power is being supplied to the PoE Injector
Off - No power is being supplied to the PoE Injector
Steady Green - Power is being supplied to the PoE Injector
Off - No power is being supplied to the PoE Injector
Packaging Information
Package Height
2.0 in [5.0 cm]
Package Length
8.3 in [21.0 cm]
Shipping (Package) Weight
13.0 oz [368.0 g]
Package Width
4.9 in [12.4 cm]
Package Quantity
1
Performance
Wake On Lan
Yes
Maximum Data Transfer Rate
1000 Mbps
Maximum Cable Length
328.0 ft [100 m]
ESD Protection
+/-8kV (Contact)
+/-15kV (Air)
Compatible Networks
10/100/1000 Mbps
Auto MDIX
Yes
PXE
Yes
Jumbo Frame Support
9K max.
Supported Protocols
Wake-on-LAN (WoL)
Physical Characteristics
Color
Black
Product Height
1.3 in [3.3 cm]
Product Length
3.9 in [10.0 cm]
Weight of Product
3.5 oz [100.0 g]
Product Width
2.3 in [5.8 cm]
Material
Plastic
Power
Power Source
Standard 120V Power Cords
Input Voltage
100 - 240 AC
Input Current
0.8 A
Output Voltage
54 DC
Output Current
0.6 A
Power Consumption (In Watts)
32.4
Software
OS Compatibility
No drivers or software required

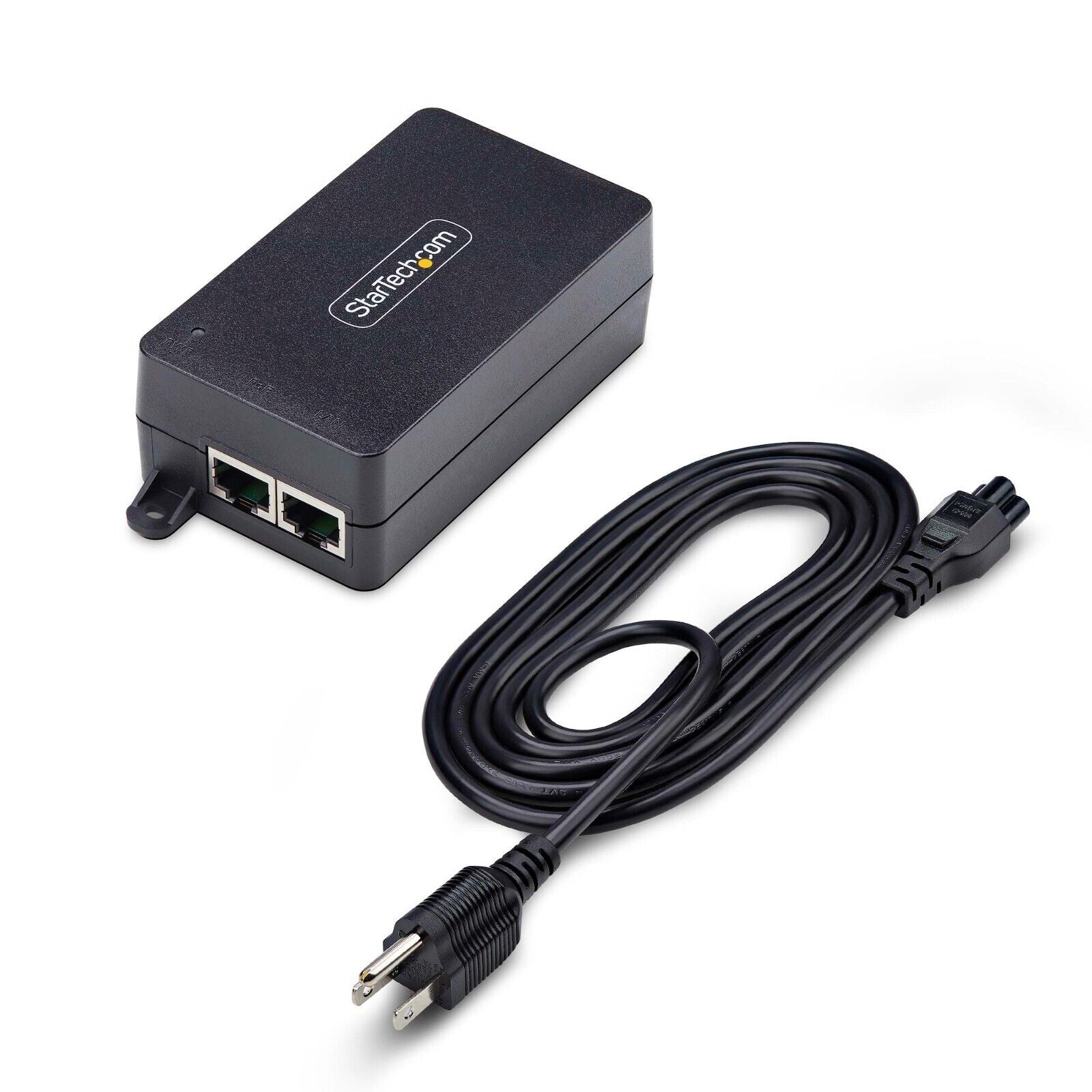

What's in the Box
Included in Package
1 - PoE Injector
1 - 6ft (1.8m) NA Power Cord
1 - Quick-Start Guide
