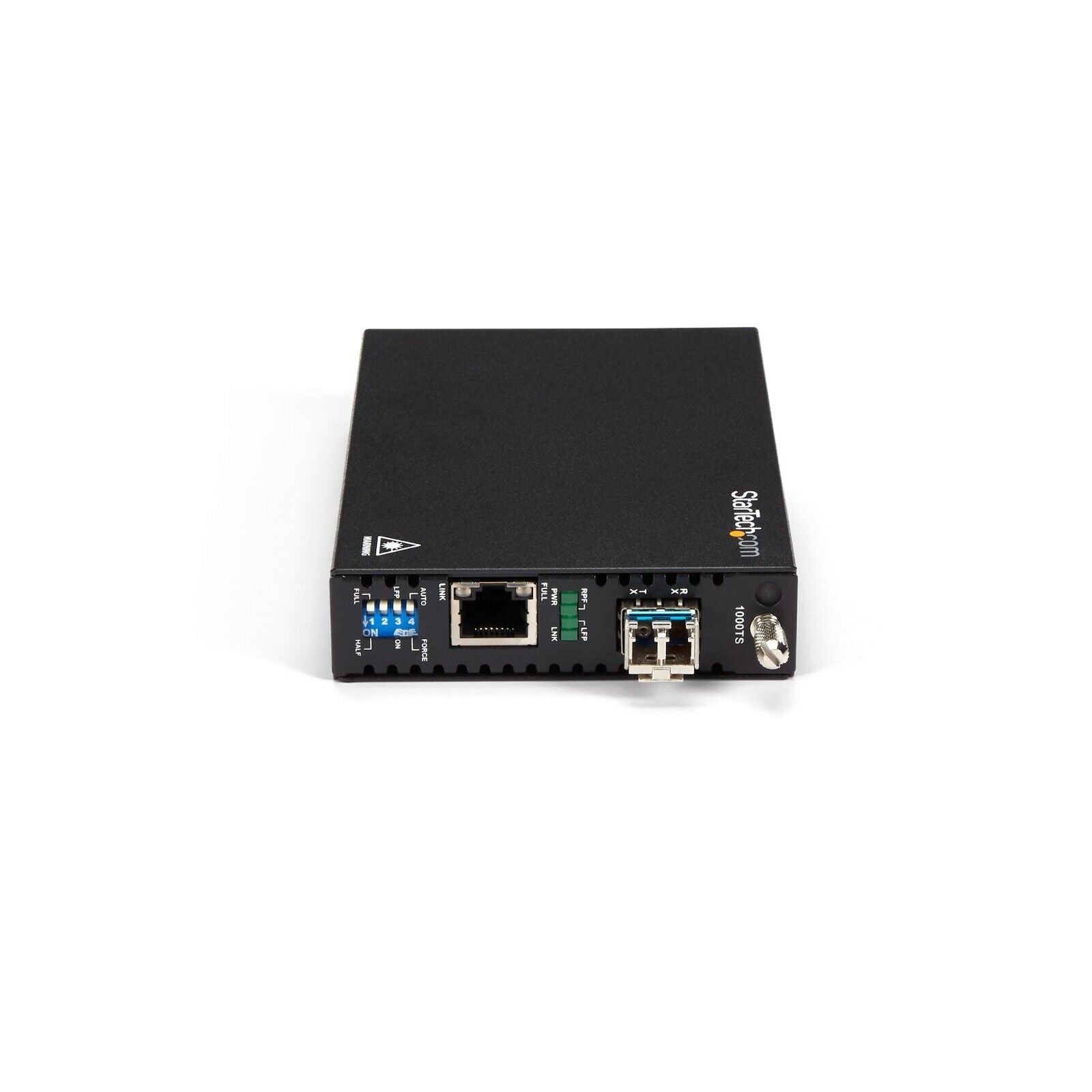

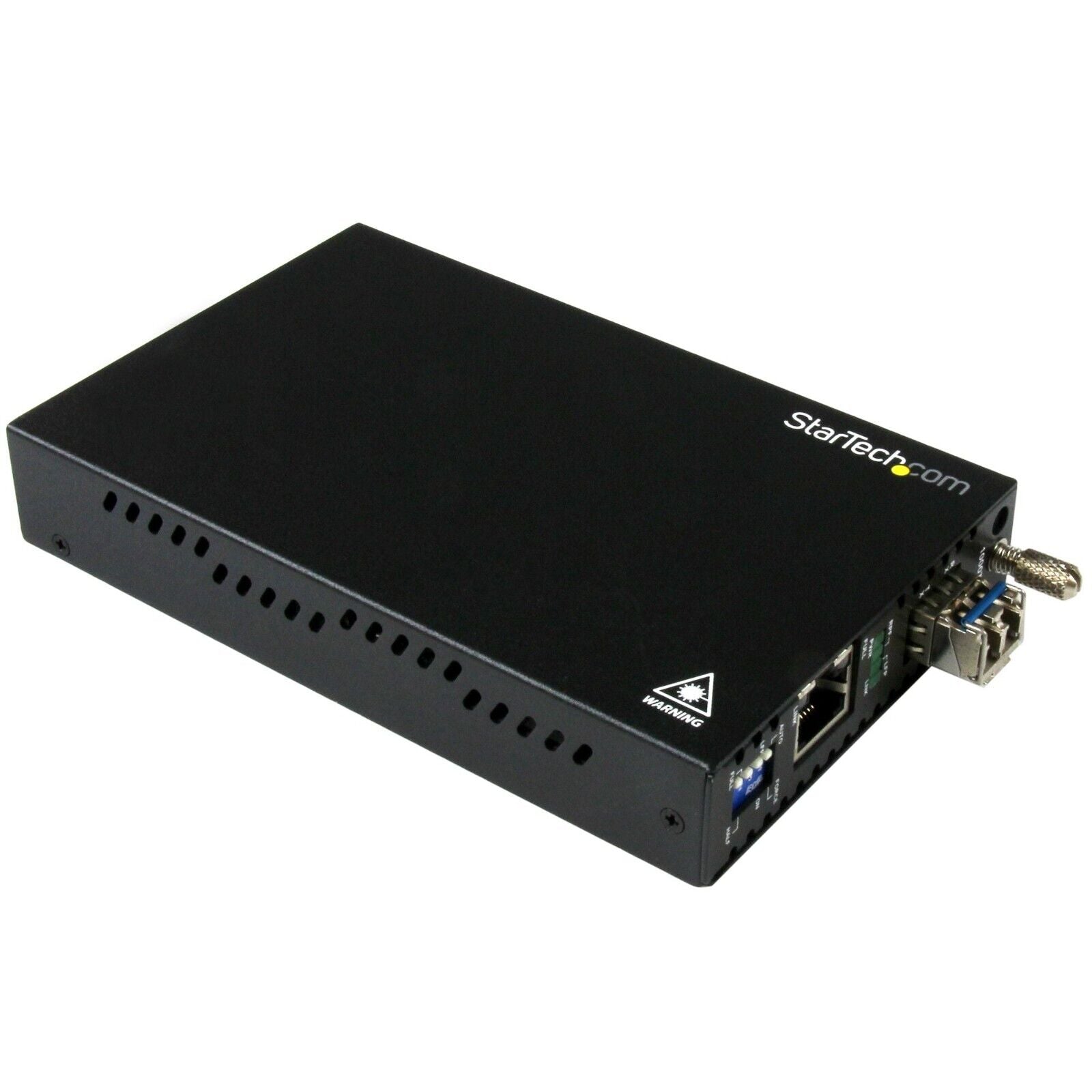

StarTech ET91000SM20 Gigabit Ethernet Copper to Fiber Media Converter SM LC 20Km
Regular price
$263.93 USD
Sale price
$263.93 USD
Regular price
$236.99 USD
Description
Couldn't load pickup availability
StarTech ET91000SM20 Gigabit Ethernet Copper to Fiber Media Converter SM LC 20Km
Current product
Current
Vendor:
Startech
StarTech ET91000SM20 Gigabit Ethernet Copper to Fiber Media Converter SM LC 20Km
Regular price
$263.93 USD
Sale price
$263.93 USD
Regular price
$236.99 USD
Options
Descriptions
Gigabit Ethernet Copper-to-Fiber Media Converter - SM LC - 20 km - TAA
Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable
Product ID: ET91000SM20
..
Warranty Information
Warranty
2 Years
Connector(s)
Local Unit Connectors
1 - Fiber Optic LC Duplex
1 - RJ-45
Environmental
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
10~90% RH (Non-condensing)
Hardware
PoE
No
WDM
No
Industry Standards
IEEE 802.3ab (1000BASE-T)
IEEE 802.3z (1000BASE-LX)
Indicators
LED Indicators
1 - PWR
1 - RPF
1 - LFP
1 - LNK
1 - LINK - RJ45
1 - FULL - RJ45
Packaging Information
Package Height
3.5 in [8.8 cm]
Package Length
8.2 in [20.8 cm]
Shipping (Package) Weight
1.7 lb [0.8 kg]
Package Width
5.4 in [13.8 cm]
Performance
Maximum Data Transfer Rate
2 Gbps (Full-Duplex)
Max Transfer Distance
20 km (12.4 mi)
Type
Single Mode
Wavelength
1310nm
Fiber Operating Mode
Half/Full-Duplex
Flow Control
None
Remote Management Ability
No
Compatible Networks
1000 Mbps (1 Gbps)
Auto MDIX
Yes
Jumbo Frame Support
9.6K max.
Switching Architecture
None
MTBF
65,000 Hours
Physical Characteristics
Color
Black
Material
Steel
Product Length
5.5 in [13.9 cm]
Product Width
3.5 in [8.8 cm]
Product Height
0.9 in [2.3 cm]
Weight of Product
14.5 oz [410.0 g]
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.48 A
Output Voltage
12V DC
Output Current
1.6 A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
19.2
Special Notes / Requirements
System and Cable Requirements
The media converter can only be used with Gigabit SFP modules, and will not support 10/100Mbps modules.

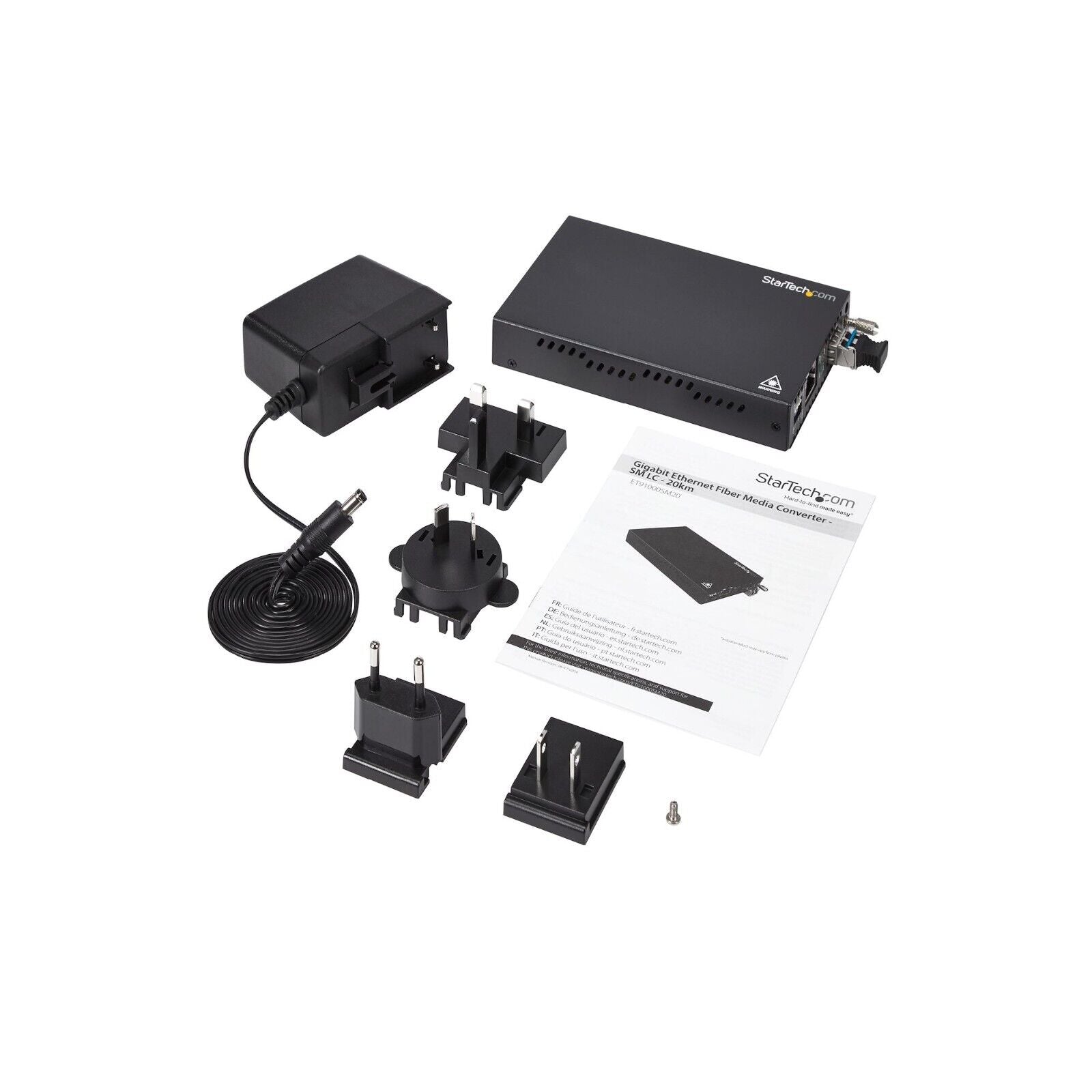

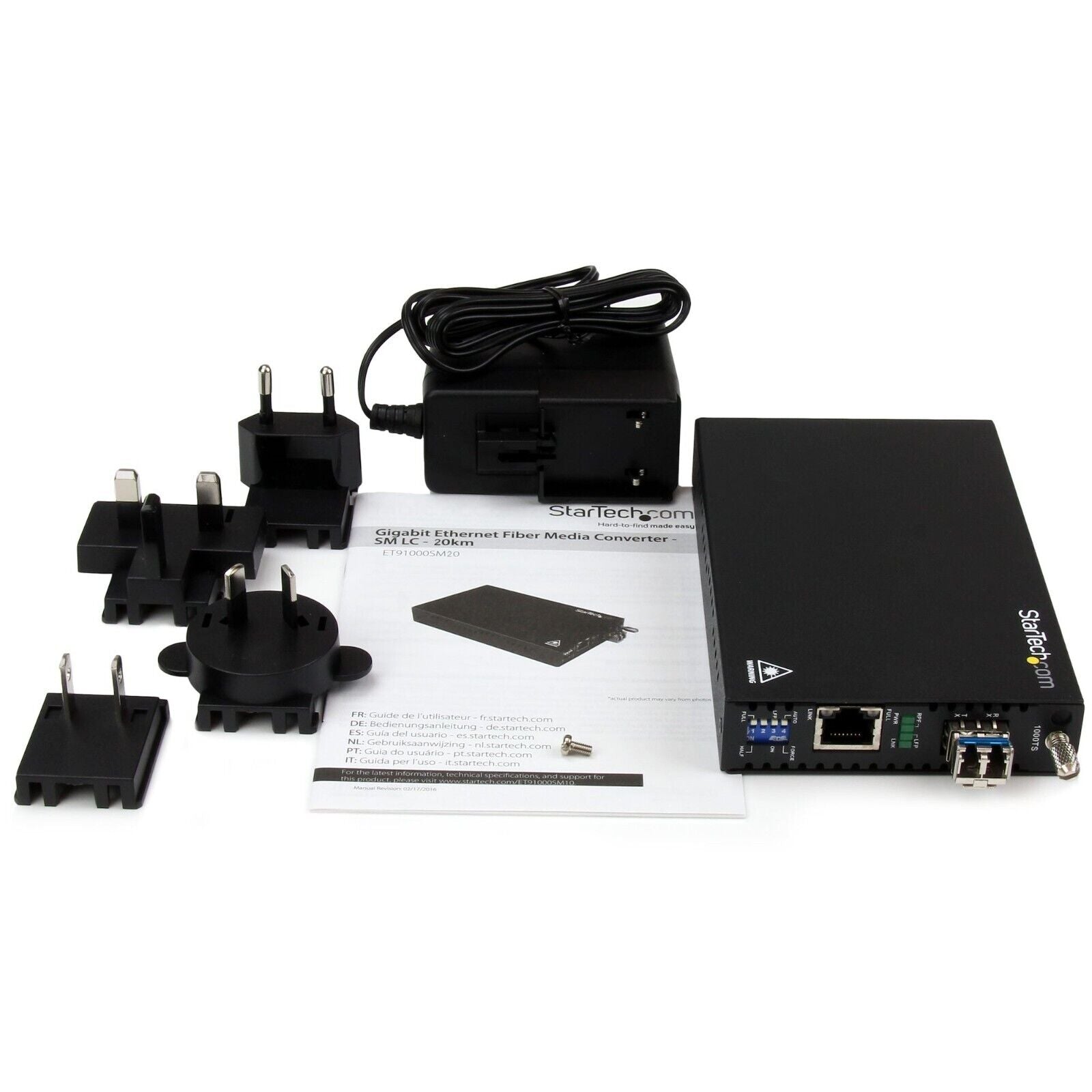

What's in the Box
Included in Package
1 - Gigabit Ethernet fiber media converter
1 - universal power adapter (NA/JP, EU, UK, ANZ)
1 - grounding screw
1 - instruction manual
